Product Description

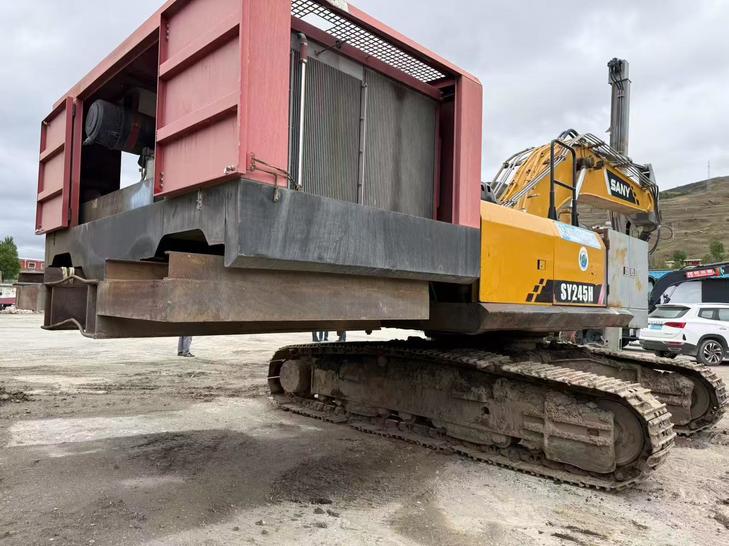

This 2019 Sany SY245H tracked excavator, currently located in Guangdong, China, has been professionally modified for piling operations with over 200,000 RMB invested in comprehensive attachments and upgrades. The machine comes fully equipped with complete piling accessories, making it immediately deployable for foundation work, sheet pile driving, and deep excavation projects.
- Year of Manufacture: 2019
- Model: Sany SY245H
- Configuration: Complete piling attachment package
- Condition: Professionally modified and maintained
- Location: Guangdong Province, China
- Application: Piling operations, foundation work, construction projects
The substantial investment in specialized piling equipment demonstrates the machine's readiness for demanding foundation applications. This turnkey solution eliminates the need for additional attachment procurement, offering immediate operational capability for contractors specializing in civil engineering and infrastructure development.
| Specifications | Value |
|---|---|
| No. | 1084736 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
