2019 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1

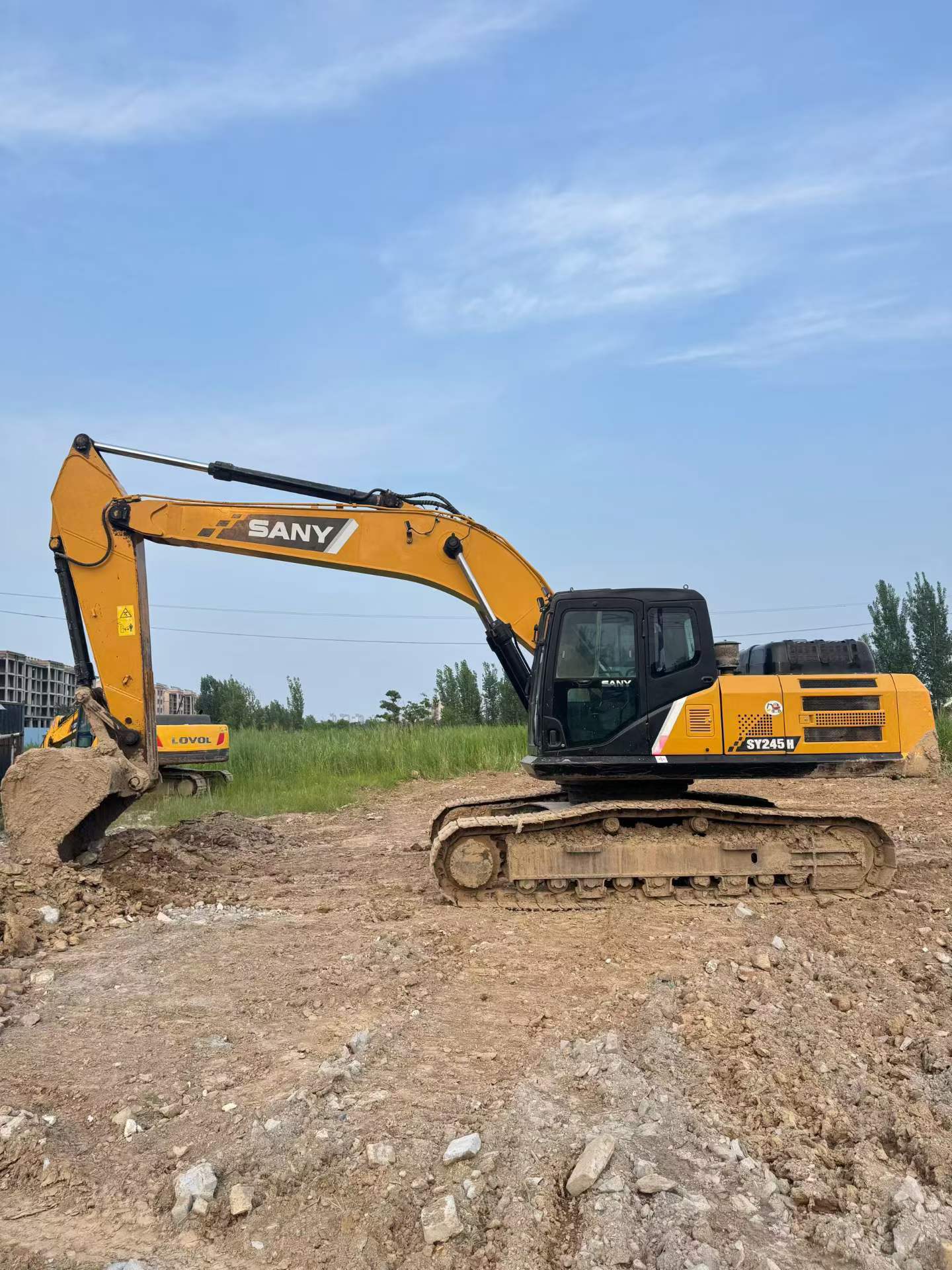

Buy Sany SY245H Used Excavator / 2

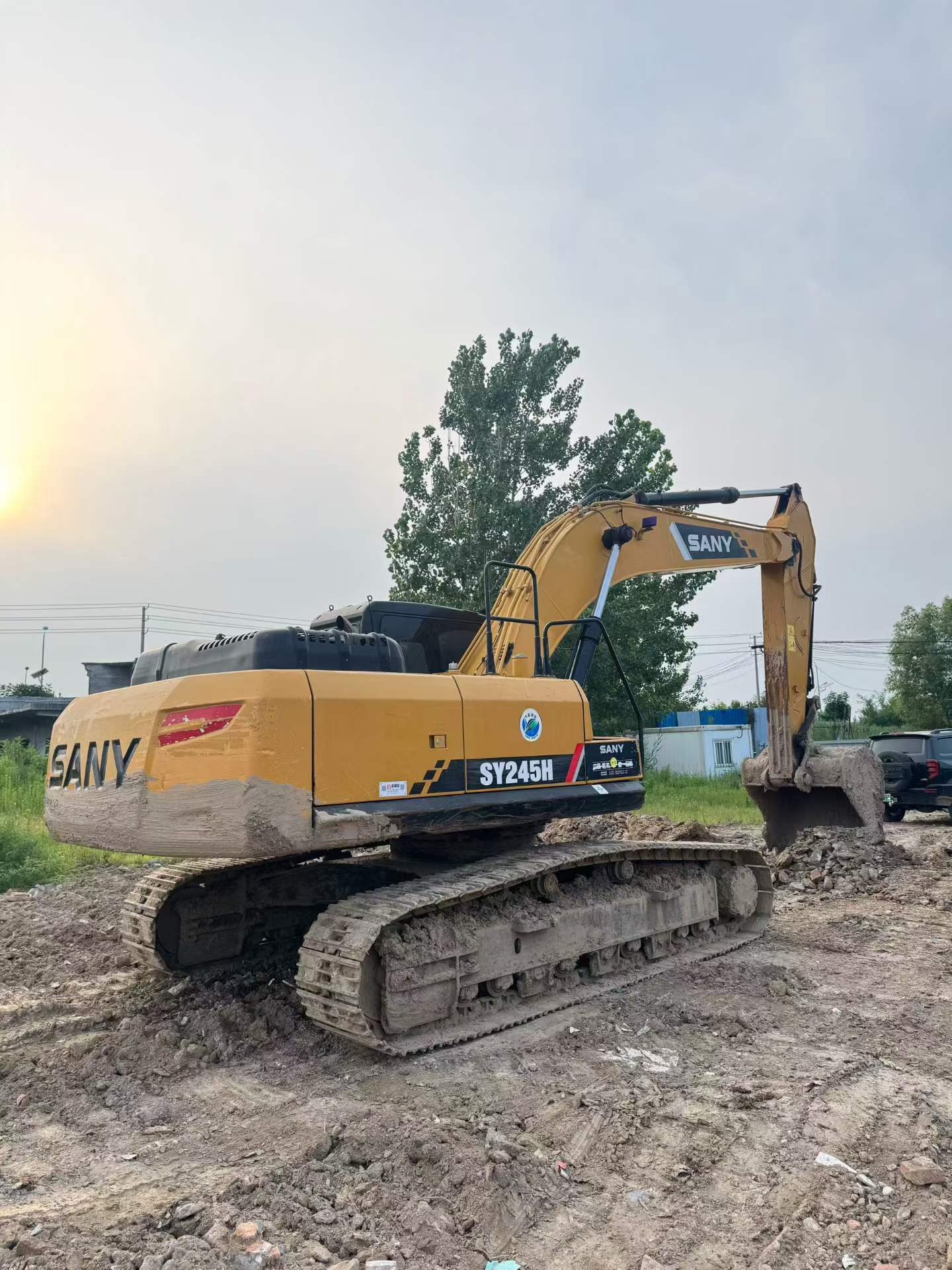

Buy Sany SY245H Used Excavator / 3

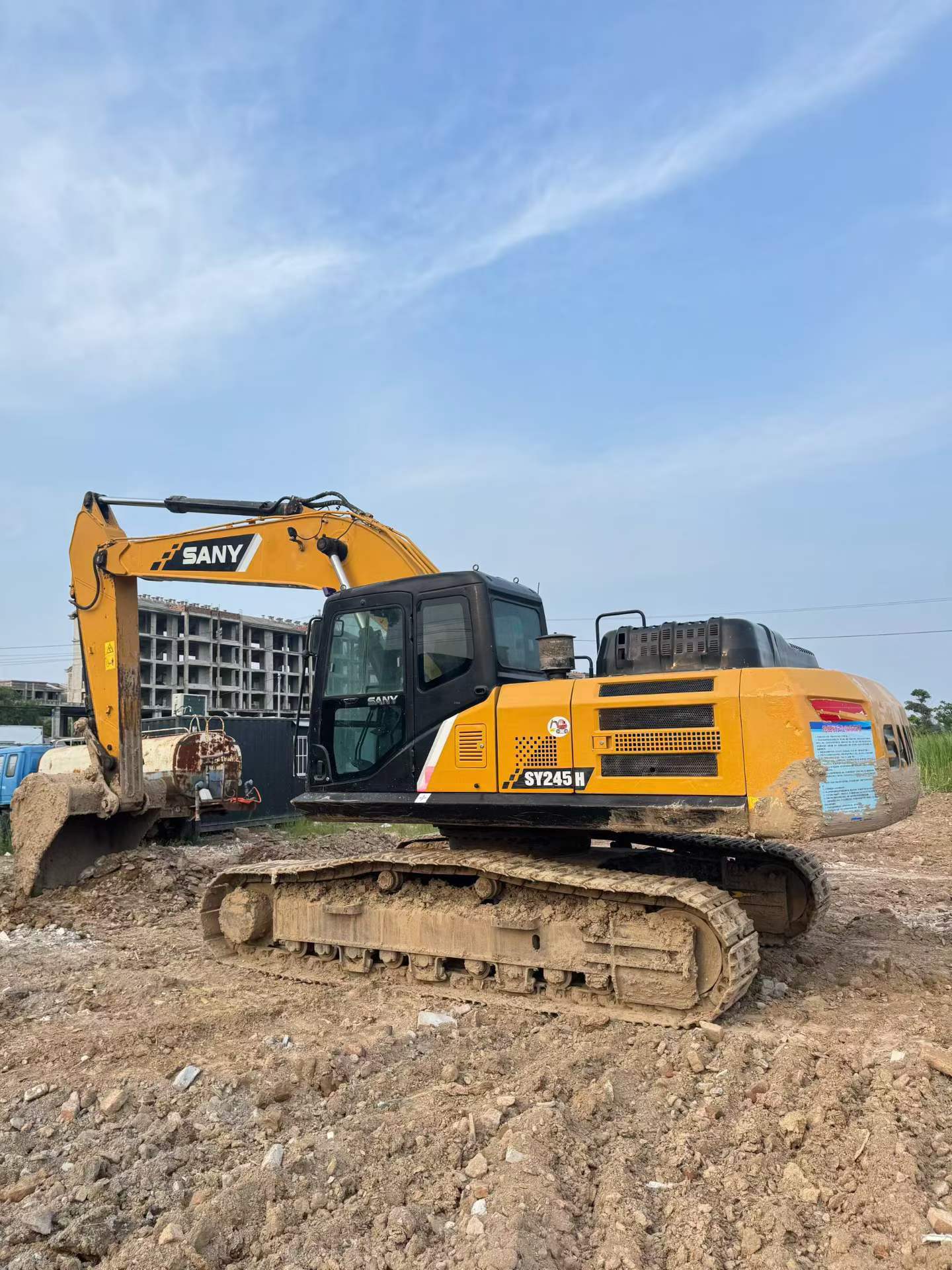

Buy Sany SY245H Used Excavator / 4

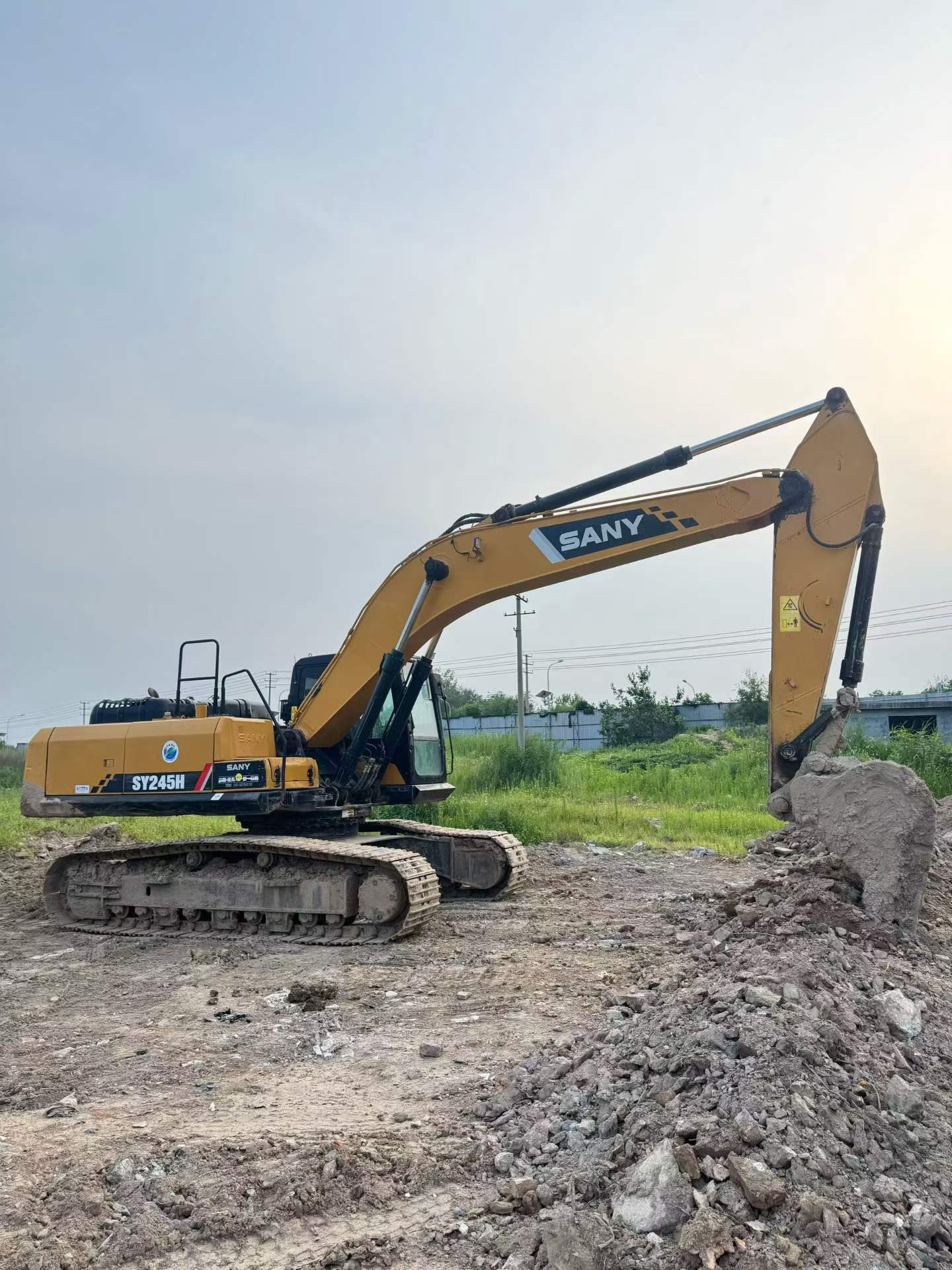

Buy Sany SY245H Used Excavator / 5

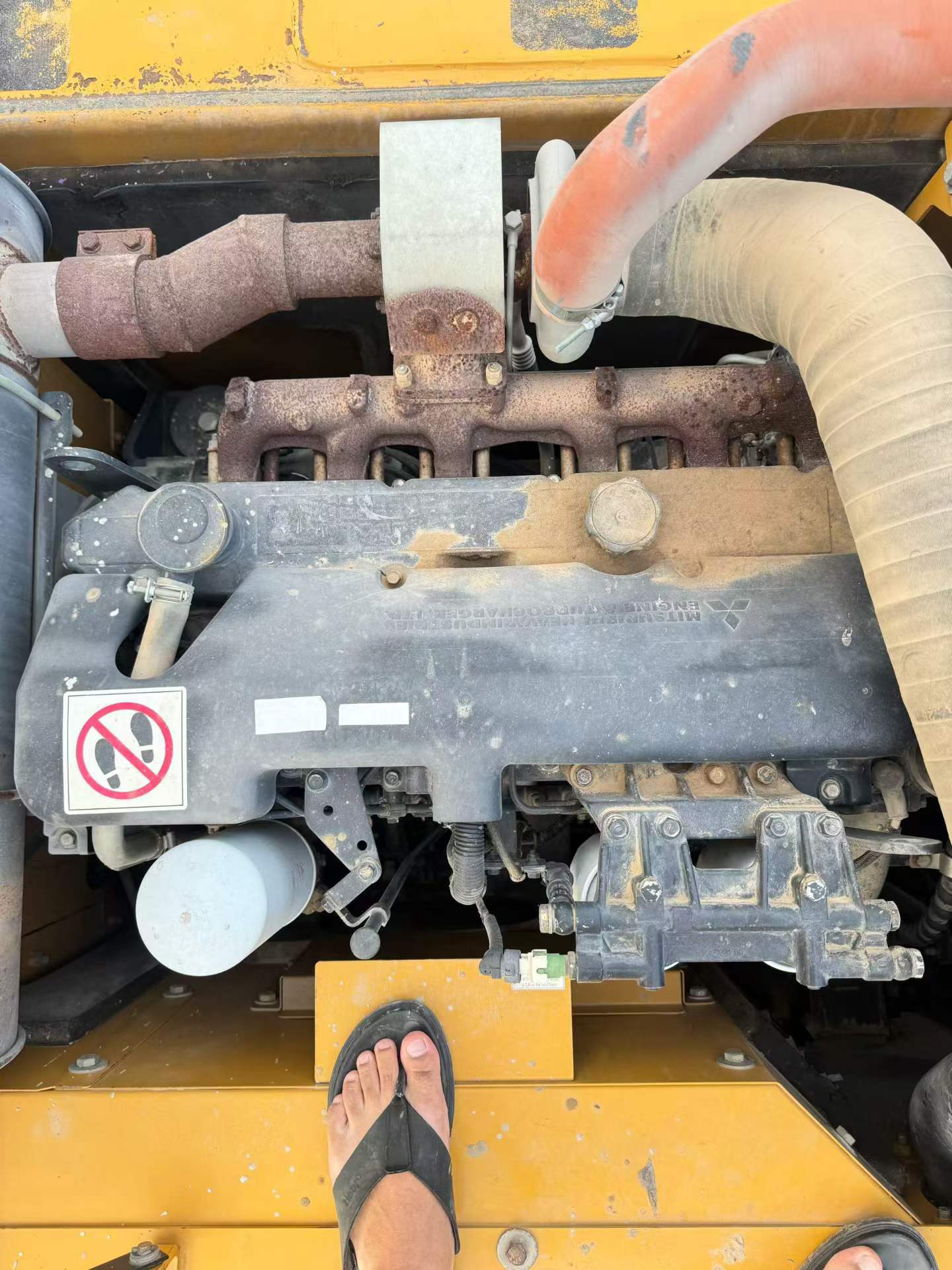

Buy Sany SY245H Used Excavator / 6

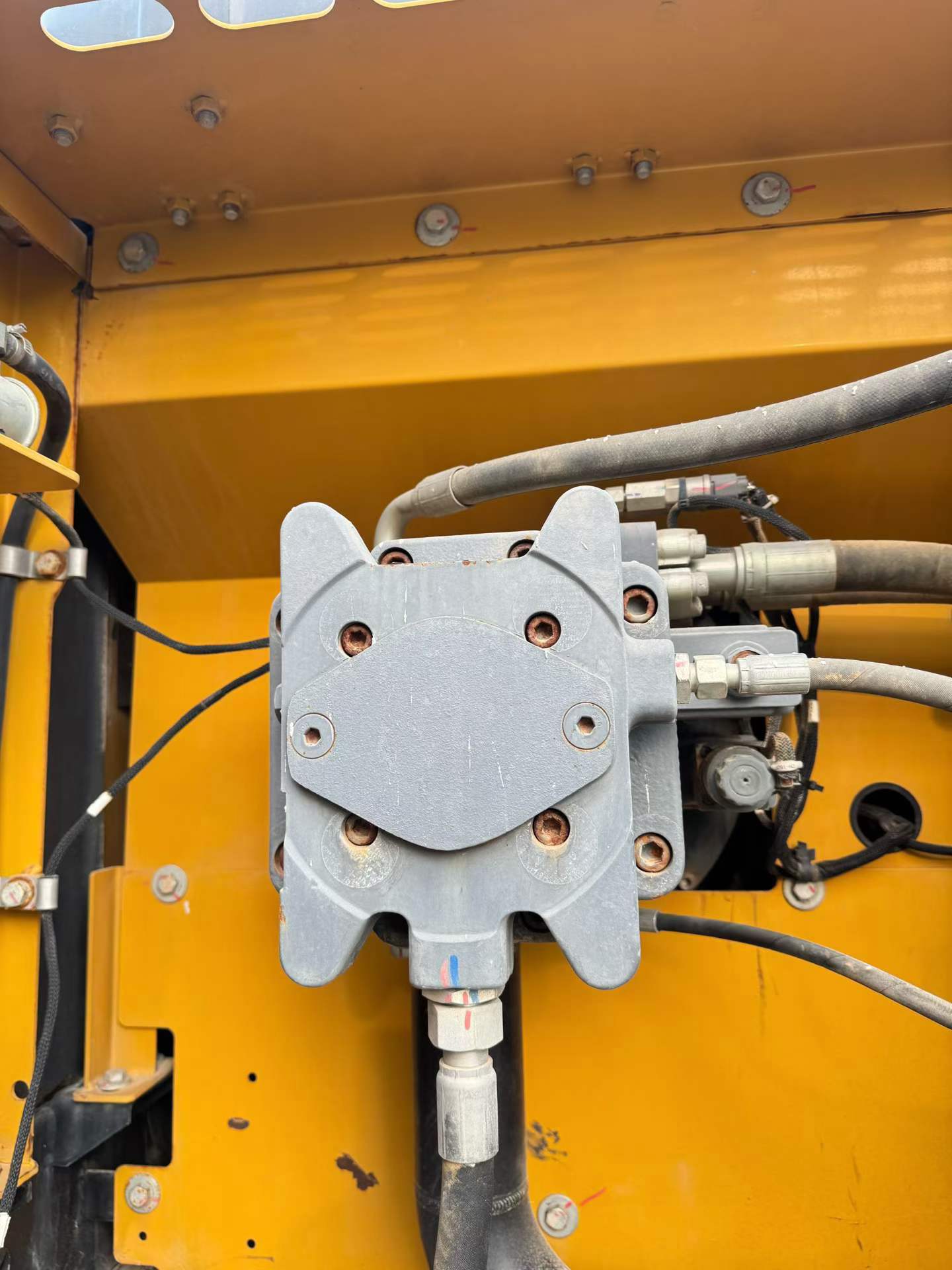

Buy Sany SY245H Used Excavator / 7

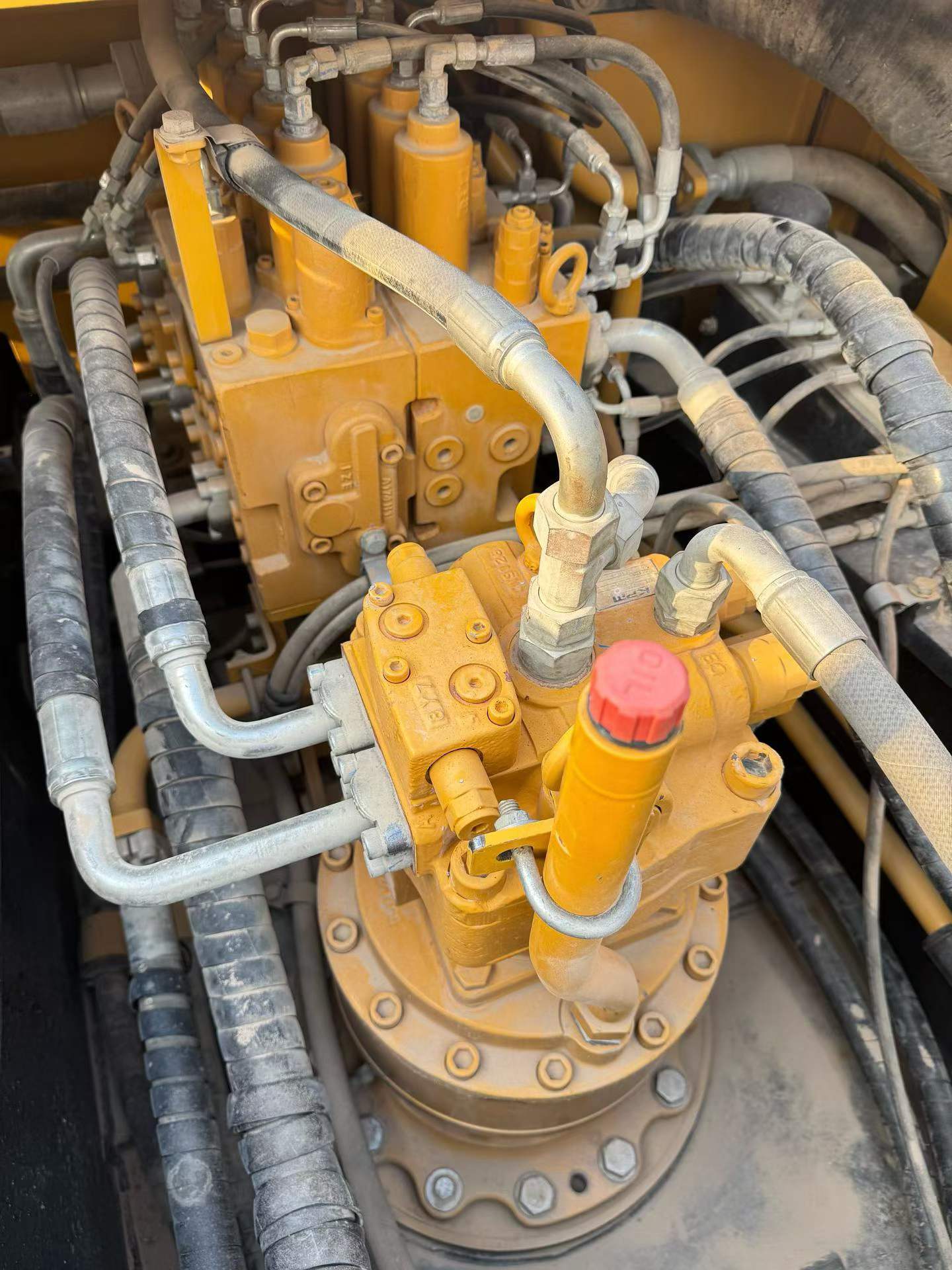

Buy Sany SY245H Used Excavator / 8

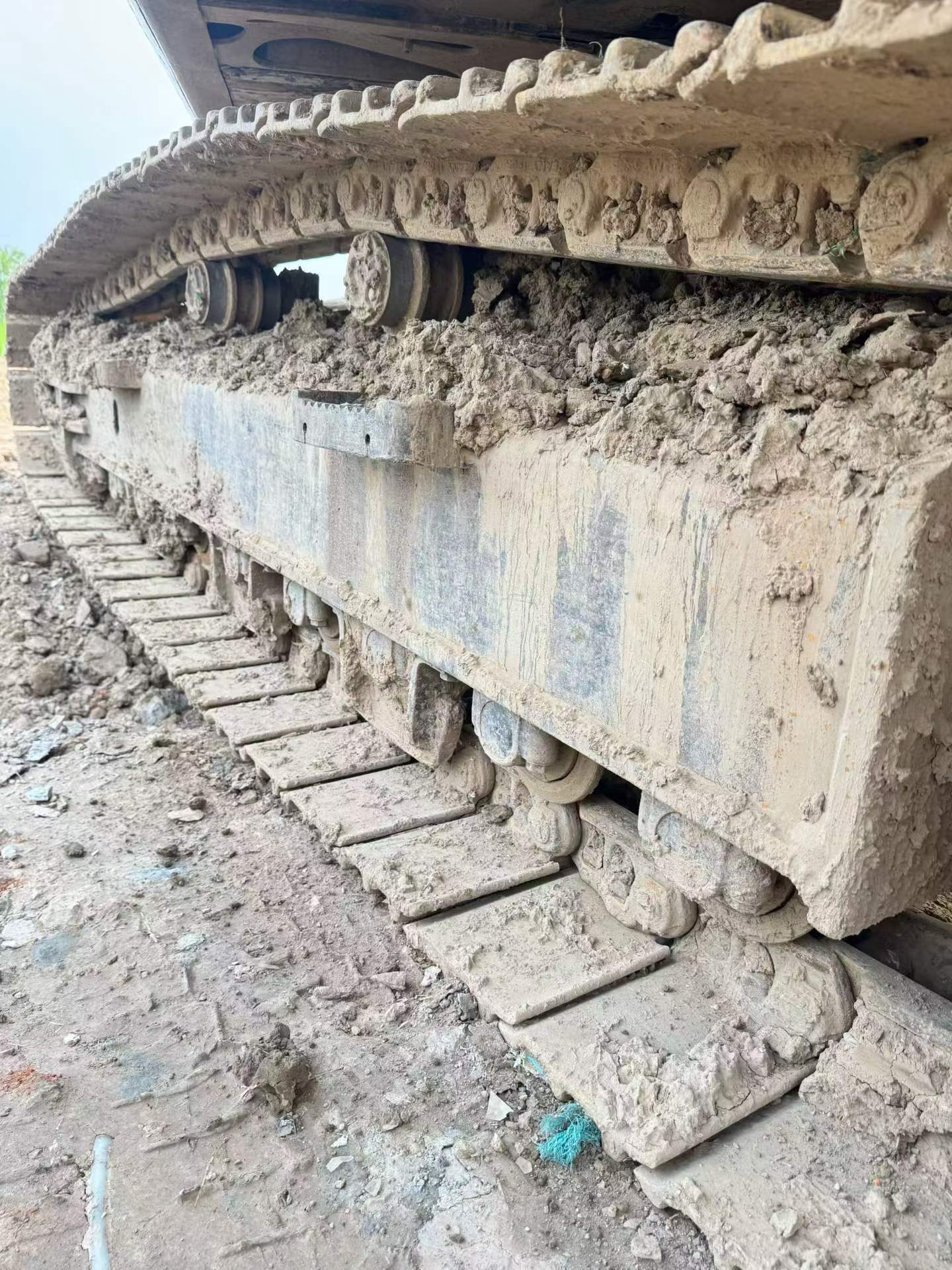

Buy Sany SY245H Used Excavator / 9

Product Description

This well-maintained 2019 Sany SY245H hydraulic excavator offers reliable performance for demanding earthmoving applications. With approximately 6,000 operational hours, this mid-size crawler excavator demonstrates excellent condition and is ready for immediate deployment. Currently located in Shandong, China, the machine comes with complete documentation for international export.

Key features include:

  • Original equipment maintained in exceptional condition
  • Low operational hours for model year
  • Proven Sany hydraulic system performance
  • Complete ownership documentation available
  • Suitable for construction, mining, and excavation projects

The SY245H represents Sany's commitment to durability and operational efficiency in the 24-ton excavator class. This unit has been thoroughly inspected and is available for pre-purchase verification. Ideal for contractors seeking dependable used equipment with strong performance characteristics at competitive pricing.

SpecificationsValue
No.1095038
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1095038

Brand Name:

Sany

Model Number:

SY245H

Year:

2019

Location:

Shandong China

Pub Date
