Product Description

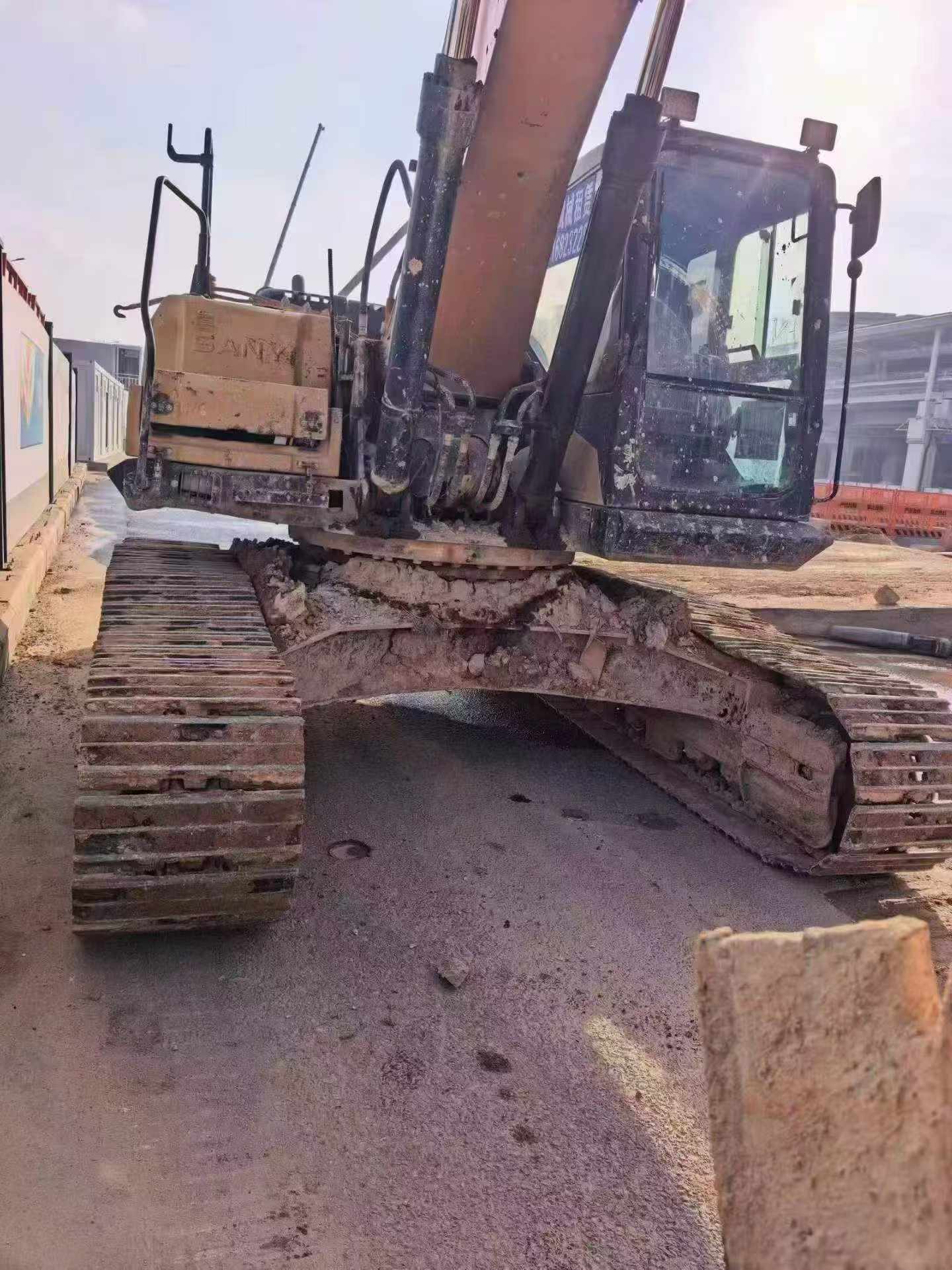

This 2019 Sany SY245H hydraulic excavator is currently available in Guangxi, China. As a mid-sized crawler excavator from Sany's established product line, the SY245H offers reliable performance for earthmoving, site preparation, and general construction applications. The machine has accumulated operational hours consistent with its age and represents a cost-effective option for contractors seeking proven excavator technology.

  • Year of Manufacture: 2019
  • Model: Sany SY245H
  • Configuration: Hydraulic crawler excavator
  • Current Location: Guangxi Province, China
  • Condition: Used, operational

Sany equipment is known for serviceable hydraulic systems and accessible parts supply throughout Asian markets. This unit is priced competitively for its year and model class. Inspection reports and shipping arrangements can be coordinated upon request. Suitable for buyers seeking mid-range excavation capacity with established brand support.

SpecificationsValue
No.1166377
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
