Product Description

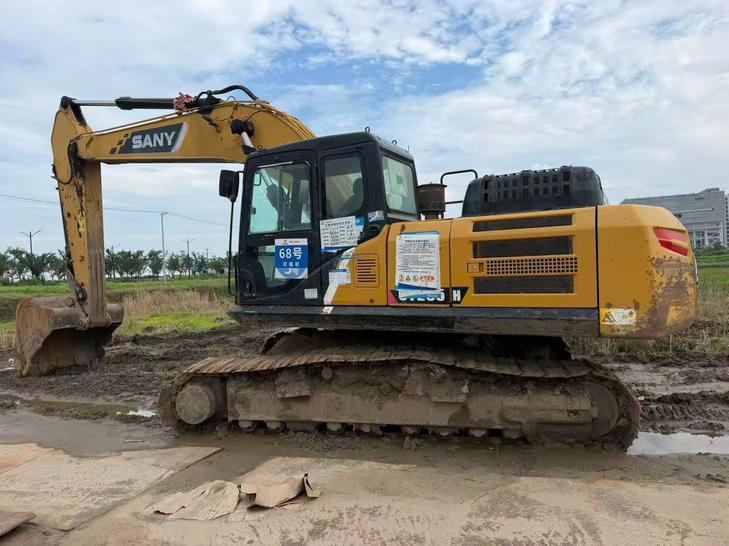

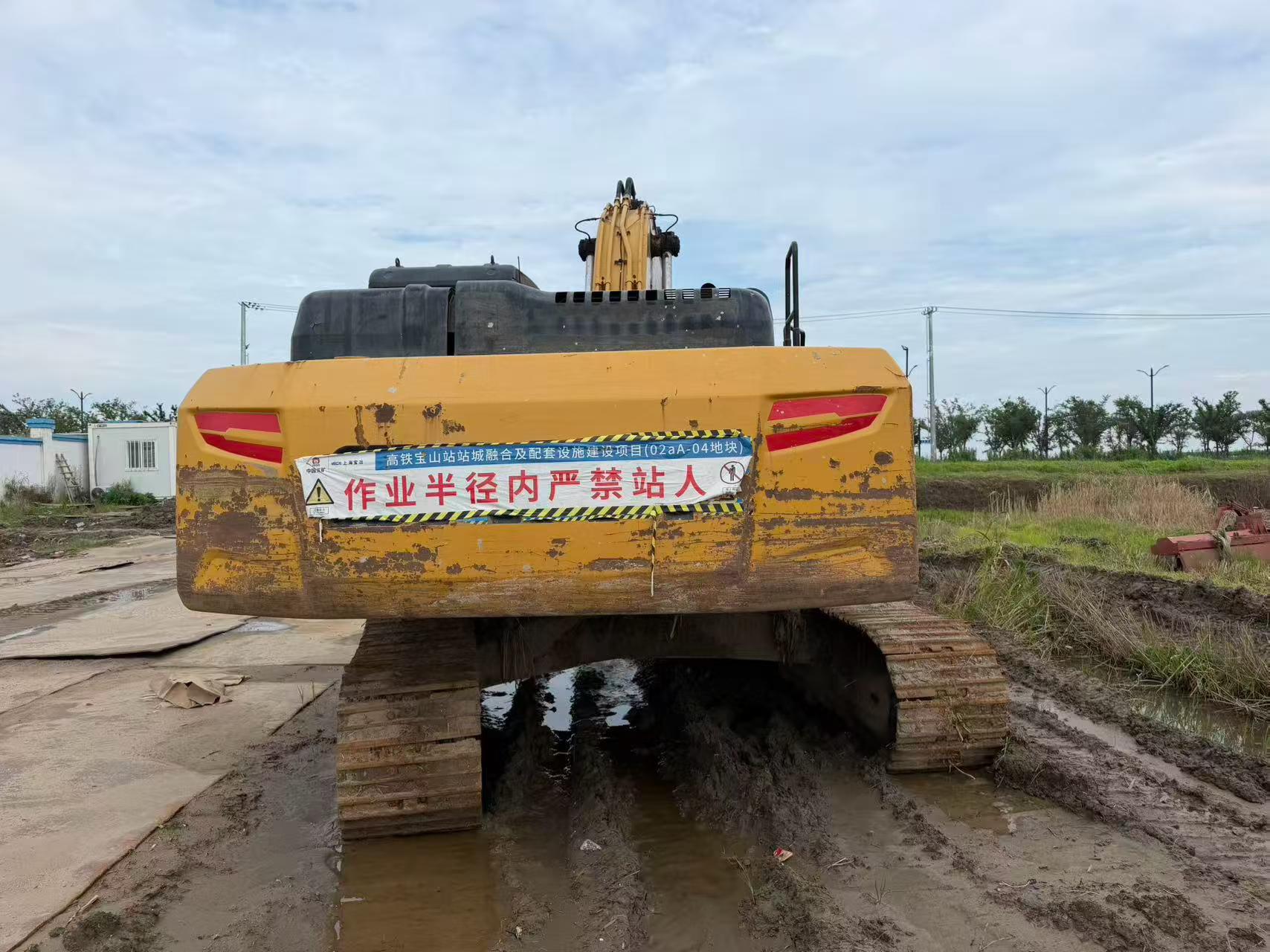

This 2019 Sany SY245H hydraulic excavator offers reliable performance for demanding excavation and earthmoving applications. Manufactured by Sany Heavy Industry, a leading Chinese construction equipment producer, this 24-ton class crawler excavator features a robust undercarriage and efficient hydraulic system designed for productivity in various working conditions.
Currently located in Zhejiang, China, this used machine represents practical value for contractors and equipment dealers seeking dependable mid-size excavation capacity. The SY245H is engineered with operator comfort and fuel efficiency in mind, making it suitable for infrastructure projects, site development, and general construction work.
- Year of Manufacture: 2019
- Model: Sany SY245H
- Machine Type: Hydraulic Crawler Excavator
- Location: Zhejiang Province, China
- Condition: Used
Available for inspection by qualified buyers and export-ready for international markets.
| Specifications | Value |
|---|---|
| No. | 1166665 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
