Product Description
This 2019 Sany SY245H hydraulic excavator offers reliable performance for medium to heavy-duty applications. Manufactured in July 2019, this unit comes with documented service history and represents solid value in the used equipment market at 248,000 RMB. Currently located in Zhejiang, China, the machine is available for immediate inspection and delivery coordination.
The SY245H is part of Sany's proven excavator lineup, designed for durability and operational efficiency in construction, mining, and earthmoving projects. This model features Sany's robust hydraulic system and operator-focused cab design.
- Year of Manufacture: July 2019
- Operating Weight Class: 24-ton
- Location: Zhejiang Province, China
- Price: 248,000 RMB
- Condition: Used, operational
Suitable for contractors seeking dependable mid-range excavation capacity. Inspection reports and additional documentation available upon request.
| Specifications | Value |
|---|---|
| No. | 1167871 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

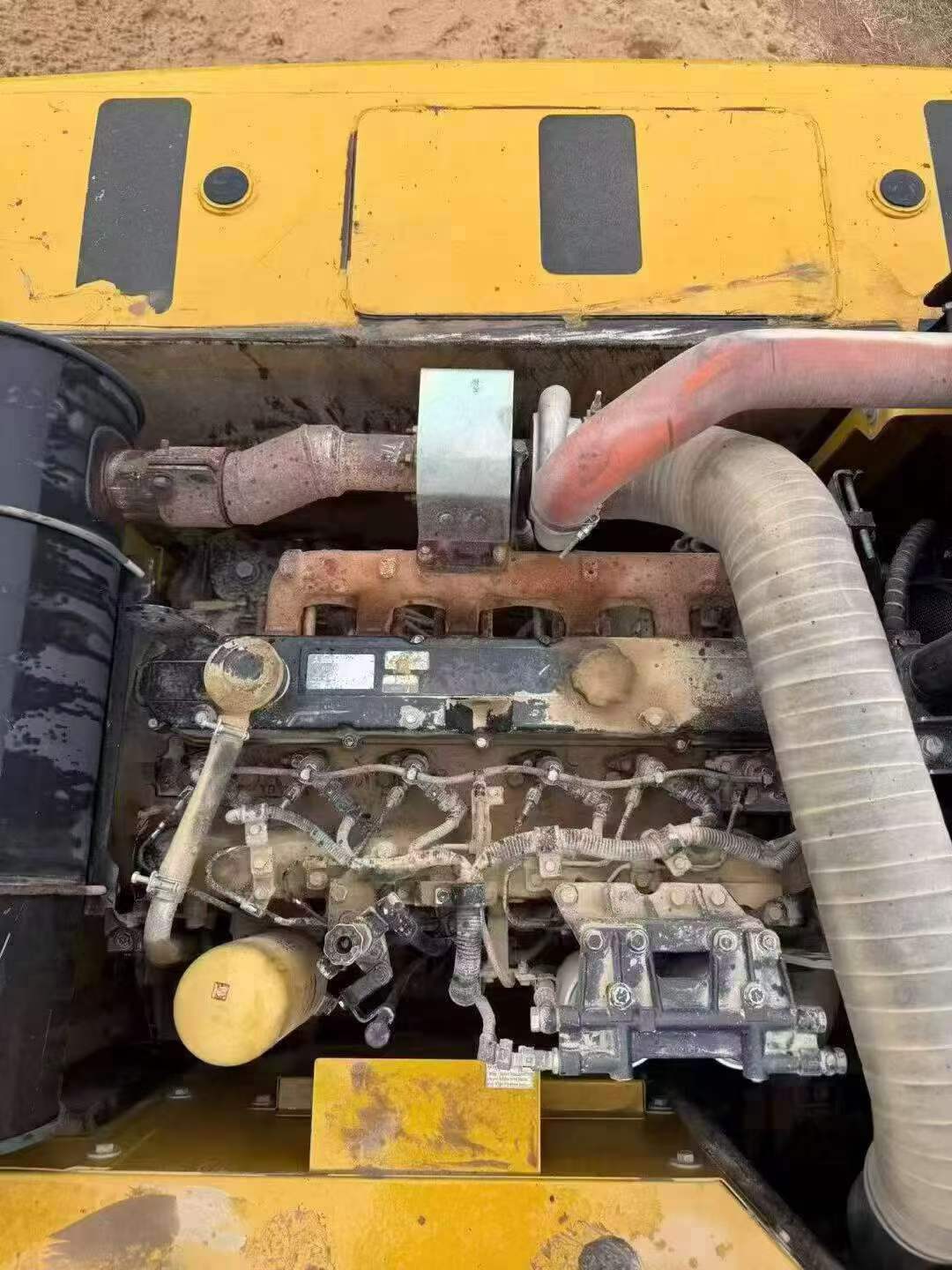

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
