2019 Sany SY245H

1/6
Buy Sany SY245H Used Excavator / 1

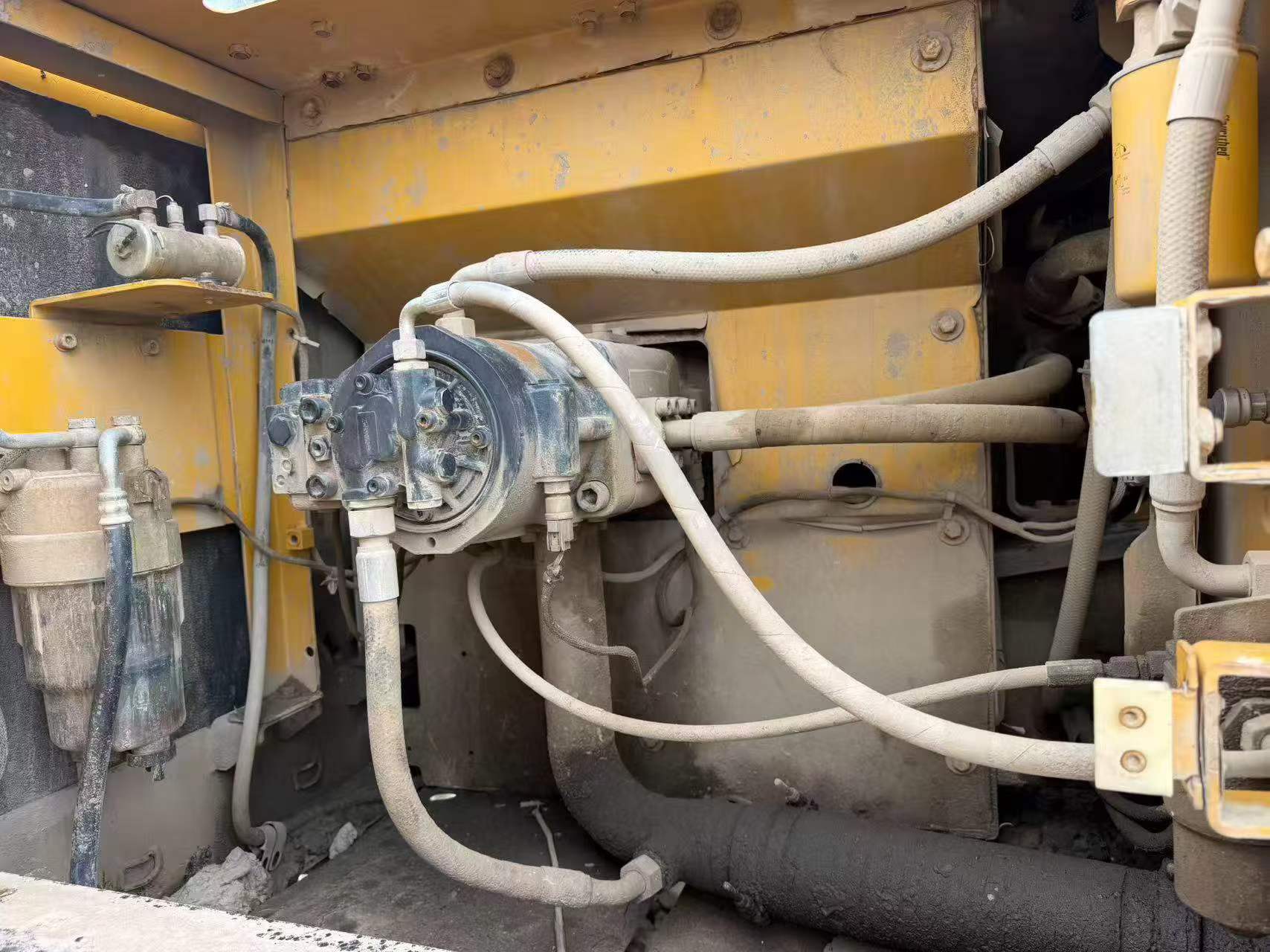

Buy Sany SY245H Used Excavator / 2

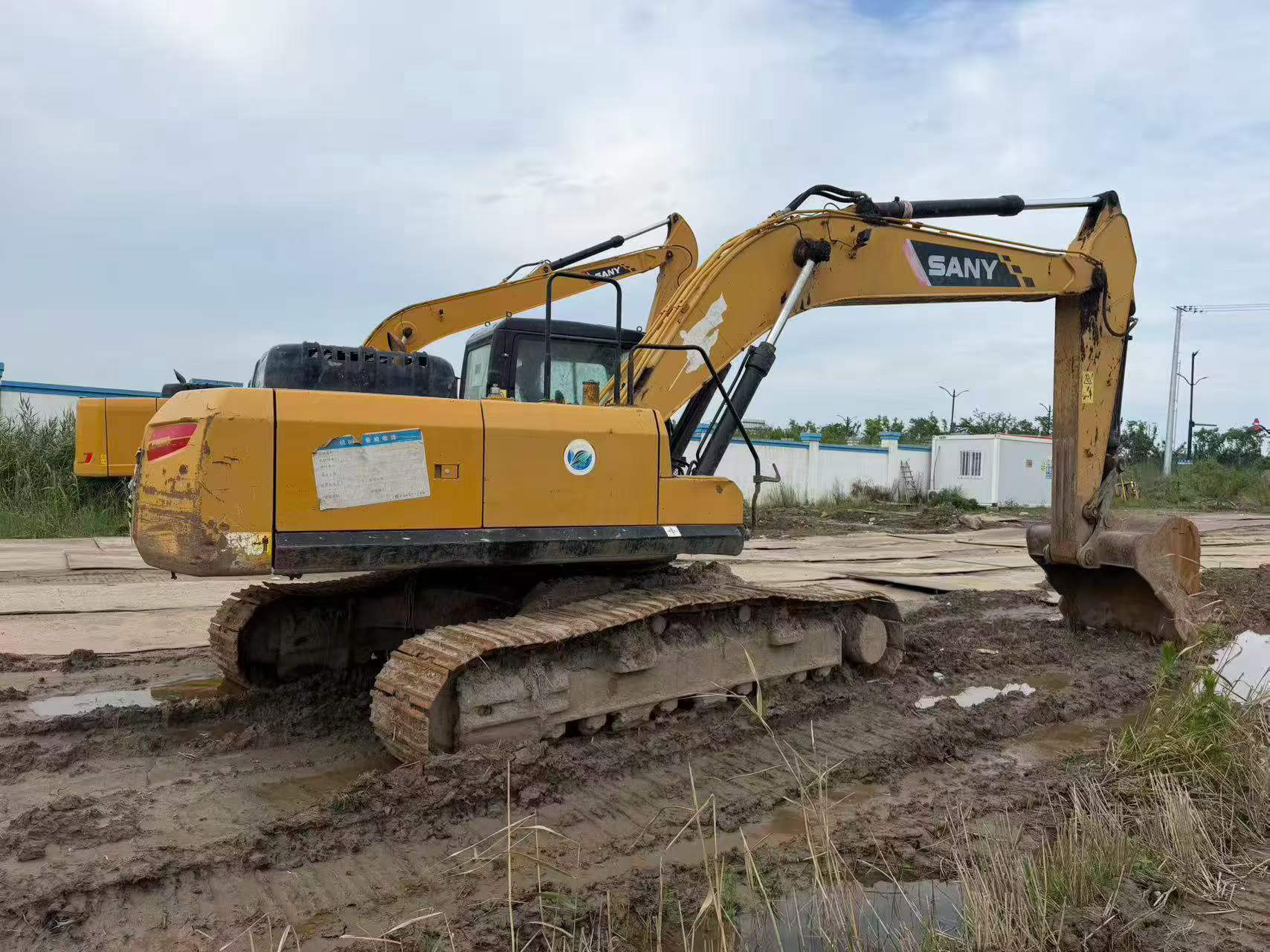

Buy Sany SY245H Used Excavator / 3

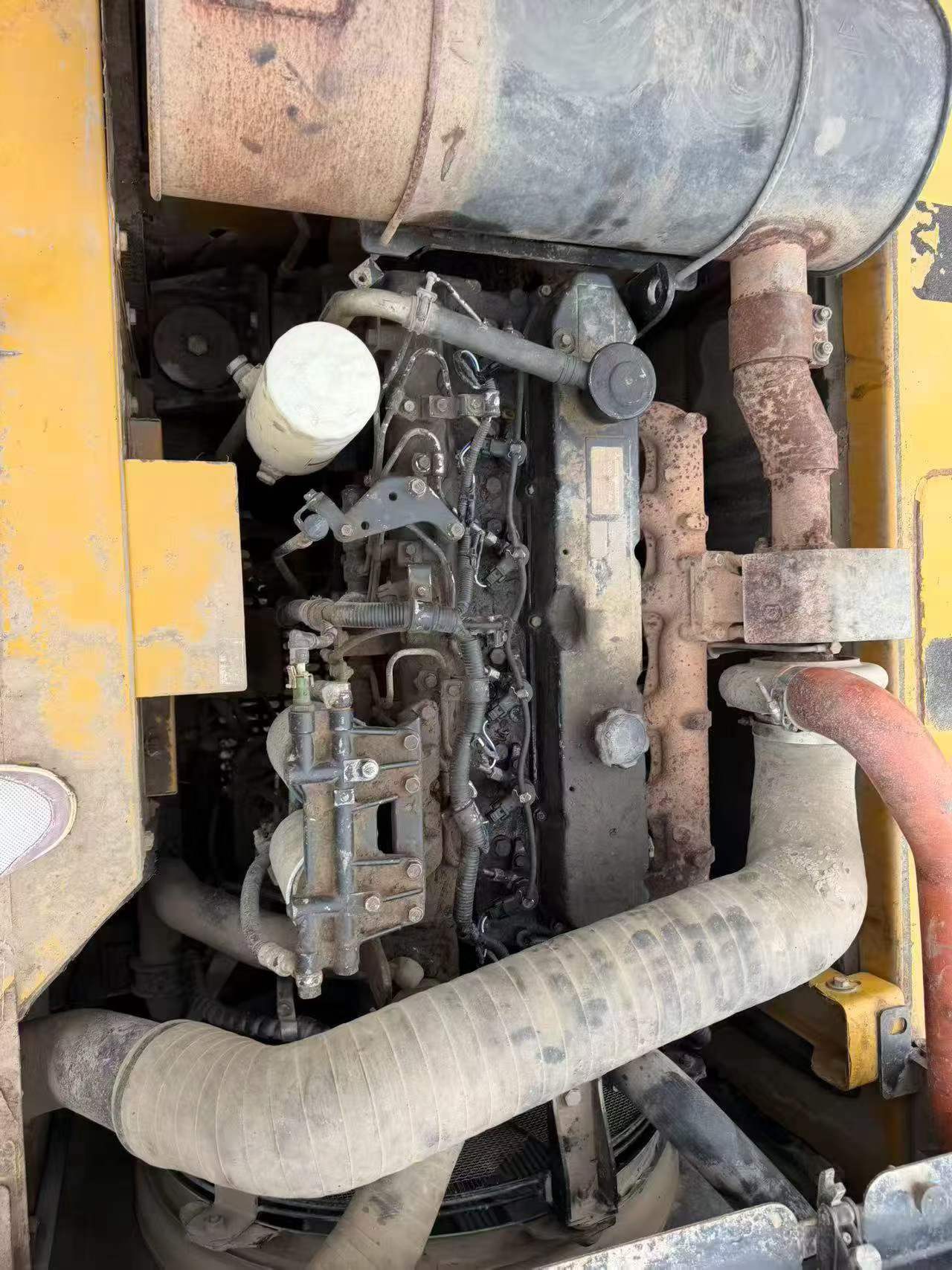

Buy Sany SY245H Used Excavator / 4

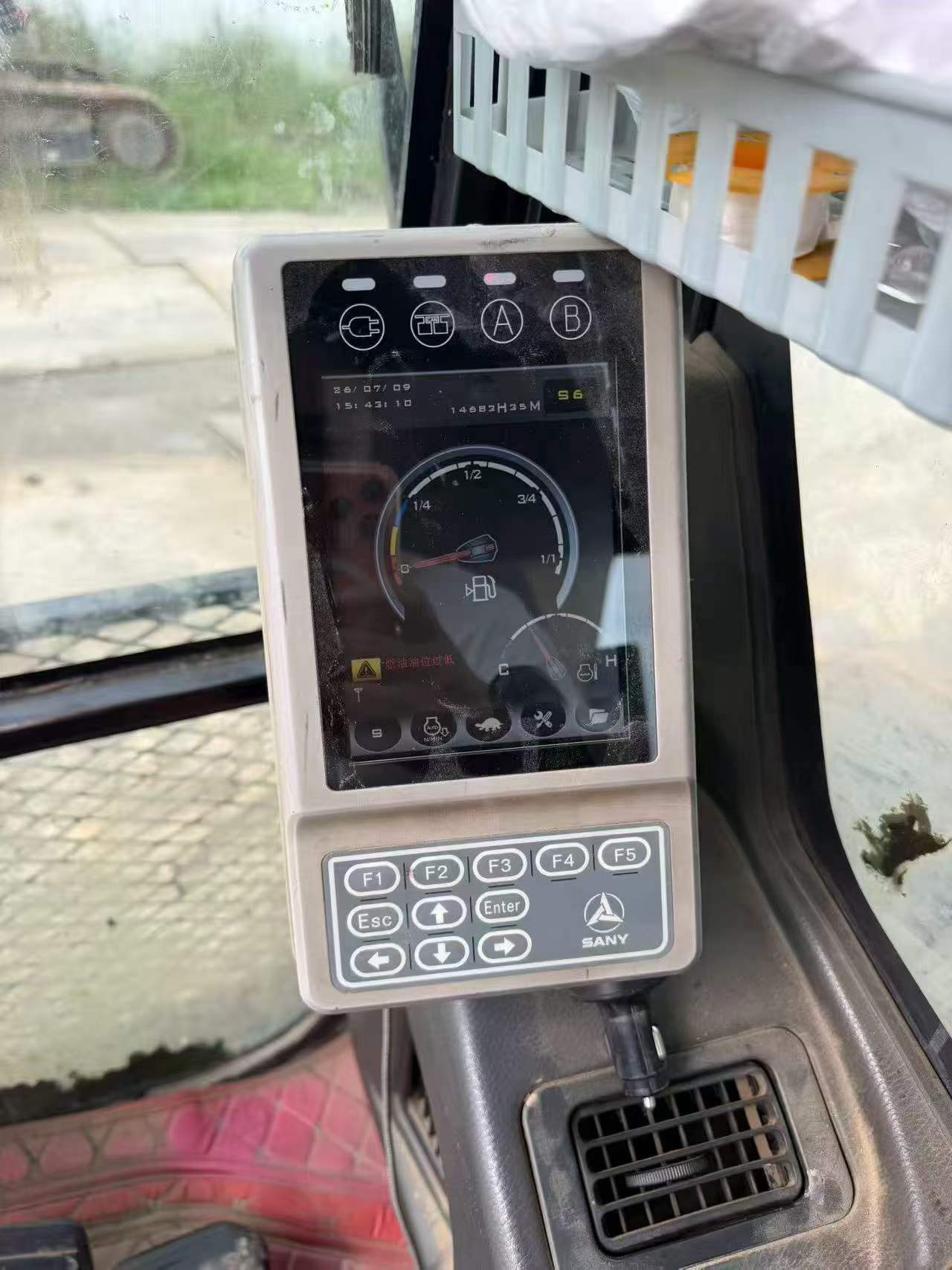

Buy Sany SY245H Used Excavator / 5

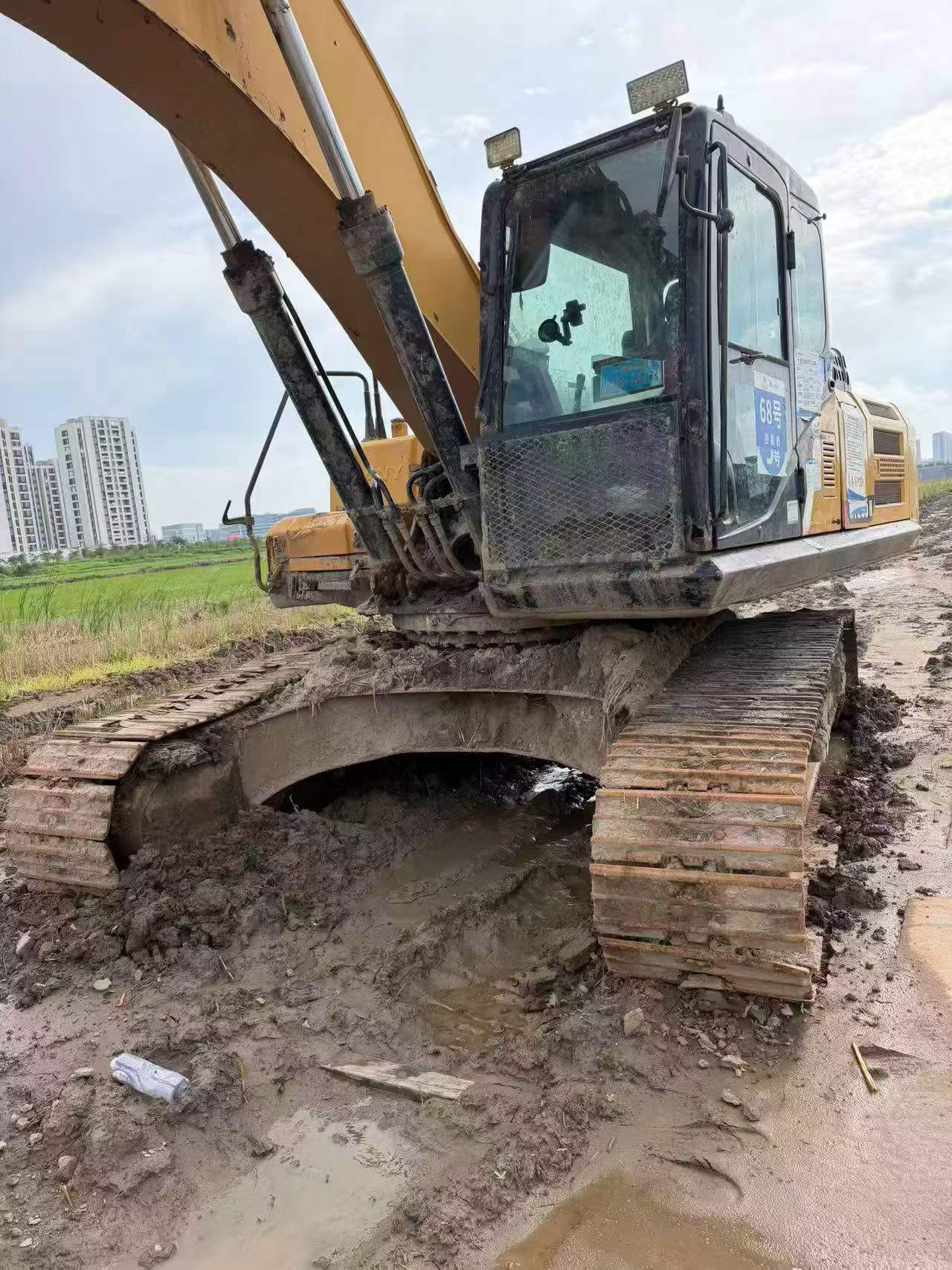

Buy Sany SY245H Used Excavator / 6

Product Description

This 2019 Sany SY245H excavator from Zhejiang, China offers reliable performance for medium to heavy-duty earthmoving applications. The SY245H is part of Sany's proven hydraulic excavator lineup, engineered for durability and operational efficiency in construction, mining, and infrastructure projects.

Key features include:

  • 25-ton operating weight class suitable for diverse jobsite demands
  • Fuel-efficient engine designed for extended runtime and lower operating costs
  • Reinforced boom and arm structure for demanding excavation work
  • Spacious operator cabin with ergonomic controls
  • Well-maintained condition with competitive pricing

This used machine represents excellent value for contractors seeking dependable excavation equipment backed by Sany's established engineering standards. Ideal for buyers looking to expand fleet capacity or replace aging equipment with a cost-effective solution.

SpecificationsValue
No.1173401
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
