2019 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1

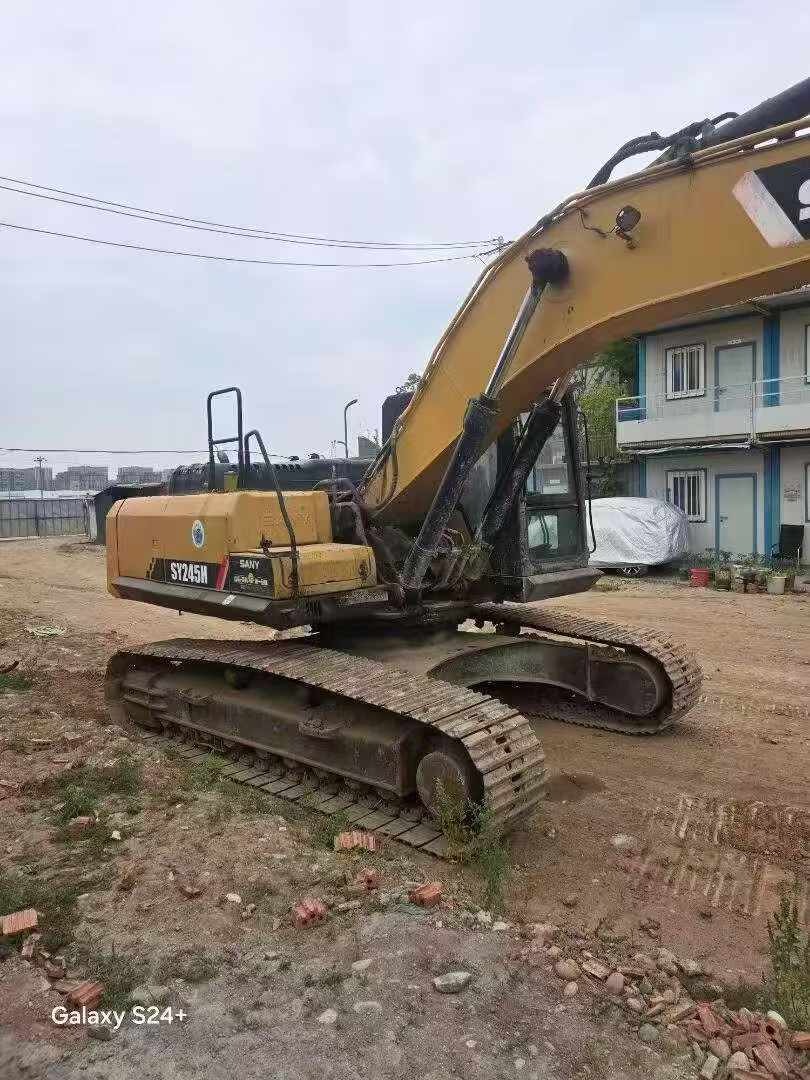

Buy Sany SY245H Used Excavator / 2

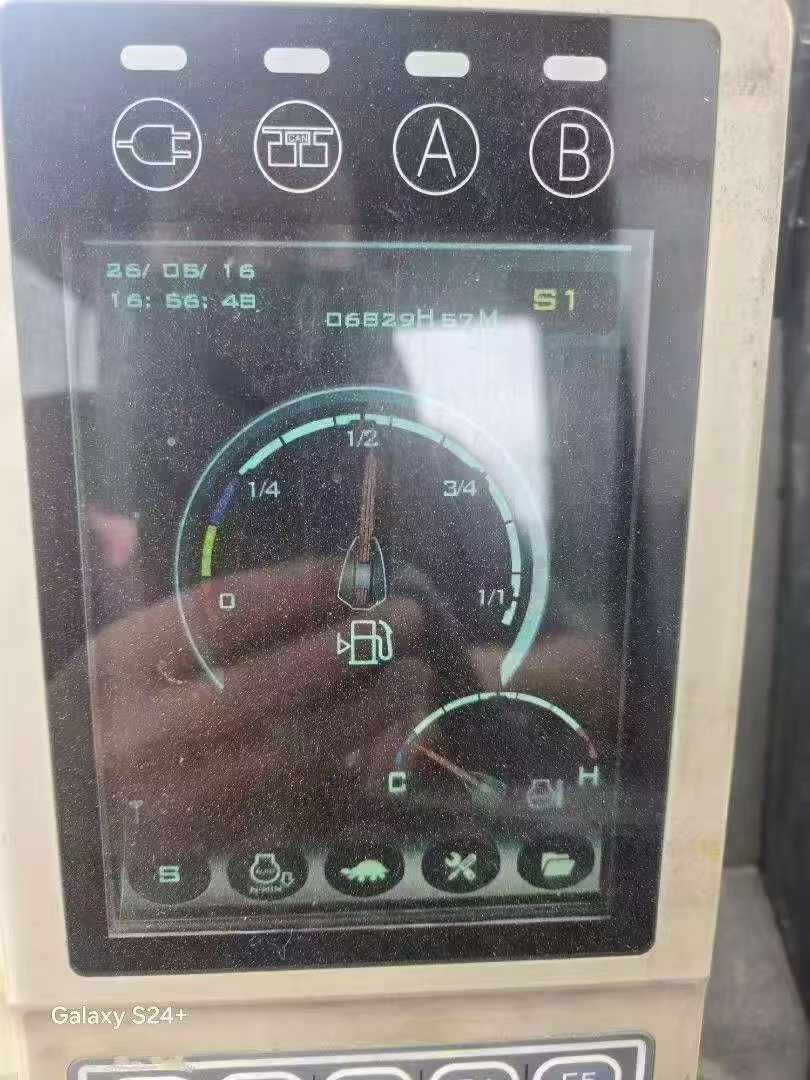

Buy Sany SY245H Used Excavator / 3

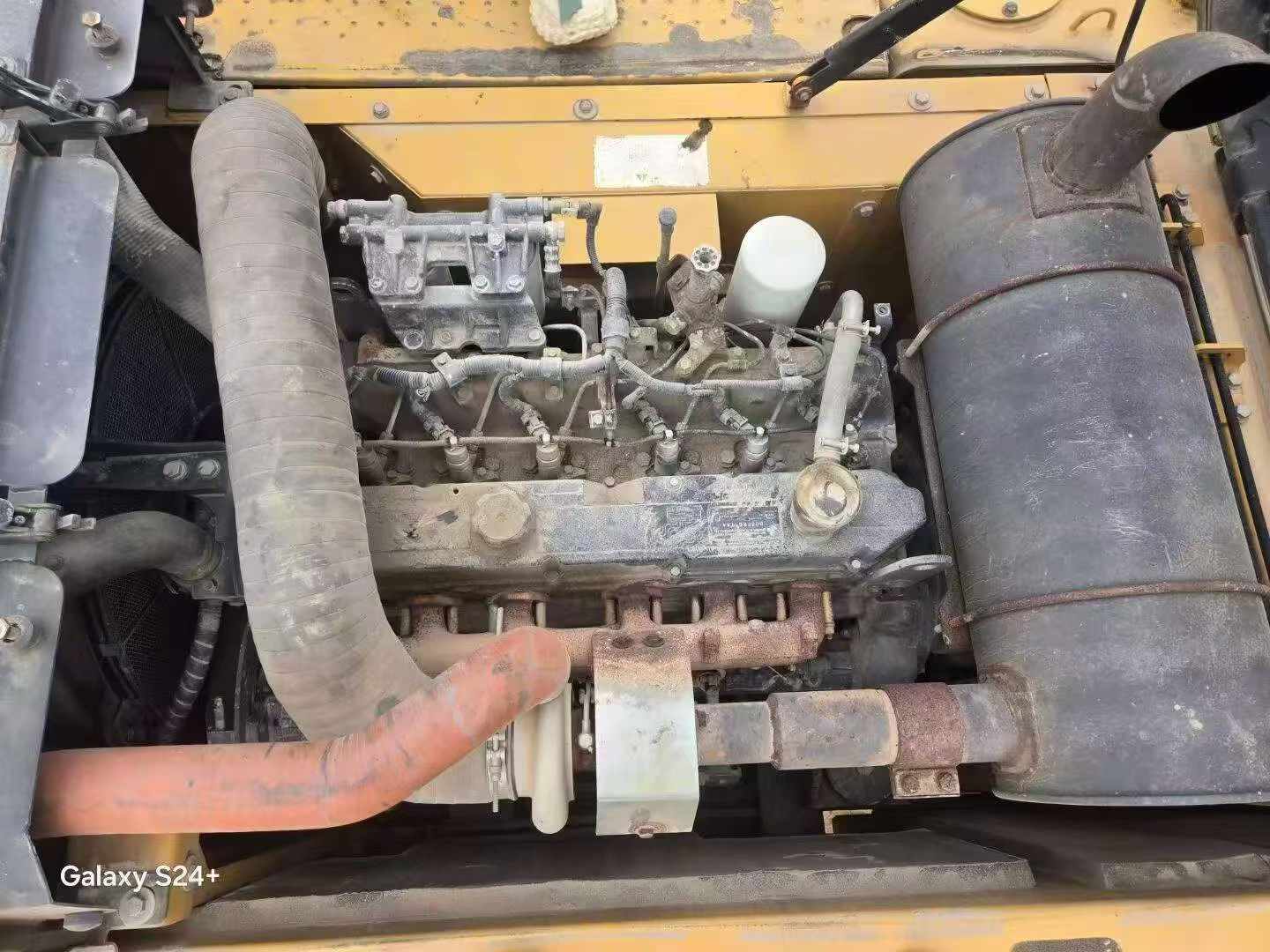

Buy Sany SY245H Used Excavator / 4

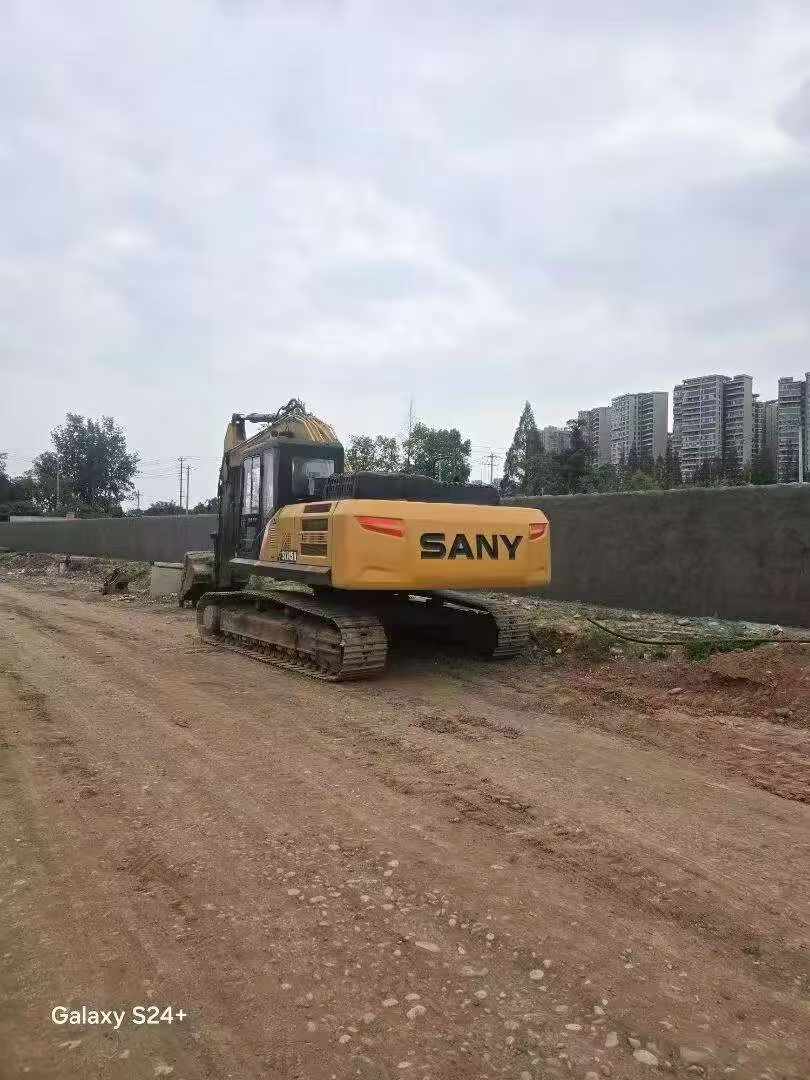

Buy Sany SY245H Used Excavator / 5

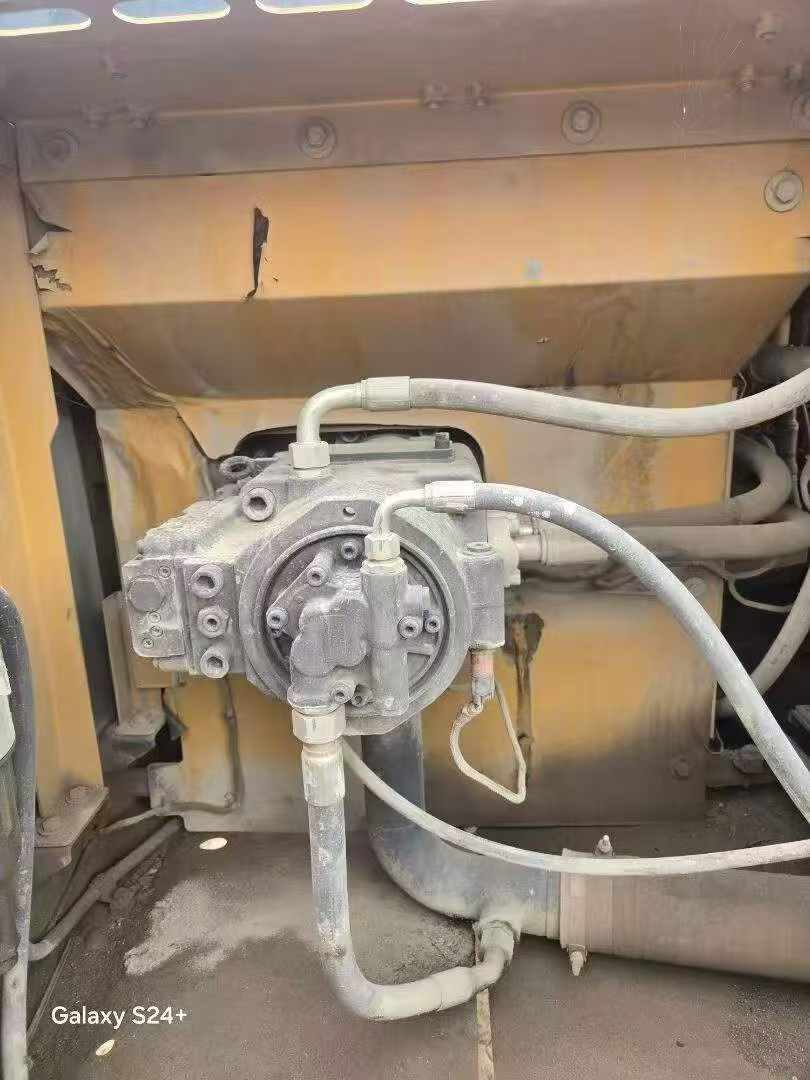

Buy Sany SY245H Used Excavator / 6

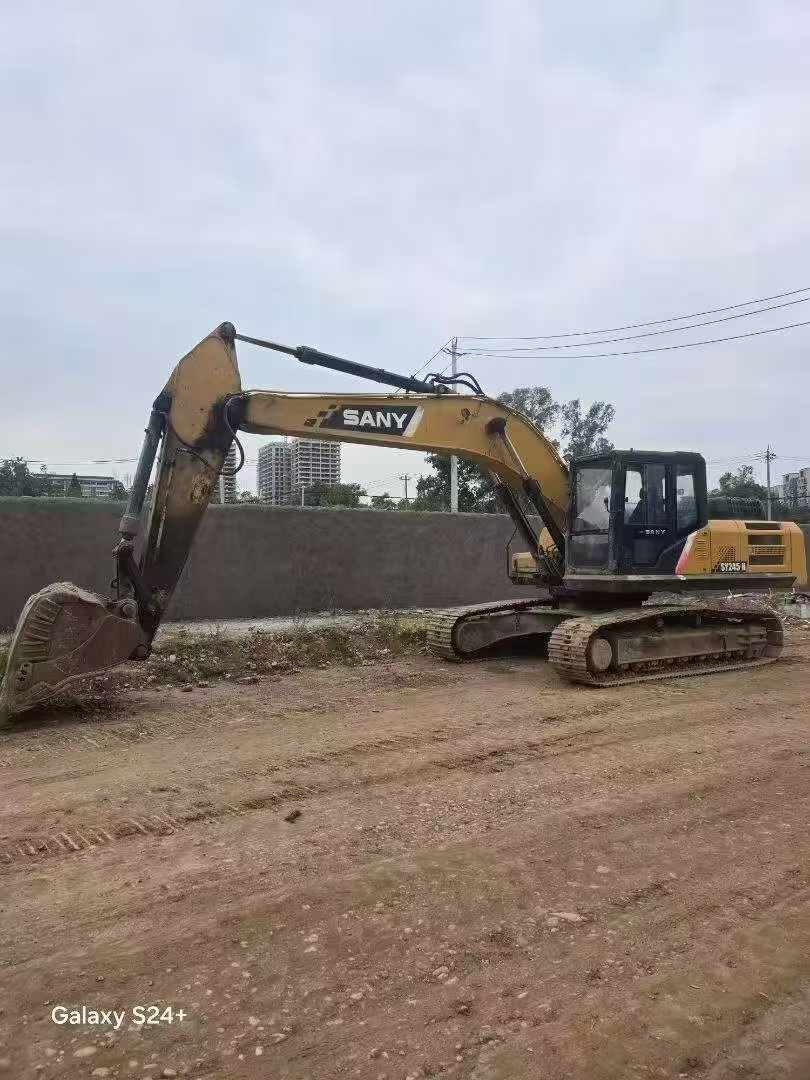

Buy Sany SY245H Used Excavator / 7

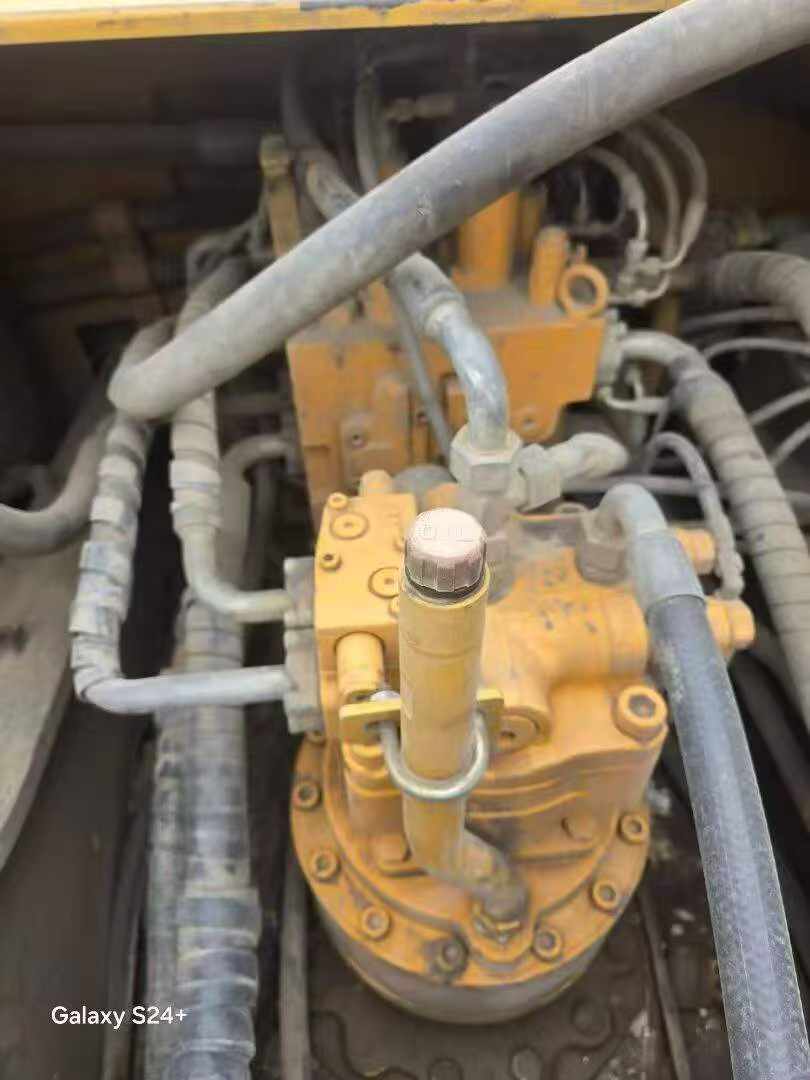

Buy Sany SY245H Used Excavator / 8

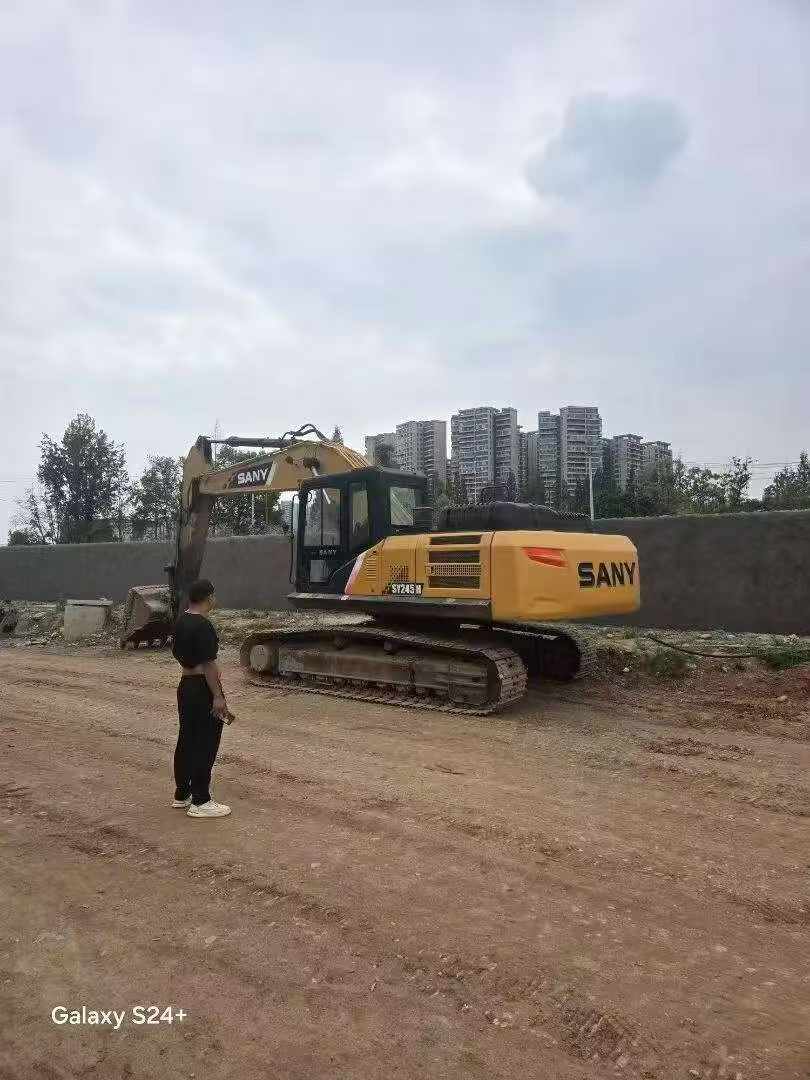

Buy Sany SY245H Used Excavator / 9

Product Description

This 2019 Sany SY245H hydraulic excavator represents an excellent opportunity for contractors seeking reliable performance in a well-maintained machine. Located in Sichuan, China, this unit has been actively used in working conditions and demonstrates the robust engineering Sany is known for in the Chinese heavy equipment market.

Key highlights include:

  • Single owner history with verified documentation
  • Available for inspection and operational testing
  • Approximately 25-ton operating weight class
  • Suitable for earthmoving, excavation, and general construction applications
  • Maintained in working condition with documented service history

The SY245H model offers a practical balance of power and efficiency for medium to heavy-duty applications. Inspection and test operation are welcomed to verify the machine's current operational status and suitability for your project requirements.

SpecificationsValue
No.1174425
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1174425

Brand Name:

Sany

Model Number:

SY245H

Year:

2019

Location:

Sichuan China

Pub Date:
