HOME>>Sany>>Sany SY245H

2020 Sany SY245H

1/9

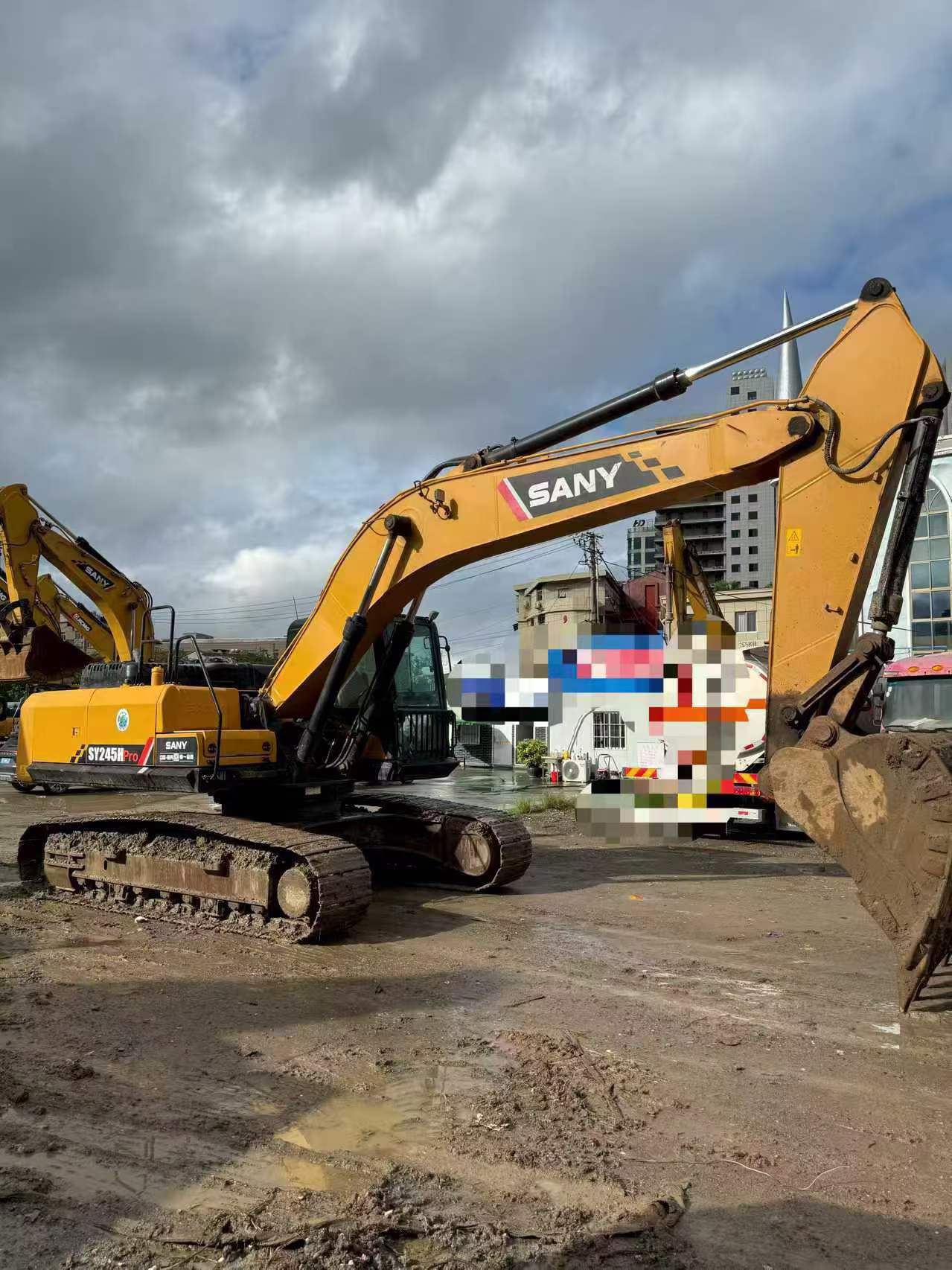

Buy Sany SY245H Used Excavator / 1

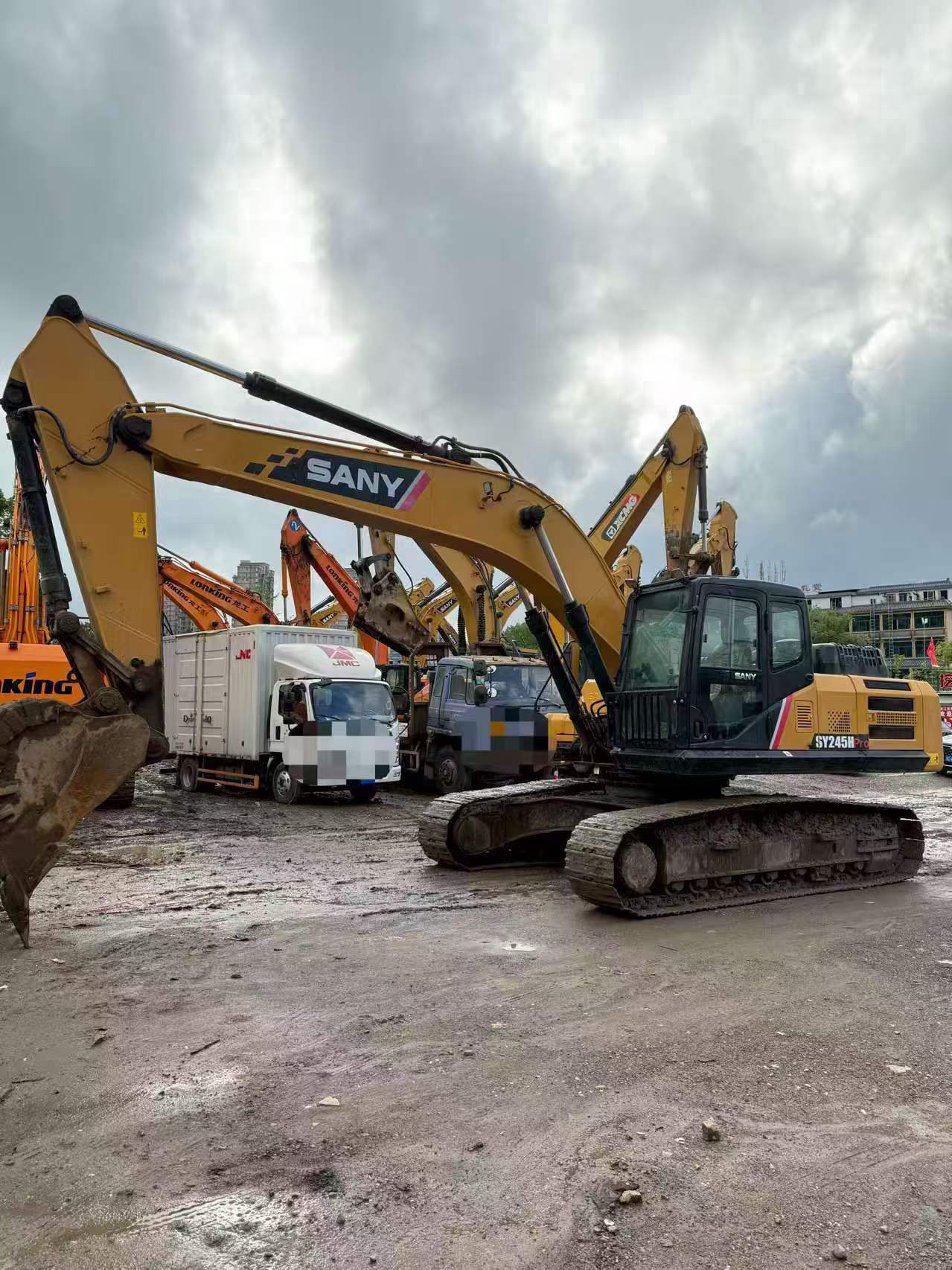

Buy Sany SY245H Used Excavator / 2

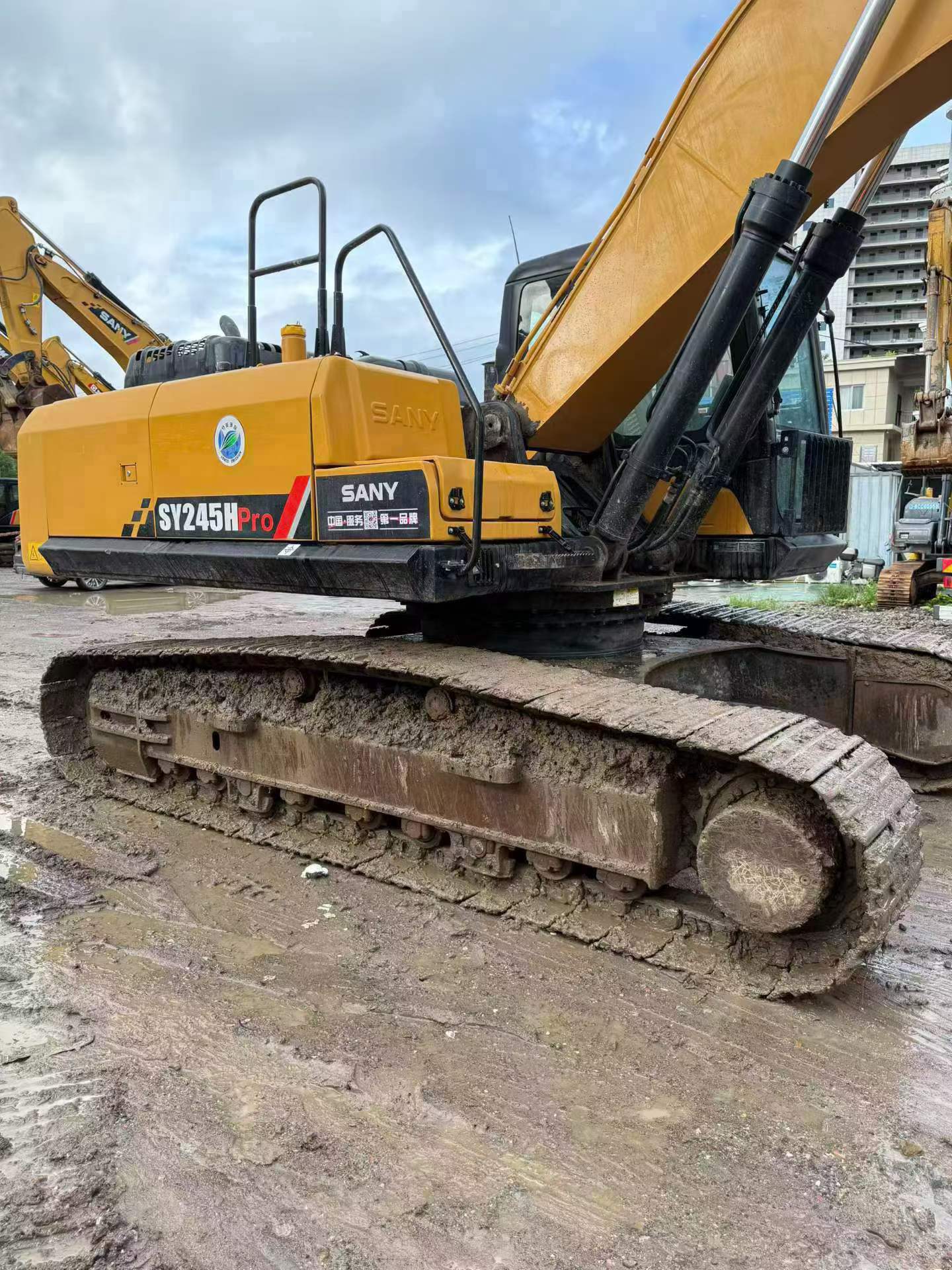

Buy Sany SY245H Used Excavator / 3

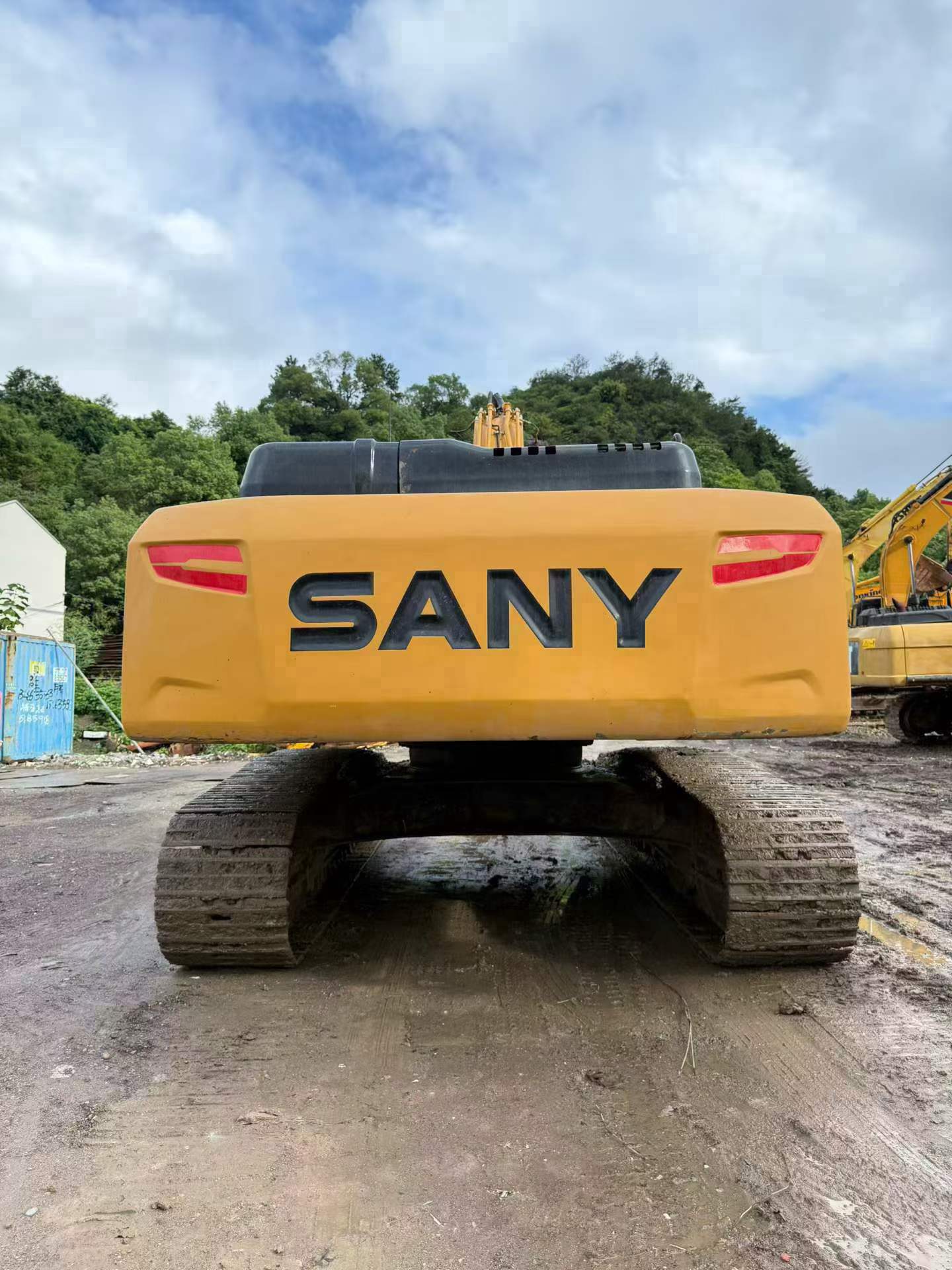

Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6

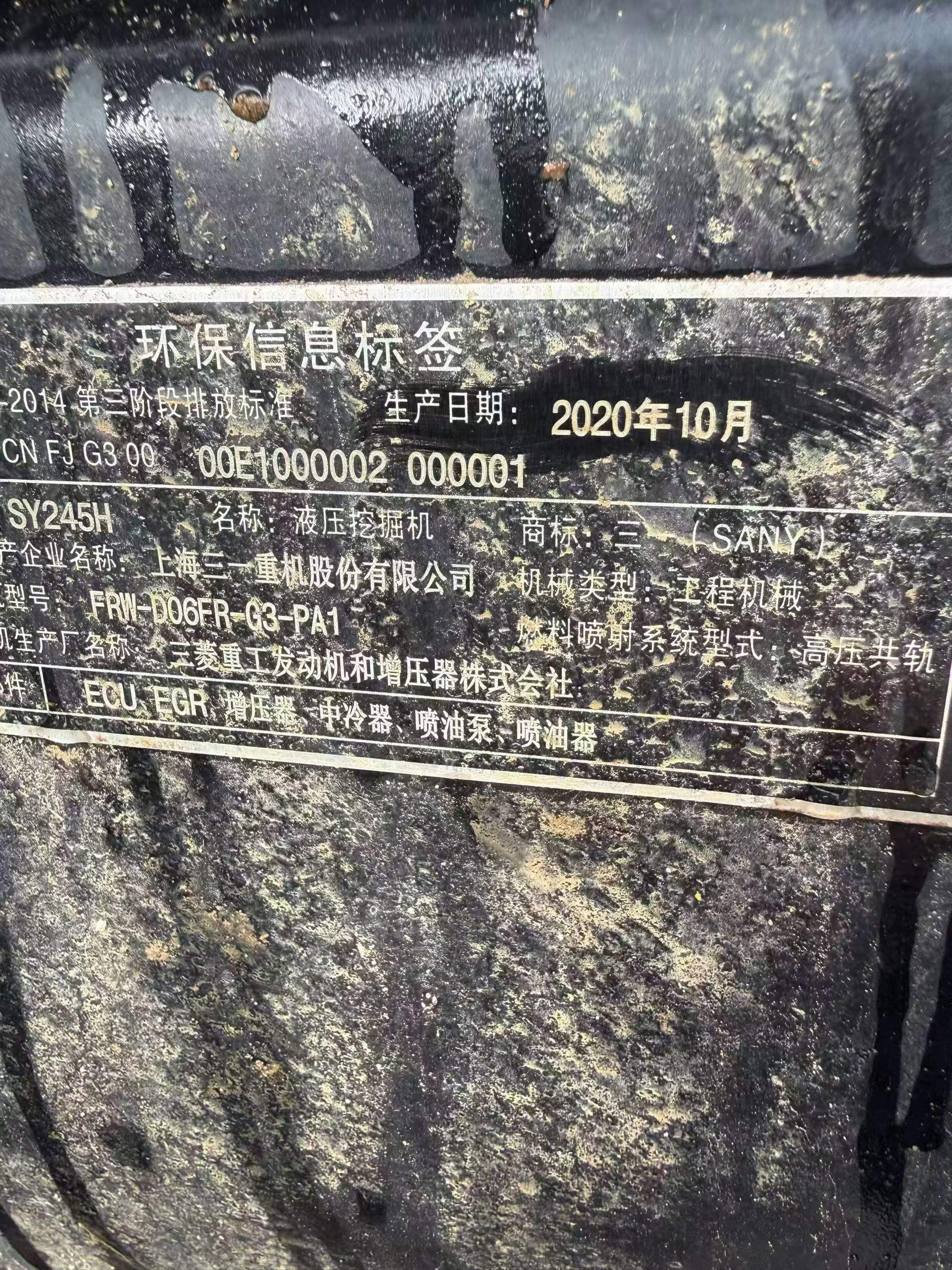

Buy Sany SY245H Used Excavator / 7

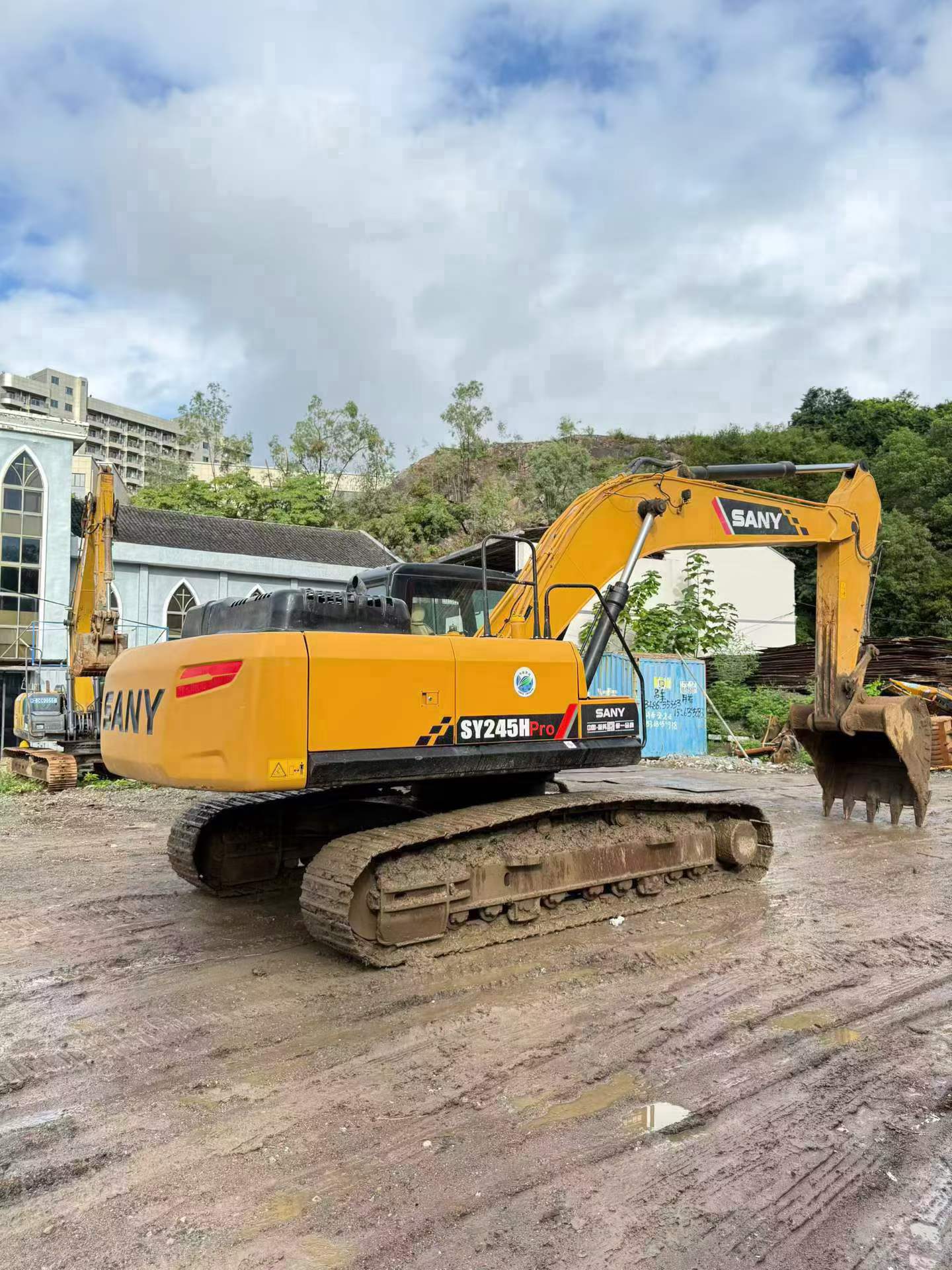

Buy Sany SY245H Used Excavator / 8

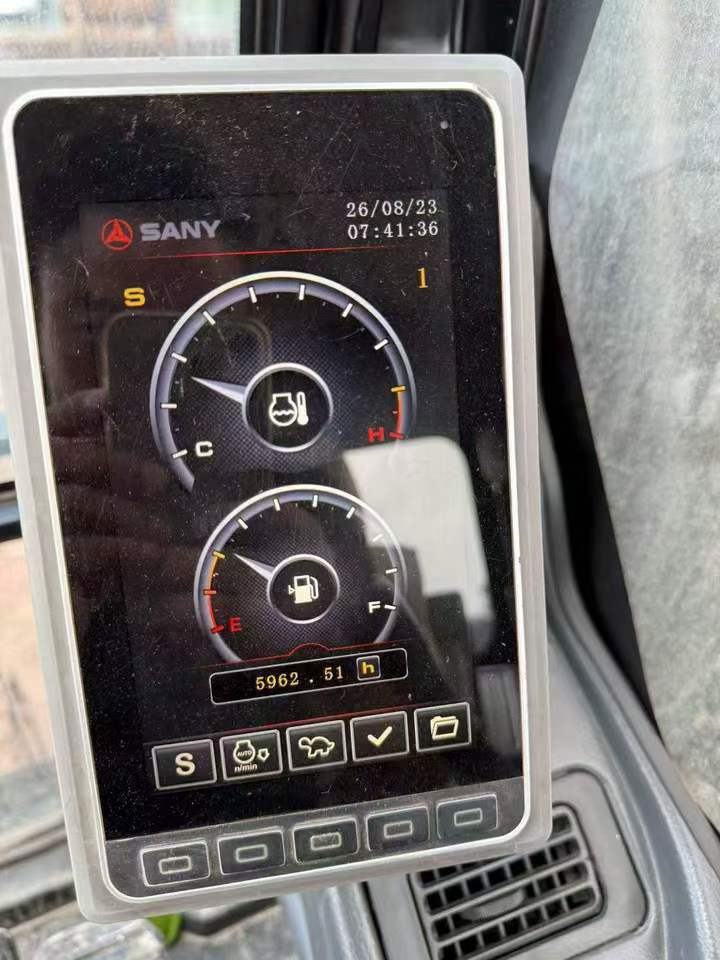

Buy Sany SY245H Used Excavator / 9

Product Description

Discover the robust and reliable Sany SY245H excavator, a 2020 model currently available in Zhejiang, China. This machine is built on the original chassis, ensuring durability and performance that meet the highest standards. The SY245H has been meticulously maintained, with its overall condition and operational performance thoroughly inspected and certified. Additionally, major components come with a warranty, providing peace of mind for your investment. Ideal for construction, mining, and infrastructure projects, this excavator is ready to handle demanding tasks with efficiency and precision.

  • Year: 2020
  • Brand: Sany
  • Model: SY245H
  • Location: Zhejiang, China
  • Original Chassis: Ensures durability and reliability
  • Inspected and Certified Performance: High operational standards
  • Warranty on Major Components: Secure your investment
SpecificationsValue
No.1131828
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1131828

Brand Name:

Sany

Model Number:

SY245H

Year:

2020

Location:

Zhejiang China

Pub Date

Are you interested in this machine?

Please contact us
