Product Description

This 2020 Sany SY245H hydraulic excavator represents a well-maintained earthmoving machine available from Zhejiang, China. Purchased new by its single owner, this unit comes with complete documentation including original certificate and purchase invoice, ensuring verified provenance and transparent ownership history.

The machine exhibits excellent overall condition with original factory paint intact. Key features include:

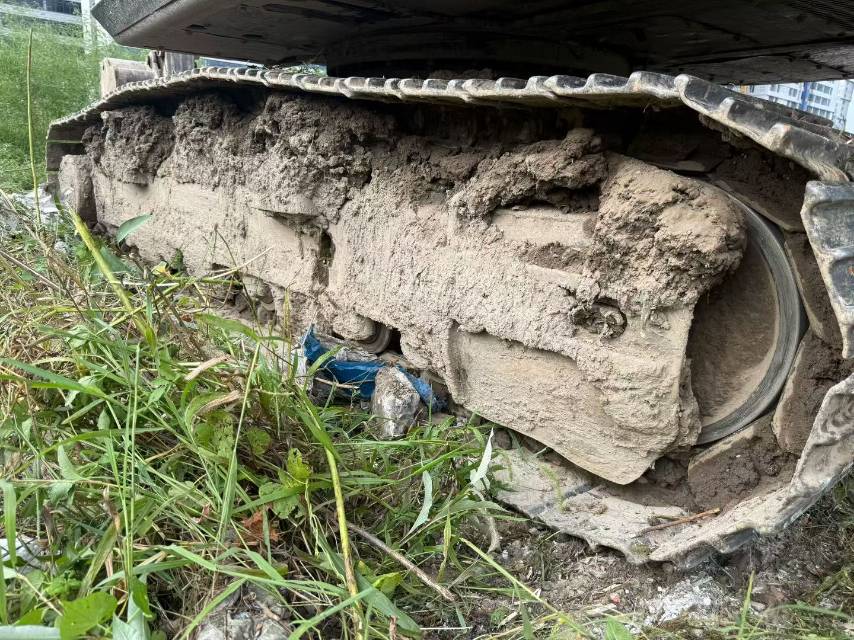

  • Original undercarriage in approximately 90% condition
  • Factory-installed bucket showing minimal wear
  • Fully functional original air conditioning system
  • Primary application: earthmoving and excavation work
  • Single-owner unit with verifiable service history

This excavator has been dedicated to standard earthwork operations throughout its service life. Inspection and test operation welcome for qualified buyers. Complete transfer documentation available.

SpecificationsValue
No.1143133
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
