2020 Sany SY245H

1/8
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7
Buy Sany SY245H Used Excavator / 8

Product Description

This 2020 Sany SY245H hydraulic excavator offers reliable performance for mid-sized earthmoving operations. Currently located in Zhejiang, China, the machine has accumulated over 8,000 actual operating hours as verified by the original meter reading. The SY245H is part of Sany's proven medium excavator lineup, designed for construction, mining, and infrastructure projects requiring consistent digging power and operator comfort.

  • Year of Manufacture: 2020

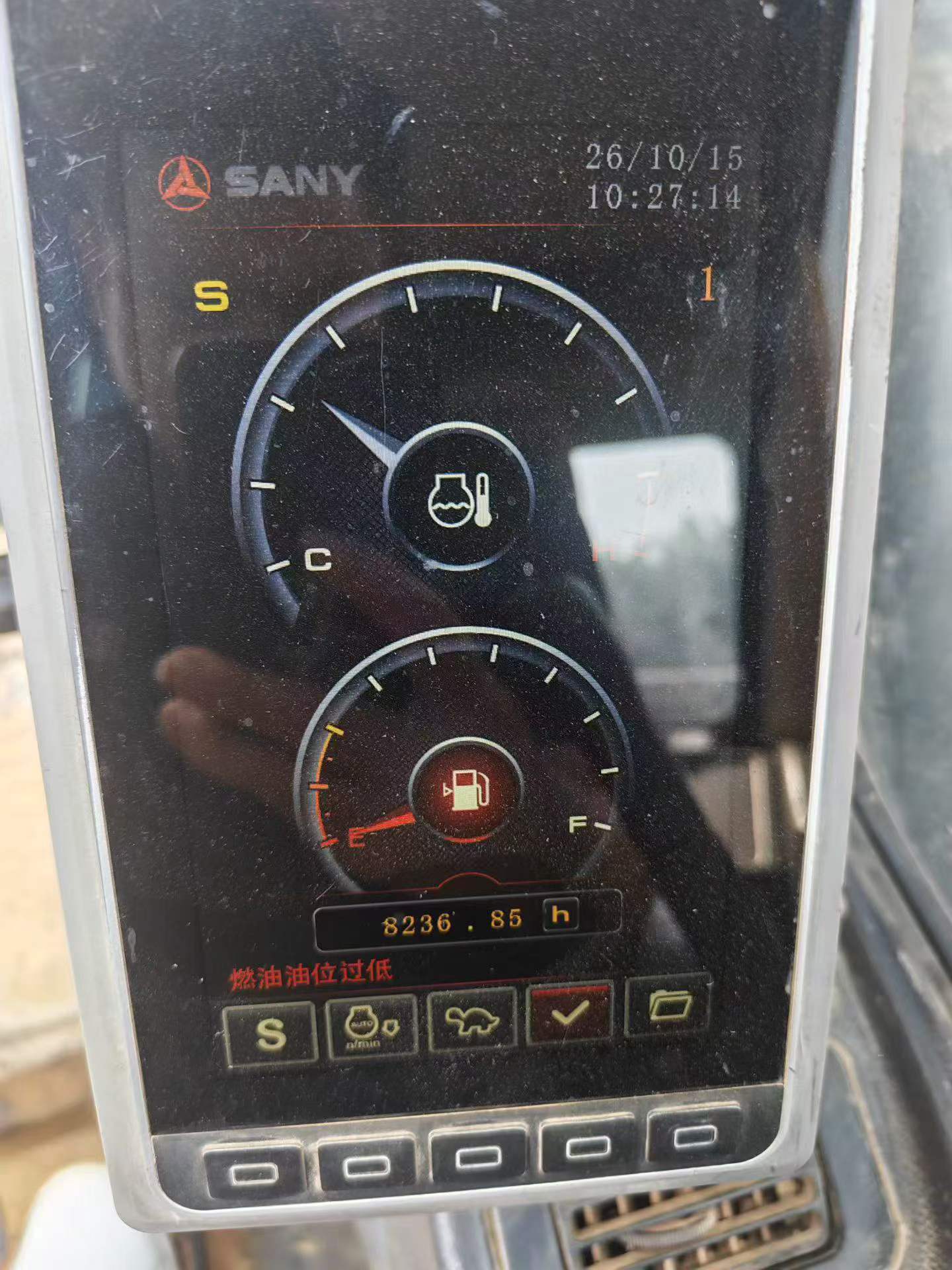

  • Actual Hours: 8,000+ hours (meter verified)
  • Current Location: Zhejiang Province, China
  • Condition: Used, operational
  • Equipment Type: Tracked hydraulic excavator

Suitable for contractors and fleet operators seeking dependable used equipment. Machine available for inspection by qualified buyers. Contact us for detailed specifications, current condition assessment, and export logistics support.

SpecificationsValue
No.1164039
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1164039

Brand Name:

Sany

Model Number:

SY245H

Year:

2020

Location:

Zhejiang China

Pub Date:
