Product Description

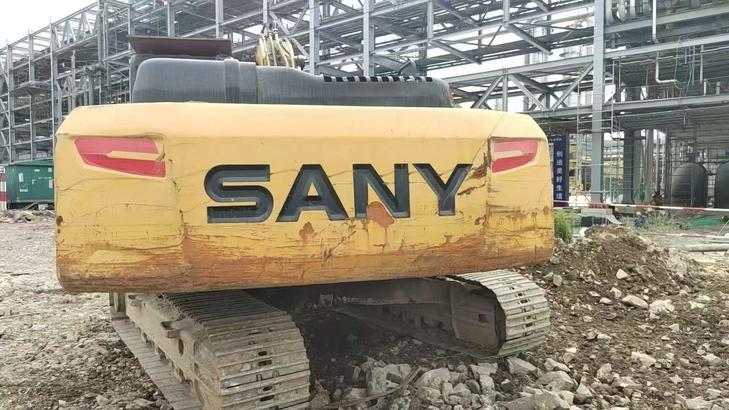

This 2020 Sany SY245H hydraulic excavator offers reliable performance for mid-range earthmoving and construction applications. As part of Sany's proven H-series lineup, the SY245H combines a robust undercarriage with efficient hydraulic systems designed for demanding jobsite conditions. Currently located in Fujian, China, this machine represents an accessible entry point for contractors seeking dependable excavation capacity.
- Year of Manufacture: 2020
- Model: Sany SY245H
- Machine Type: Hydraulic Excavator
- Current Location: Fujian Province, China
- Condition: Used
The SY245H is engineered for general excavation, trenching, and material handling across residential, commercial, and infrastructure projects. Sany's established dealer network throughout Asia ensures parts availability and service support. Contact FairTradeMachinery for current pricing, inspection scheduling, and international shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1168447 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
