Product Description
This 2020 Sany SY245H excavator offers reliable performance for demanding worksite applications. Purchased new in 2020, this machine features a Chuanqi hydraulic system known for robust operation in heavy-duty environments. The excavator has been actively used in professional operations and maintains very good overall condition with original factory specifications intact.
Located in Fujian, China, this unit represents practical value for contractors and equipment operators seeking dependable hydraulic excavation capacity. The machine's maintenance history reflects consistent work use, and all major components remain in their original configuration.
- Year of Manufacture: 2020
- Make: Sany
- Model: SY245H

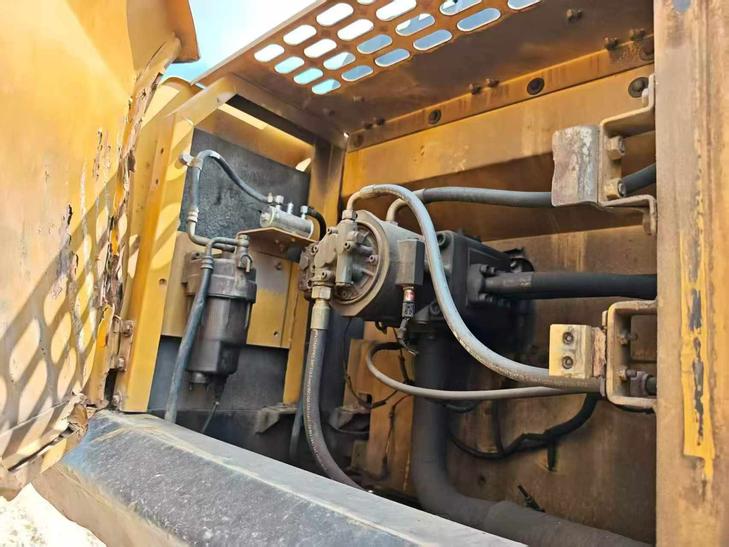

- Hydraulic System: Chuanqi
- Condition: Very Good
- Configuration: Original Factory Specifications
- Location: Fujian Province, China
This excavator is available for immediate acquisition. Suitable for construction, earthmoving, and general excavation projects.
| Specifications | Value |
|---|---|
| No. | 1169483 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
