2020 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1

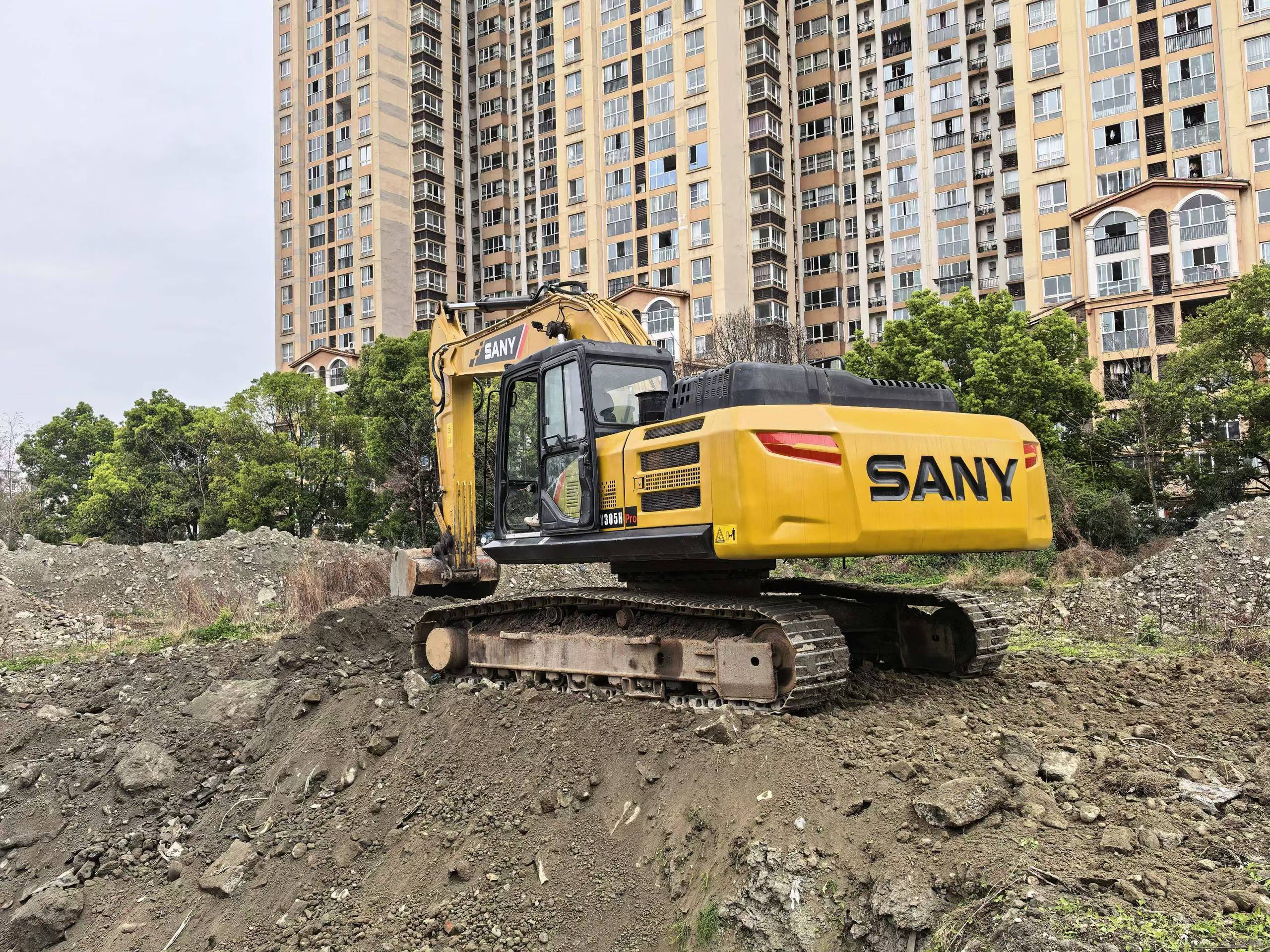

Buy Sany SY245H Used Excavator / 2

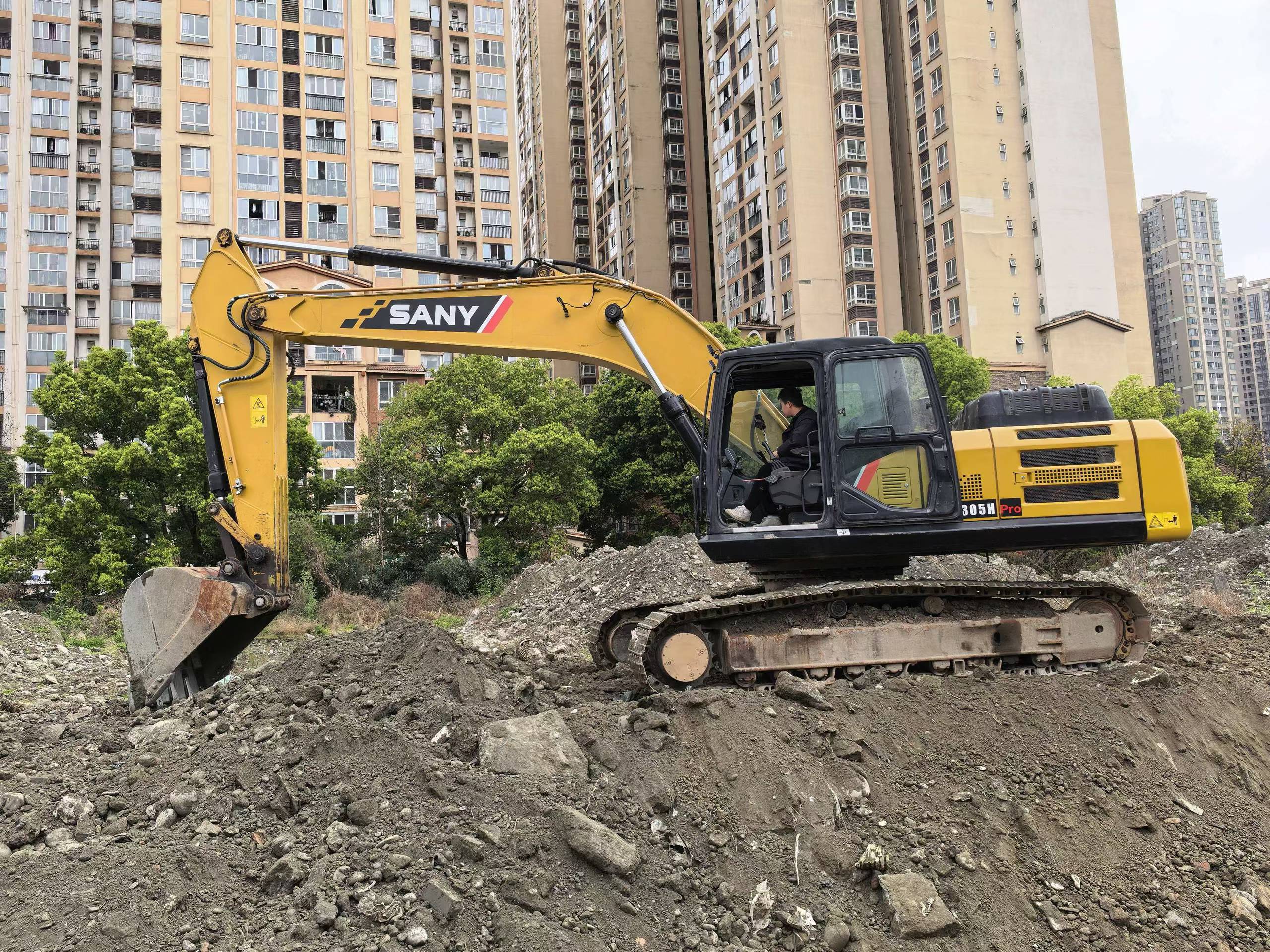

Buy Sany SY245H Used Excavator / 3

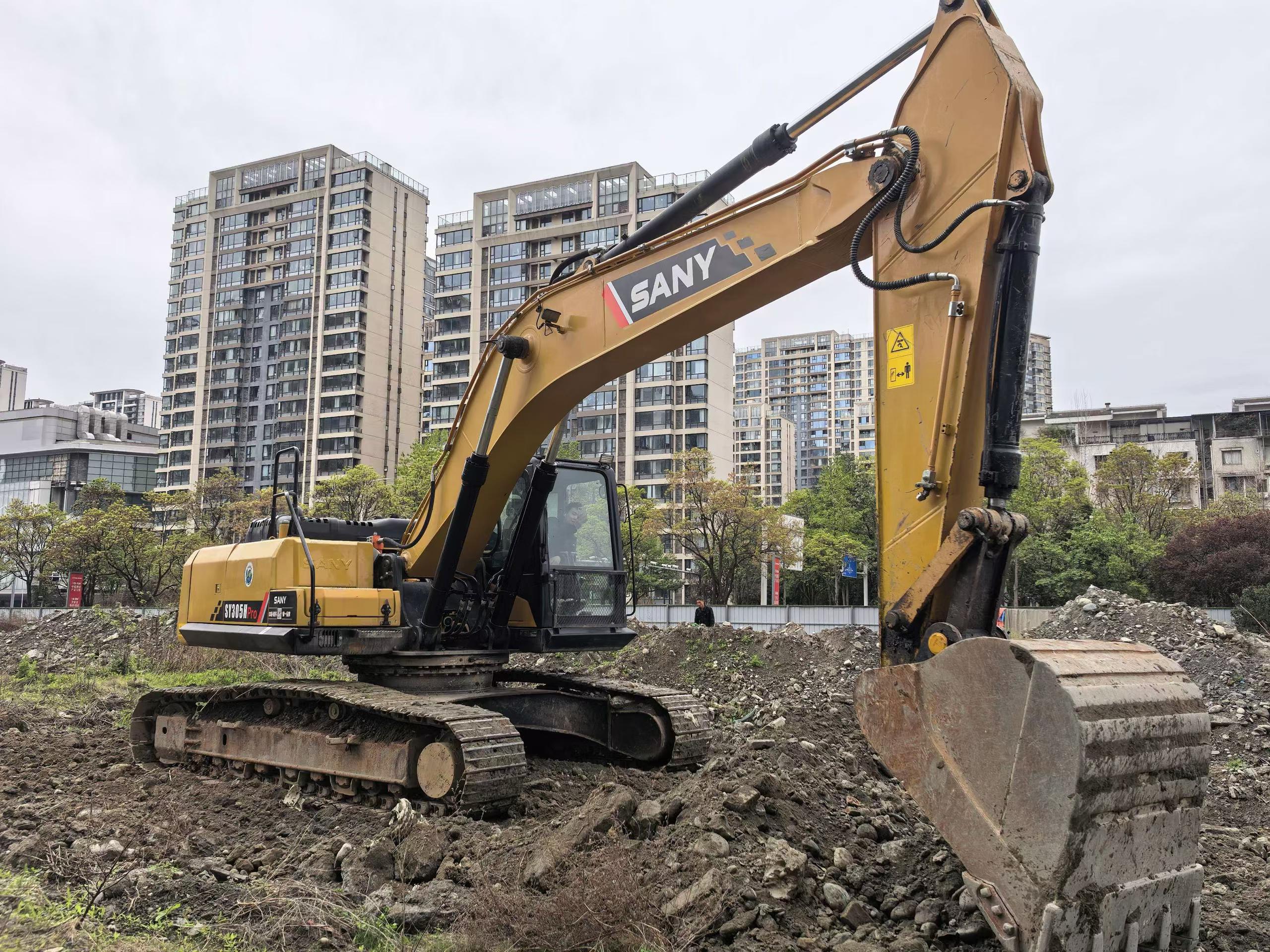

Buy Sany SY245H Used Excavator / 4

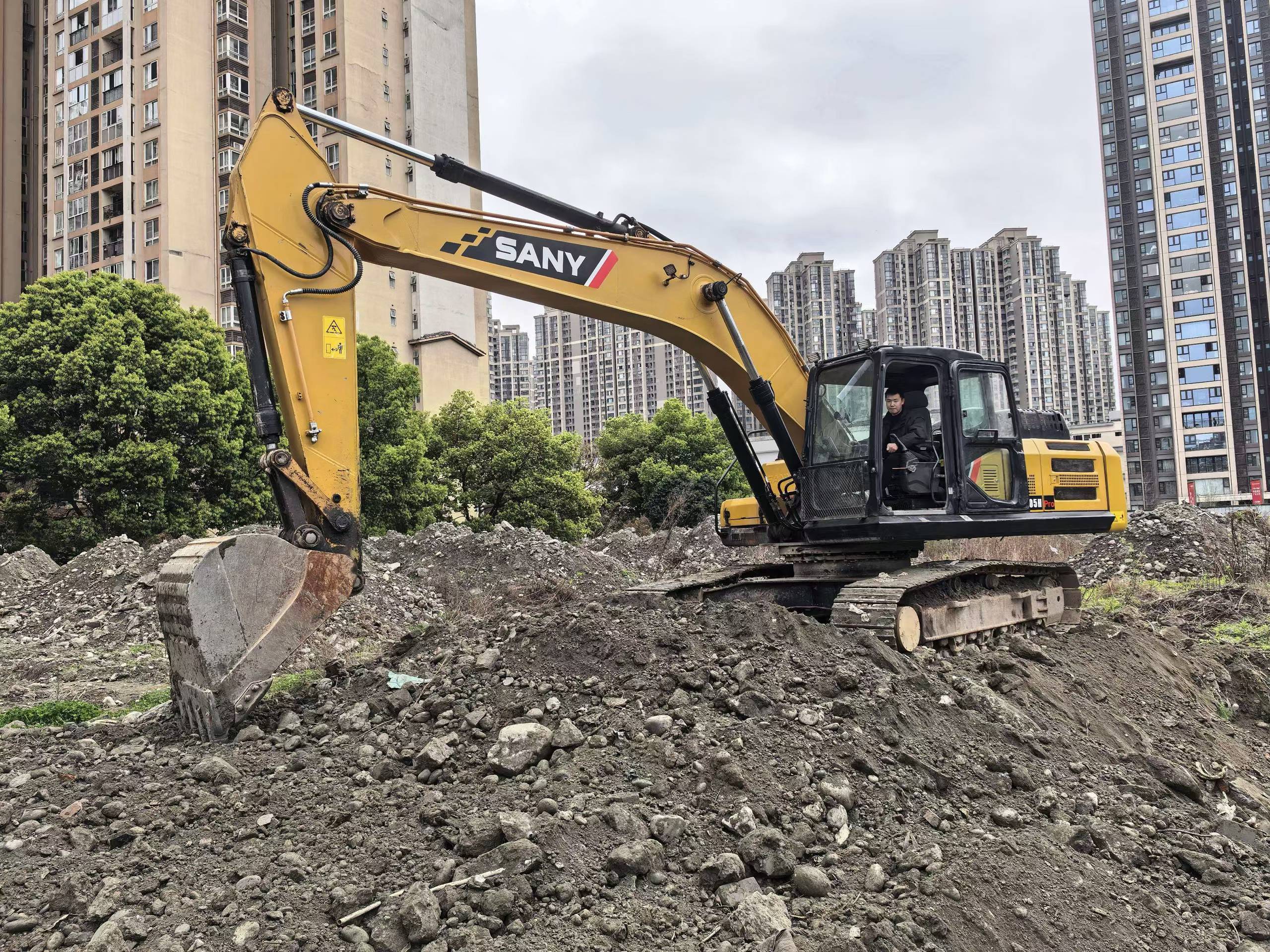

Buy Sany SY245H Used Excavator / 5

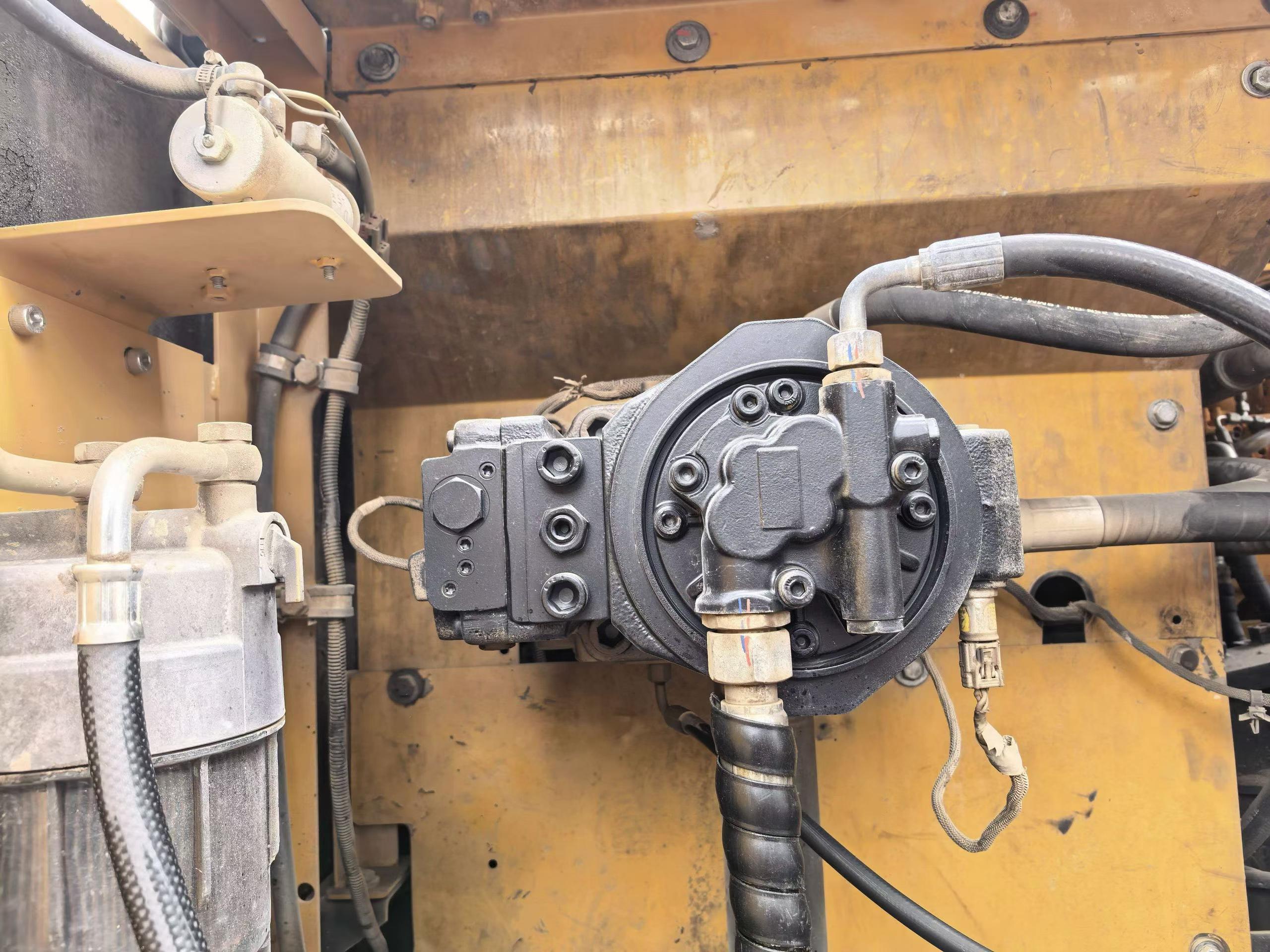

Buy Sany SY245H Used Excavator / 6

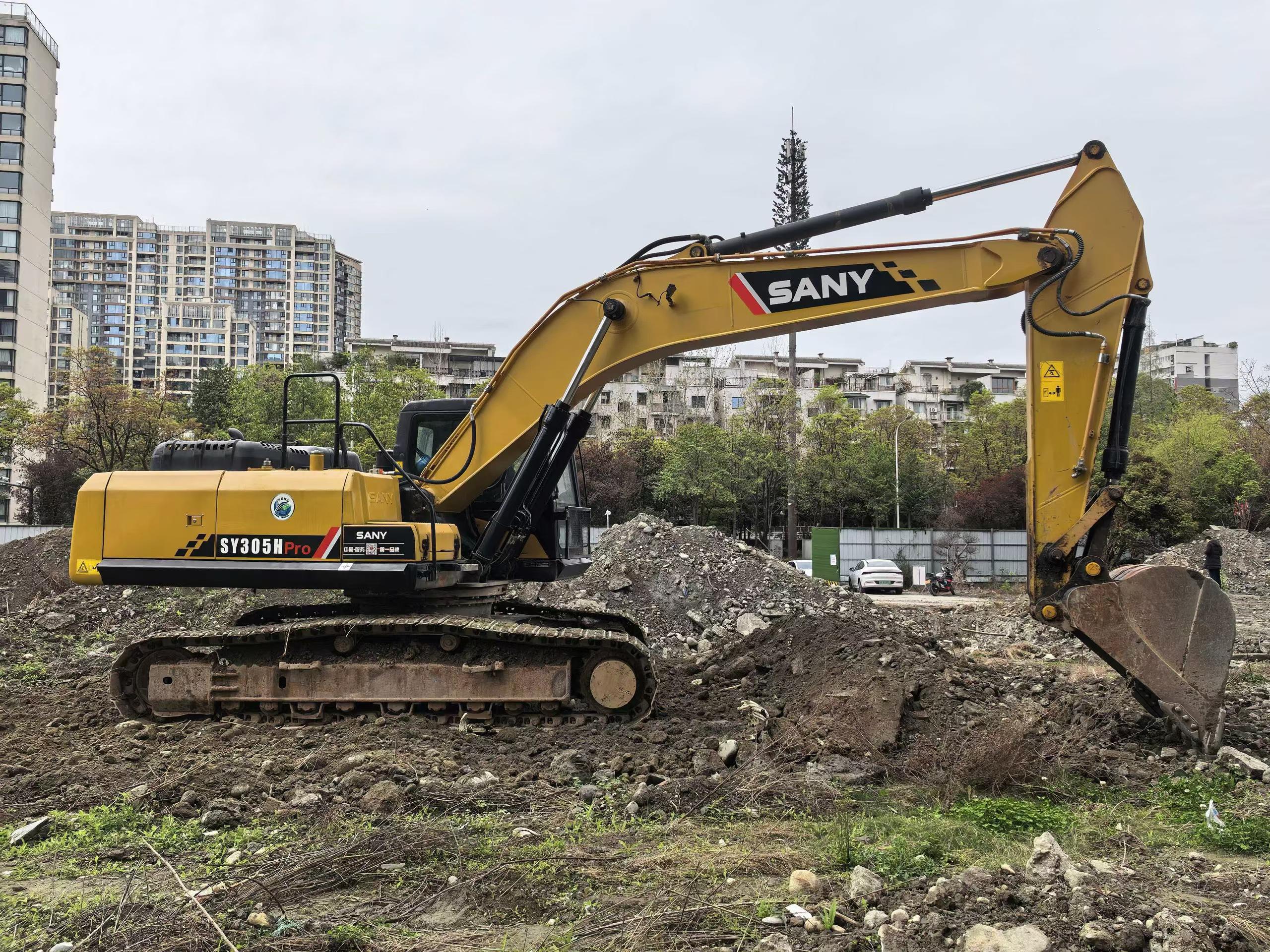

Buy Sany SY245H Used Excavator / 7

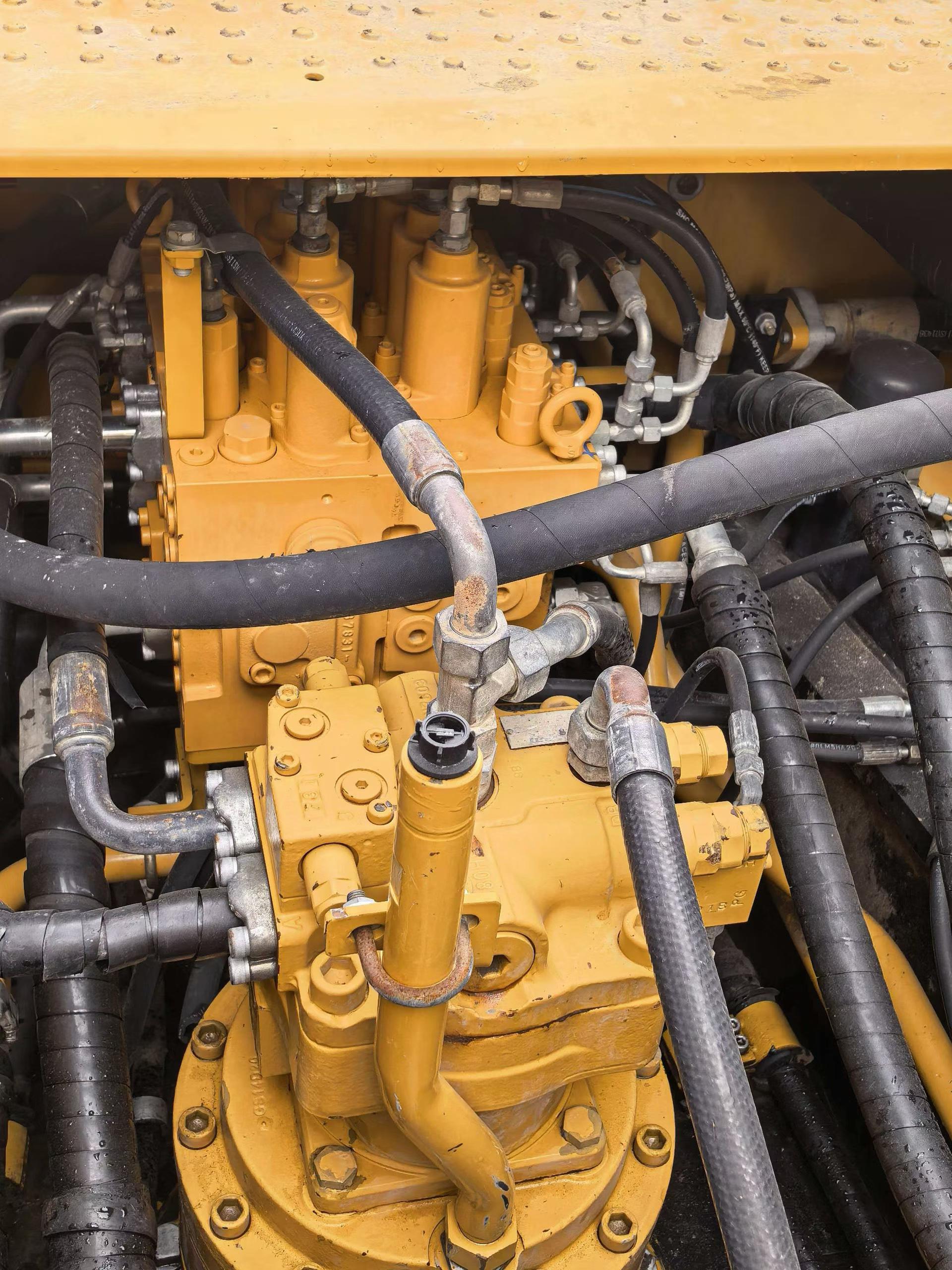

Buy Sany SY245H Used Excavator / 8

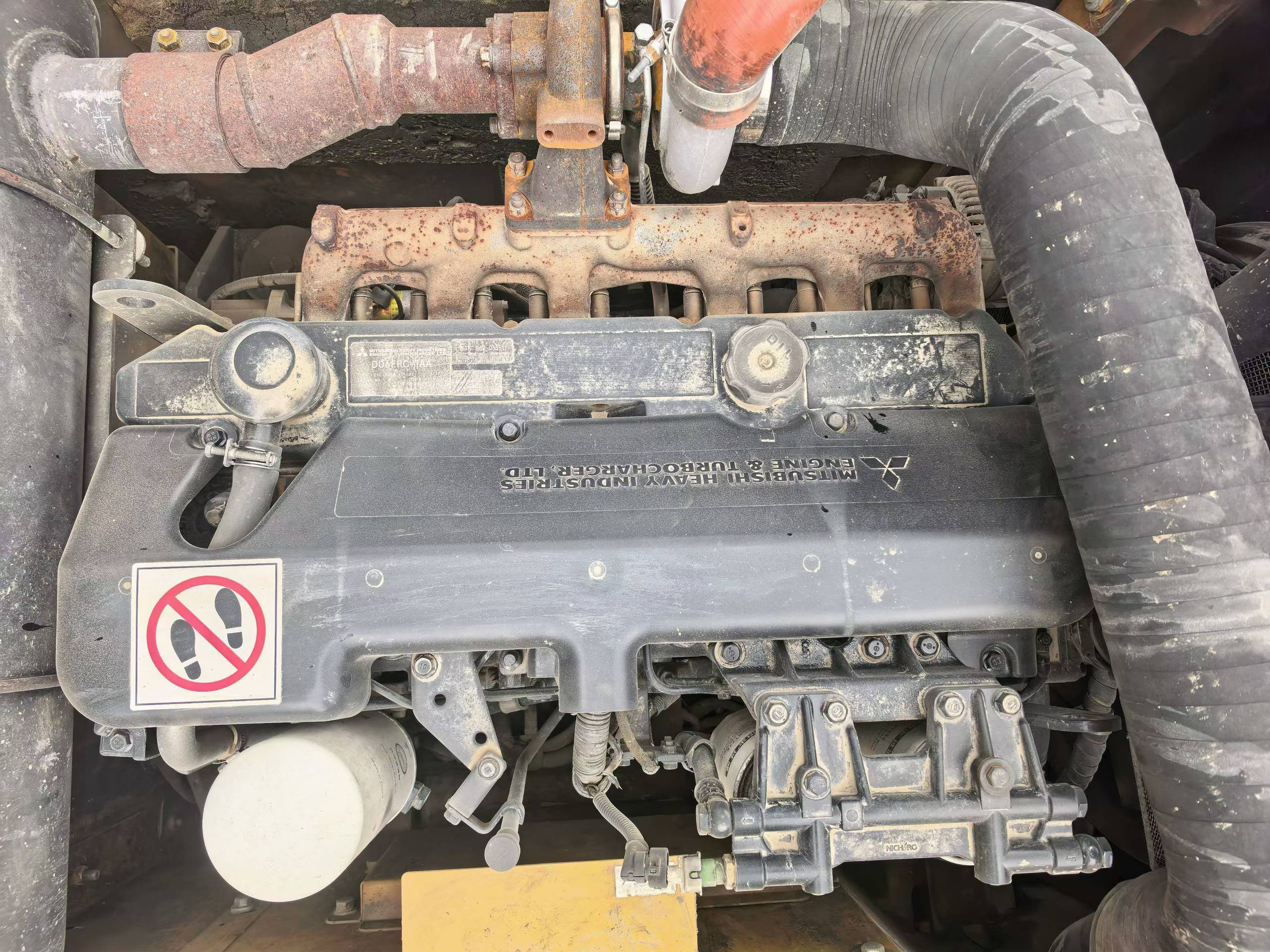

Buy Sany SY245H Used Excavator / 9

Product Description

This 2020 Sany SY245H hydraulic excavator offers reliable performance for earthmoving and construction applications. Manufactured by Sany Heavy Industry, a leading Chinese equipment producer, this 24-ton class machine features a proven hydraulic system and robust undercarriage designed for demanding job sites.

Currently located in Sichuan, China, this unit is available at a competitive price point. The SY245H is known for:

  • Fuel-efficient engine meeting emissions standards
  • Spacious operator cabin with ergonomic controls
  • Durable boom and arm construction for extended service life
  • Straightforward maintenance access points

This pre-owned excavator represents an opportunity to acquire quality equipment from a respected manufacturer at an attractive value. Suitable for contractors seeking dependable medium-sized excavation capacity.

SpecificationsValue
No.1170698
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1170698

Brand Name:

Sany

Model Number:

SY245H

Year:

2020

Location:

Sichuan China

Pub Date:
