Product Description

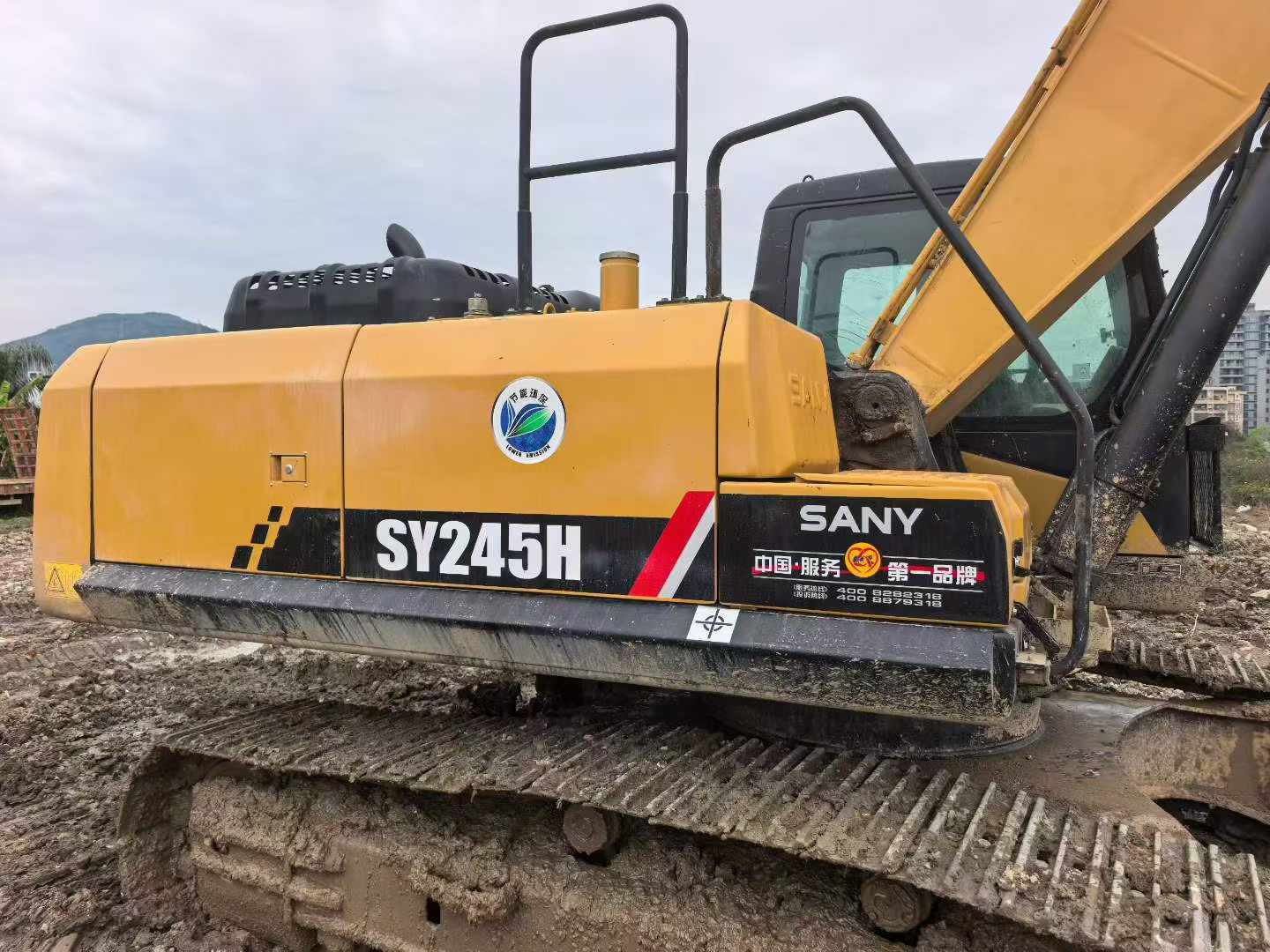

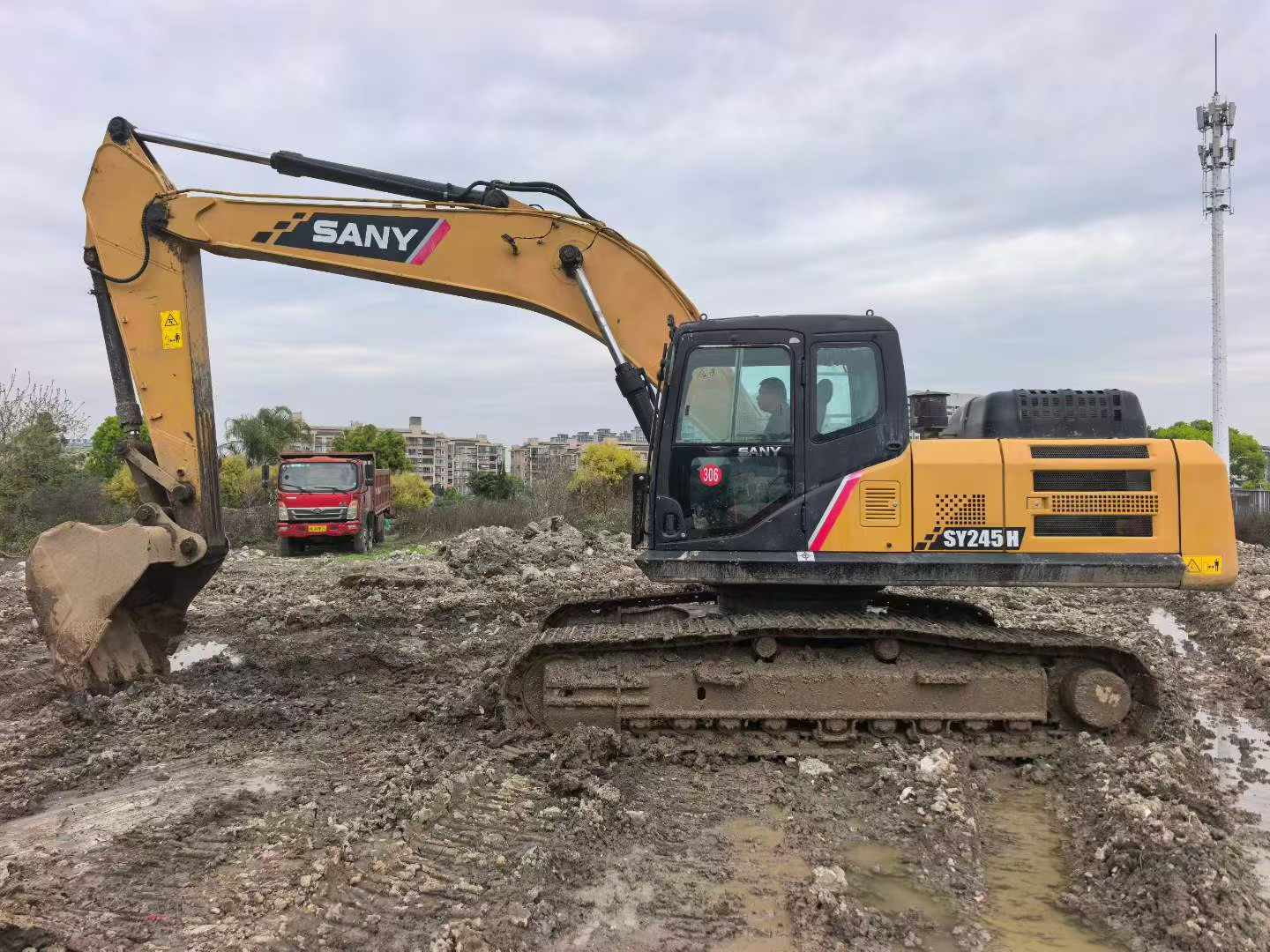

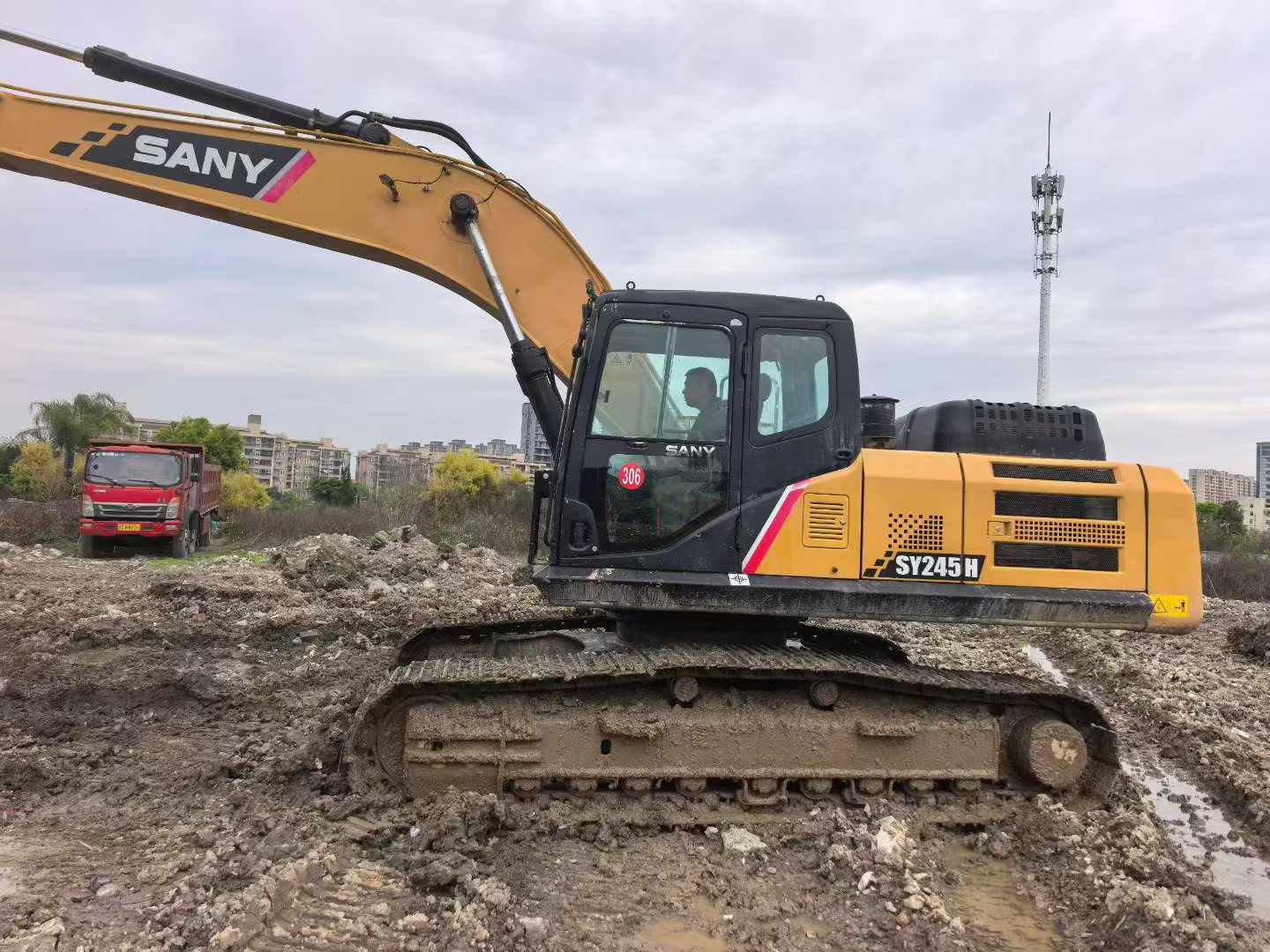

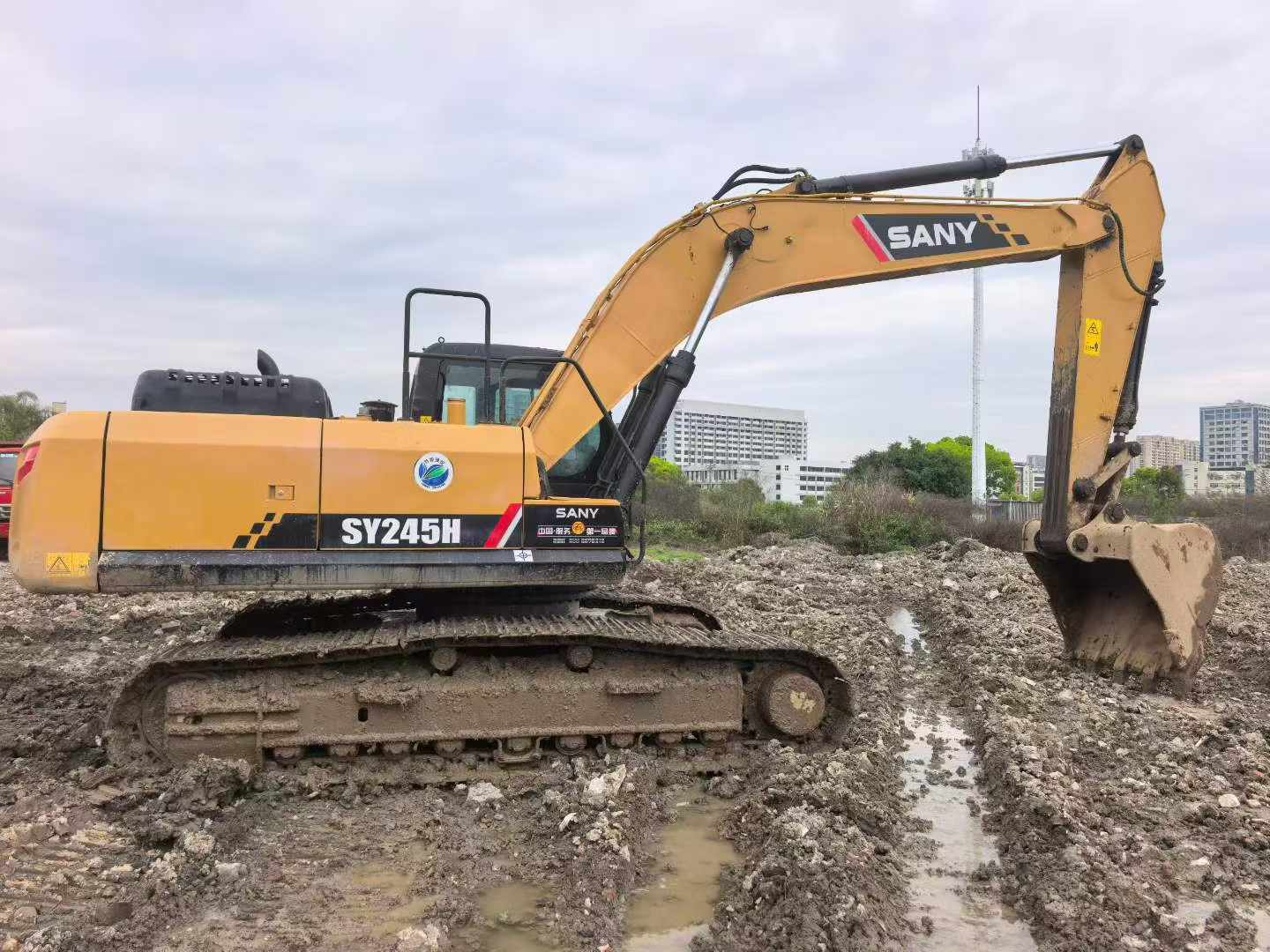

Ready to ship from Zhejiang, China — this 2021 Sany SY245H puts 24 tons of proven excavating performance on your site without the factory wait. Skip the lead times and move fast on a machine that's built for serious ground work.

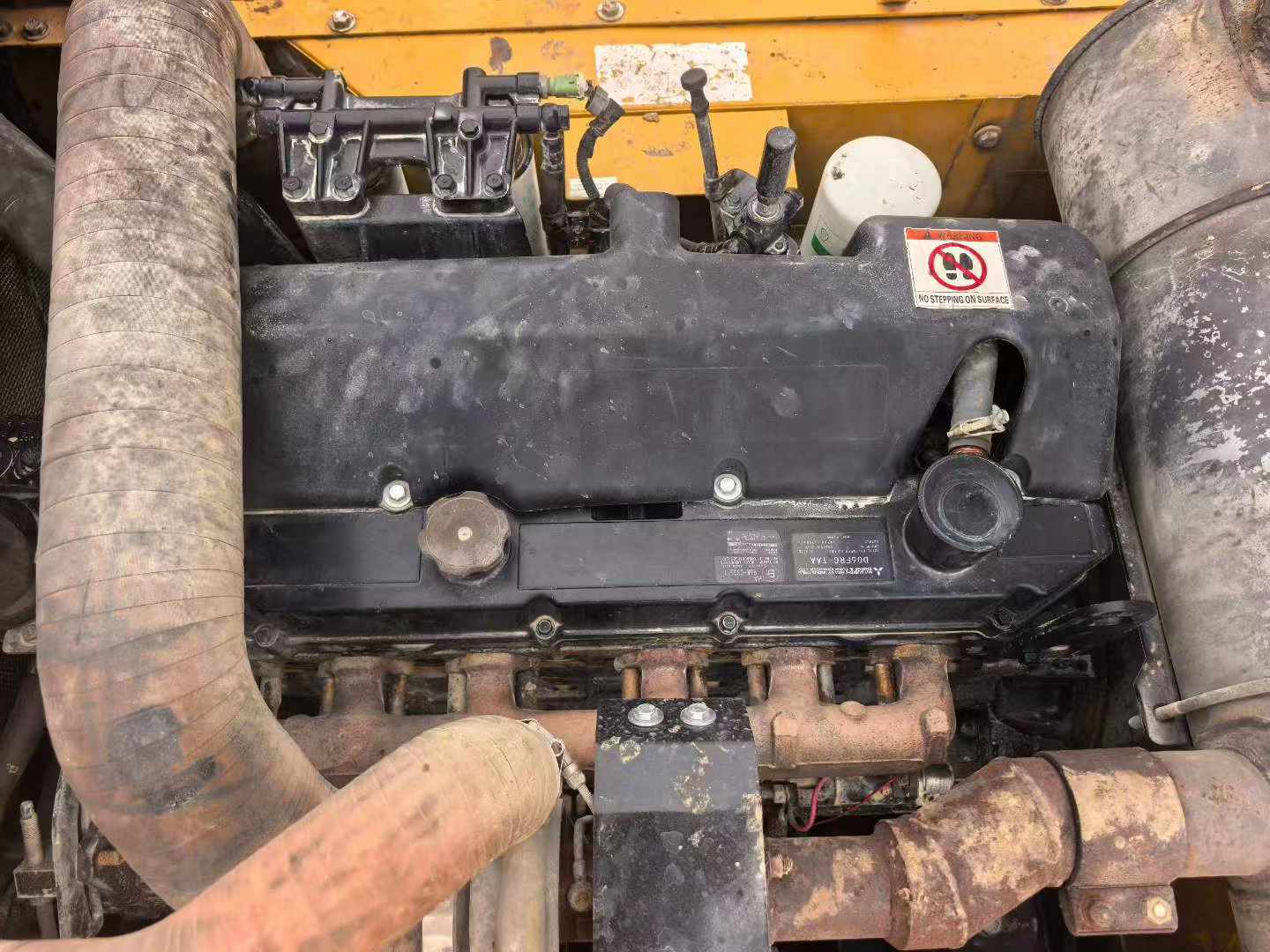

Powered by a 6-cylinder Deutz D06FRC water-cooled engine producing 147 kW at 2,100 rpm and 750 N·m of peak torque, this backhoe excavator delivers a bucket digging force of 175 kN and a maximum digging depth of 6,705 mm. The 1.5 m³ bucket and 10,225 mm digging radius handle high-volume earthmoving with precision.
- Working weight: 25,500 kg | Ground pressure: 53.2 kPa
- Max digging depth: 6,705 mm | Max digging radius: 10,225 mm
- Max excavation height: 9,745 mm | Max unloading height: 6,715 mm
- Travel speed: 5.4 / 3.4 km/h | Climbing ability: 70%
- Fuel tank: 475 L | Hydraulic tank: 277 L
- Transport dimensions: 10,290 × 3,190 × 3,190 mm
Available now in Zhejiang — positioned for fast deployment across Asia and beyond. Contact Fair Trade Machinery today to confirm availability and arrange logistics.
| Specifications | Value |
|---|---|
| No. | 1056558 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
