HOME>>Sany>>Sany SY245H

2021 Sany SY245H

1/7

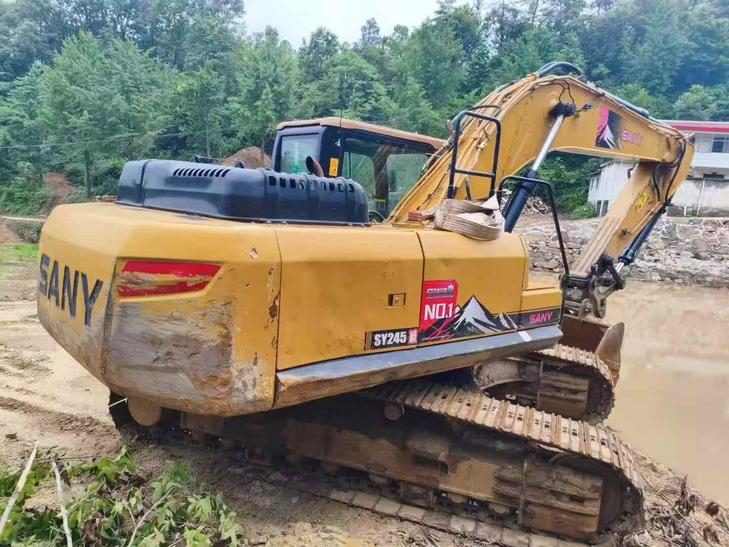

Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2

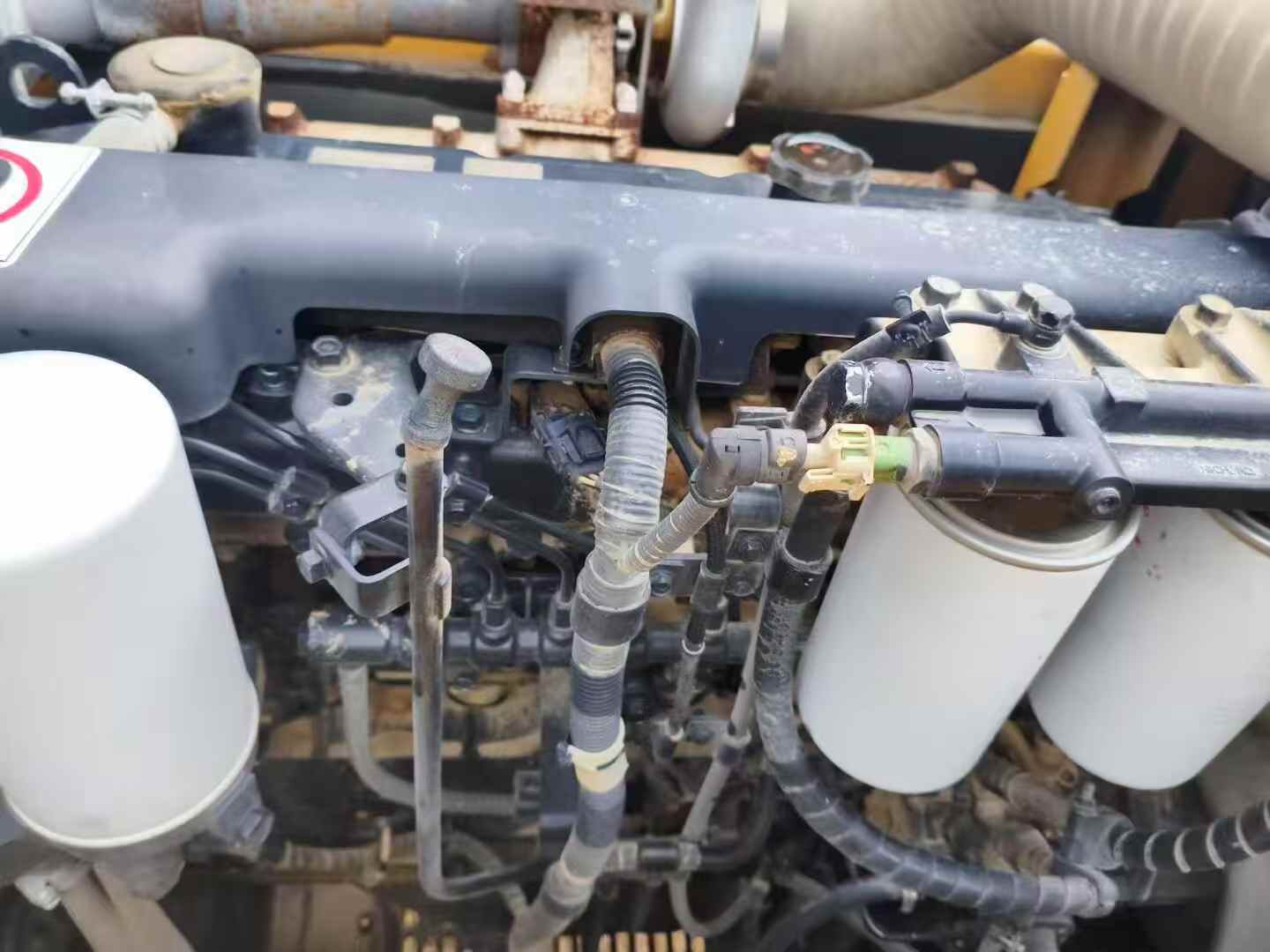

Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5

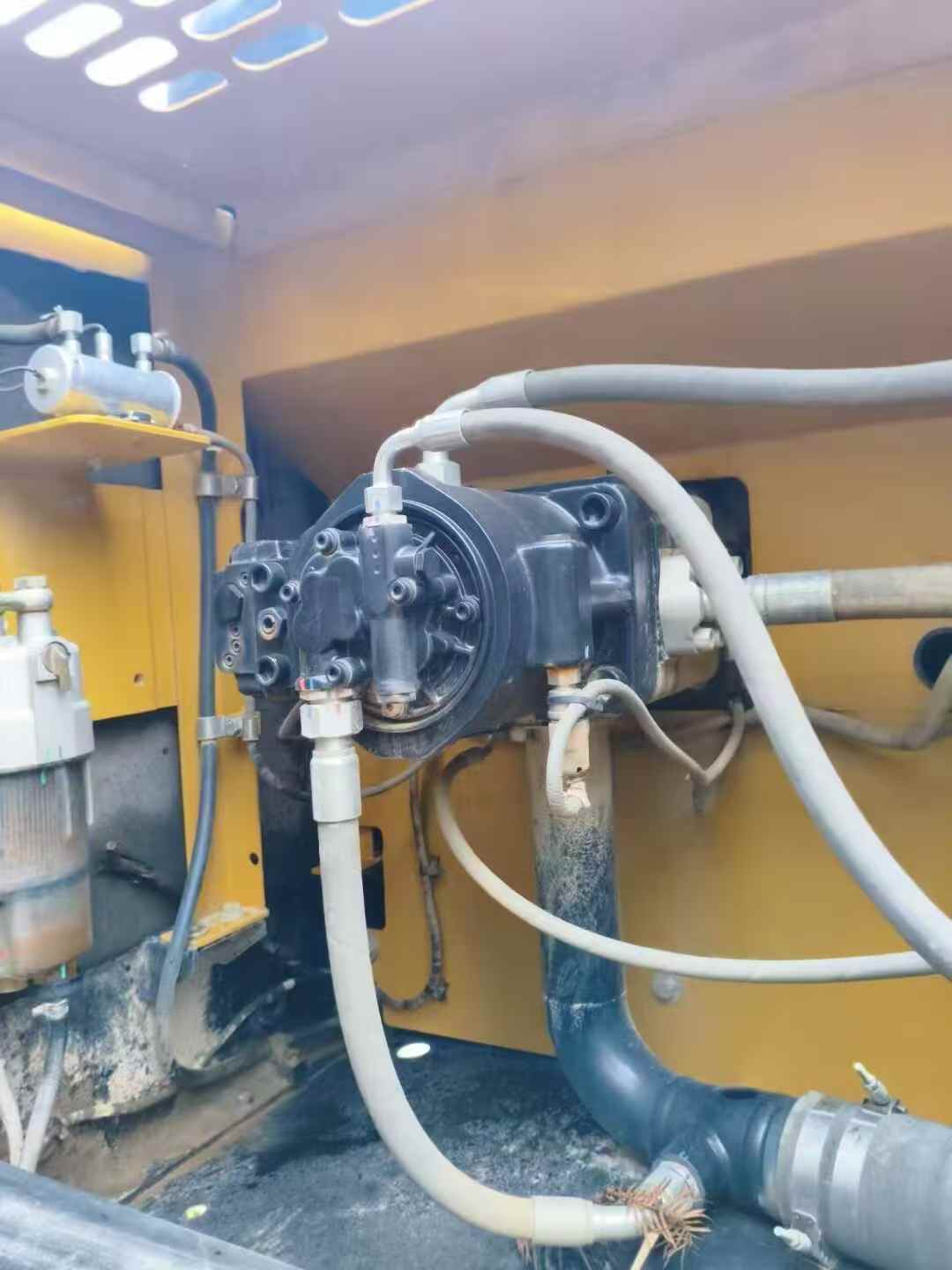

Buy Sany SY245H Used Excavator / 6

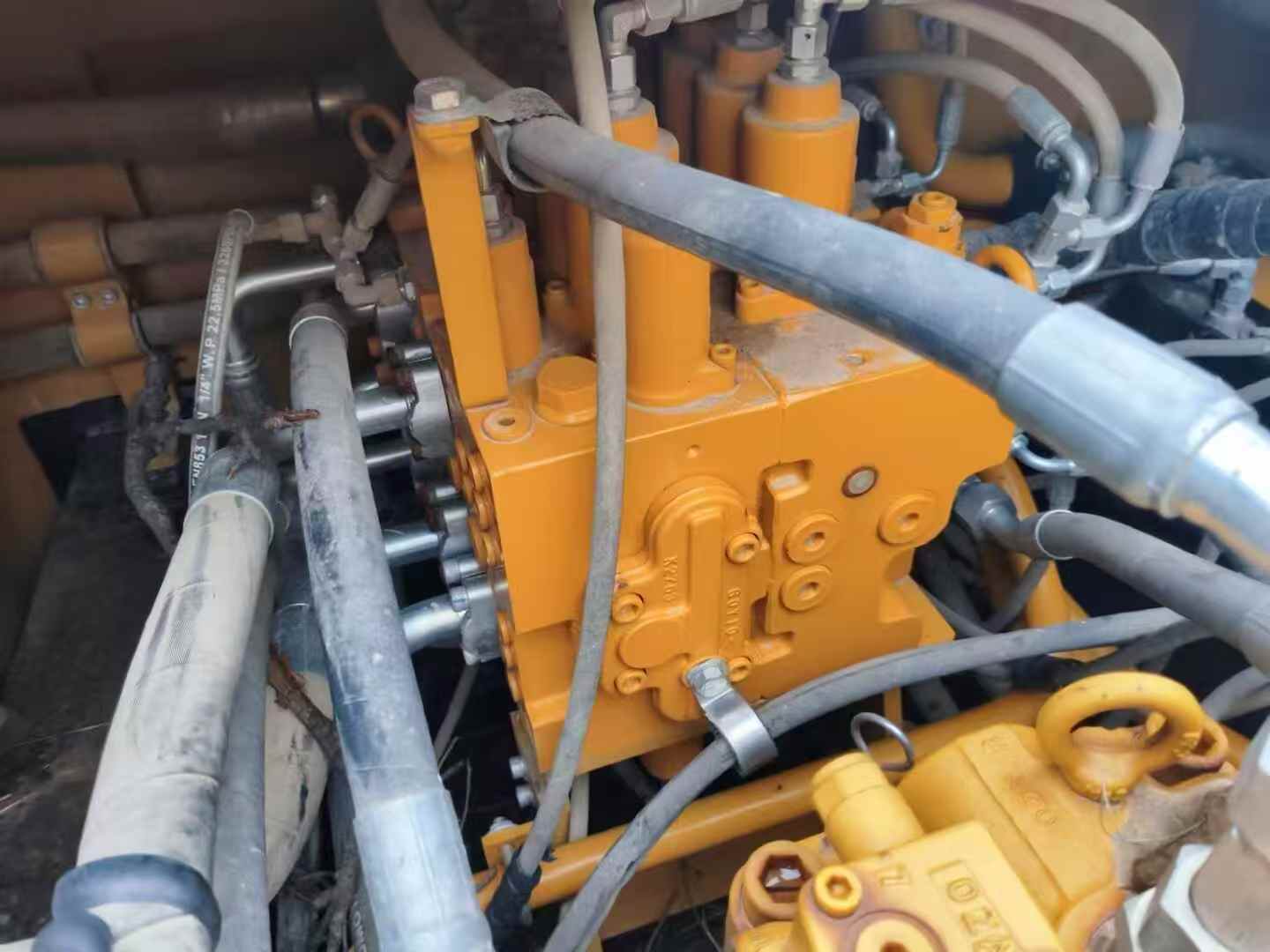

Buy Sany SY245H Used Excavator / 7

Product Description

This 2021 Sany SY245H hydraulic excavator is available from Guizhou, China. With approximately 3,400 operating hours, this mid-sized crawler excavator offers reliable performance for earthmoving, site preparation, and general construction applications. The SY245H is known for its robust build quality and efficient fuel consumption in its class.

Key features include:

  • Sany's proven hydraulic system for smooth operation
  • Spacious operator cabin with ergonomic controls
  • Durable undercarriage designed for varied terrain
  • Standard bucket and attachment compatibility
  • Well-maintained condition with service records available

This machine represents a cost-effective solution for contractors seeking dependable excavation equipment. Located in Guizhou province, the unit is ready for inspection and can be arranged for transport domestically or internationally. Suitable for medium-scale construction, mining support, and infrastructure projects.

SpecificationsValue
No.1075086
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1075086

Brand Name:

Sany

Model Number:

SY245H

Year:

2021

Location:

Guizhou China

Pub Date

Are you interested in this machine?

Please contact us
