2021 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1

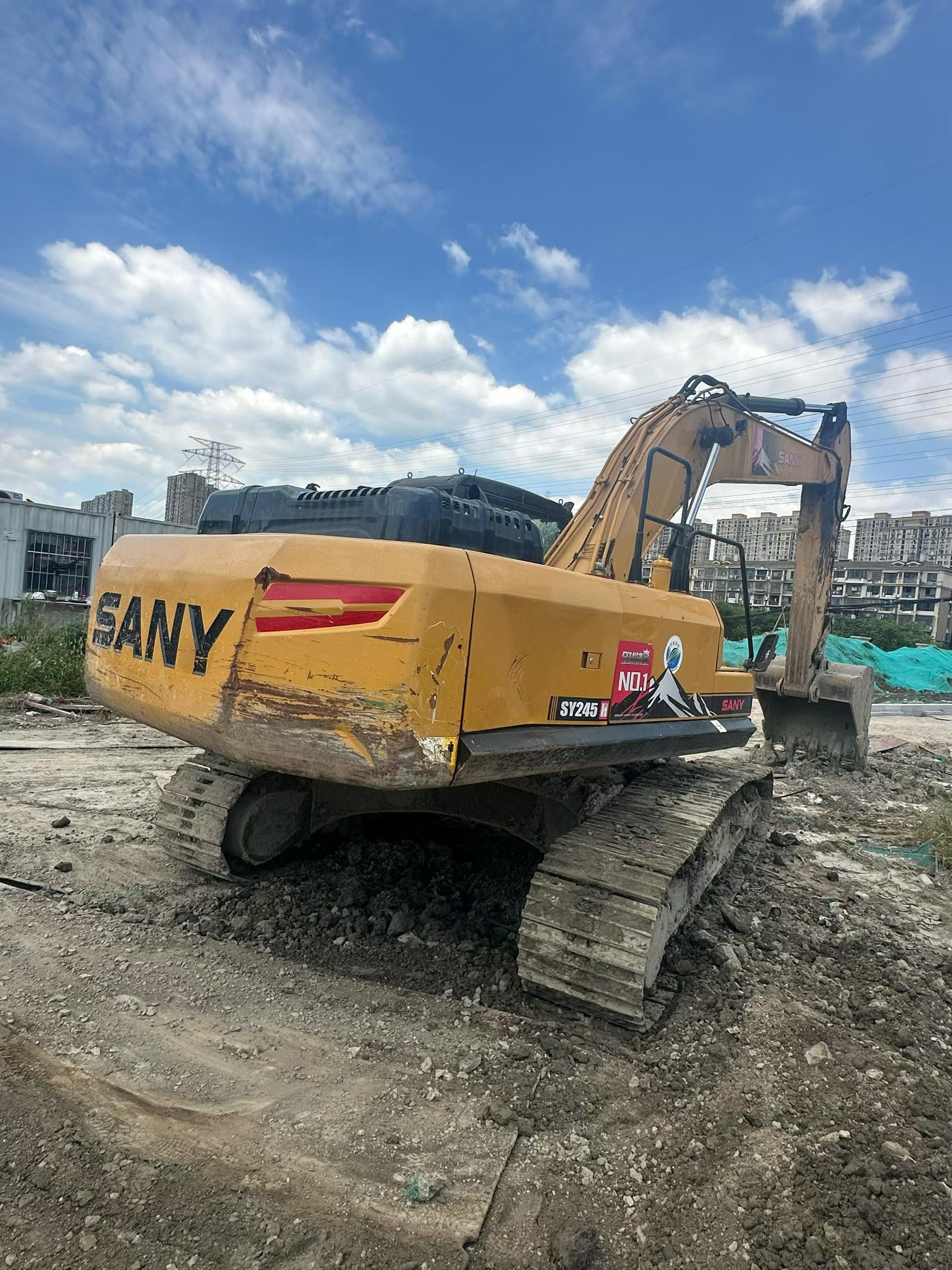

Buy Sany SY245H Used Excavator / 2

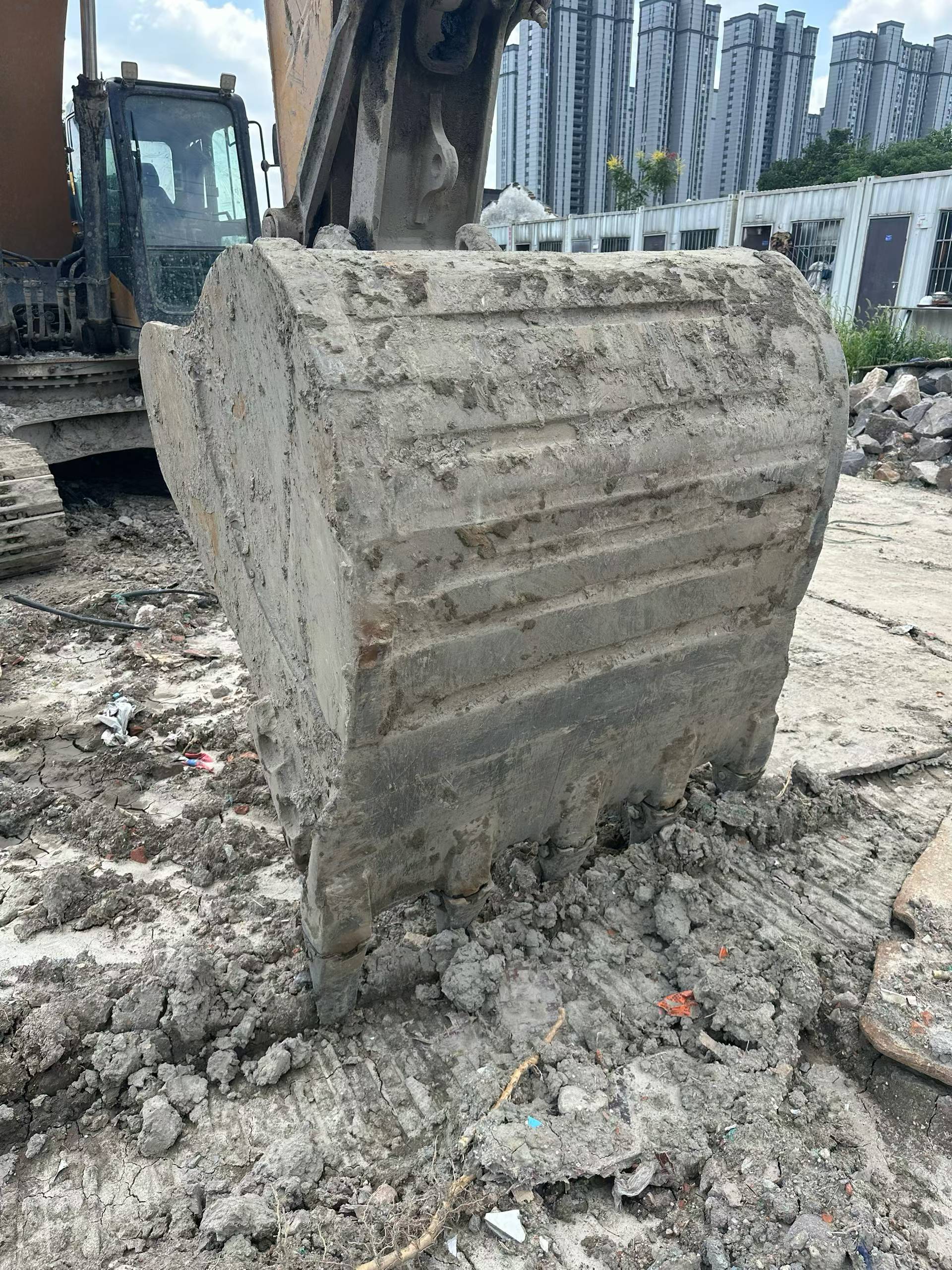

Buy Sany SY245H Used Excavator / 3

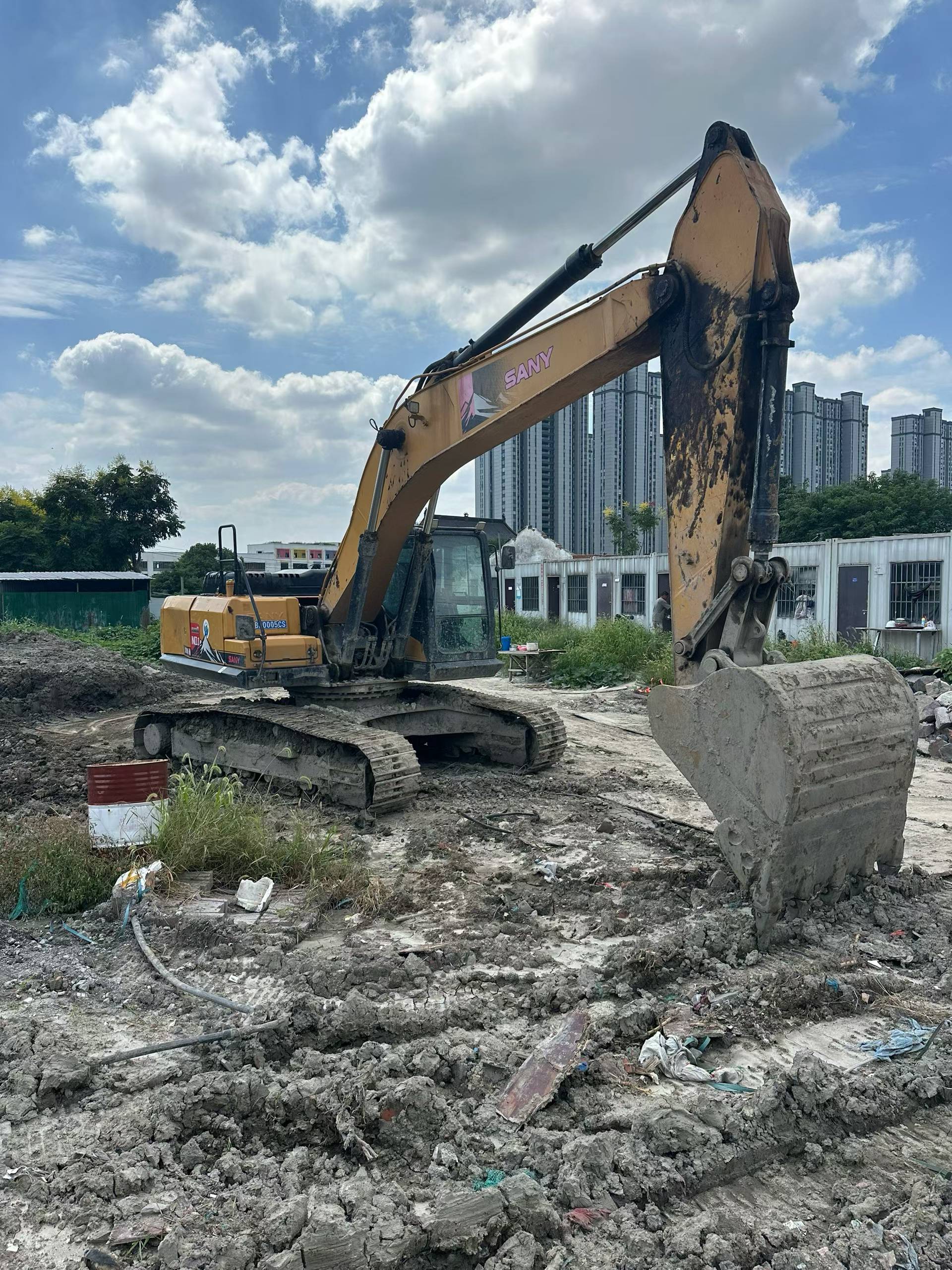

Buy Sany SY245H Used Excavator / 4

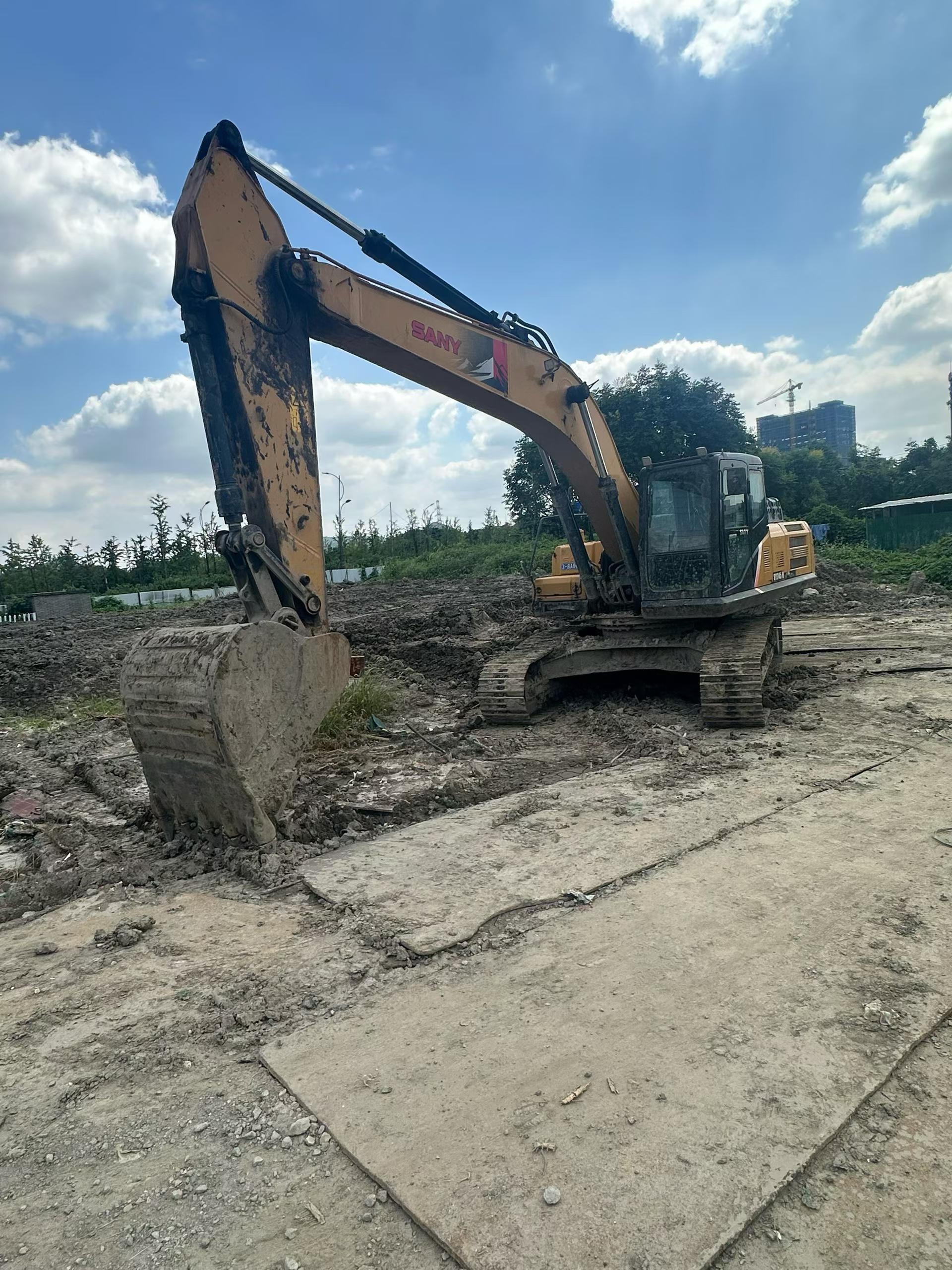

Buy Sany SY245H Used Excavator / 5

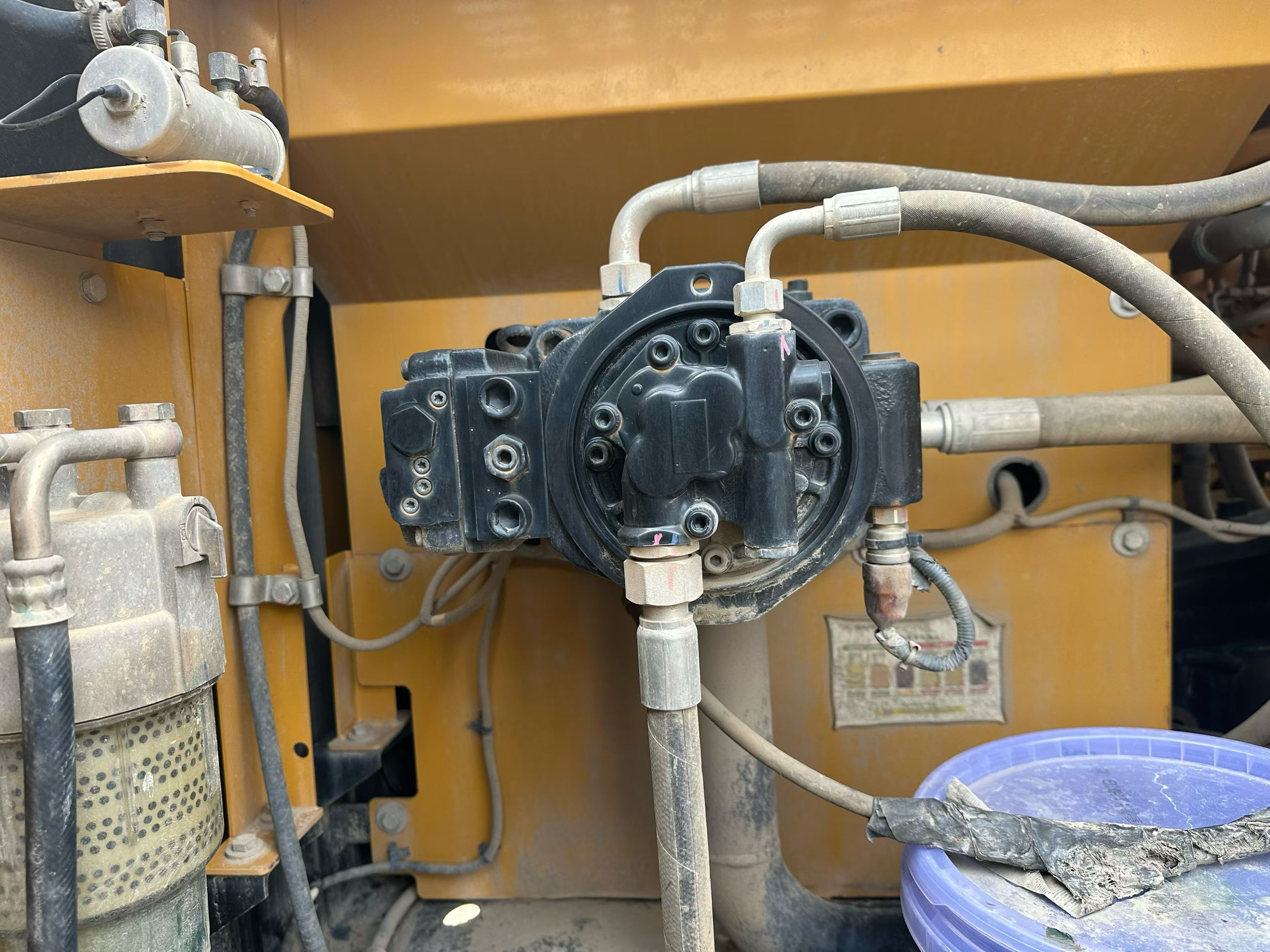

Buy Sany SY245H Used Excavator / 6

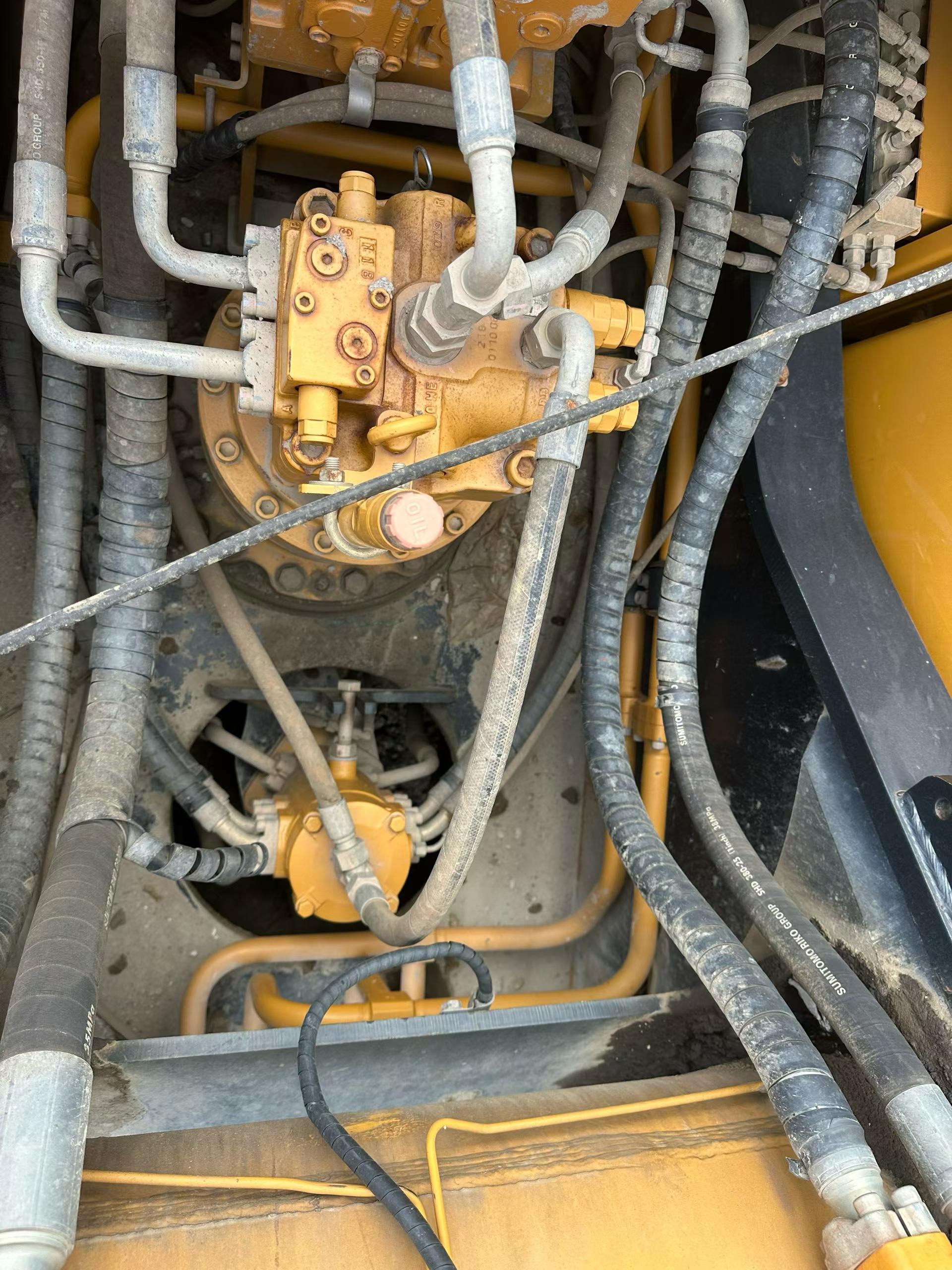

Buy Sany SY245H Used Excavator / 7

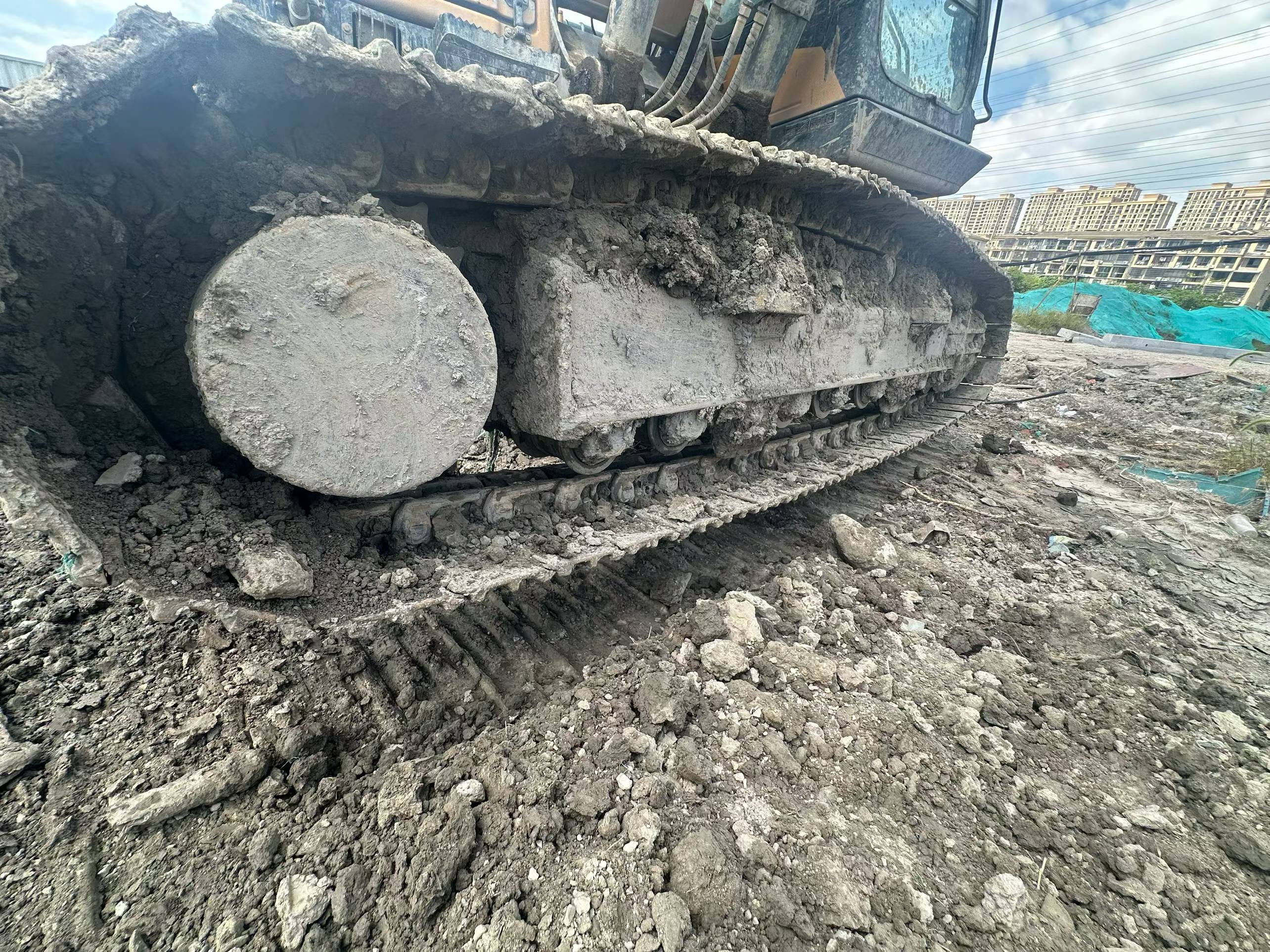

Buy Sany SY245H Used Excavator / 8
Buy Sany SY245H Used Excavator / 9

Product Description

This 2021 Sany SY245H hydraulic excavator represents a well-maintained local unit with approximately 3,000 operating hours. Sourced from Zhejiang, China, this machine has been primarily deployed in earthmoving applications throughout its service life, demonstrating the reliability expected from Sany's mid-range excavator lineup.

The SY245H delivers robust performance for general excavation, trenching, and site preparation work. This unit retains its original factory configuration without major modifications or component replacements, indicating consistent operational care. All major systems remain in working order, making it suitable for contractors seeking dependable equipment for medium-duty construction projects.

  • Year of Manufacture: 2021
  • Operating Hours: ~3,000
  • Primary Application: Earthmoving
  • Condition: Original configuration, local operation
  • Current Location: Zhejiang, China

Available for inspection and immediate deployment. Contact us for detailed specifications and export arrangements.

SpecificationsValue
No.1141972
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1141972

Brand Name:

Sany

Model Number:

SY245H

Year:

2021

Location:

Zhejiang China

Pub Date
