Product Description

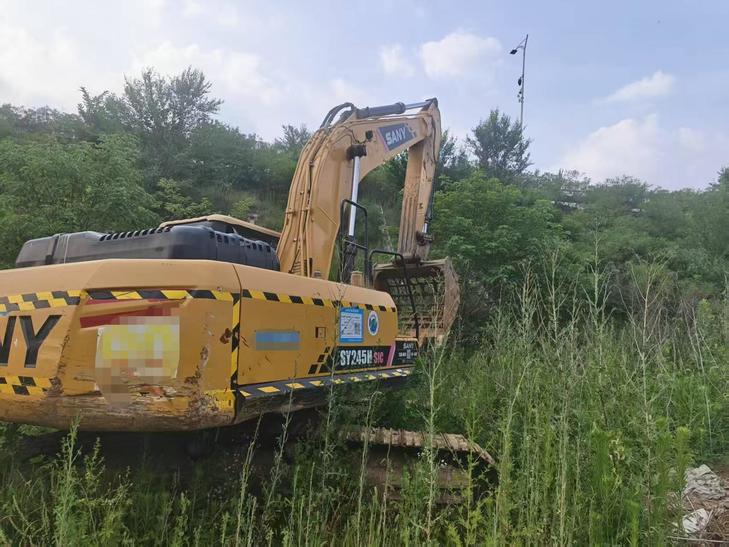

This 2021 Sany SY245H hydraulic excavator is available from our Shandong, China location. The SY245H is a mid-size crawler excavator designed for demanding earthmoving, demolition, and construction applications. With Sany's proven hydraulic system and robust undercarriage, this machine delivers reliable performance in quarries, infrastructure projects, and site development work.
Key features of the SY245H include:
- Fuel-efficient engine meeting emission standards
- Reinforced boom and arm for extended reach
- Spacious operator cabin with ergonomic controls
- Durable track system for varied terrain
- Comprehensive service access points
This unit has been maintained according to operational standards and is ready for immediate deployment. Ideal for contractors seeking proven Chinese manufacturing quality at competitive value. Contact us for detailed inspection reports, shipping arrangements, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1144970 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
