2021 Sany SY245H

1/8

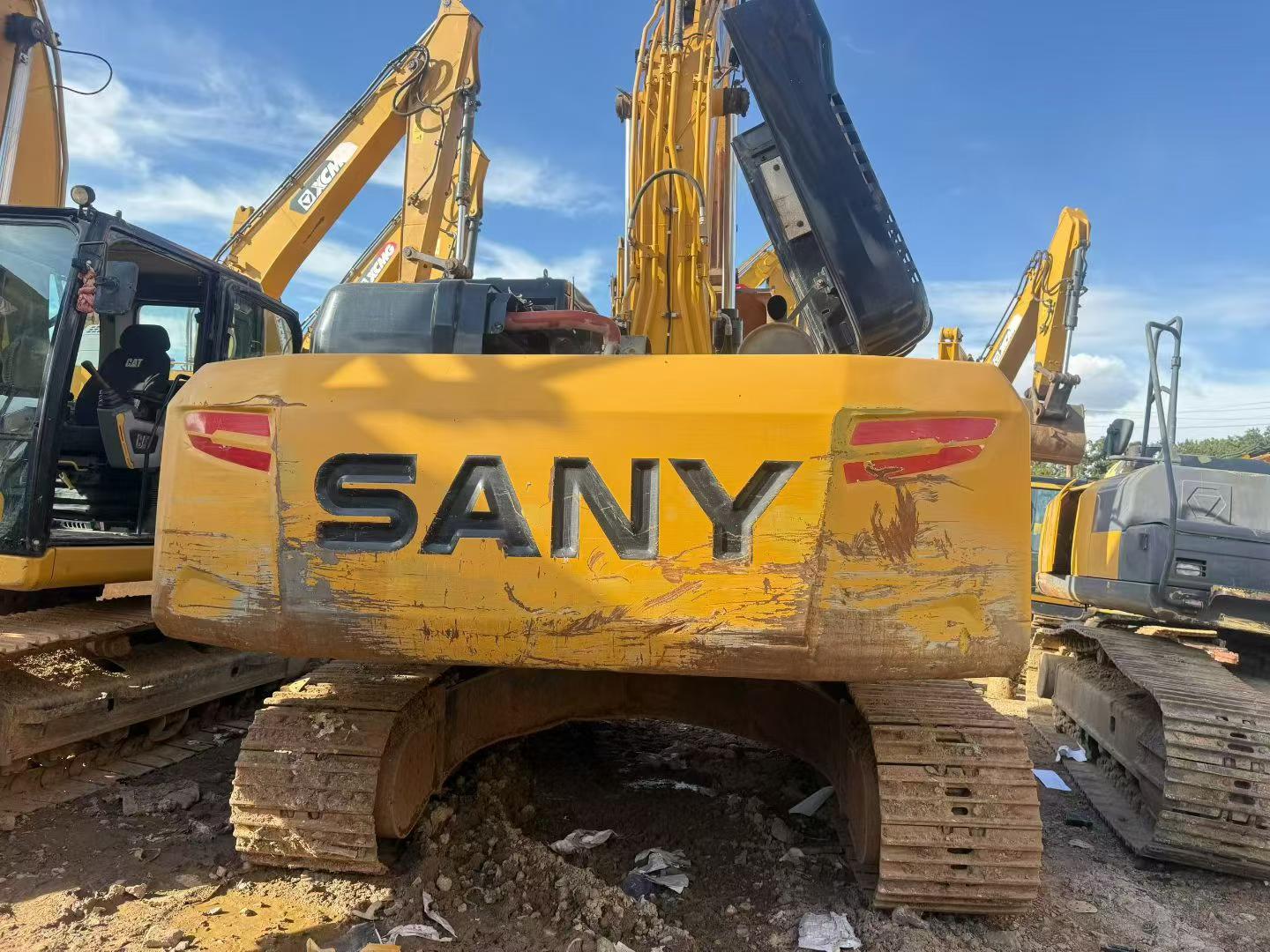

Buy Sany SY245H Used Excavator / 1

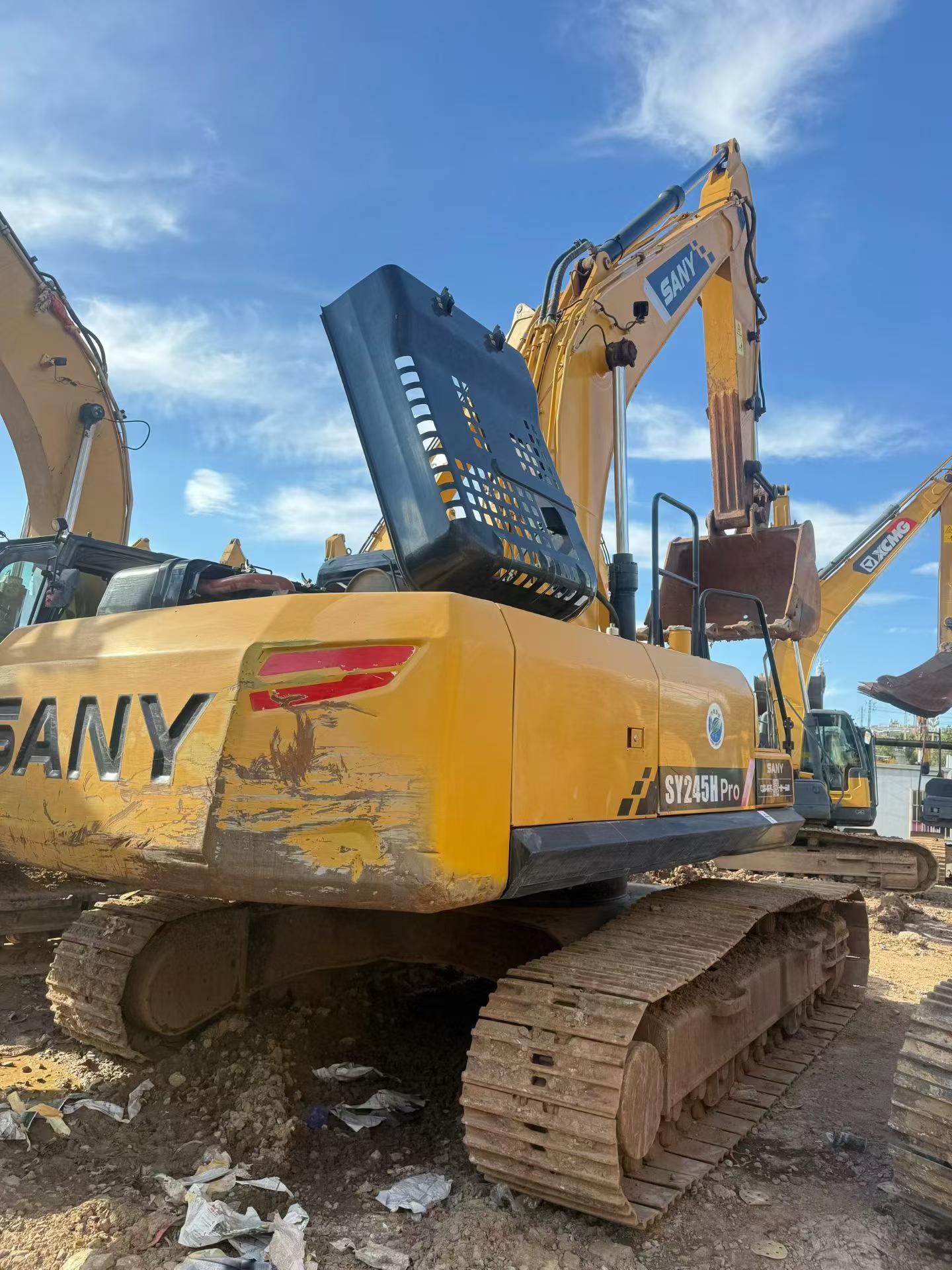

Buy Sany SY245H Used Excavator / 2

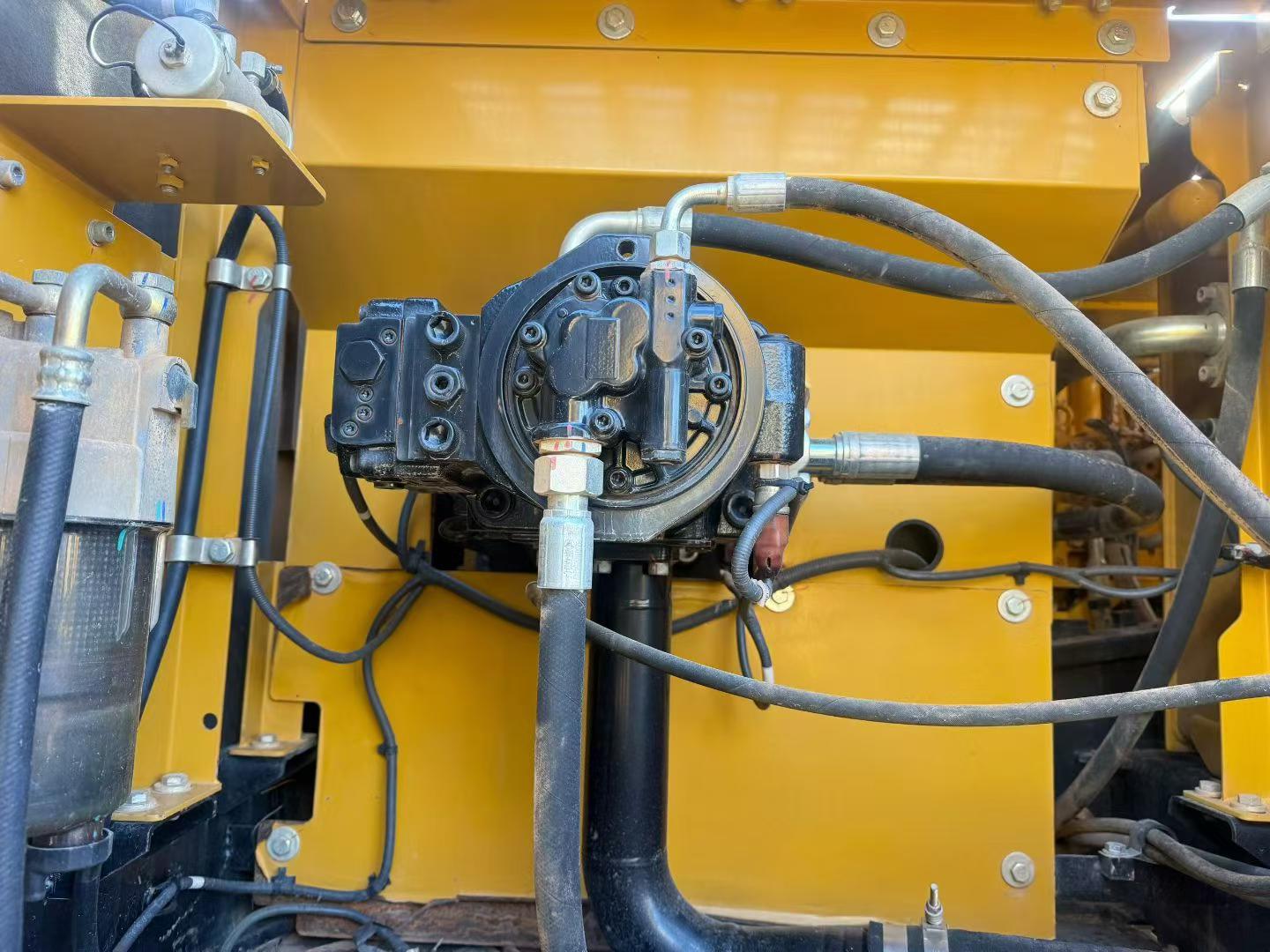

Buy Sany SY245H Used Excavator / 3

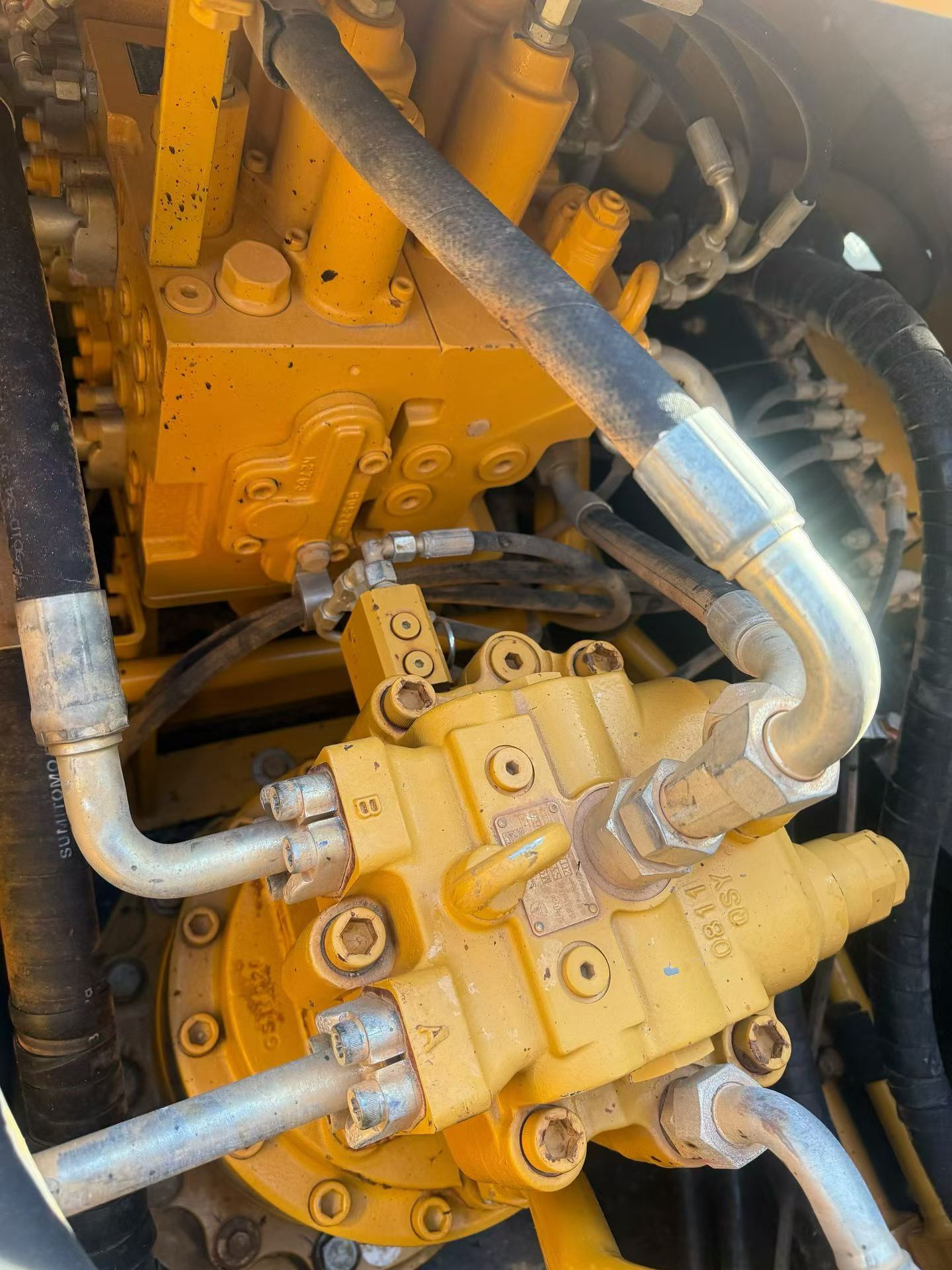

Buy Sany SY245H Used Excavator / 4

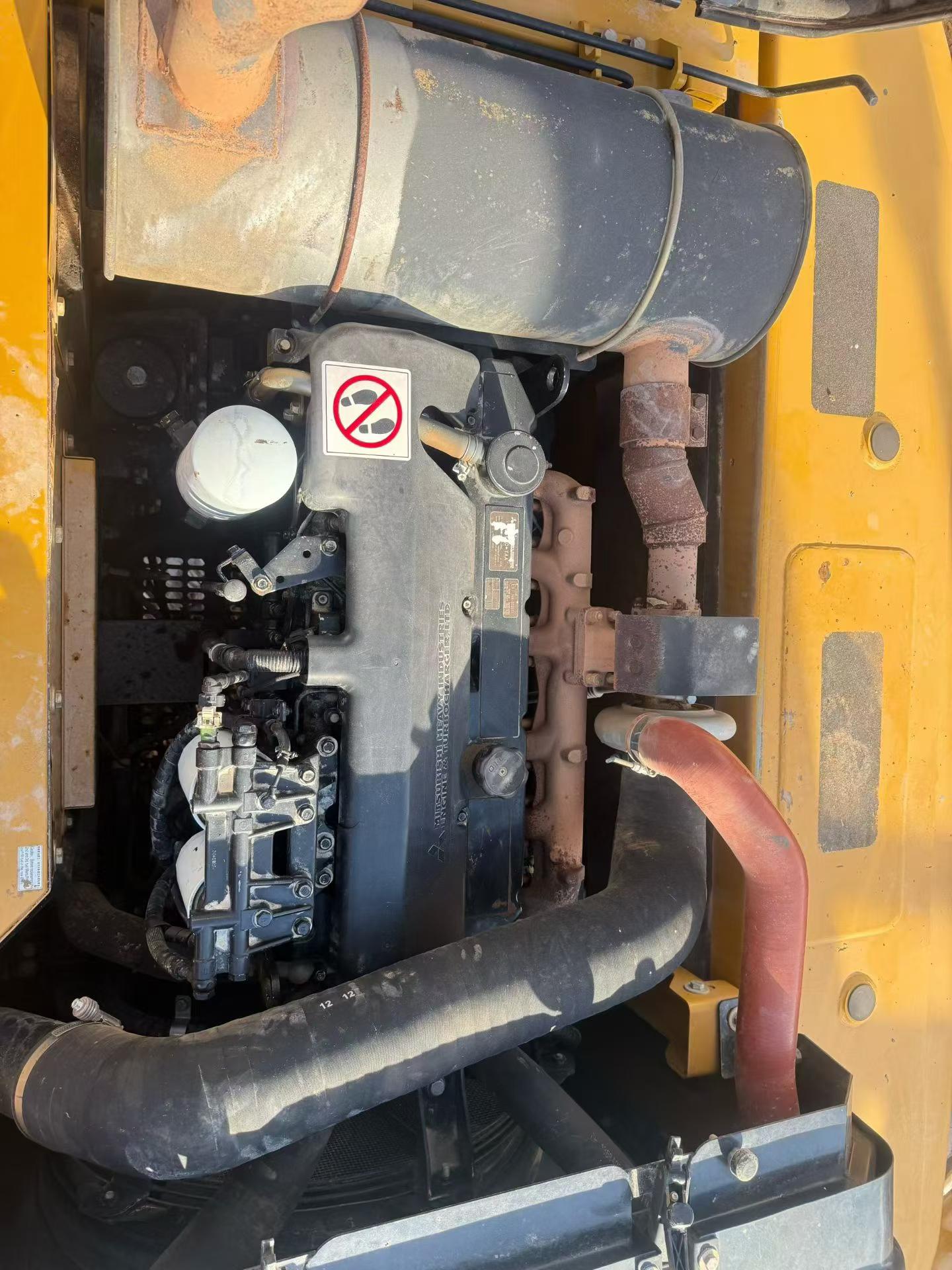

Buy Sany SY245H Used Excavator / 5

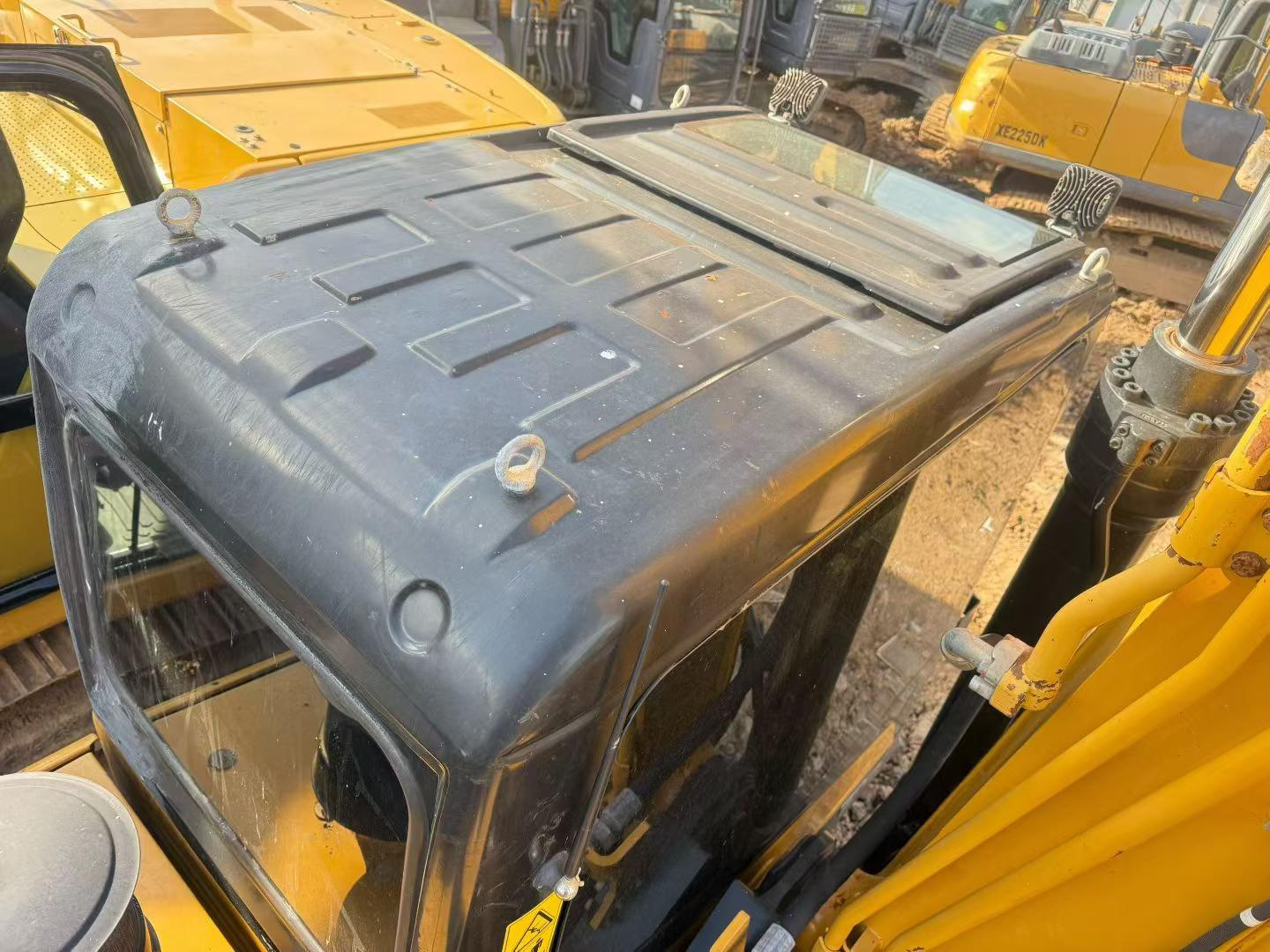

Buy Sany SY245H Used Excavator / 6

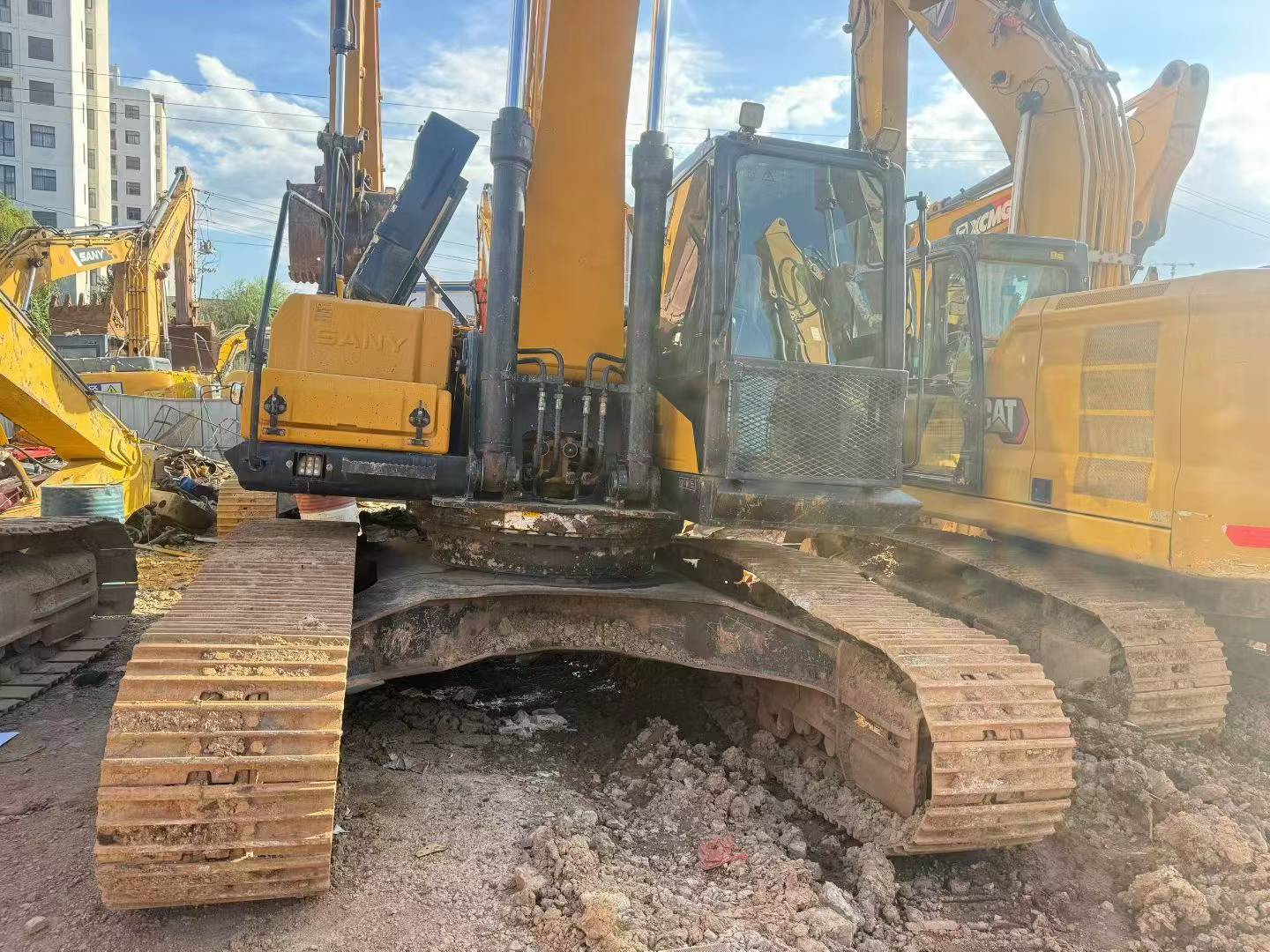

Buy Sany SY245H Used Excavator / 7

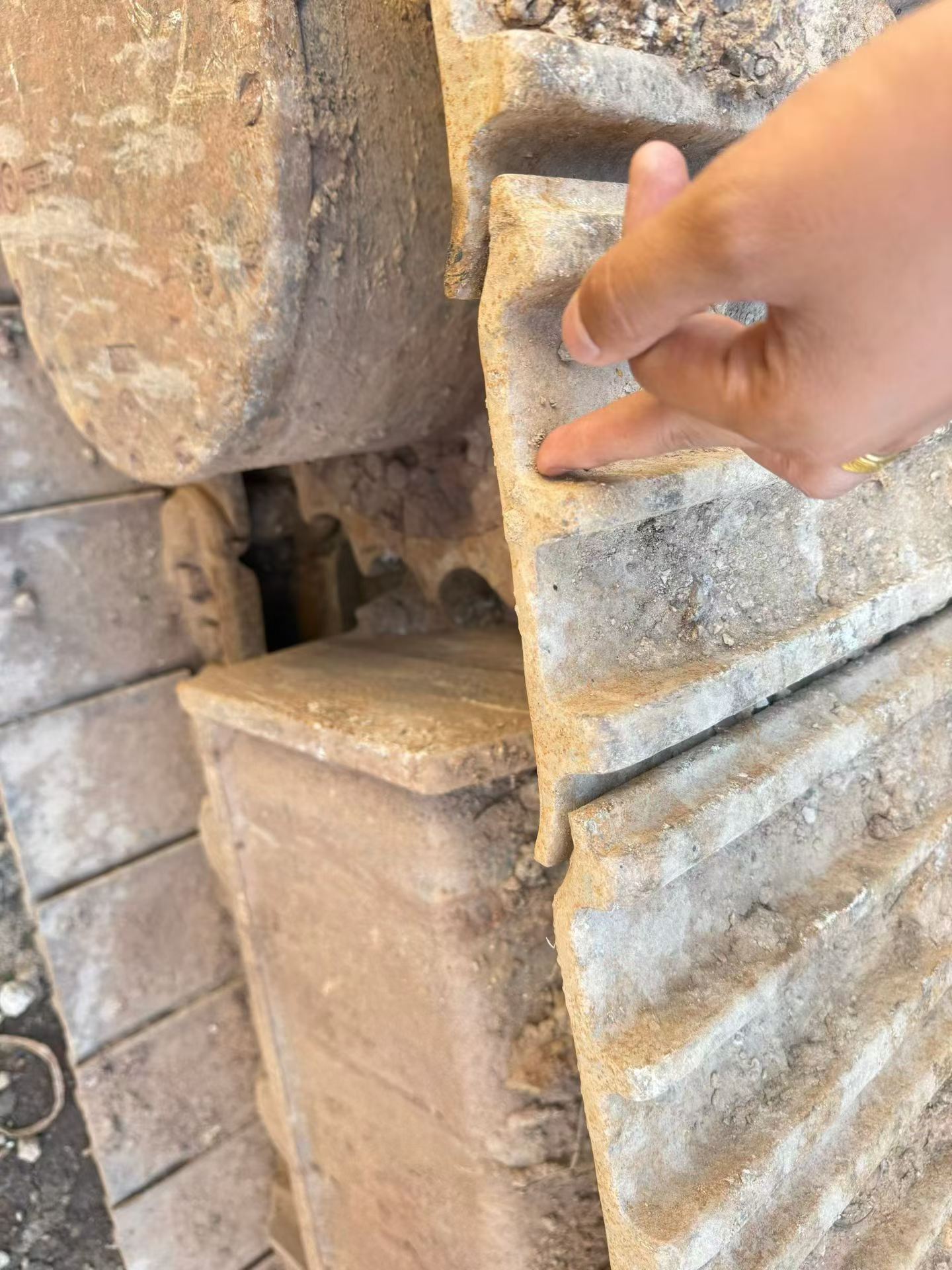

Buy Sany SY245H Used Excavator / 8

Product Description

This 2021 Sany SY245H hydraulic excavator offers proven performance for medium to heavy-duty applications. Powered by a reliable Mitsubishi engine and equipped with a complete Kawasaki hydraulic system, this machine delivers responsive operation and efficient fuel consumption. The hydraulic components provide smooth coordination between functions, enabling productive cycle times across a range of earthmoving and excavation tasks.

Currently located in Hunan, China, this excavator has been maintained for consistent field performance. The SY245H's design emphasizes durability and operational efficiency, making it suitable for construction, mining, and infrastructure projects.

  • Year: 2021
  • Model: Sany SY245H
  • Engine: Mitsubishi
  • Hydraulics: Full Kawasaki system
  • Location: Hunan, China

Contact us for detailed specifications, inspection reports, and shipping arrangements to your location.

SpecificationsValue
No.1164815
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1164815

Brand Name:

Sany

Model Number:

SY245H

Year:

2021

Location:

Hunan China

Pub Date:
