2021 Sany SY245H

1/4
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4

Product Description

This 2021 Sany SY245H hydraulic excavator offers reliable performance for medium to heavy-duty applications. Manufactured by one of China's leading construction equipment brands, this machine combines proven engineering with efficient operation. Currently located in Sichuan, China, the unit is available for inspection and export arrangements.

Key features include:

  • Year of manufacture: 2021
  • Model: SY245H medium excavator
  • Sany's established hydraulic system for consistent digging performance
  • Suitable for earthmoving, excavation, and general construction work
  • Located in Sichuan Province, China

This used excavator represents a cost-effective solution for contractors and equipment operators seeking dependable machinery with relatively low operating hours. Contact us for detailed specifications, current condition assessment, and shipping options to your location.

SpecificationsValue
No.1168273
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe

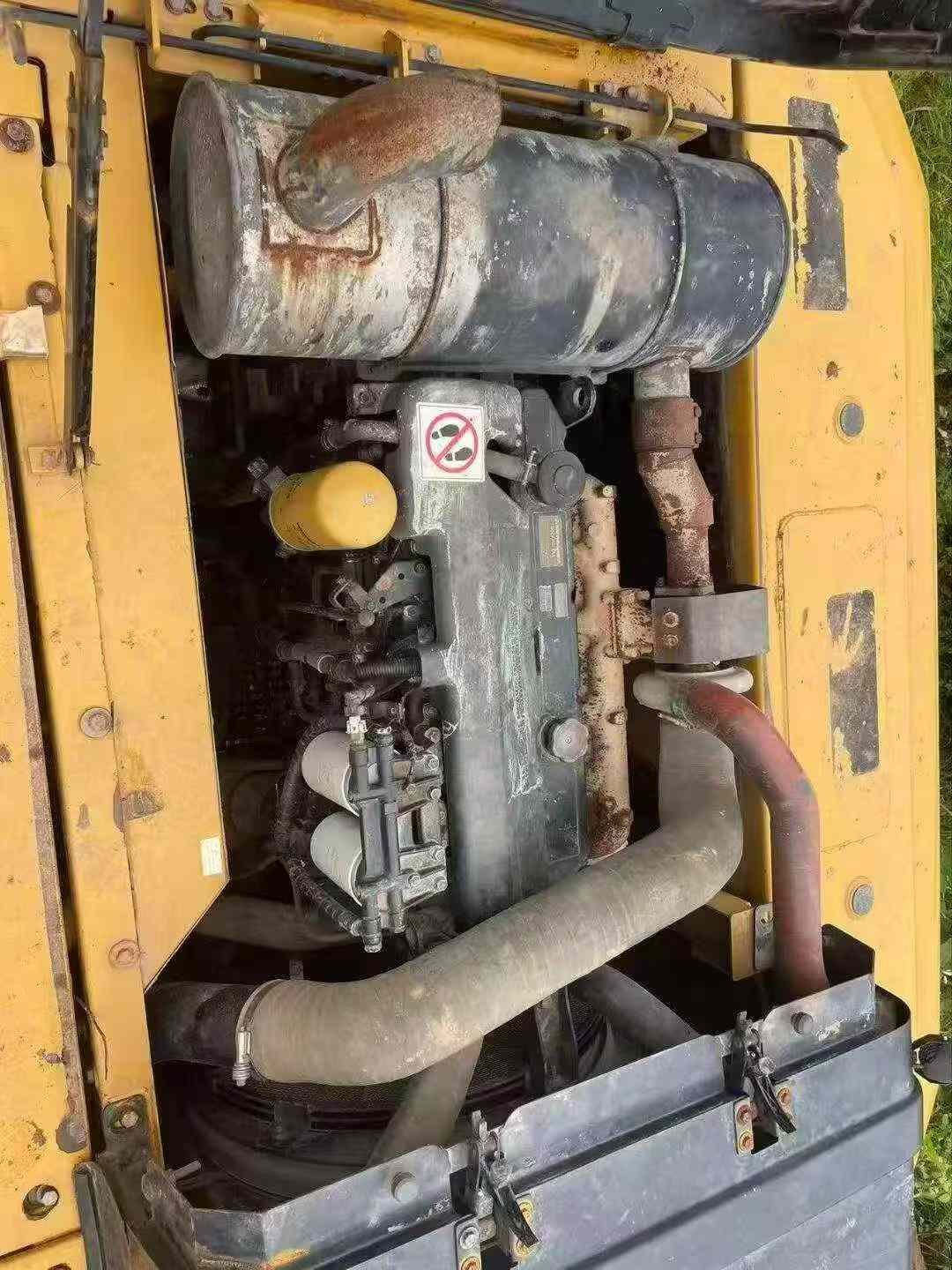

Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1168273

Brand Name:

Sany

Model Number:

SY245H

Year:

2021

Location:

Sichuan China

Pub Date:
