Product Description

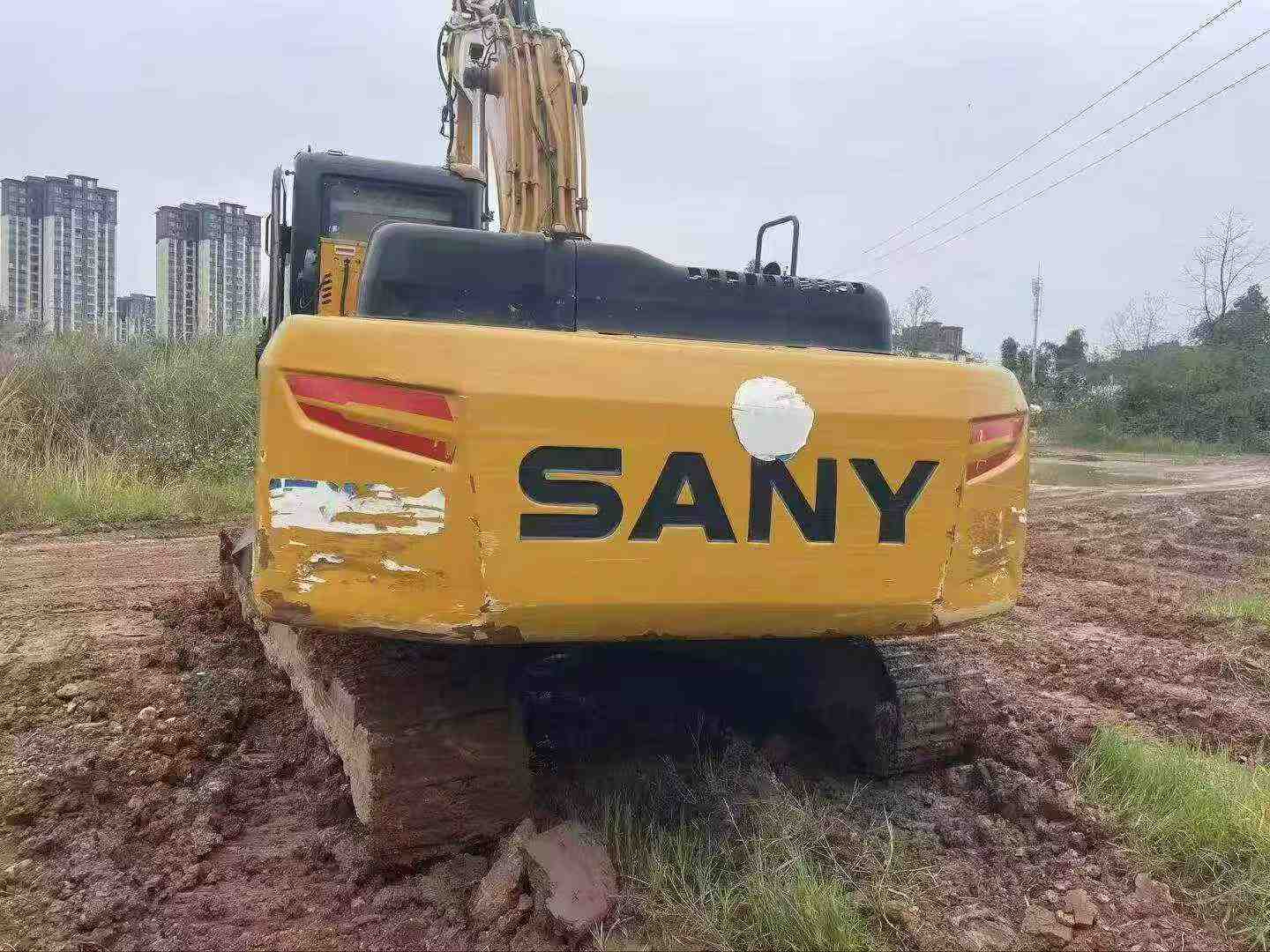

This 2021 Sany SY245H hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Manufactured by Sany Heavy Industry, a leading Chinese construction equipment producer, this 24-ton class machine combines robust build quality with efficient fuel consumption. Currently located in Sichuan, China, this unit represents an excellent opportunity for buyers seeking proven mid-range excavator capacity.
- Year of Manufacture: 2021
- Model: SY245H
- Weight Class: Approximately 24 tons
- Application: Excavation, earthmoving, construction
- Current Location: Sichuan Province, China
The SY245H features standard hydraulic systems and operator controls typical of this equipment class. Suitable for contractors and fleet operators requiring dependable excavation equipment with manageable operating costs. Inspection available upon request.
| Specifications | Value |
|---|---|
| No. | 1168750 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
