Product Description

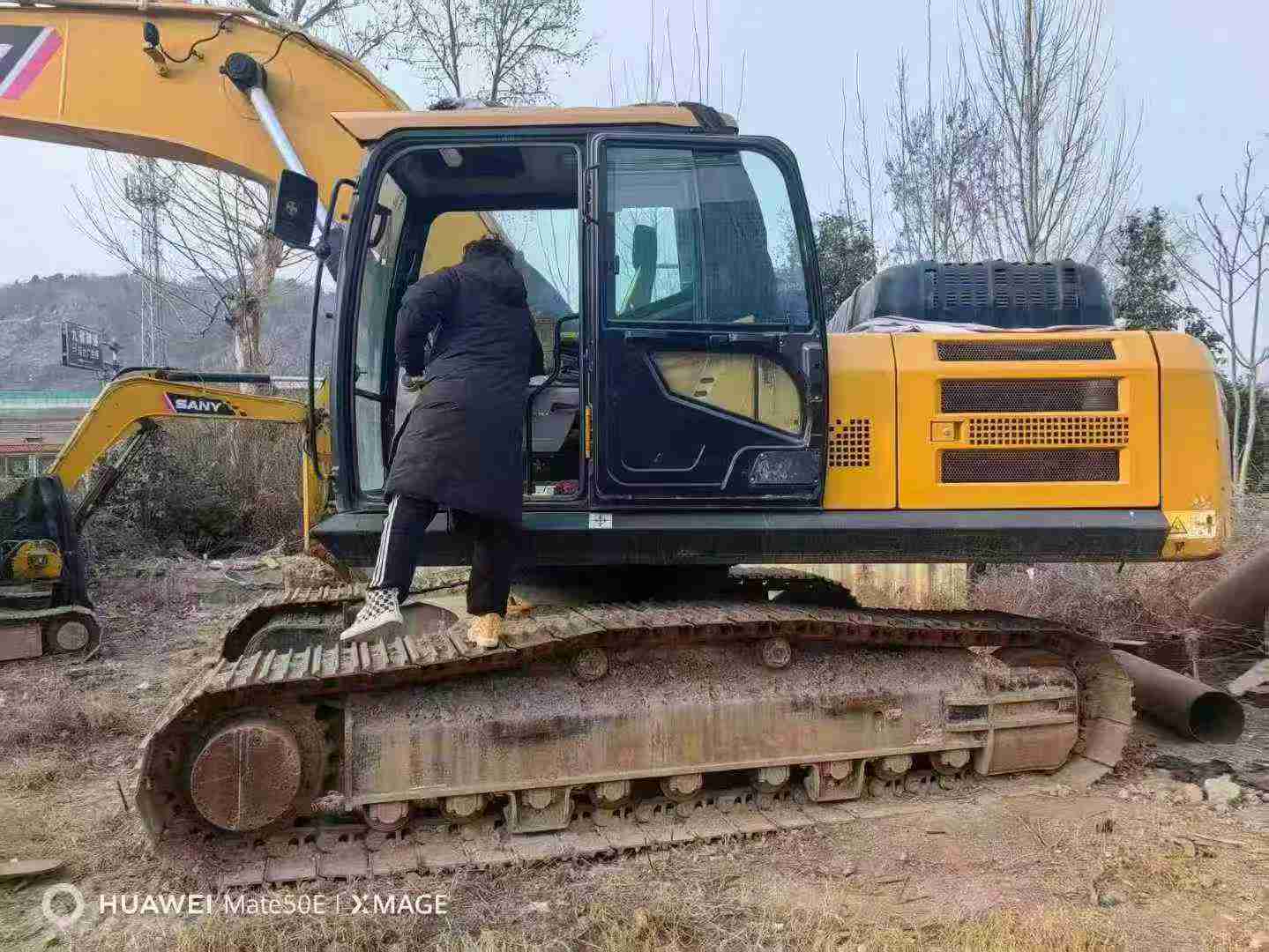

Built for demanding excavation work, this 2022 Sany SY245H delivers immediate productivity on any jobsite. Operating at 24 tons with a robust 25,500 kg working weight, this machine tackles digging, grading, and material handling with professional-grade performance. The water-cooled D06FRC engine generates 147 kW at 2100 rpm, providing consistent power through a 6-cylinder, 6.373L displacement system that maintains 750 N.m maximum torque.
Equipped with a 1.3-1.5 m³ backhoe bucket, this excavator achieves a maximum digging depth of 6,705 mm and reaches 10,225 mm horizontally. Bucket digging force measures 175 kN, while rod digging force delivers 120 kN for breaking through compacted materials. The 70% climbing ability and 53.2 kPa ground pressure ensure stability across varied terrain conditions.
- Maximum excavation height: 9,745 mm
- Maximum unloading height: 6,715 mm
- Fuel capacity: 475L for extended operation
- Travel speeds: 5.4/3.4 km/h
- Currently located in Shaoxing, Zhejiang
Ready for immediate deployment on construction, demolition, or earthmoving projects.
| Specifications | Value |
|---|---|
| No. | 1006154 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
