Product Description

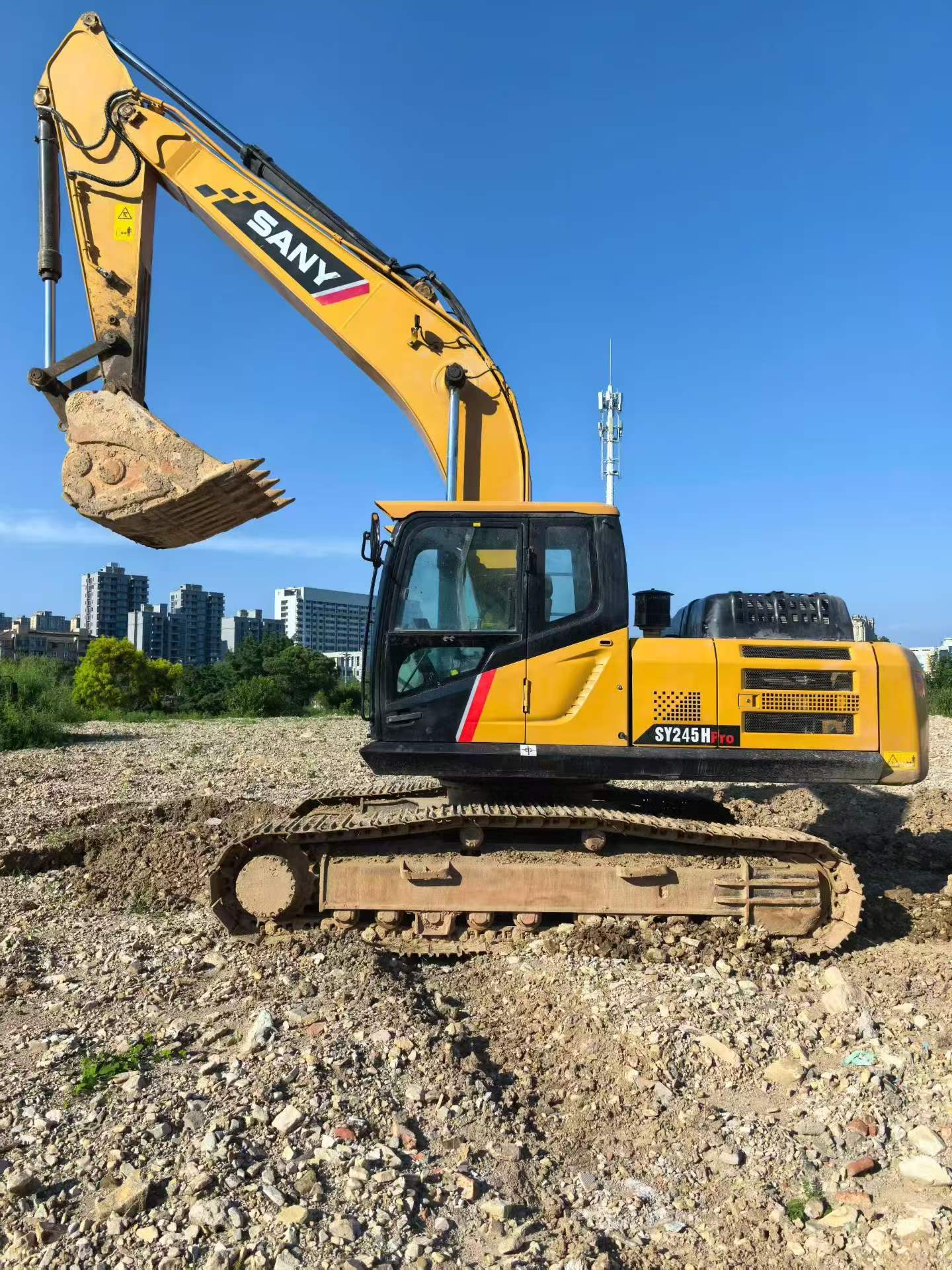

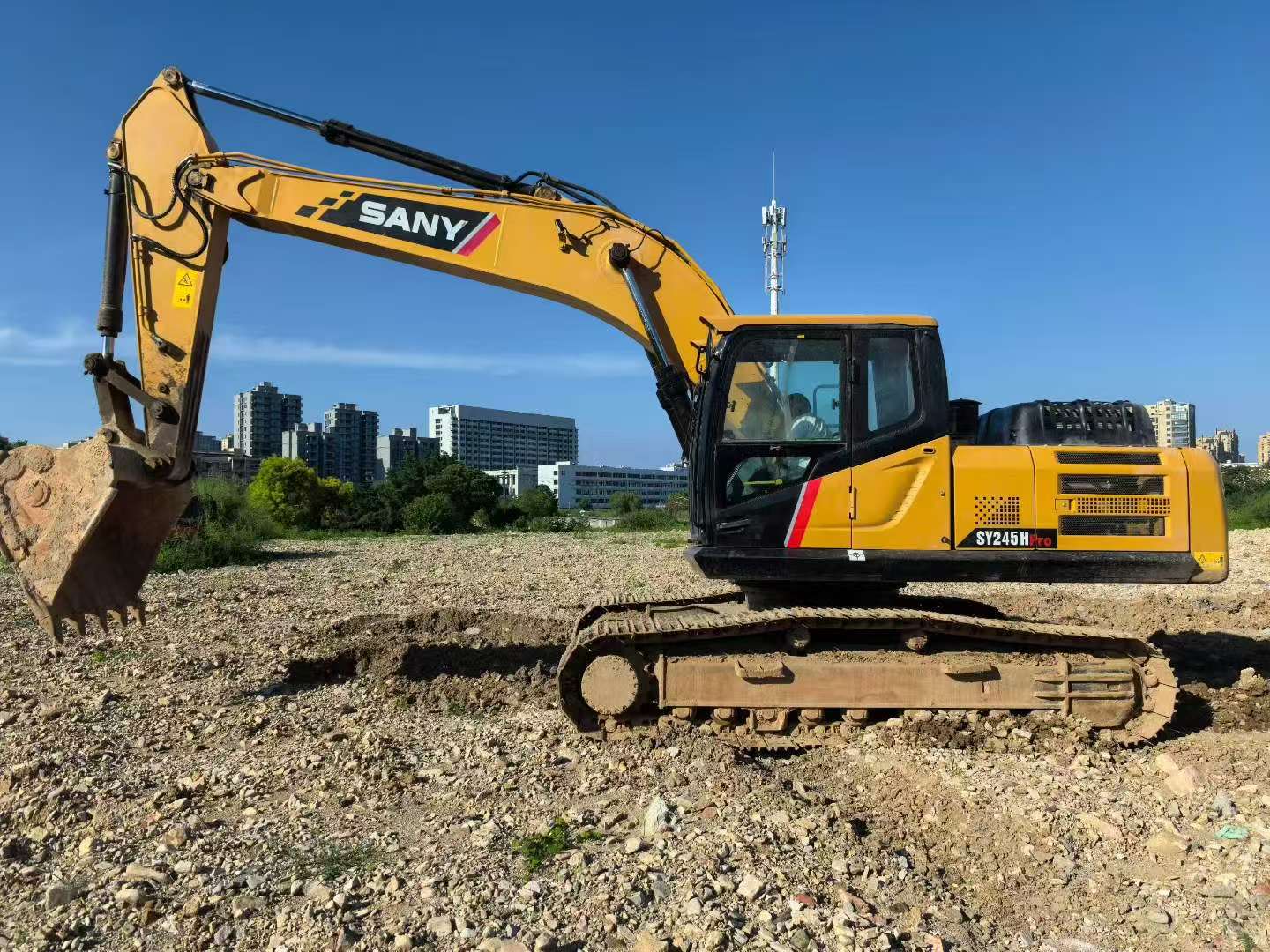

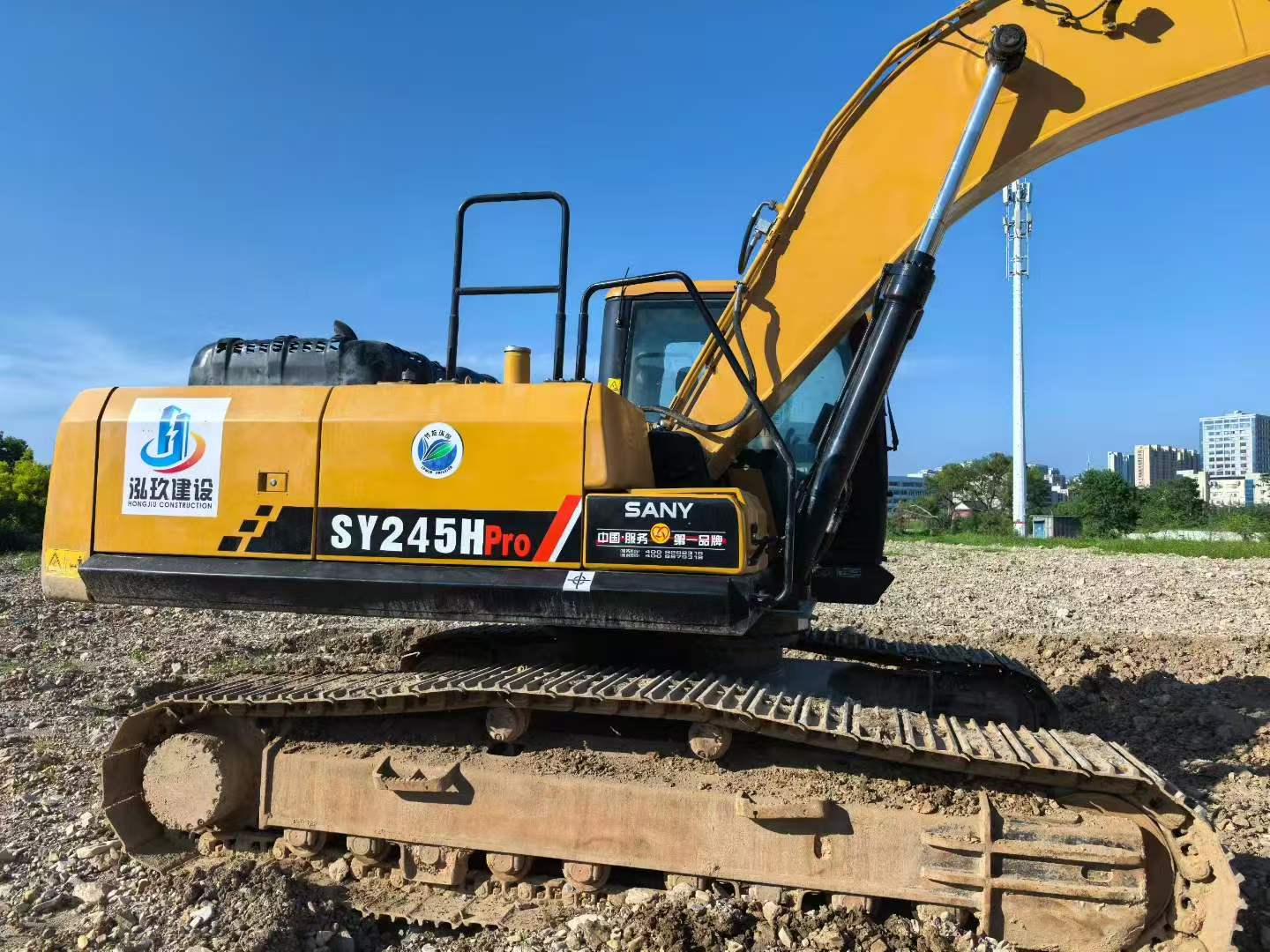

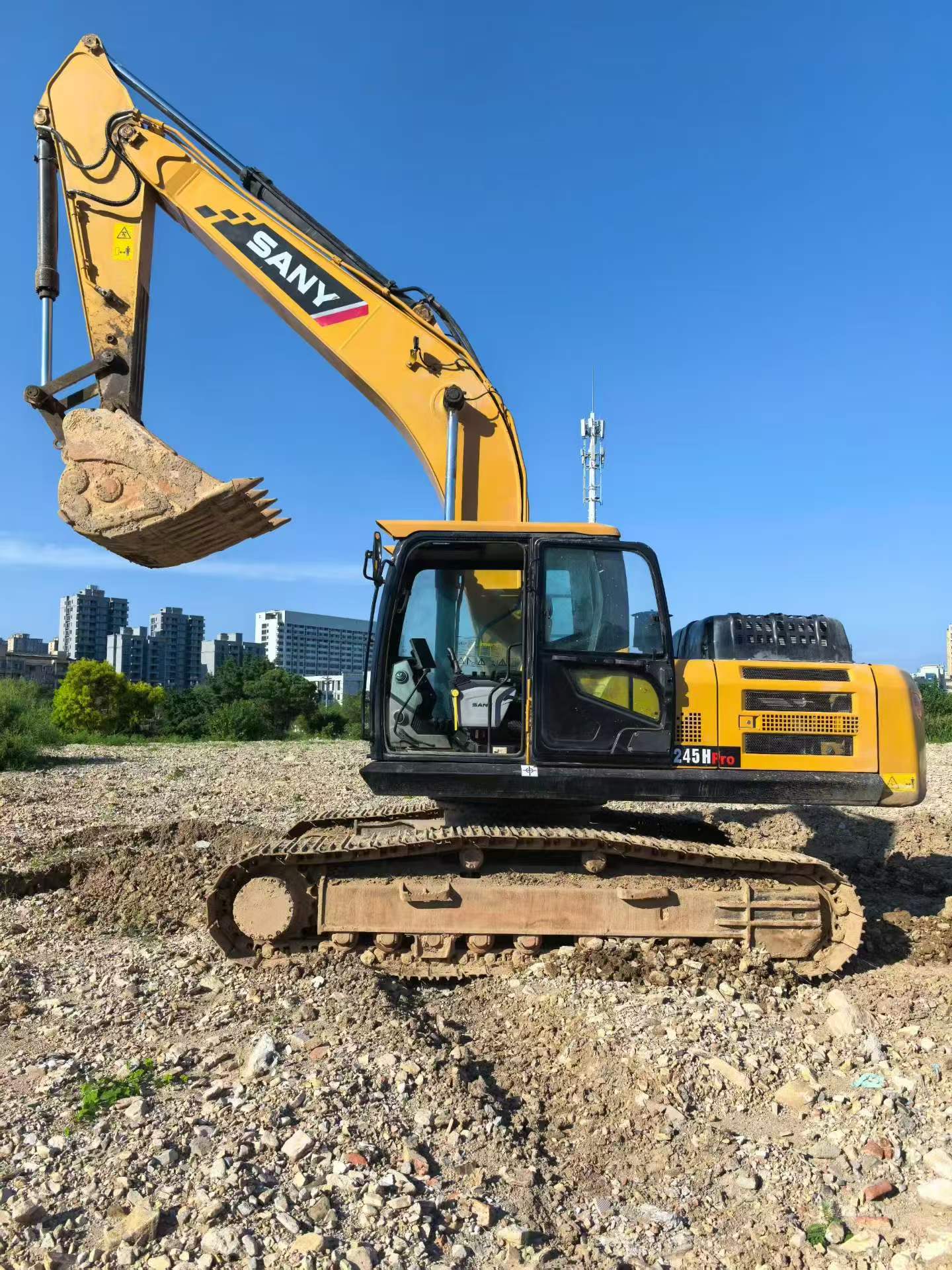

This 2022 Sany SY245H hydraulic excavator represents a well-maintained addition to any heavy construction fleet. With minimal operational hours since manufacture, this 24-ton class machine delivers reliable performance for earthmoving, trenching, and site development projects. The SY245H features Sany's proven hydraulic system and robust undercarriage designed for demanding job sites.
Currently located in Zhejiang, China, this excavator is available for immediate inspection and delivery arrangements. The machine's recent production year ensures compatibility with current emission standards and parts availability through Sany's established service network.
- Year: 2022
- Model: Sany SY245H
- Class: 24-ton hydraulic excavator
- Location: Zhejiang, China
- Condition: Well-maintained, low hours
Suitable for contractors seeking dependable mid-size excavation equipment with strong resale value and manufacturer support.
| Specifications | Value |
|---|---|
| No. | 1145825 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
