Product Description

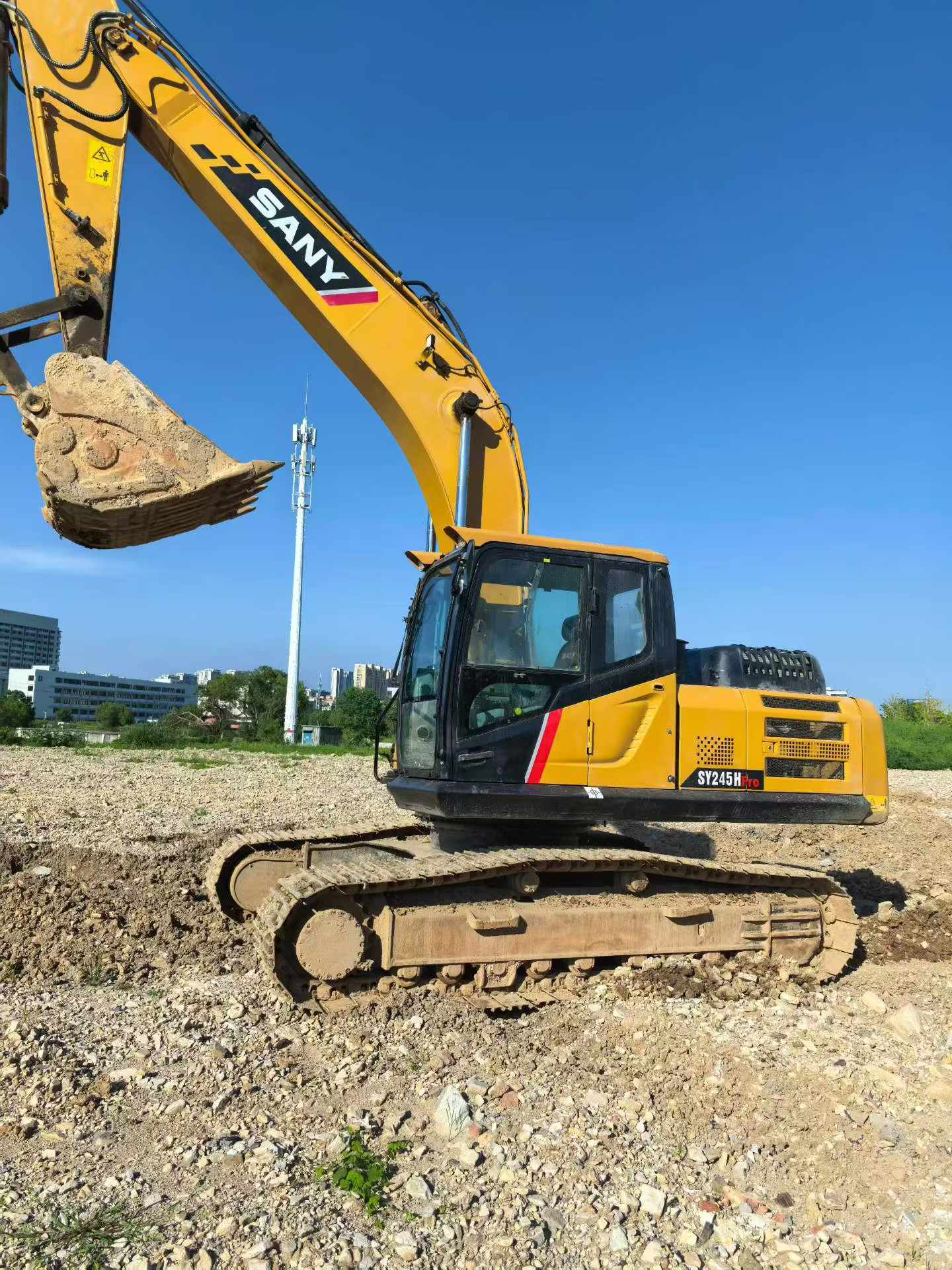

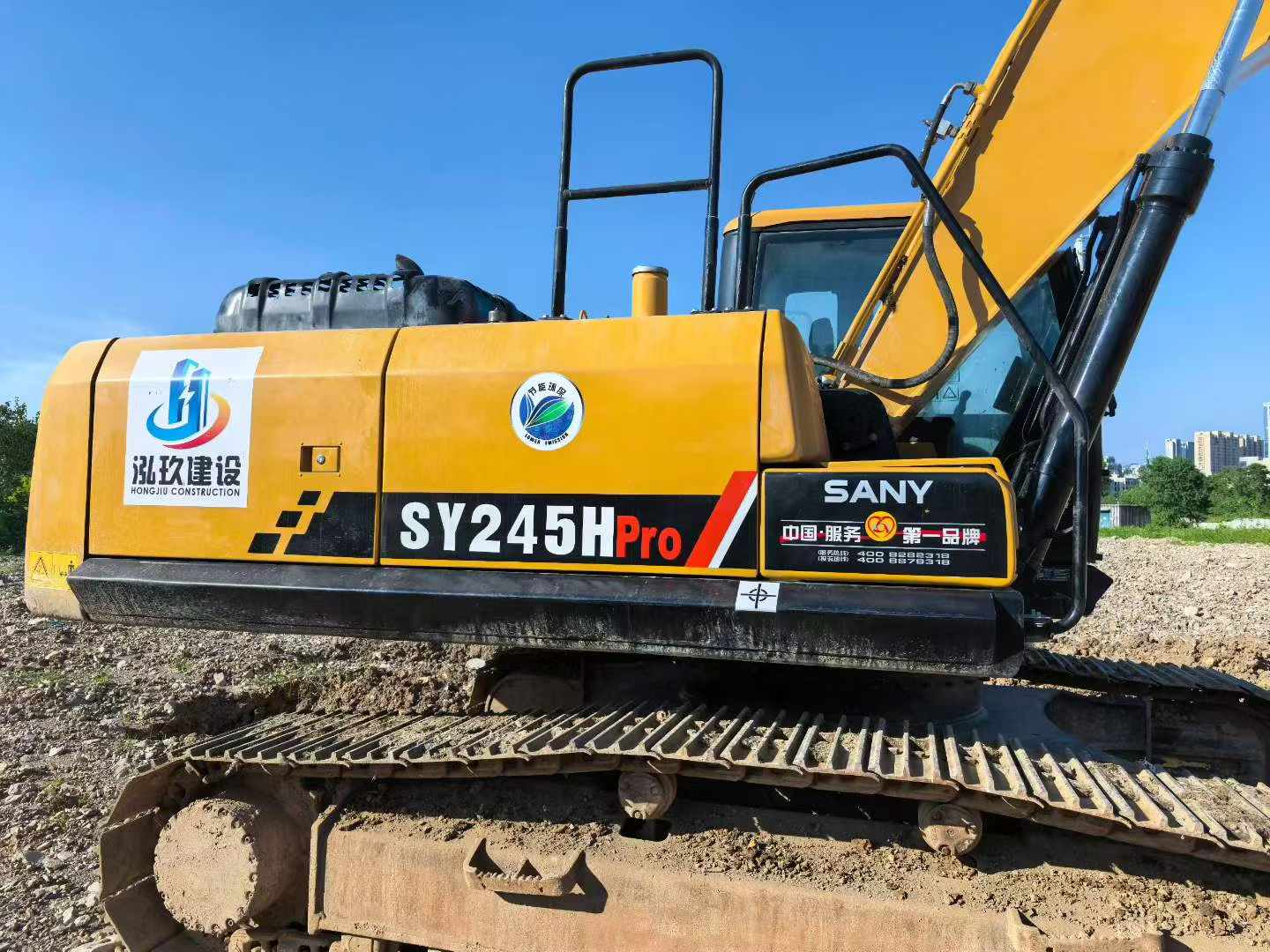

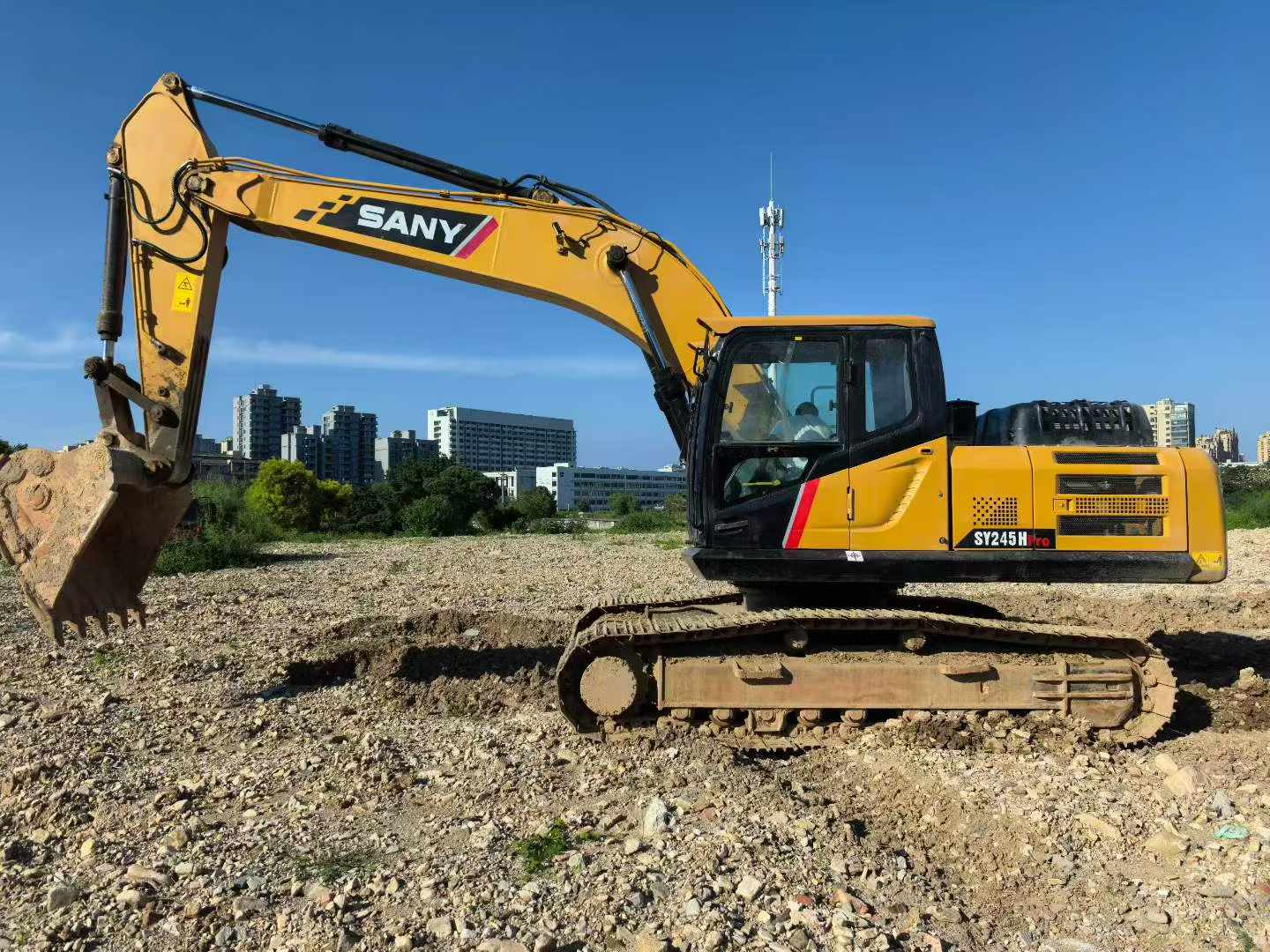

The 2022 Sany SY245H is a 24.5-ton class hydraulic crawler excavator, offered here as a used unit out of Zhejiang, China. It sits in the mid-size range that contractors specify for general earthmoving, trenching, and site preparation, and the SY245H is a well-established model with a broad service and parts network across Asia and further afield.
This is a working machine, presented as one. We make no reconditioning claims and no inflated condition language. Buyers are welcome to inspect it in person or to send a third-party inspector before committing.
- Model year: 2022
- Brand and model: Sany SY245H
- Machine type: hydraulic crawler excavator, 24.5-ton class
- Configuration: standard boom, arm, and digging bucket
- Location: Zhejiang, China
- Detailed photos and documentation available on request
Exact specification varies by production batch, so engine details, undercarriage condition, and working hours are confirmed directly with serious buyers rather than listed second-hand. Loading and export shipping can be arranged from Zhejiang ports. Contact us for current availability and pricing.
| Specifications | Value |
|---|---|
| No. | 1156165 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
