Product Description

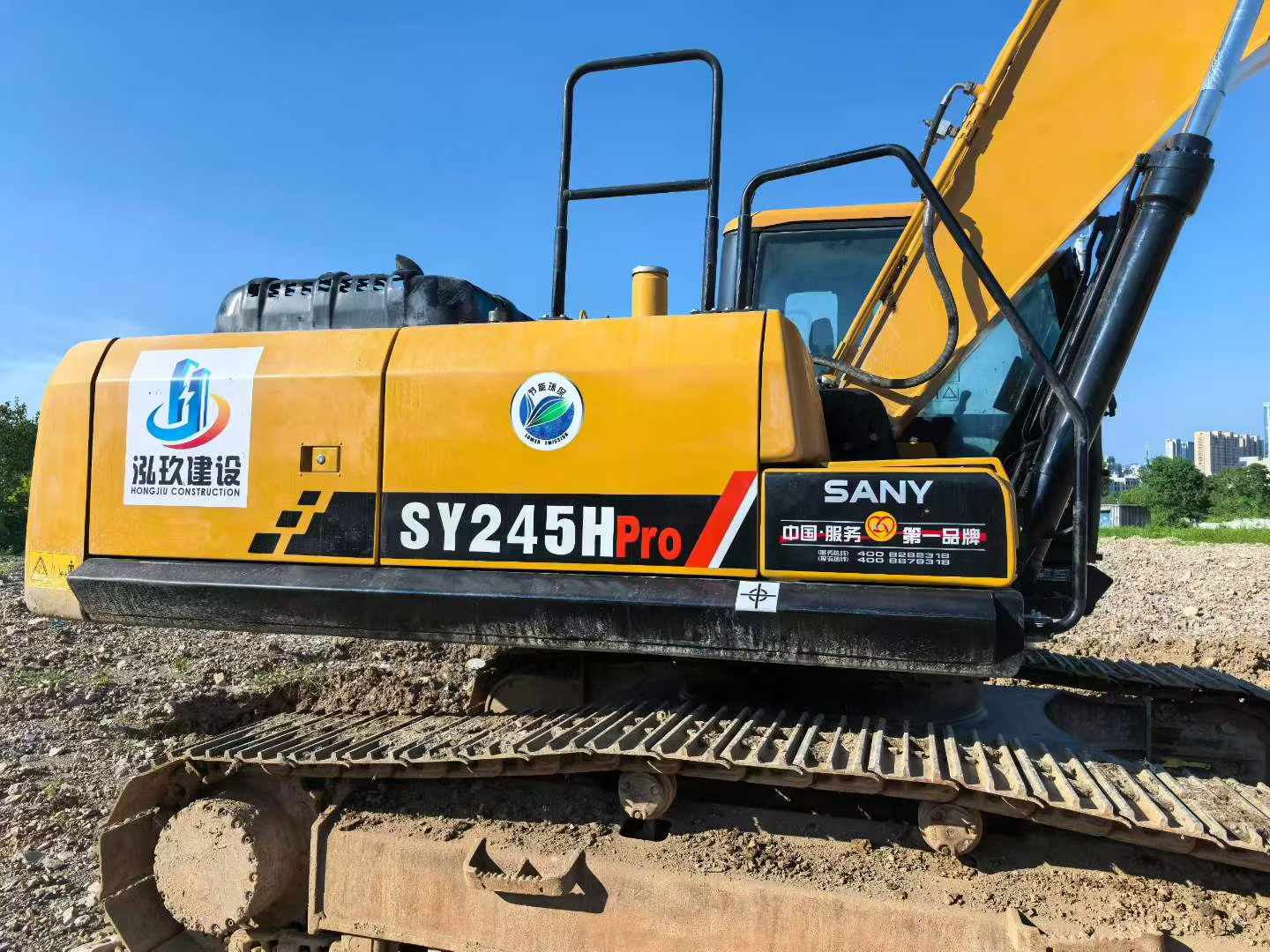

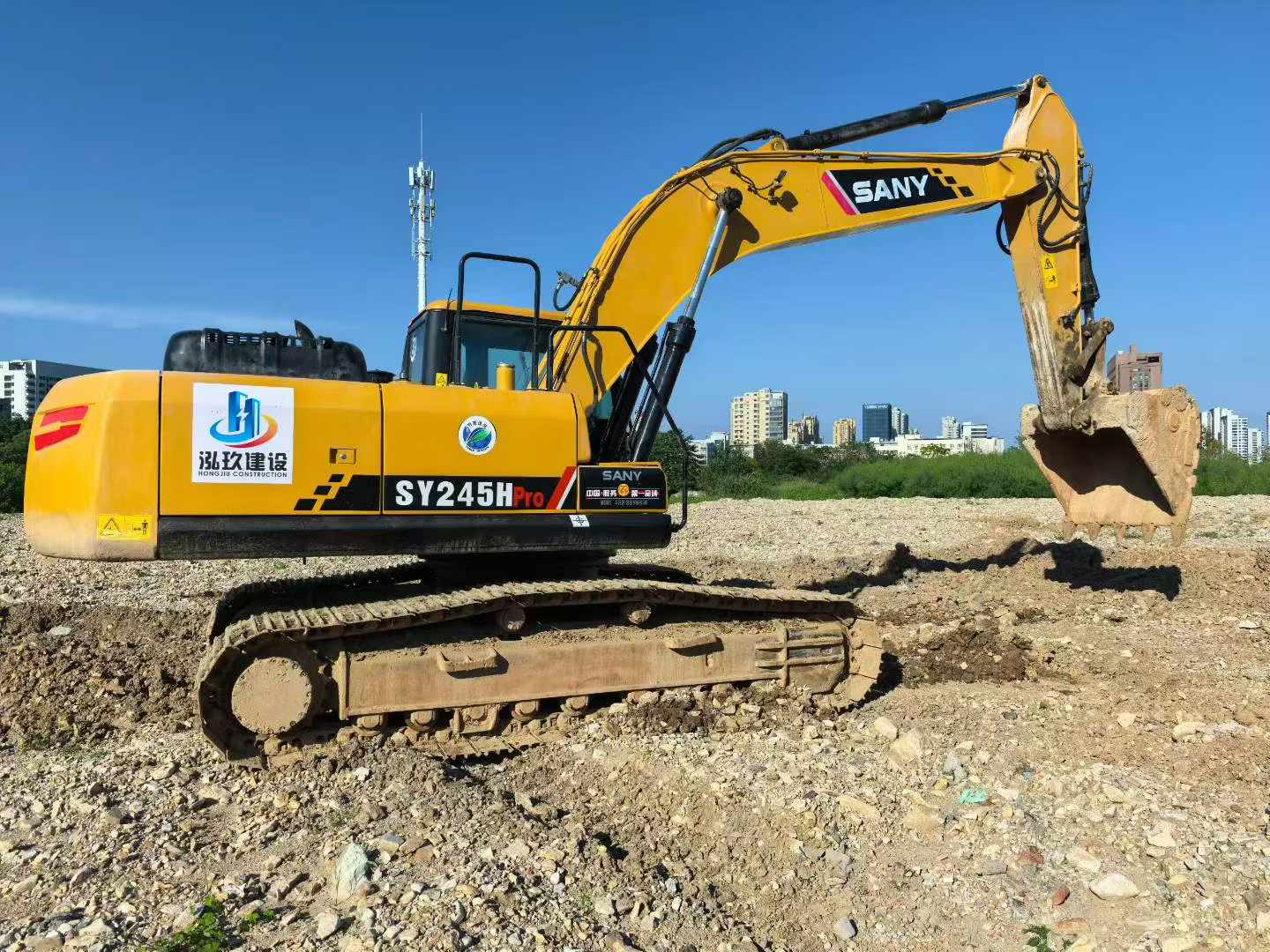

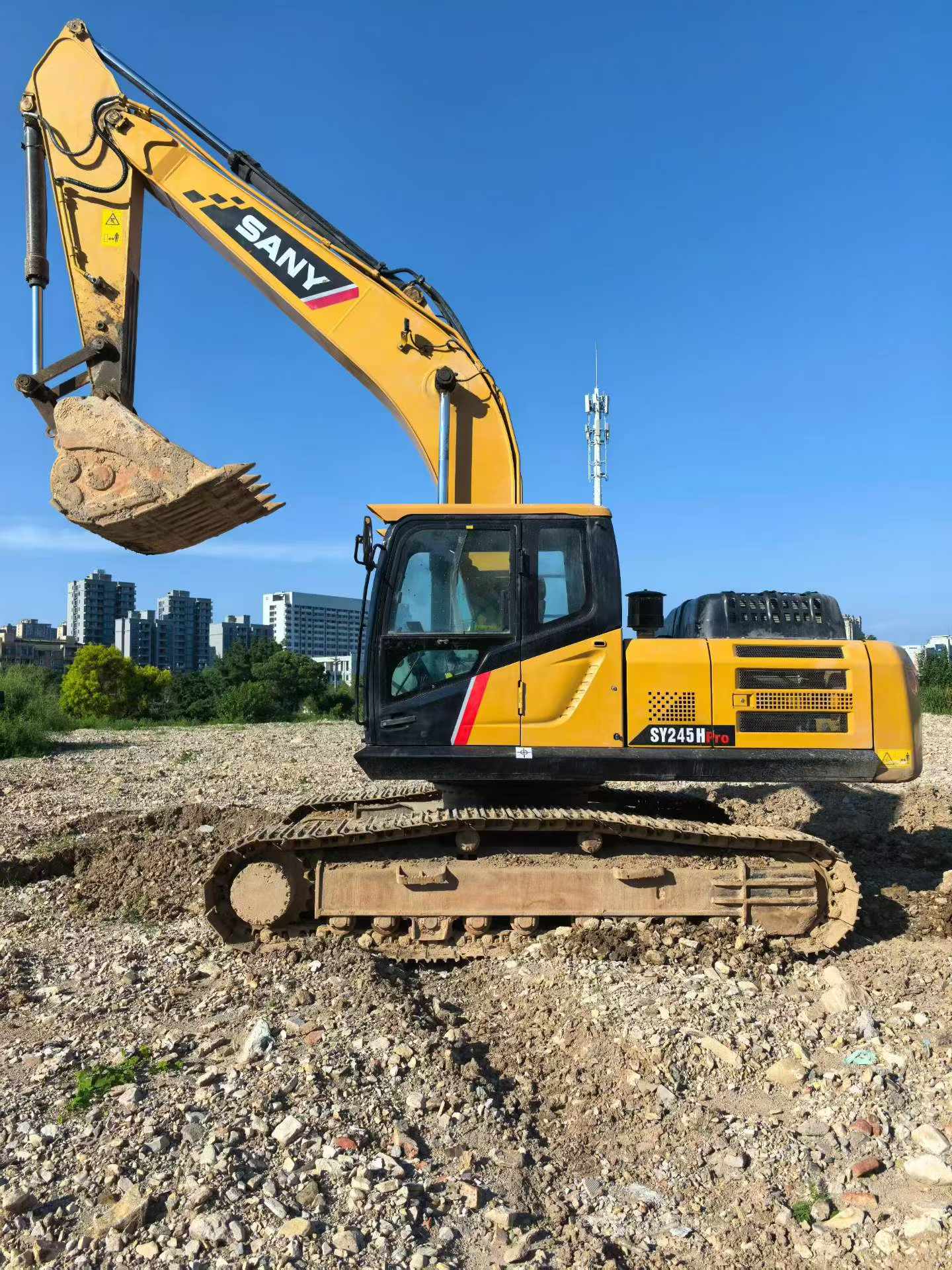

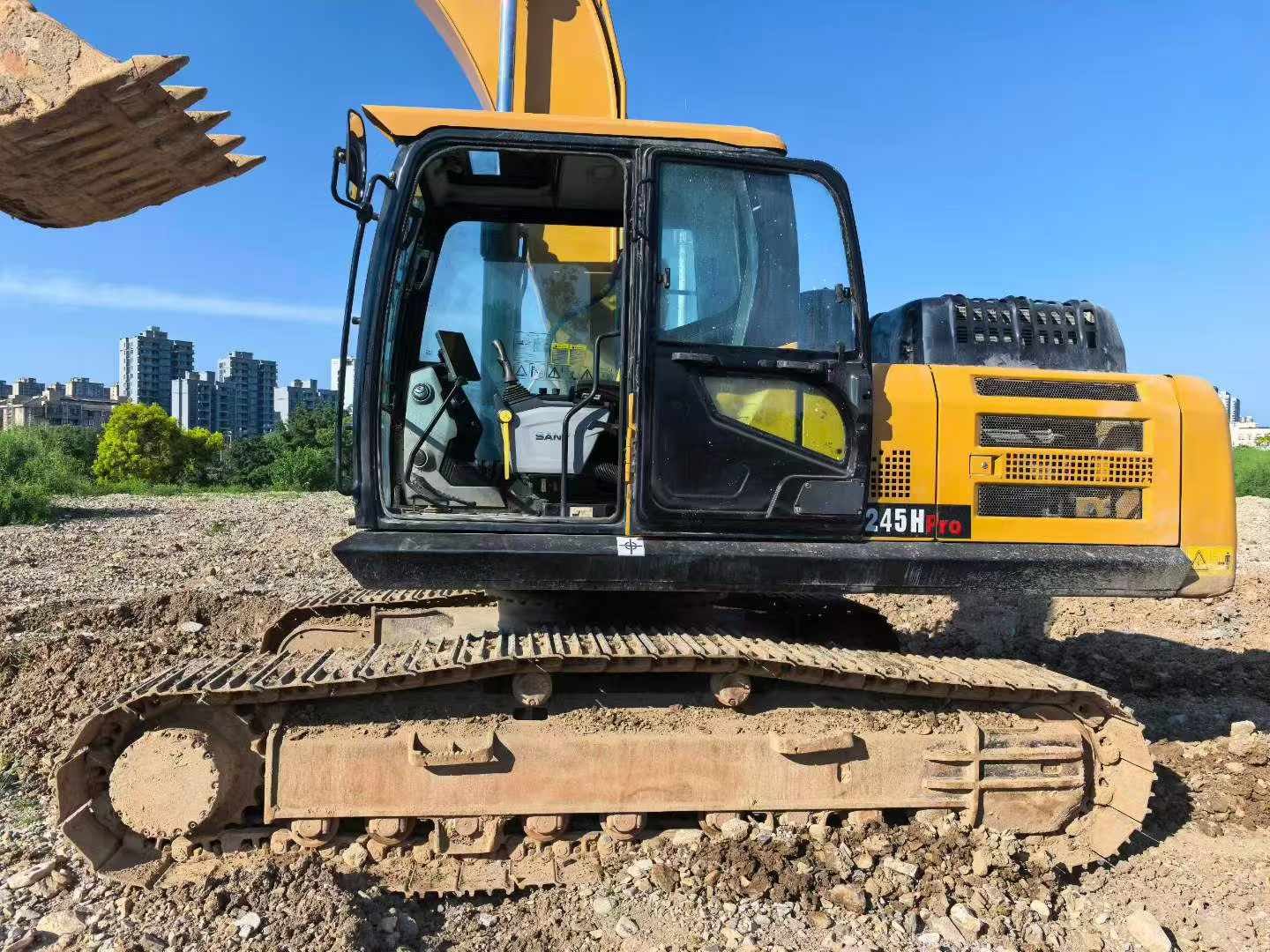

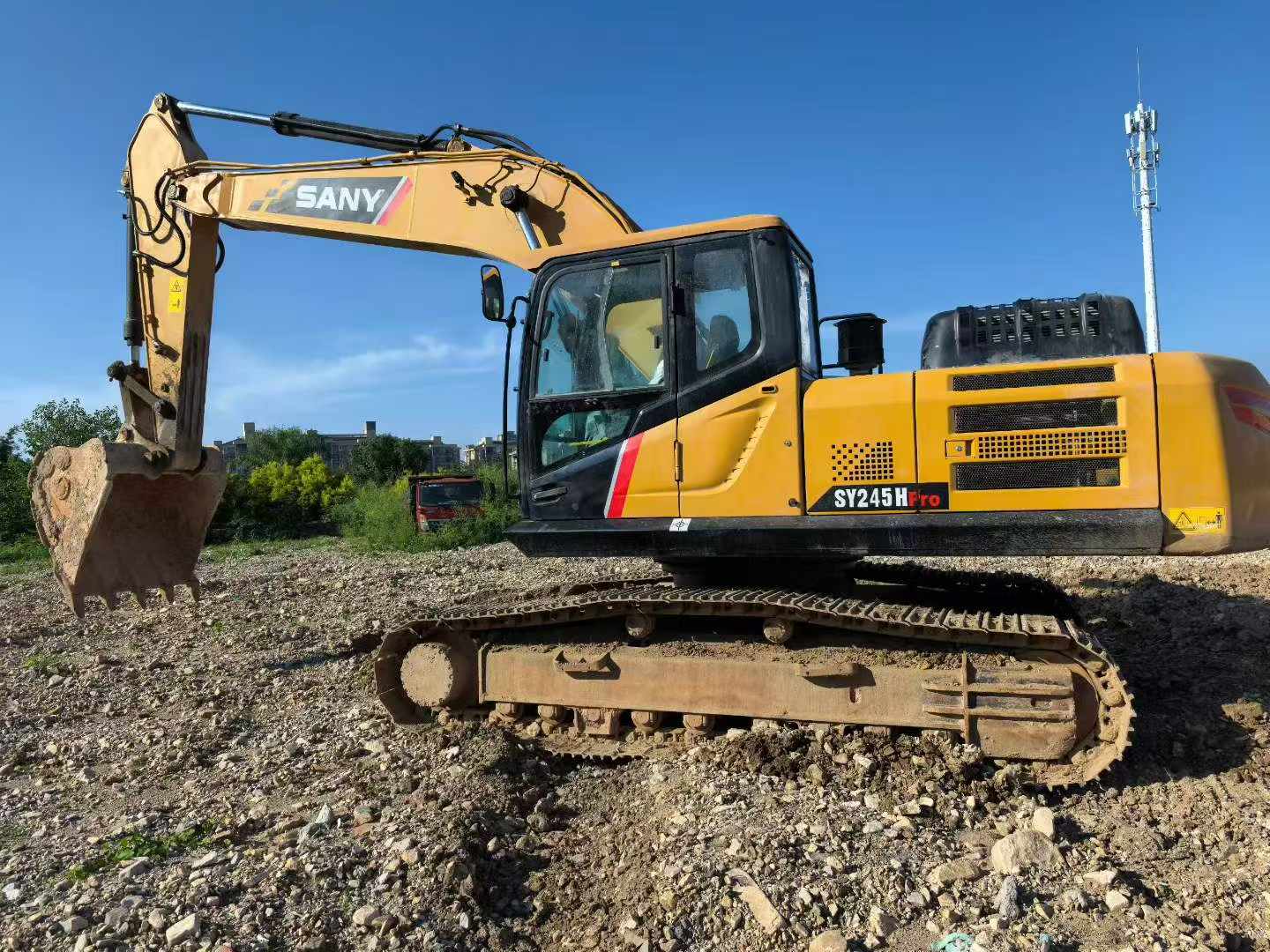

This 2022 Sany SY245H excavator represents a prime opportunity for contractors seeking reliable hydraulic excavation equipment. As a 24-ton class machine from one of China's leading manufacturers, the SY245H delivers consistent performance for earthmoving, site preparation, and general construction applications.
Key features include:
- Recent manufacture year ensures modern emission standards and component longevity

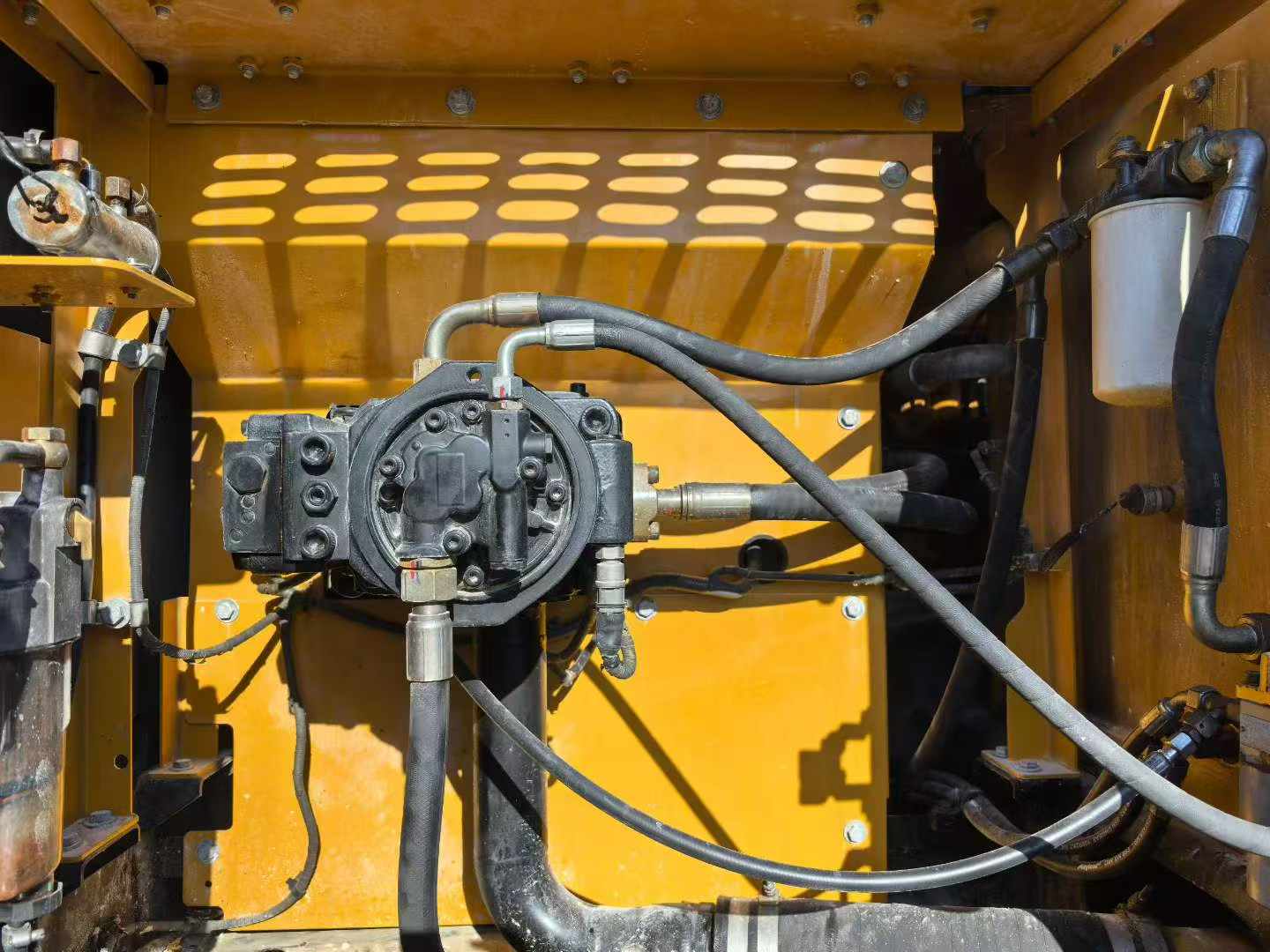

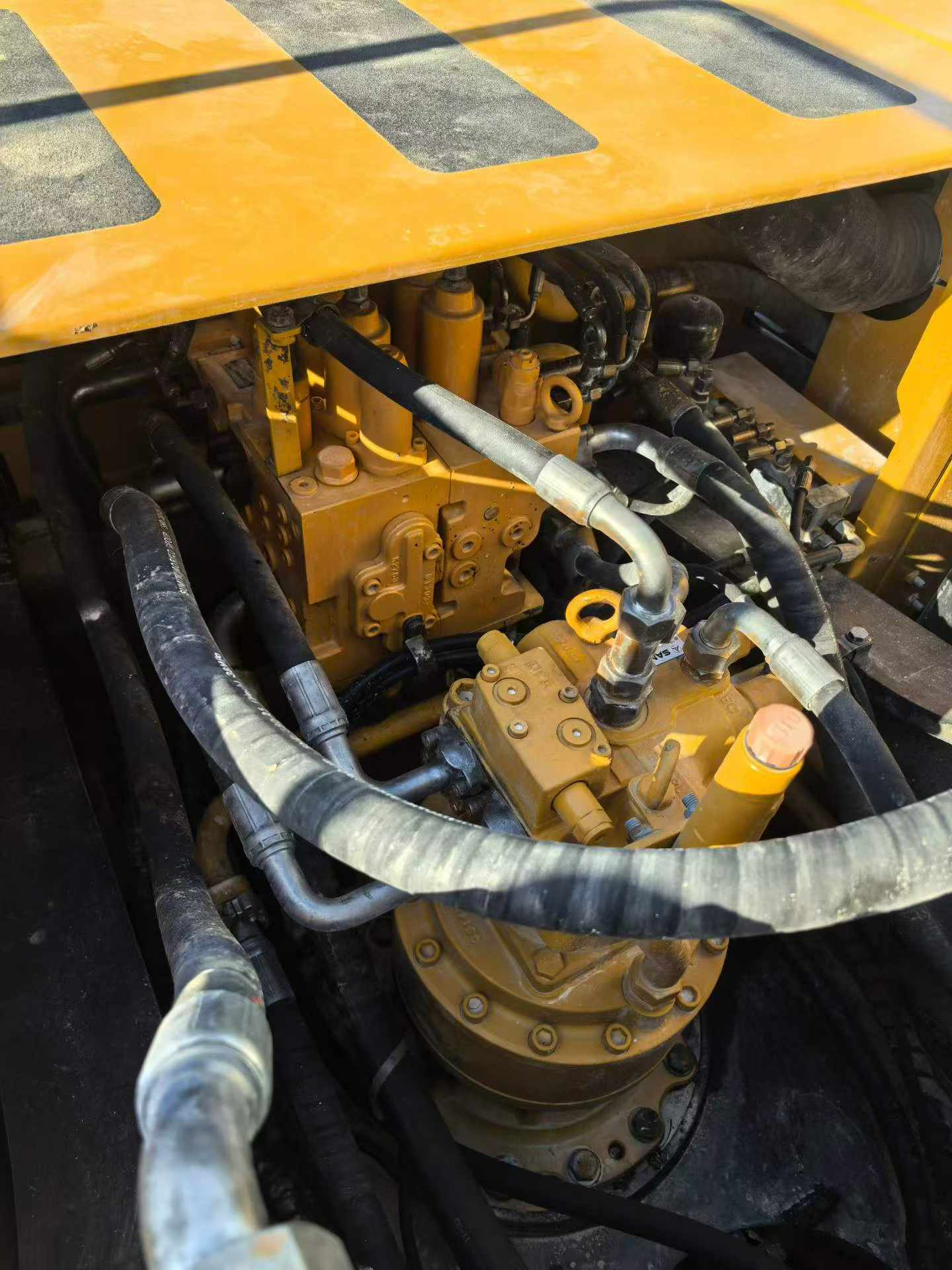

- Sany's proven hydraulic system designed for fuel efficiency and operational productivity
- Suitable for medium to large-scale construction and infrastructure projects
- Currently located in Zhejiang, China, facilitating efficient logistics throughout Asia-Pacific markets
This unit offers an attractive balance of recent vintage and value positioning for buyers expanding their fleet or entering the excavator segment. Inspection and detailed specifications available upon serious inquiry.
| Specifications | Value |
|---|---|
| No. | 1173448 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

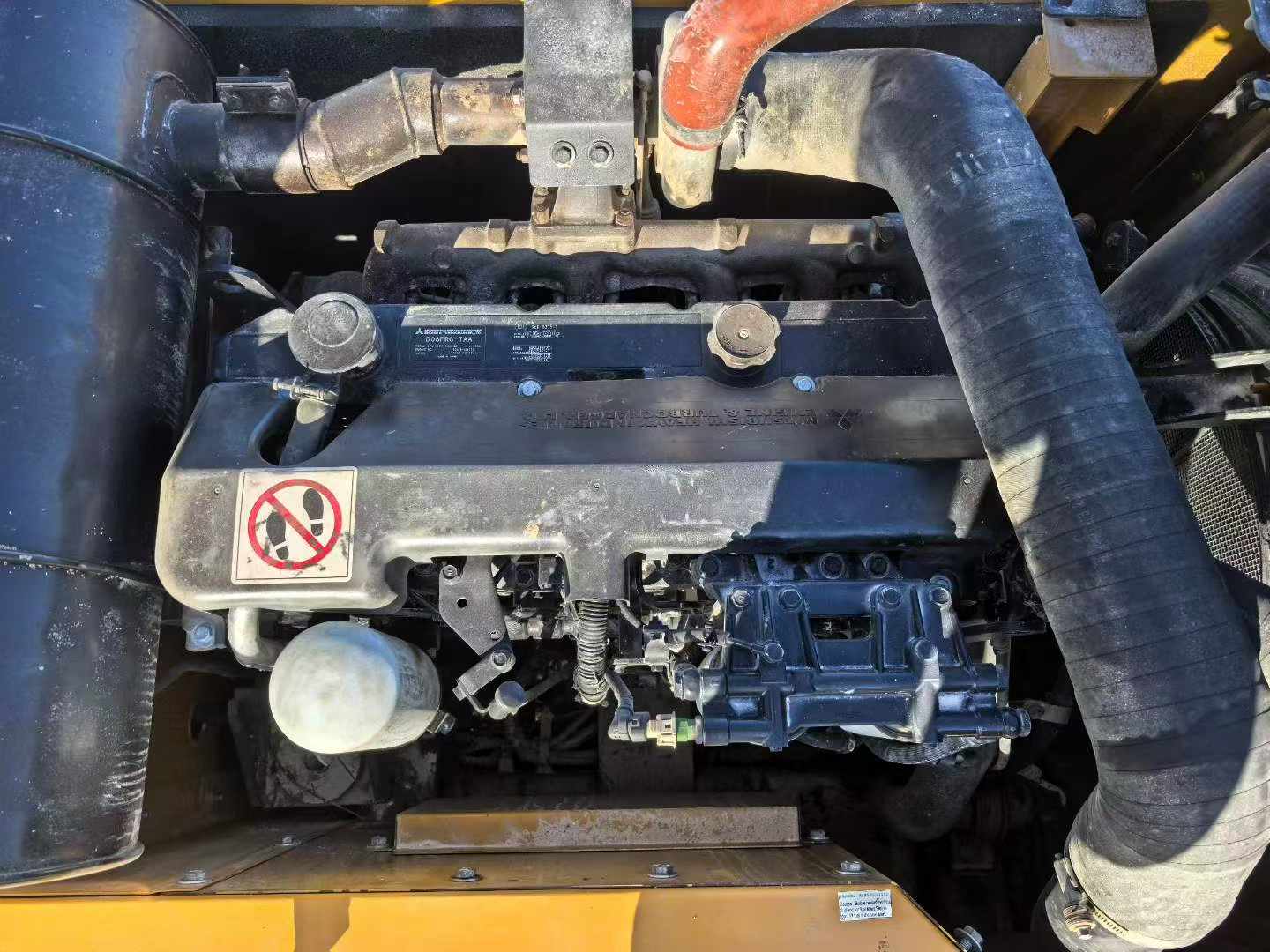

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
