2022 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1

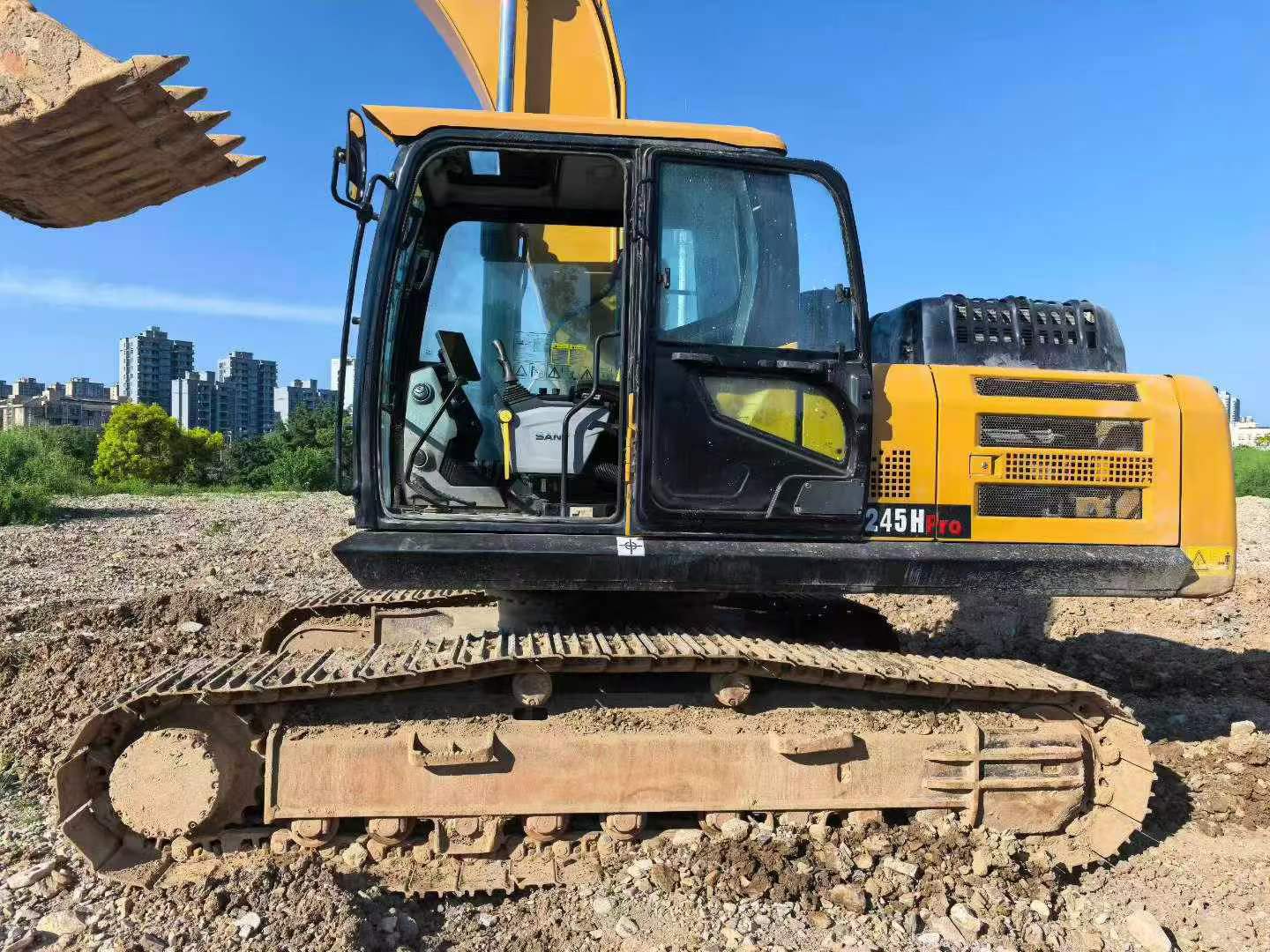

Buy Sany SY245H Used Excavator / 2

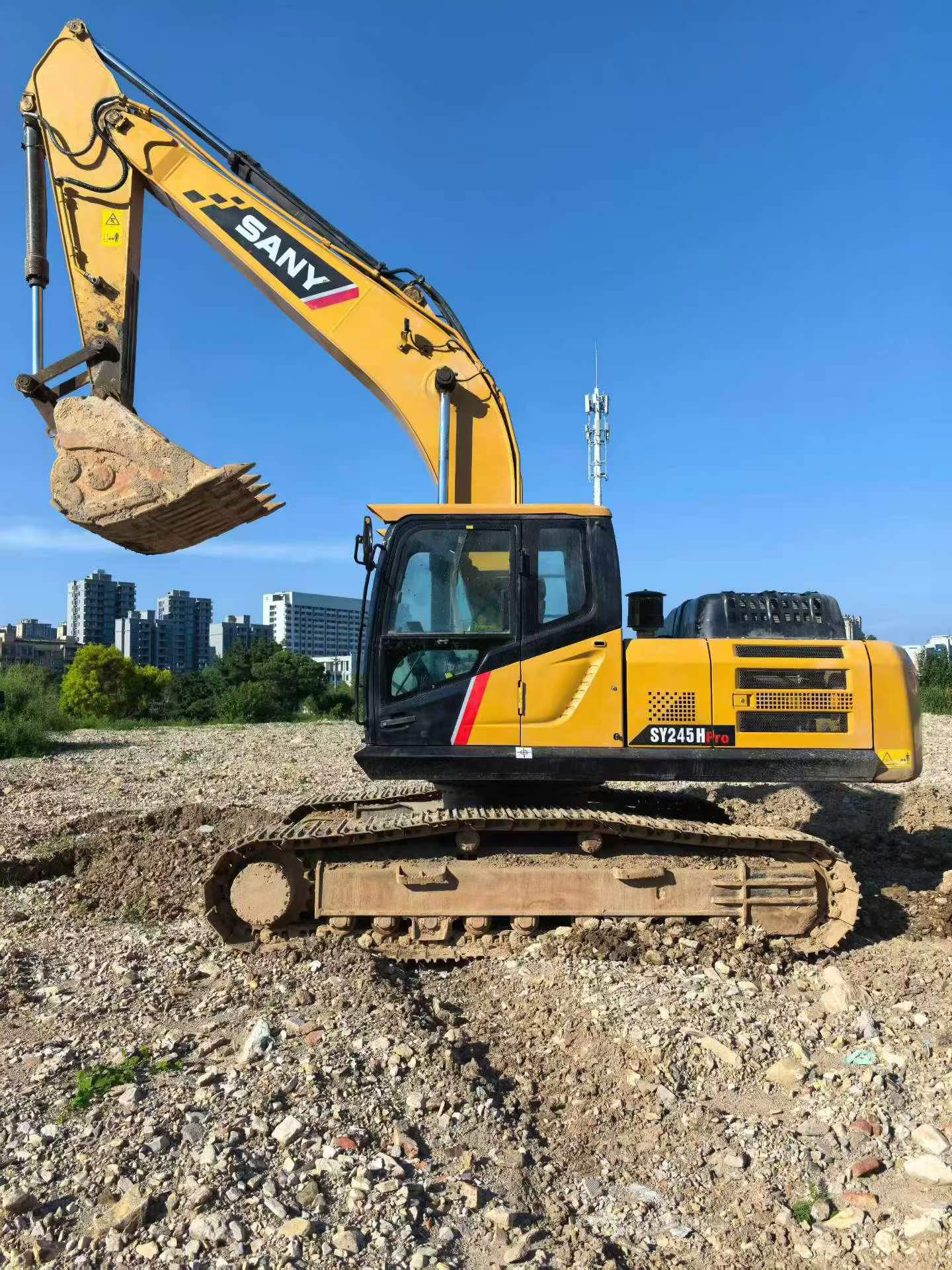

Buy Sany SY245H Used Excavator / 3

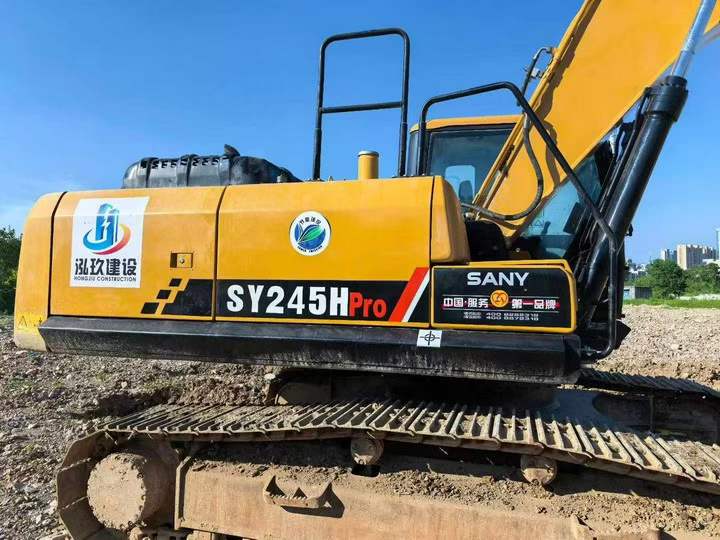

Buy Sany SY245H Used Excavator / 4

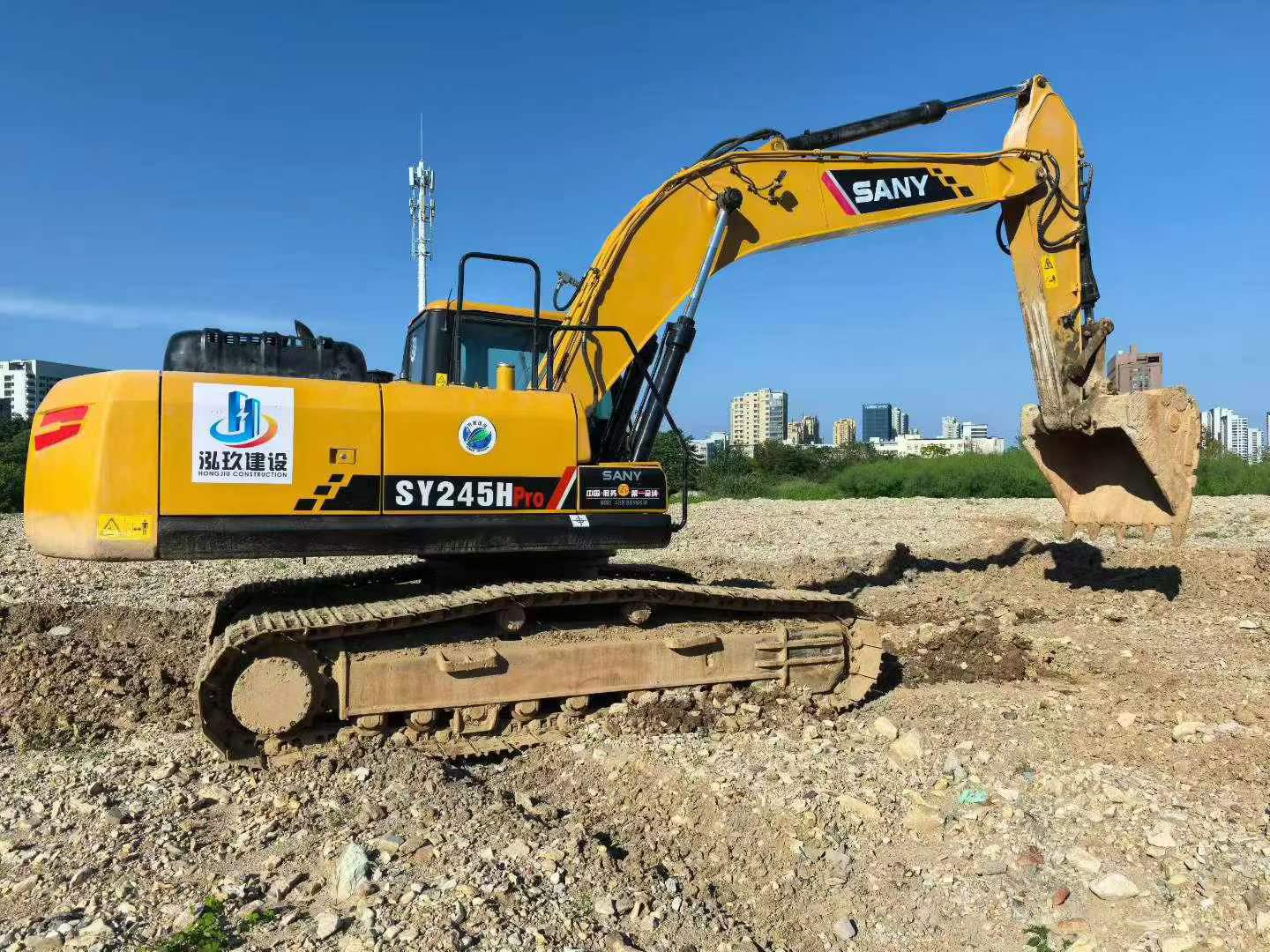

Buy Sany SY245H Used Excavator / 5

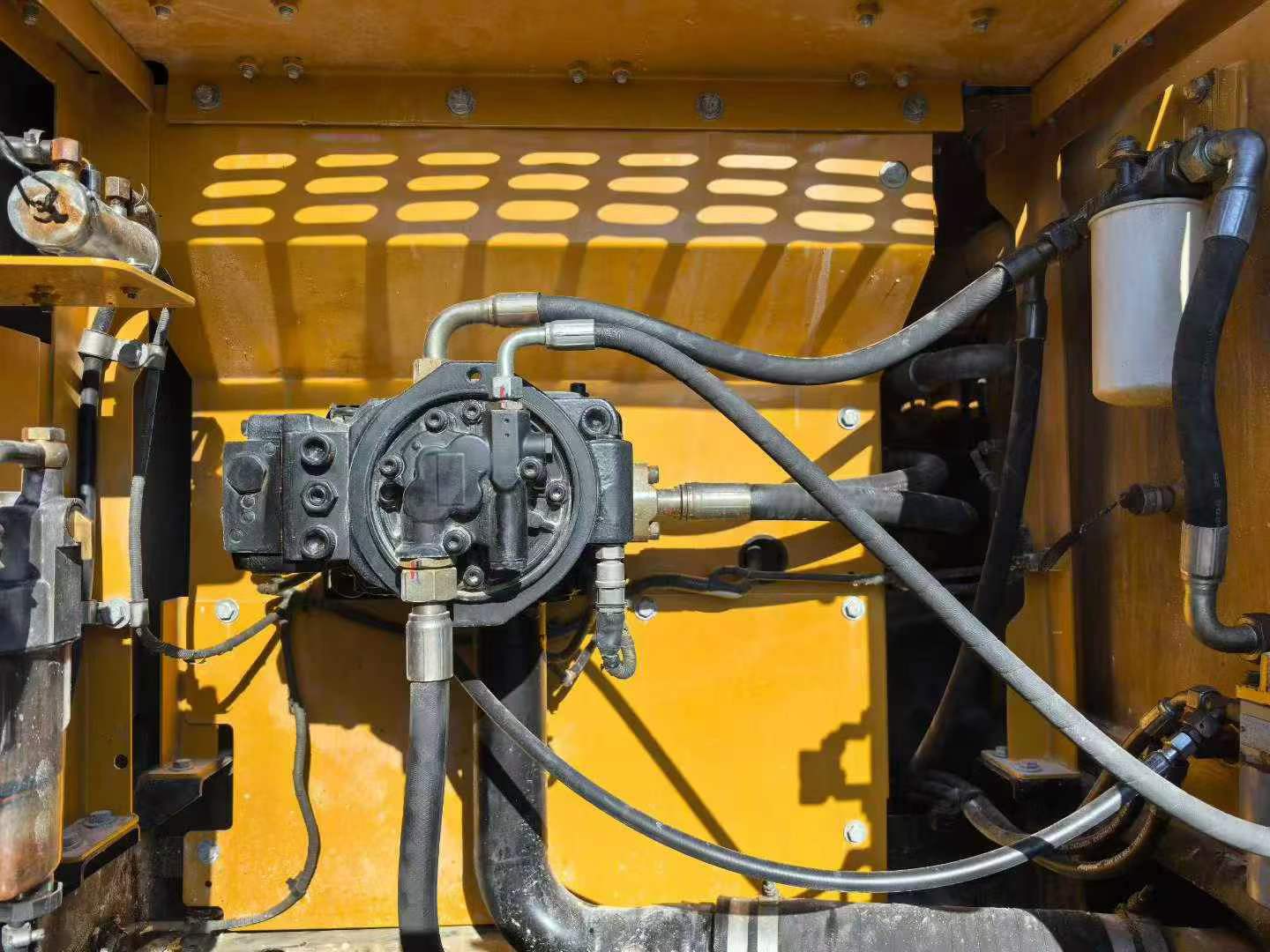

Buy Sany SY245H Used Excavator / 6

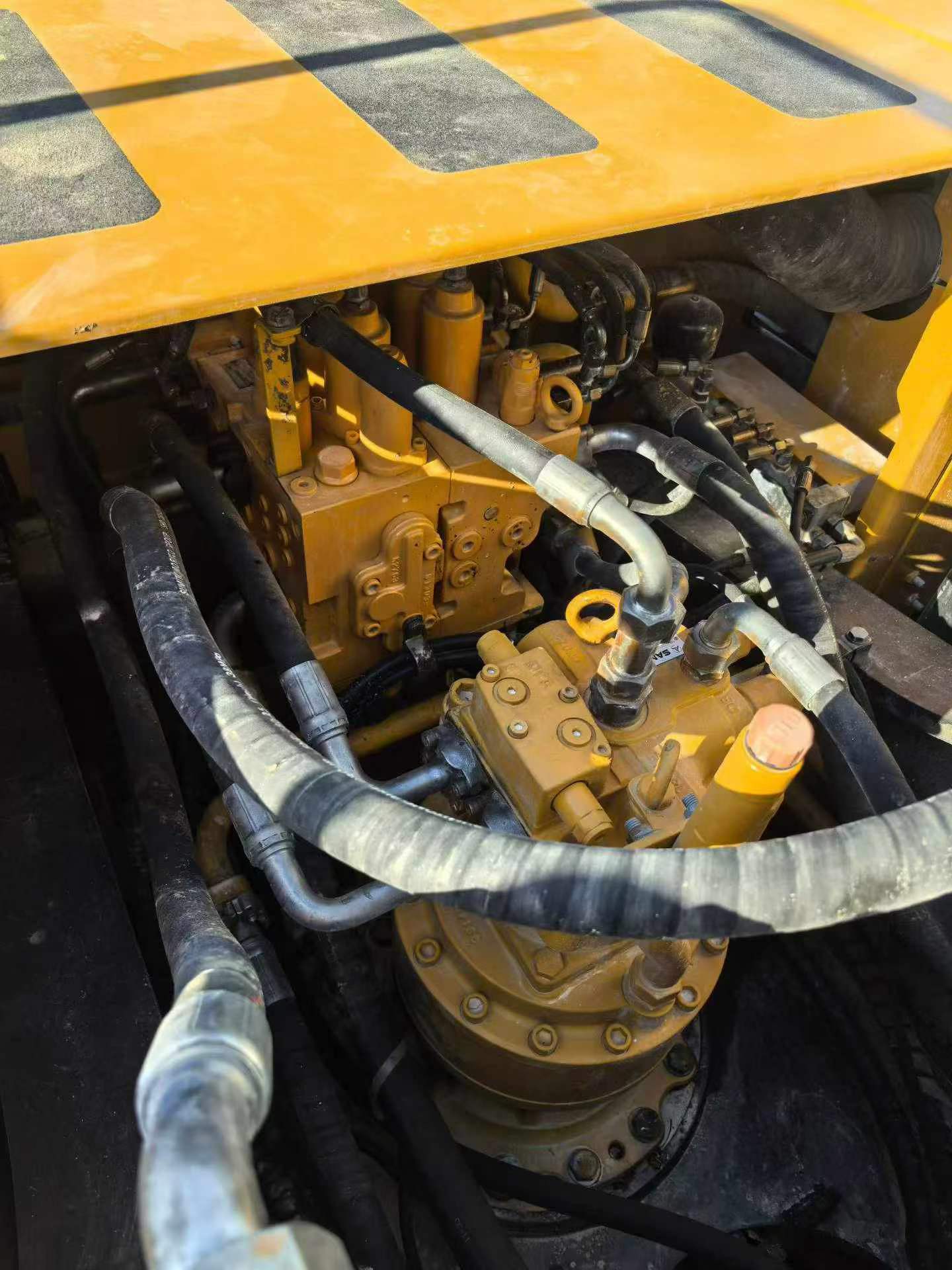

Buy Sany SY245H Used Excavator / 7

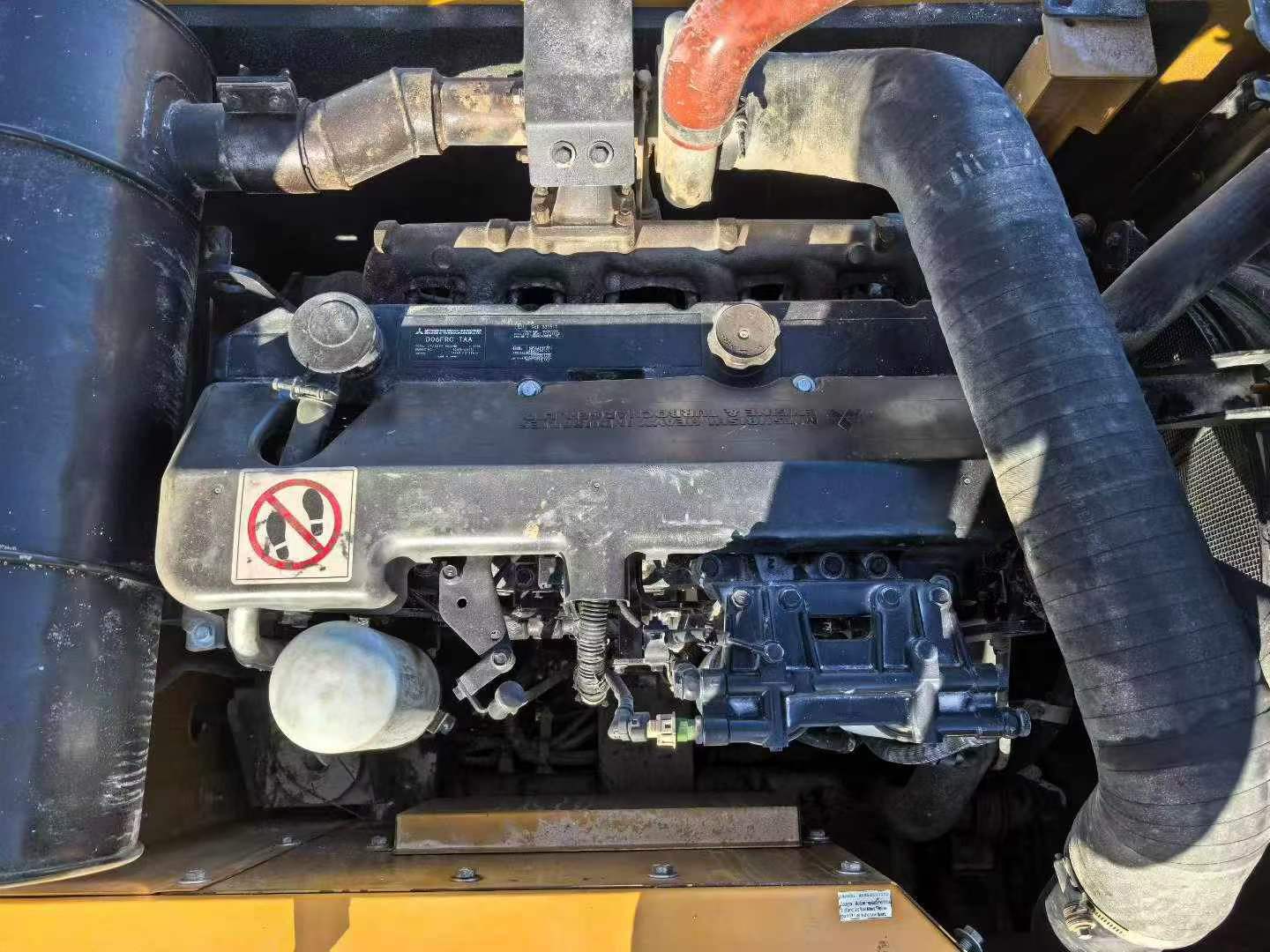

Buy Sany SY245H Used Excavator / 8

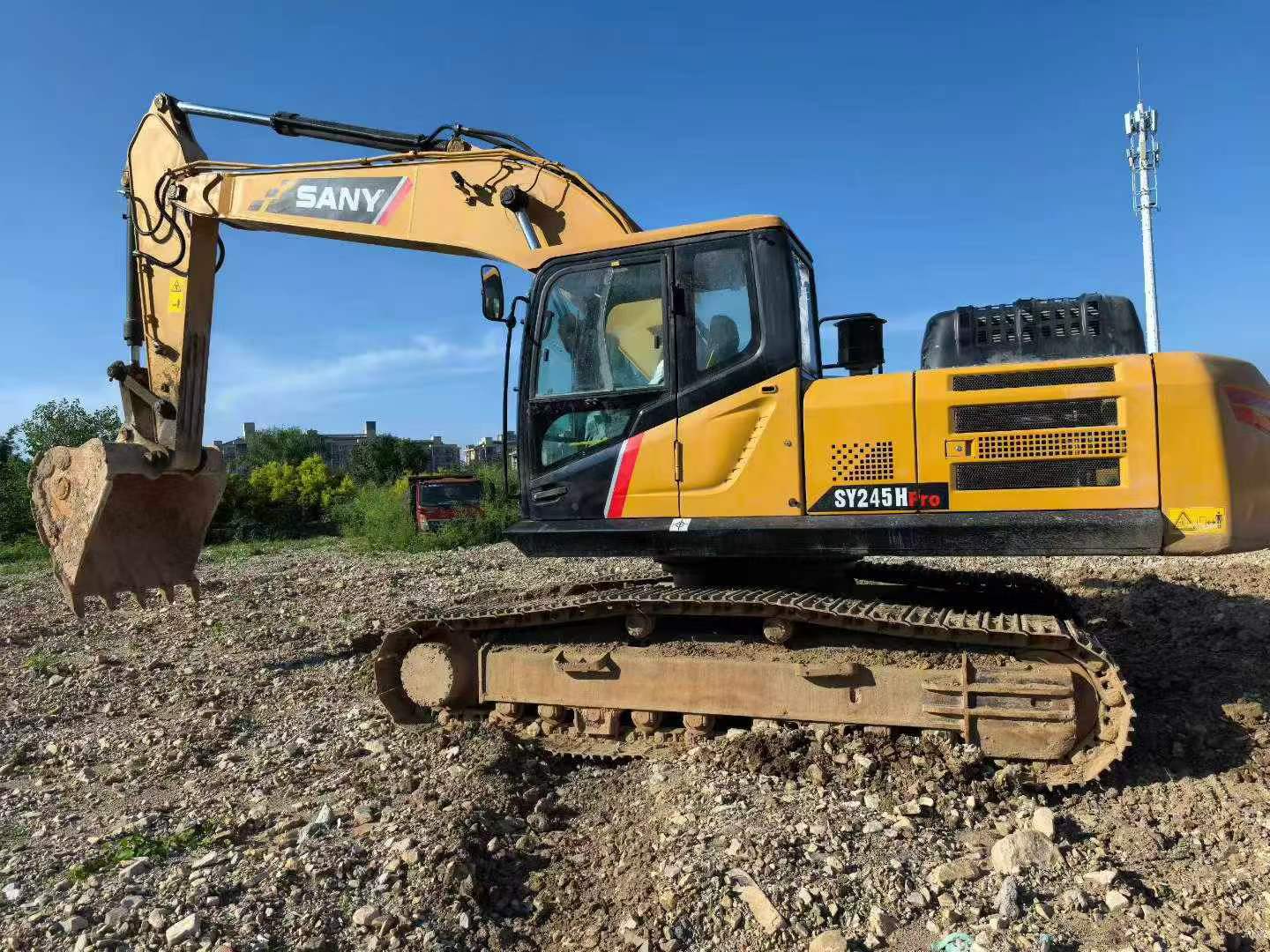

Buy Sany SY245H Used Excavator / 9

Product Description

This 2022 Sany SY245H hydraulic excavator represents a well-maintained unit from one of China's leading heavy equipment manufacturers. With minimal operating hours since production, this 24-ton class machine offers reliable performance for medium to large-scale earthmoving, demolition, and construction applications.

The SY245H features Sany's proven hydraulic system, delivering efficient digging force and smooth operation across varying job site conditions. Its robust undercarriage and reinforced boom structure ensure durability in demanding environments.

  • Year: 2022
  • Model: Sany SY245H
  • Location: Zhejiang, China
  • Condition: Well-maintained
  • Class: 24-ton hydraulic excavator

Currently located in Zhejiang province, this unit is available for inspection and ready for deployment. Ideal for contractors seeking dependable mid-range excavation capacity with modern efficiency standards.

SpecificationsValue
No.1173497
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1173497

Brand Name:

Sany

Model Number:

SY245H

Year:

2022

Location:

Zhejiang China

Pub Date:
