Product Description

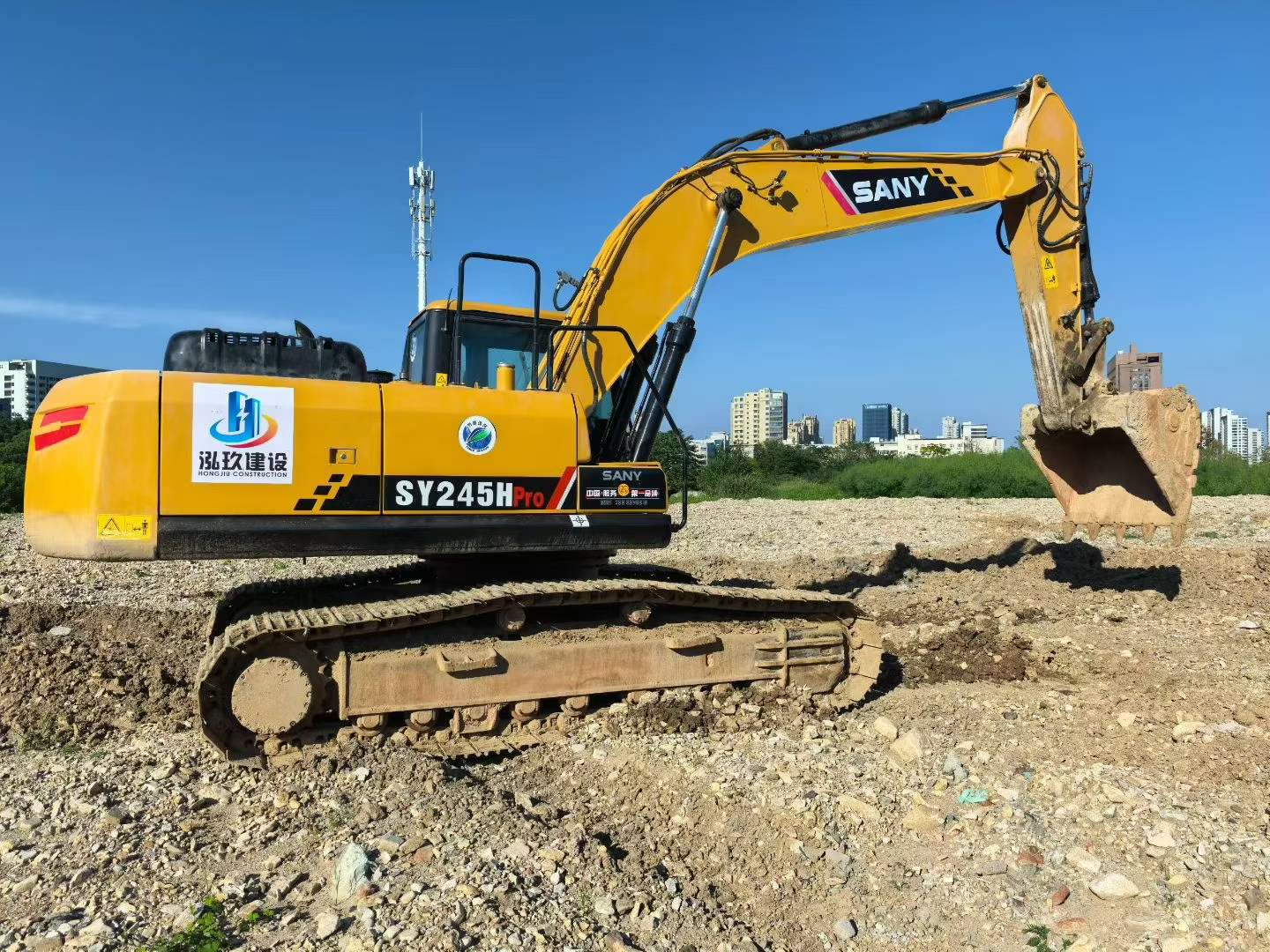

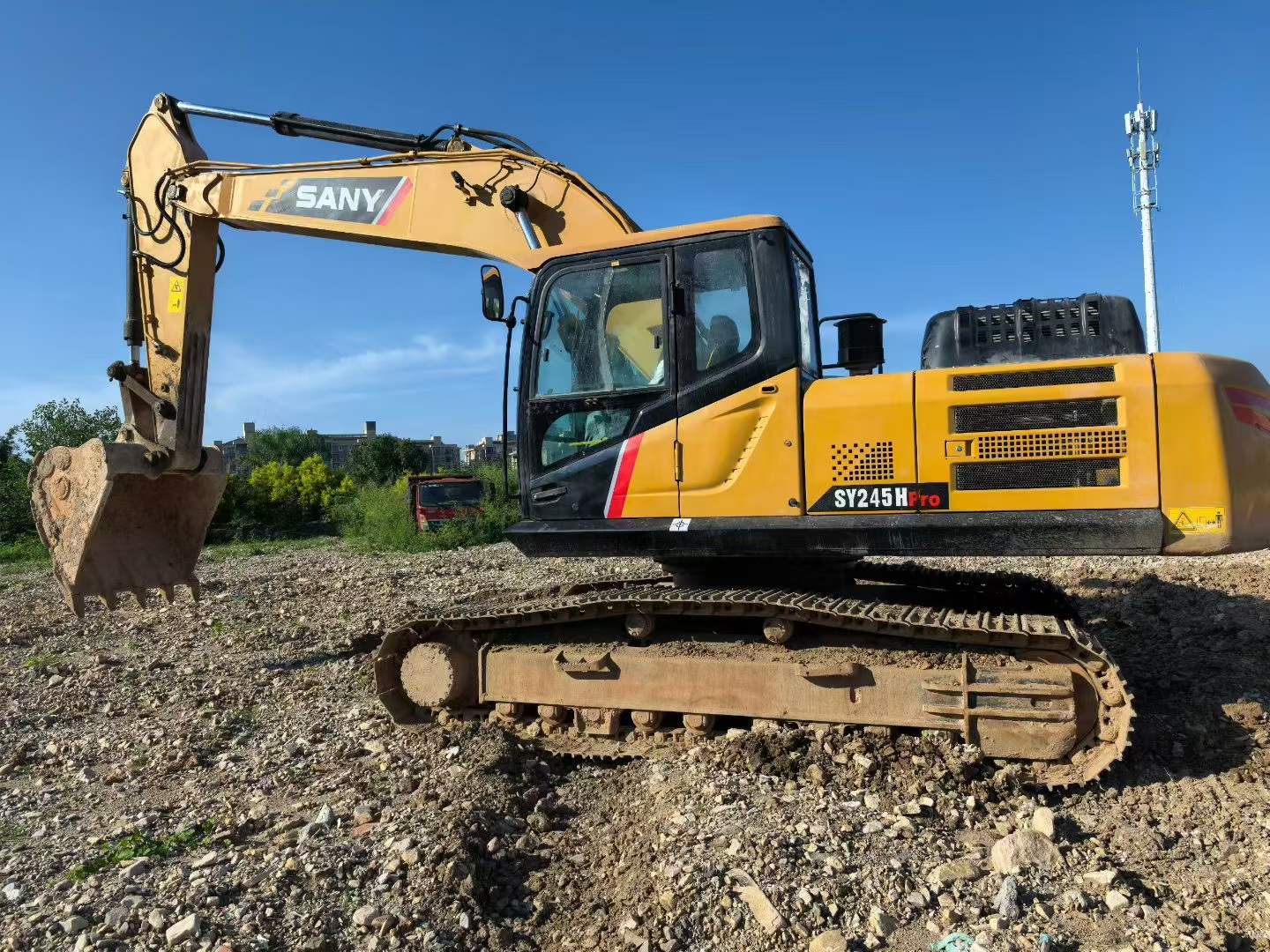

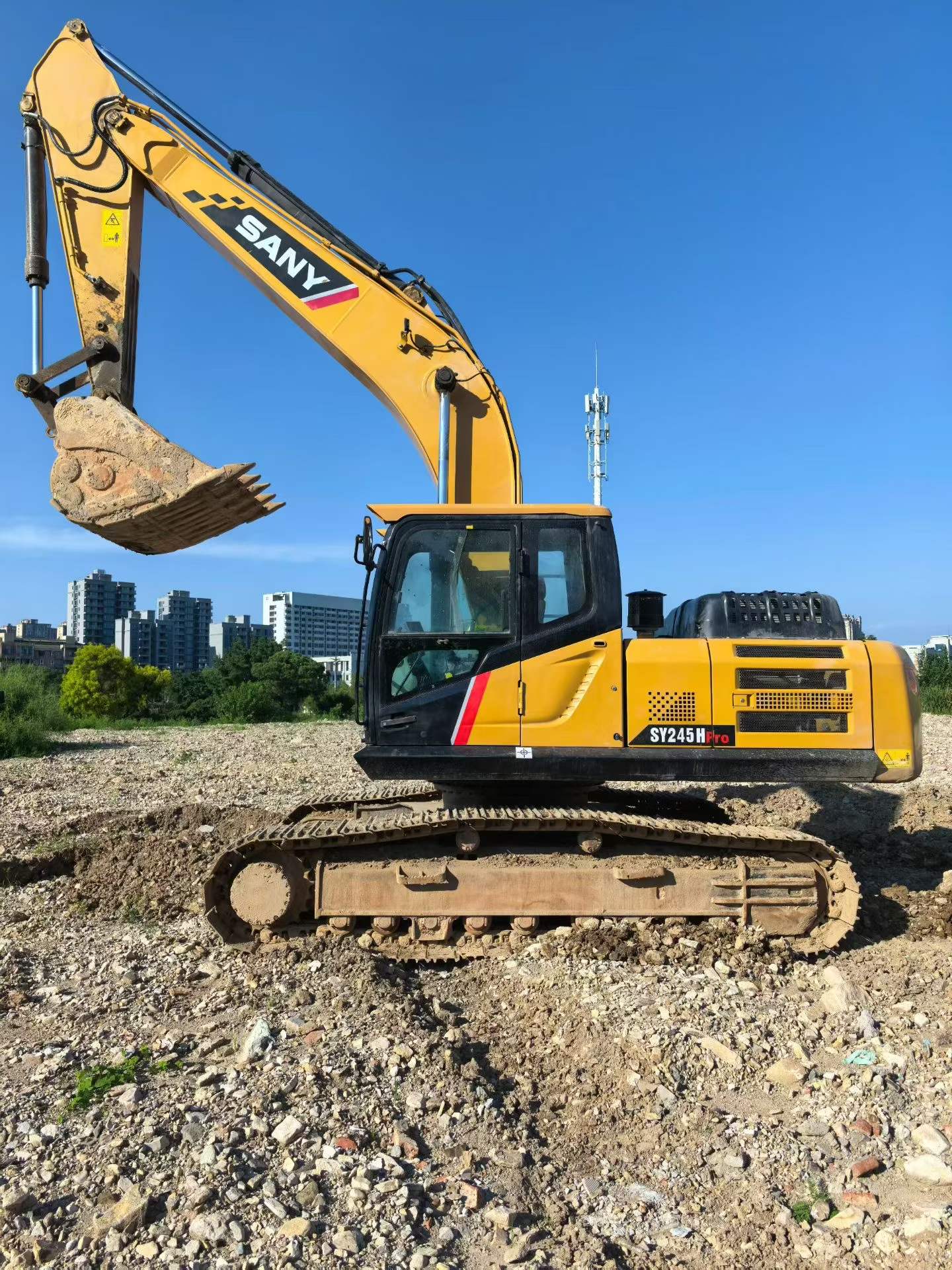

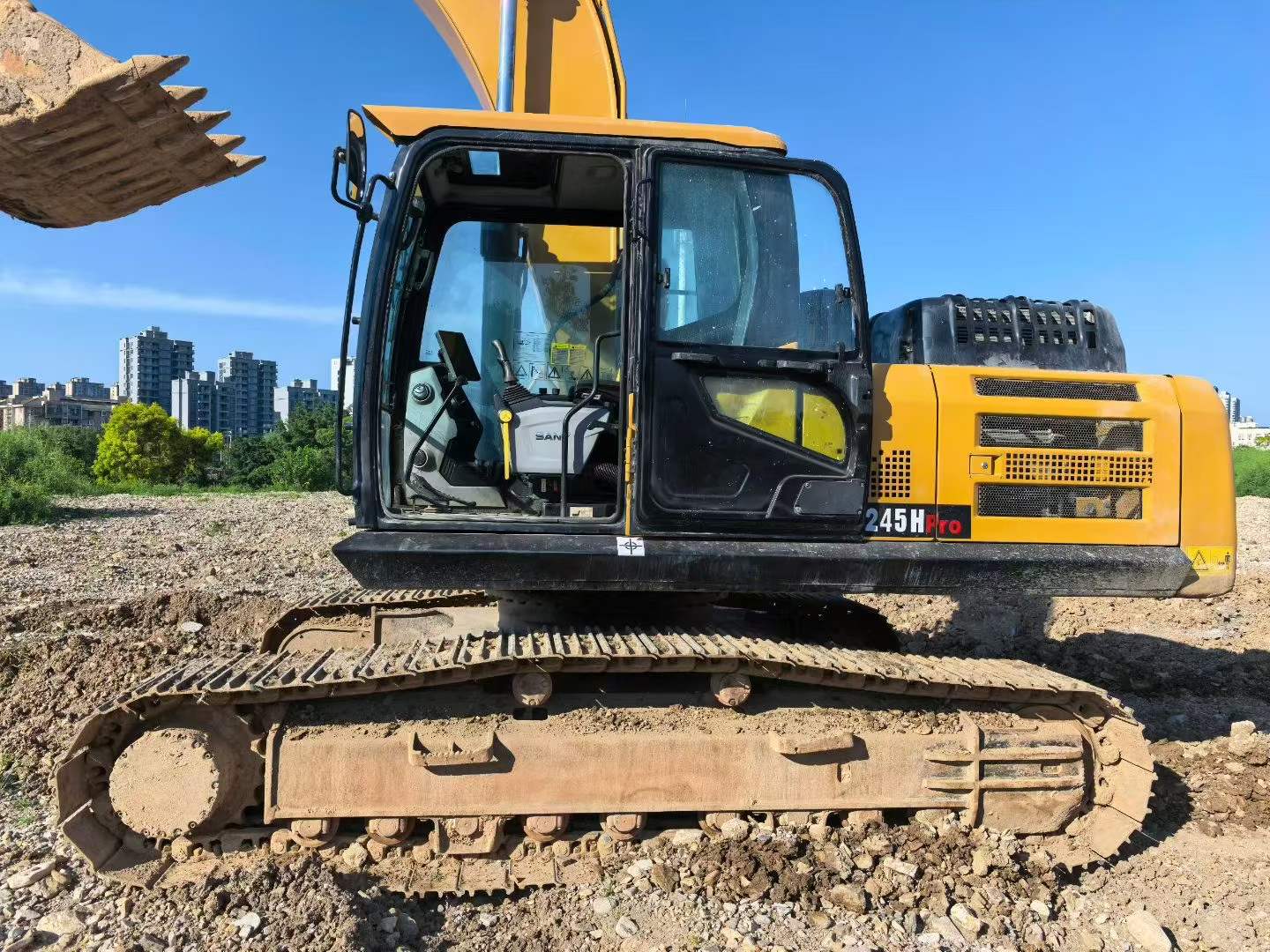

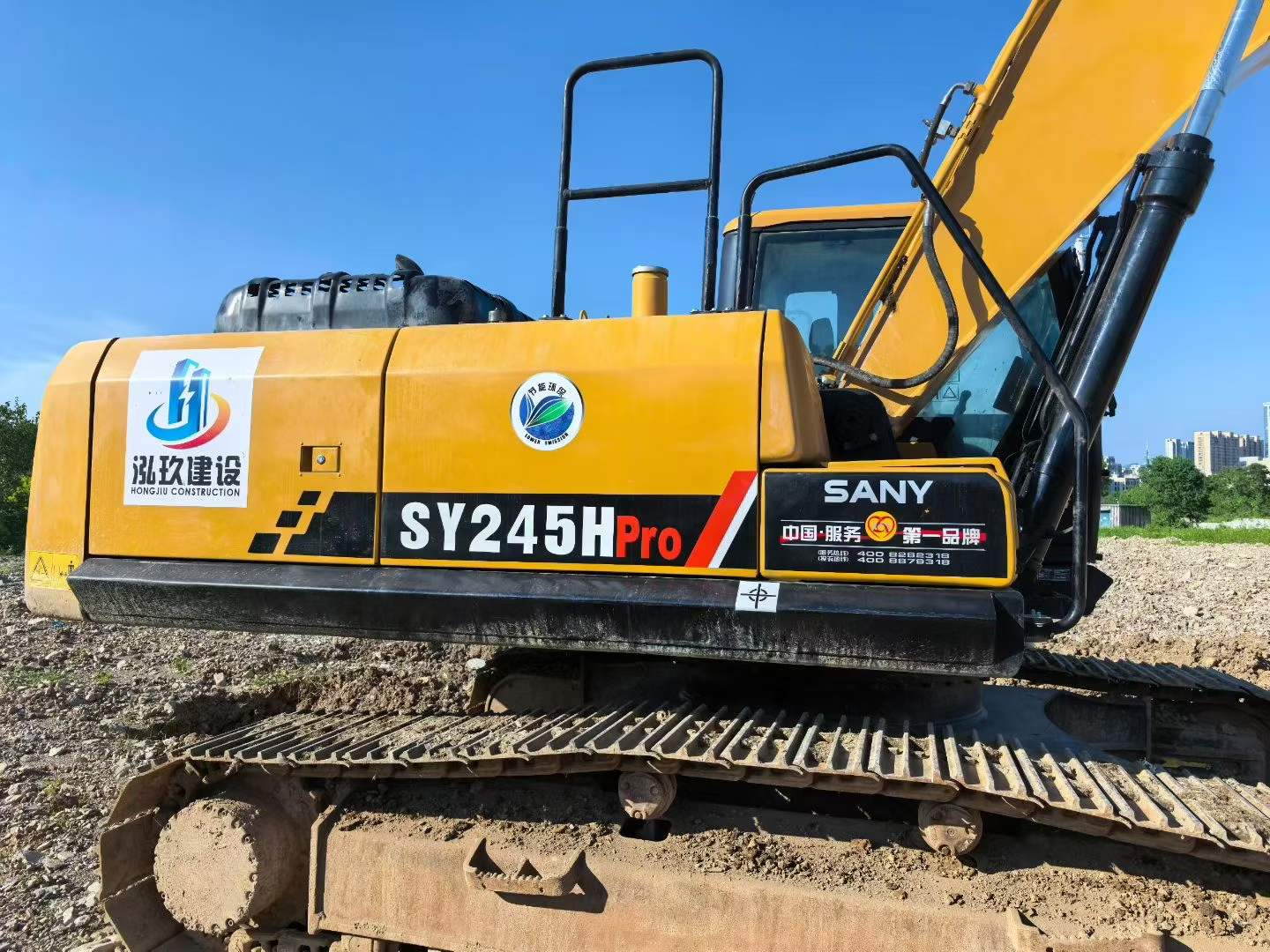

This 2022 Sany SY245H hydraulic excavator represents a well-maintained unit from one of China's leading heavy equipment manufacturers. With minimal operating hours since production, this 24-ton class machine offers reliable performance for medium to large-scale earthmoving, demolition, and construction applications.

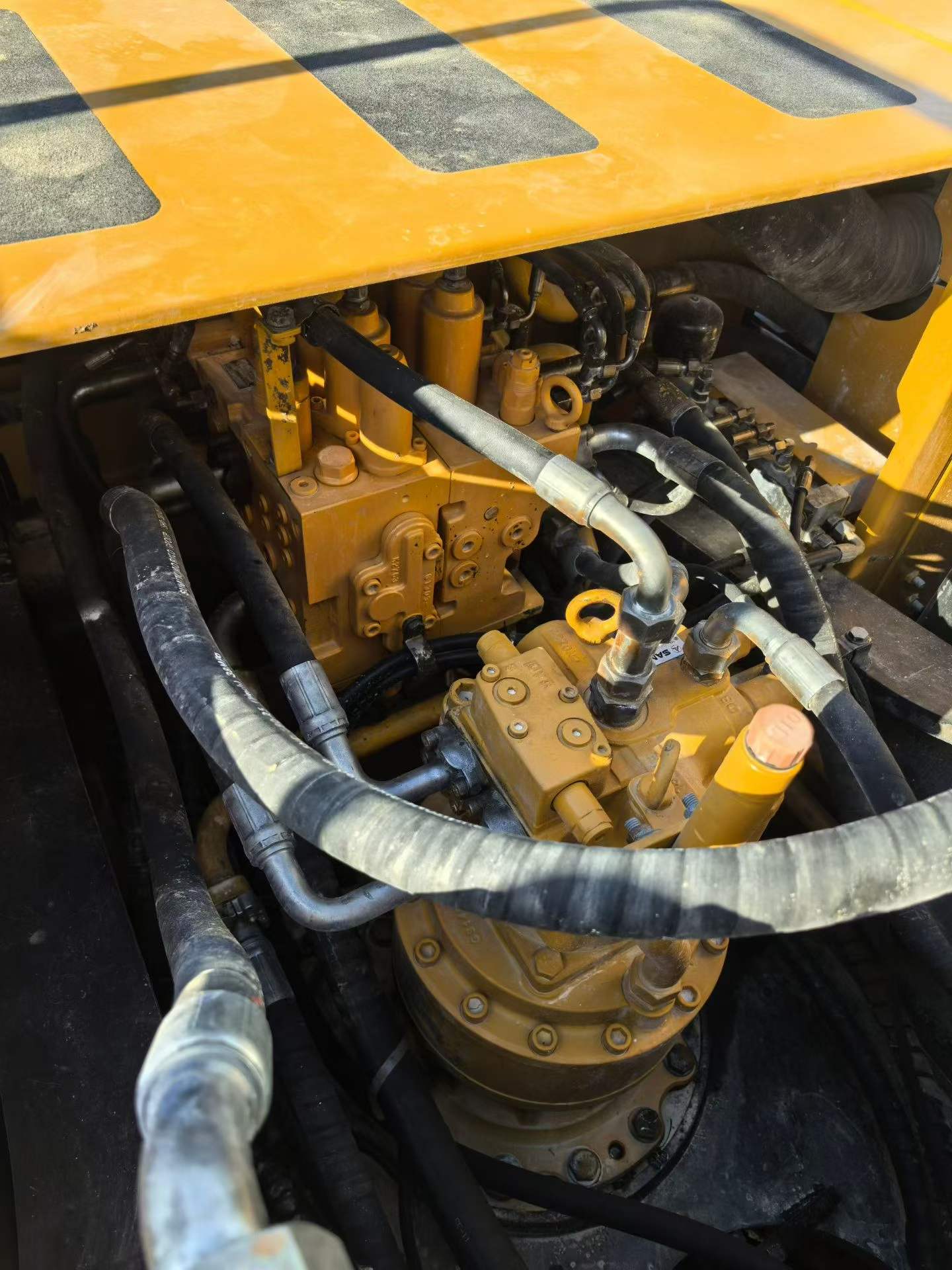

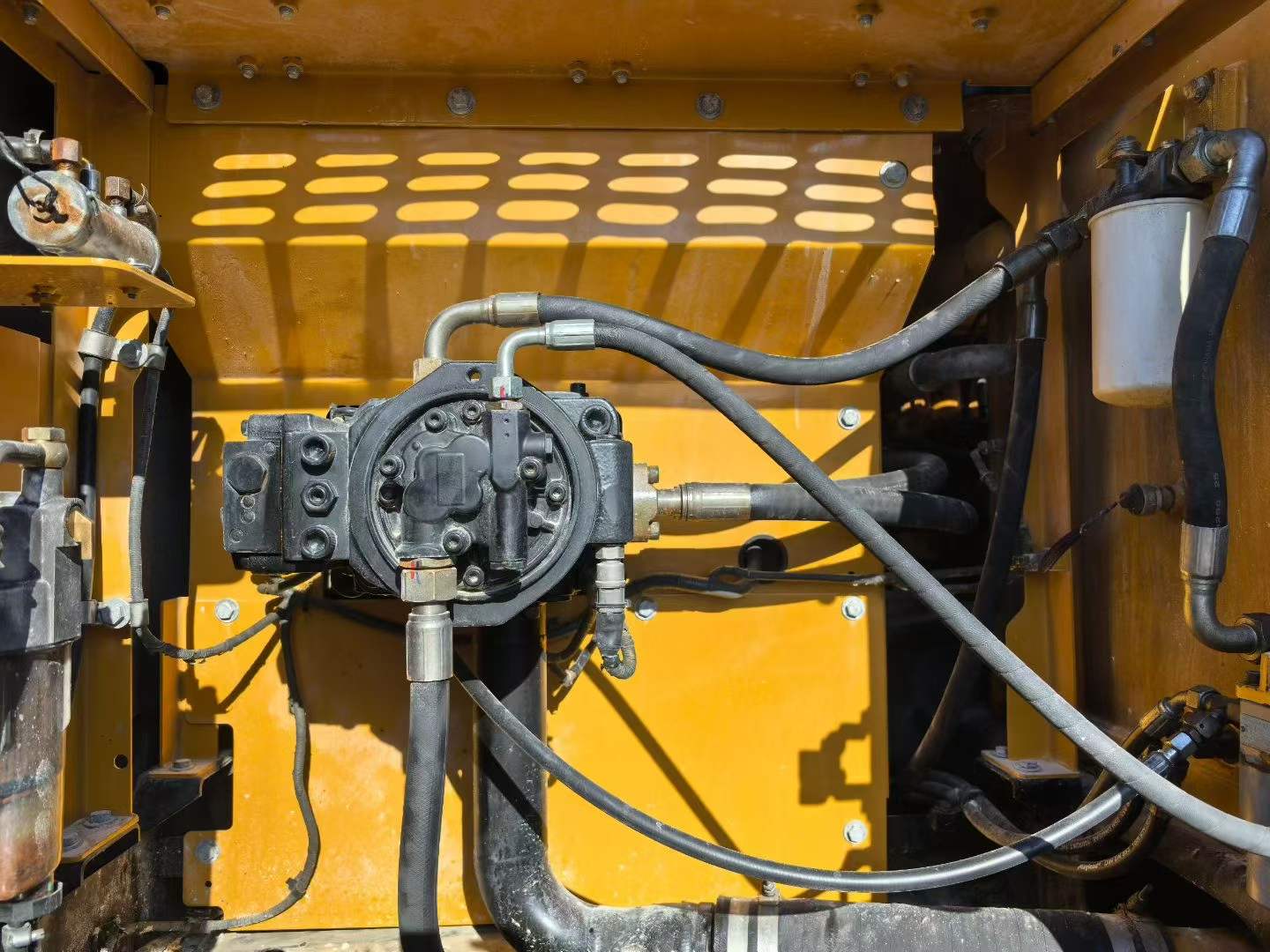

The SY245H features Sany's proven hydraulic system, delivering efficient digging force and smooth operation across varying job site conditions. Its robust undercarriage and reinforced boom structure ensure durability in demanding environments.
- Year: 2022
- Model: Sany SY245H
- Location: Zhejiang, China
- Condition: Well-maintained
- Class: 24-ton hydraulic excavator
Currently located in Zhejiang province, this unit is available for inspection and ready for deployment. Ideal for contractors seeking dependable mid-range excavation capacity with modern efficiency standards.
| Specifications | Value |
|---|---|
| No. | 1173538 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

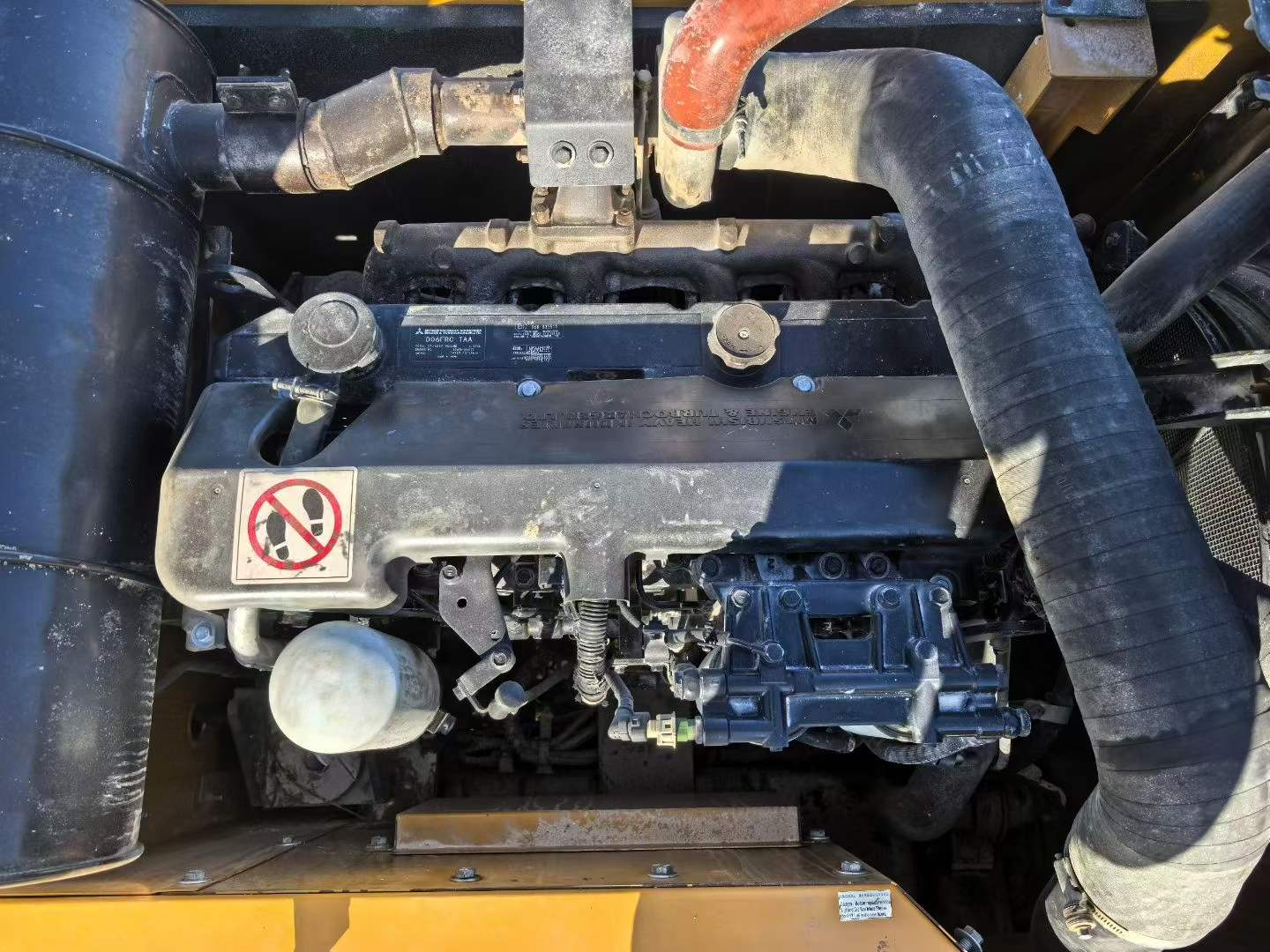

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
