Product Description

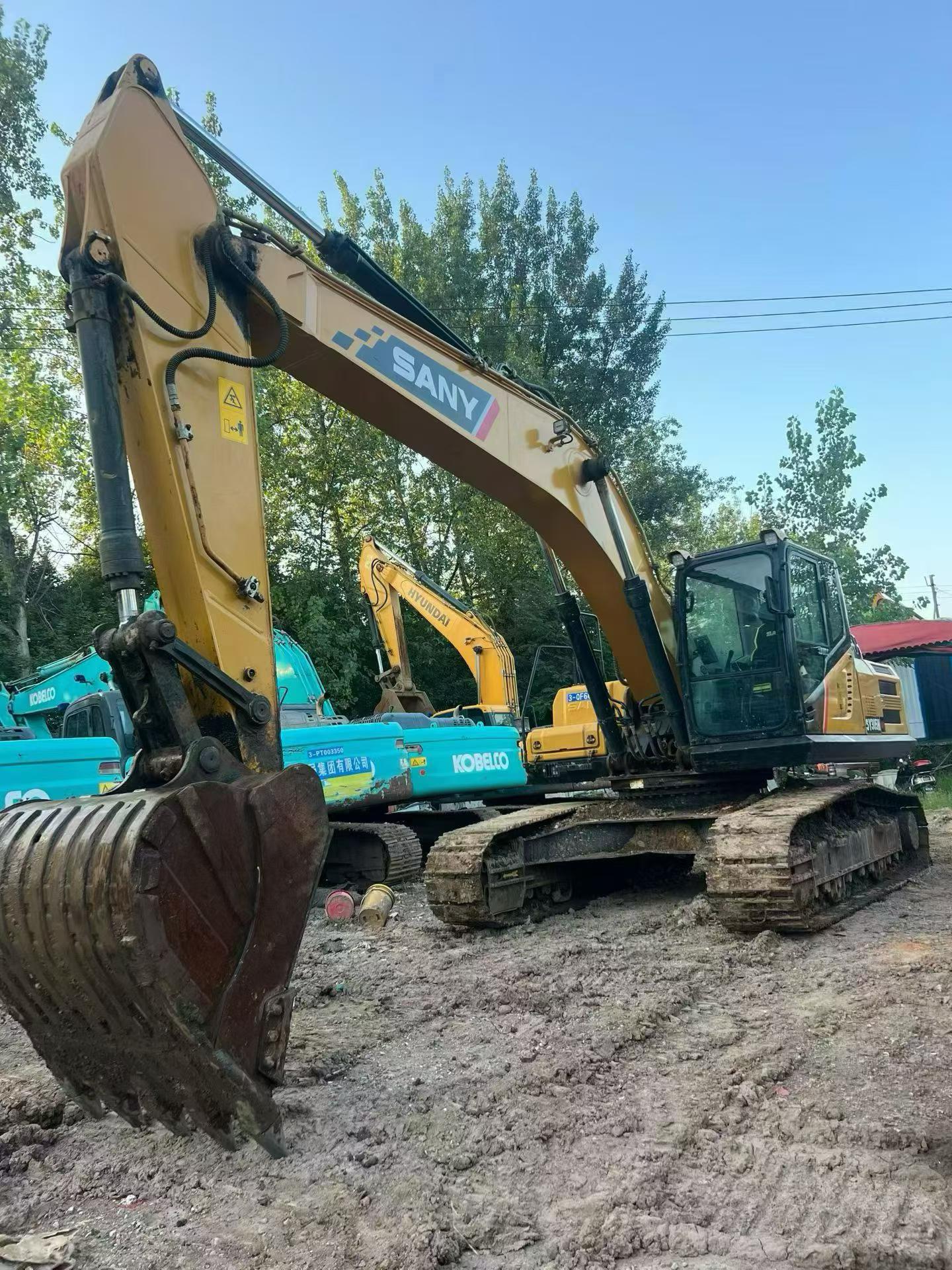

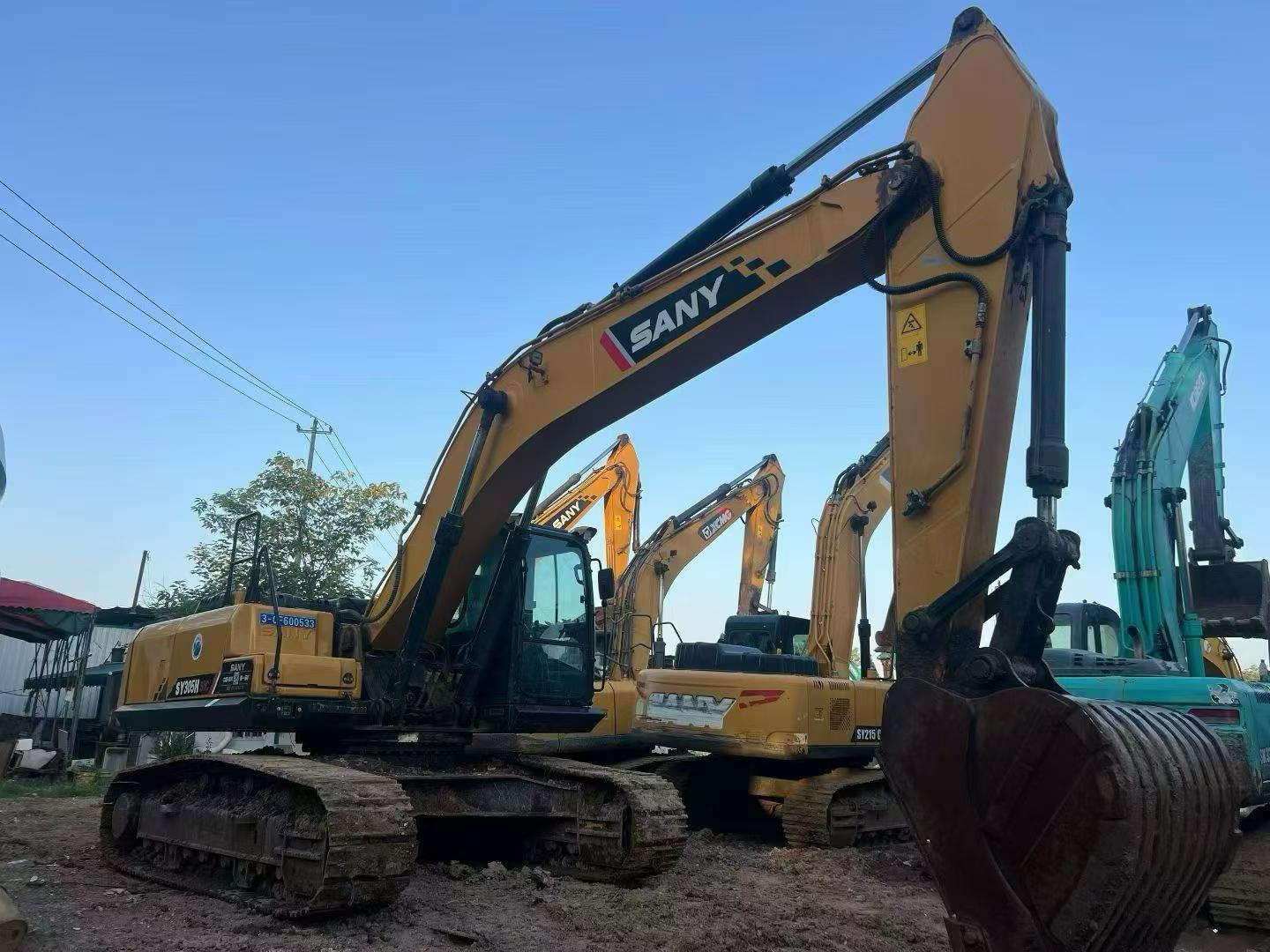

This 2023 Sany SY245H hydraulic excavator represents a well-maintained addition to any fleet. Sourced from Sichuan, China, this machine features original factory components throughout, ensuring reliability and performance consistency. The SY245H is recognized in the industry for its 24-ton operating weight and efficient fuel consumption, making it suitable for medium to large-scale earthmoving operations.
Key features include:
- Complete original equipment configuration
- Low operating hours relative to model year

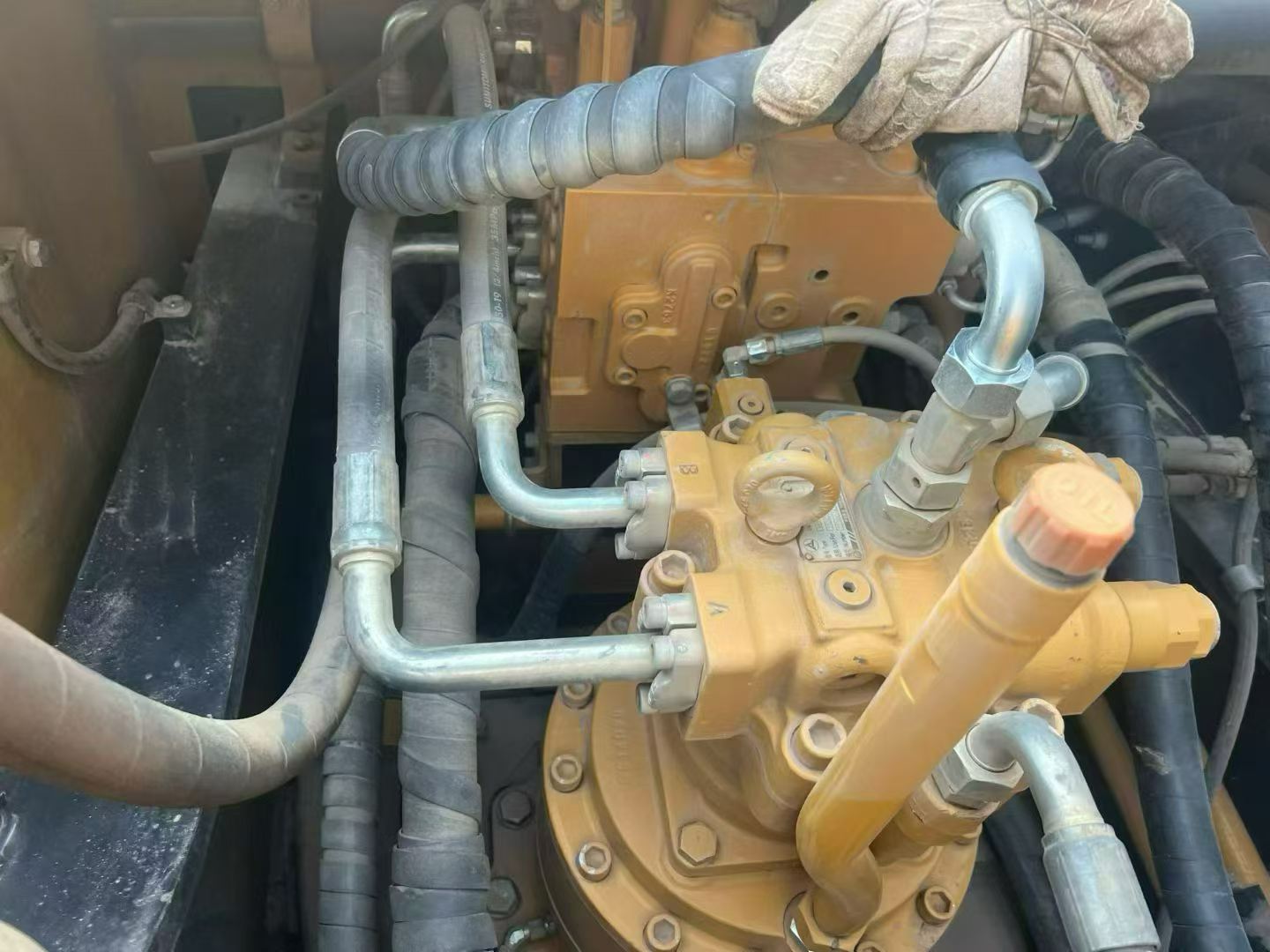

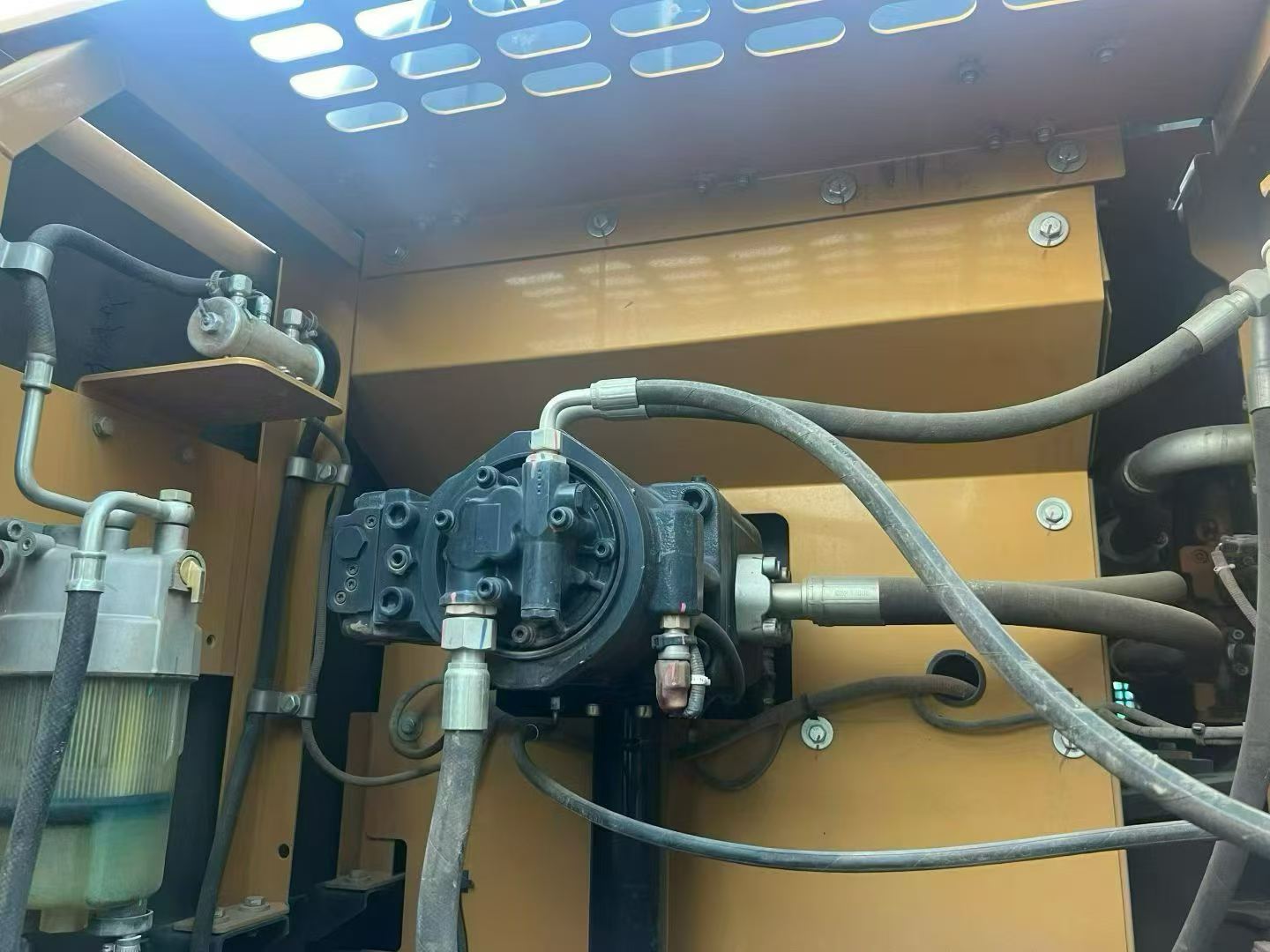

- Hydraulic system designed for diverse attachment compatibility
- Cab with operator comfort features standard to the SY245H platform
Currently located in Sichuan Province, this excavator is available for inspection by qualified buyers. The unit's recent manufacture year and maintained condition position it as a cost-effective solution for contractors seeking proven hydraulic excavator technology without the premium of new equipment pricing.
| Specifications | Value |
|---|---|
| No. | 1119375 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

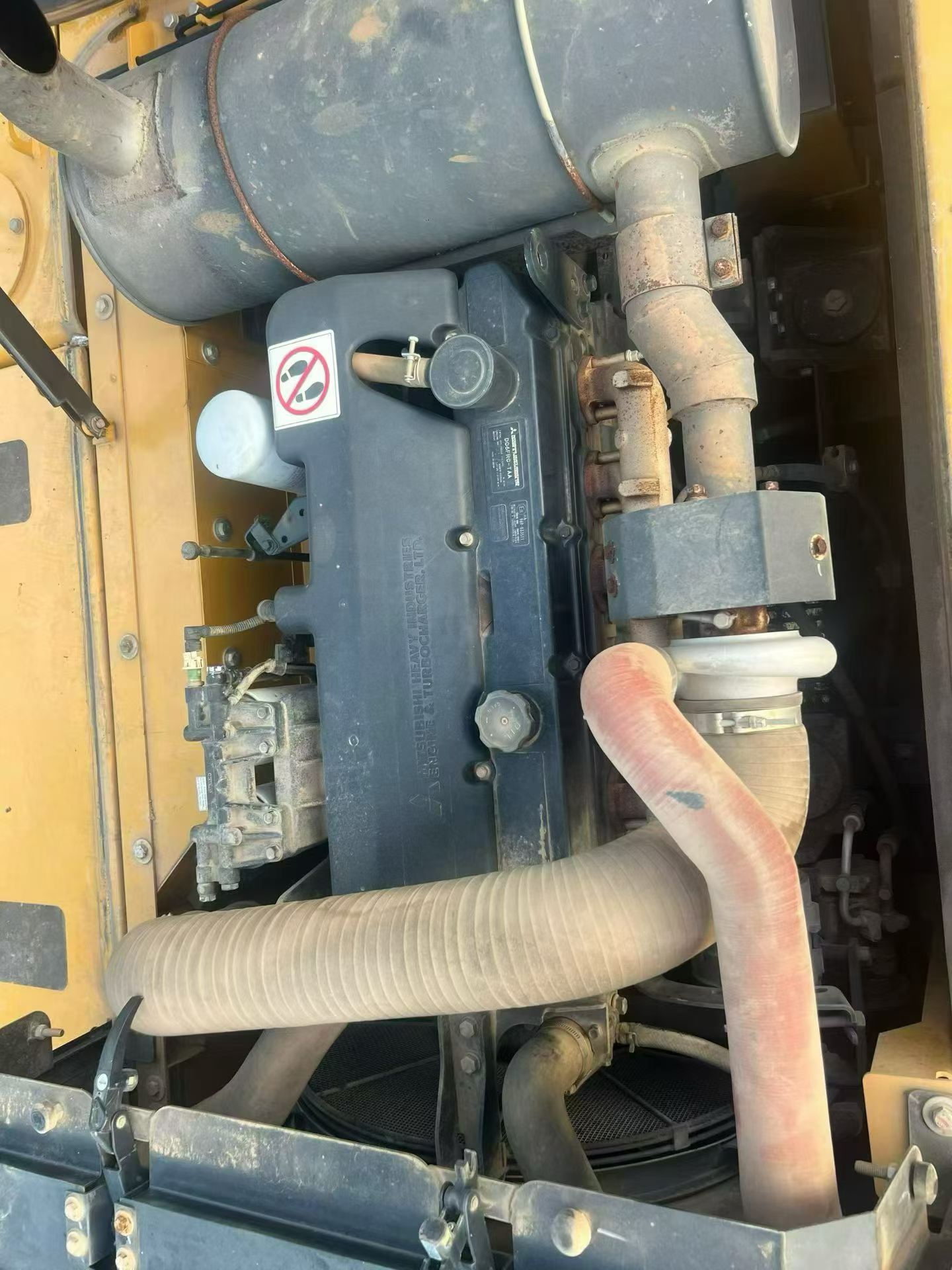

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |

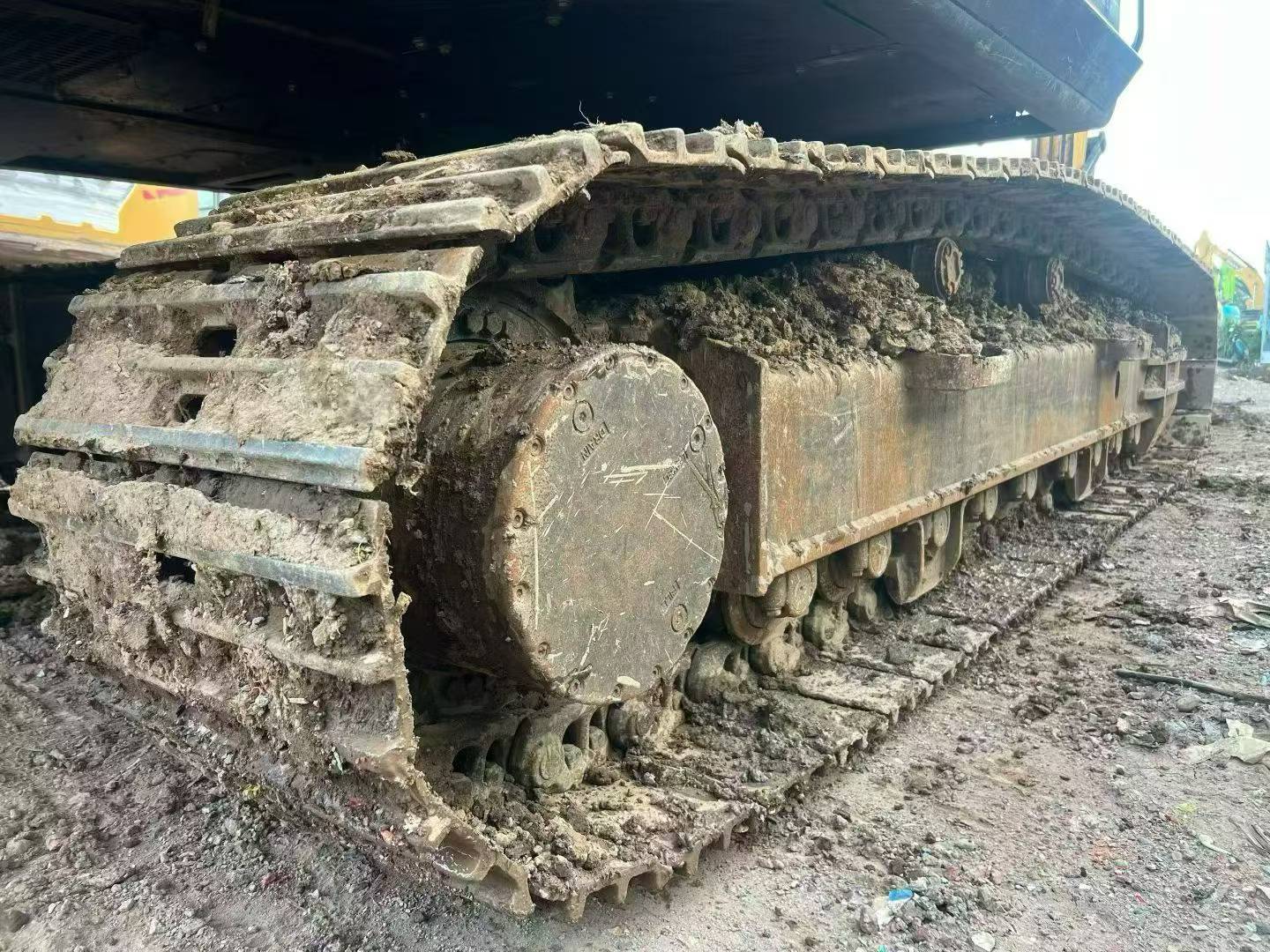

| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
