Product Description

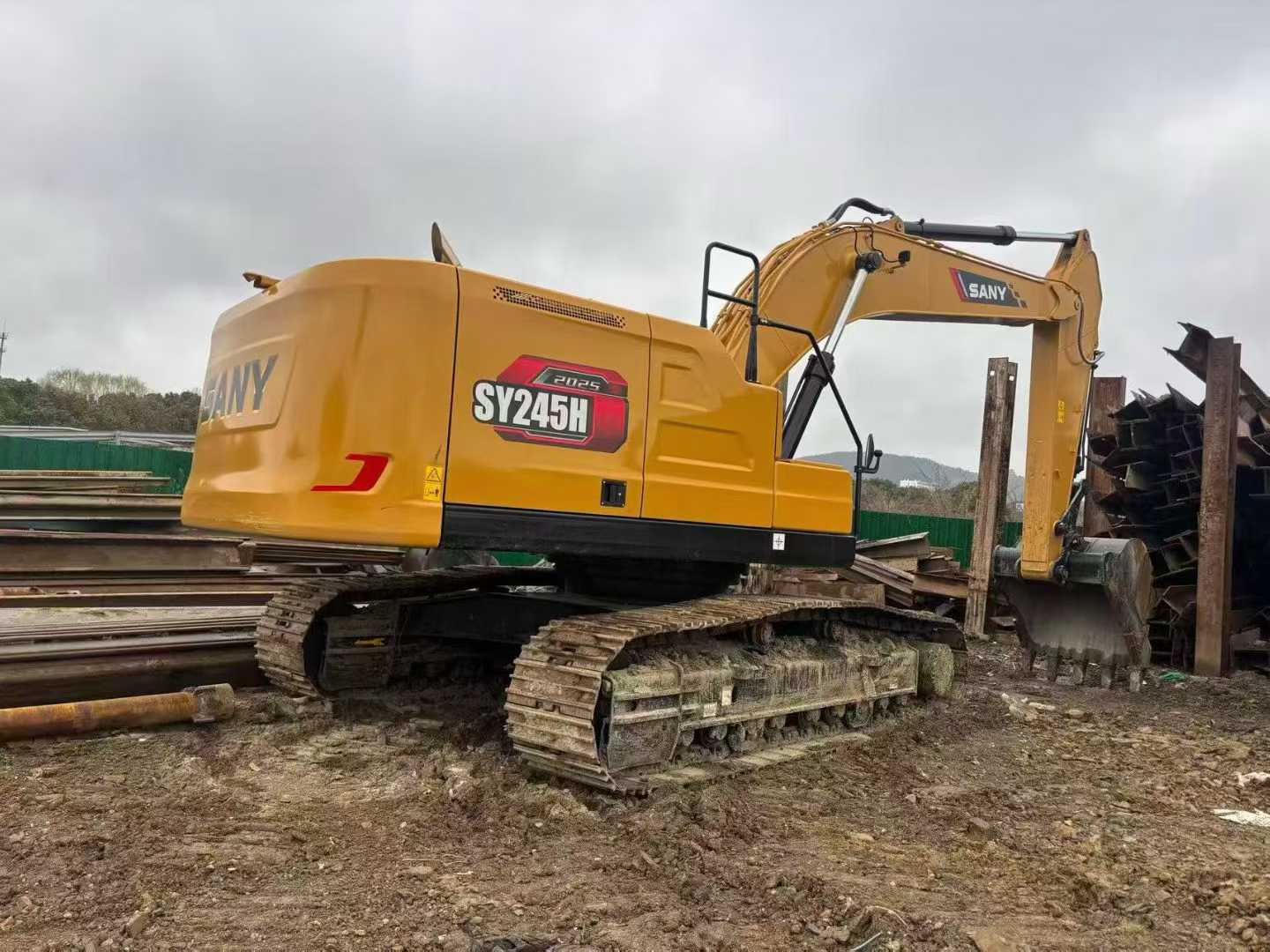

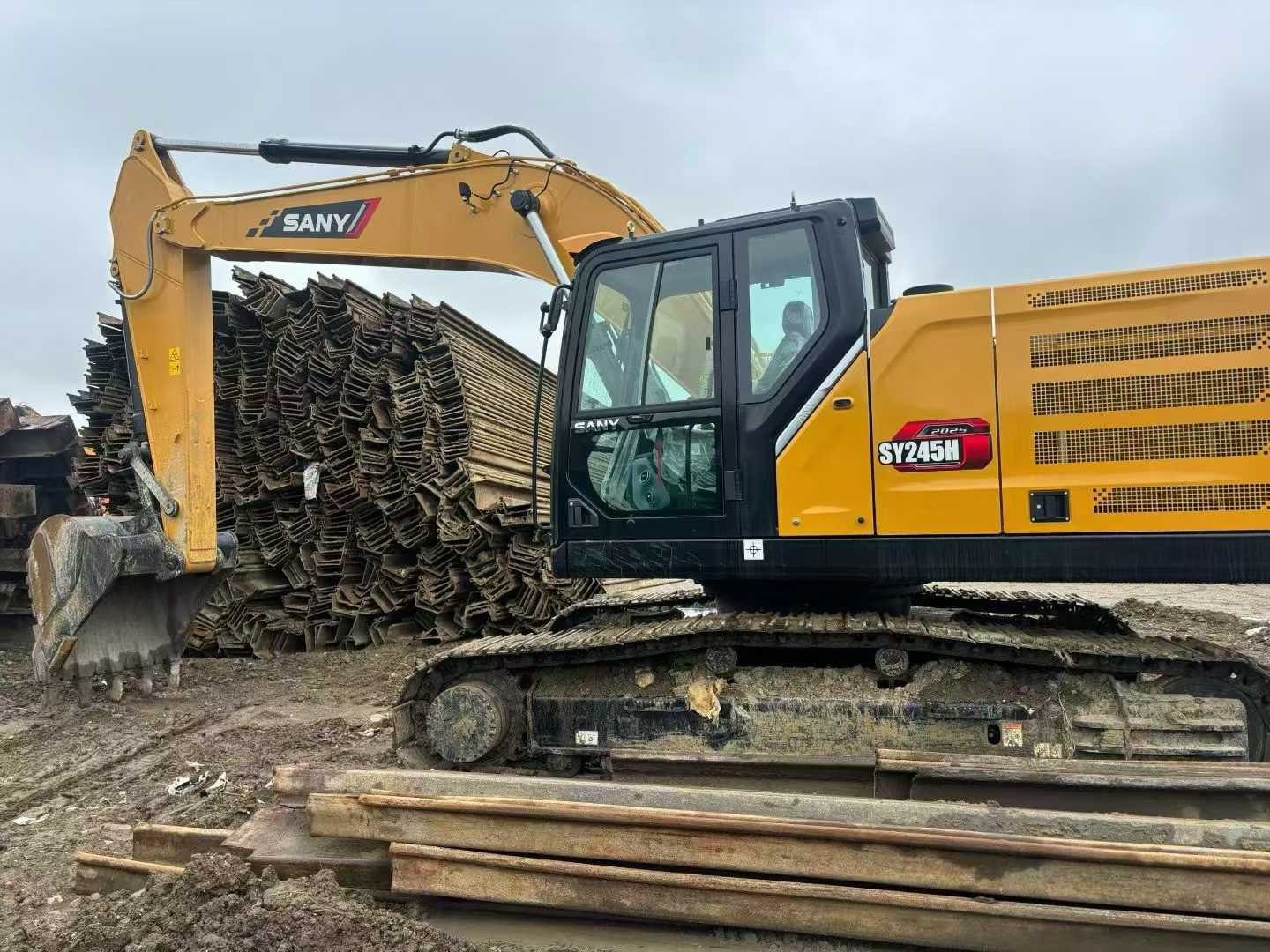

With a working weight of 25,500 kg and a bucket capacity ranging from 1.3 to 1.5 m³, the Sany SY245H excavator is a robust choice for demanding construction projects. Built in China, this model boasts a D06FRC engine, delivering 147 kW at 2100 rpm, ensuring reliable performance and durability. Sany's commitment to quality means parts are readily available, making maintenance and repairs straightforward. This 24-ton excavator features a water-cooled system, enhancing its operational efficiency. The SY245H also offers a maximum digging force of 175 kN, ideal for tough excavation tasks. Its travel speed of up to 5.4 km/h and climbing ability of 70% make it versatile across various terrains. Resale value remains strong, thanks to Sany’s reputation for reliability and performance. Located in 福建莆田, this machine is ready to meet your project needs with confidence.
| Specifications | Value |
|---|---|
| No. | 1020586 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
