Product Description

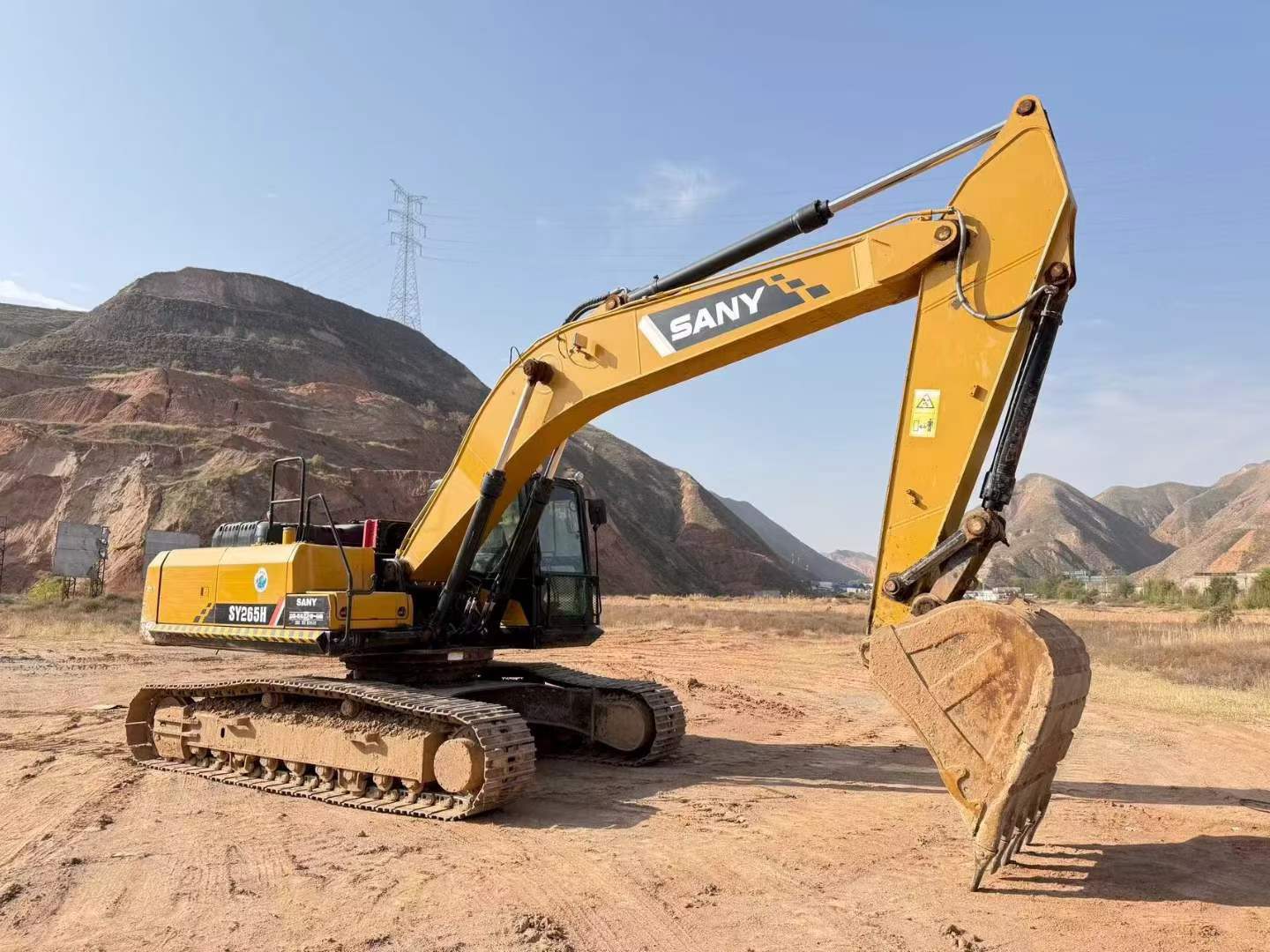

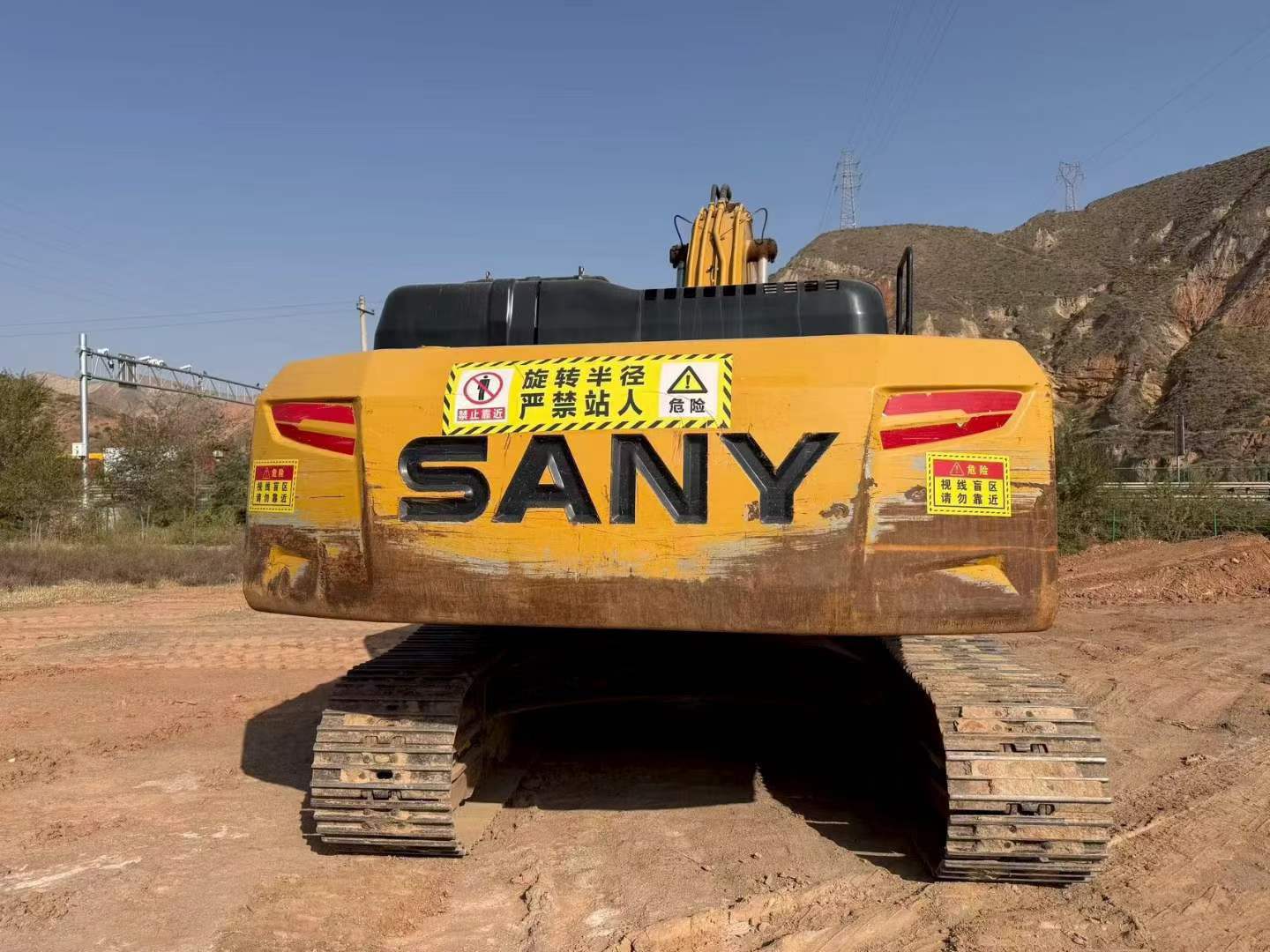

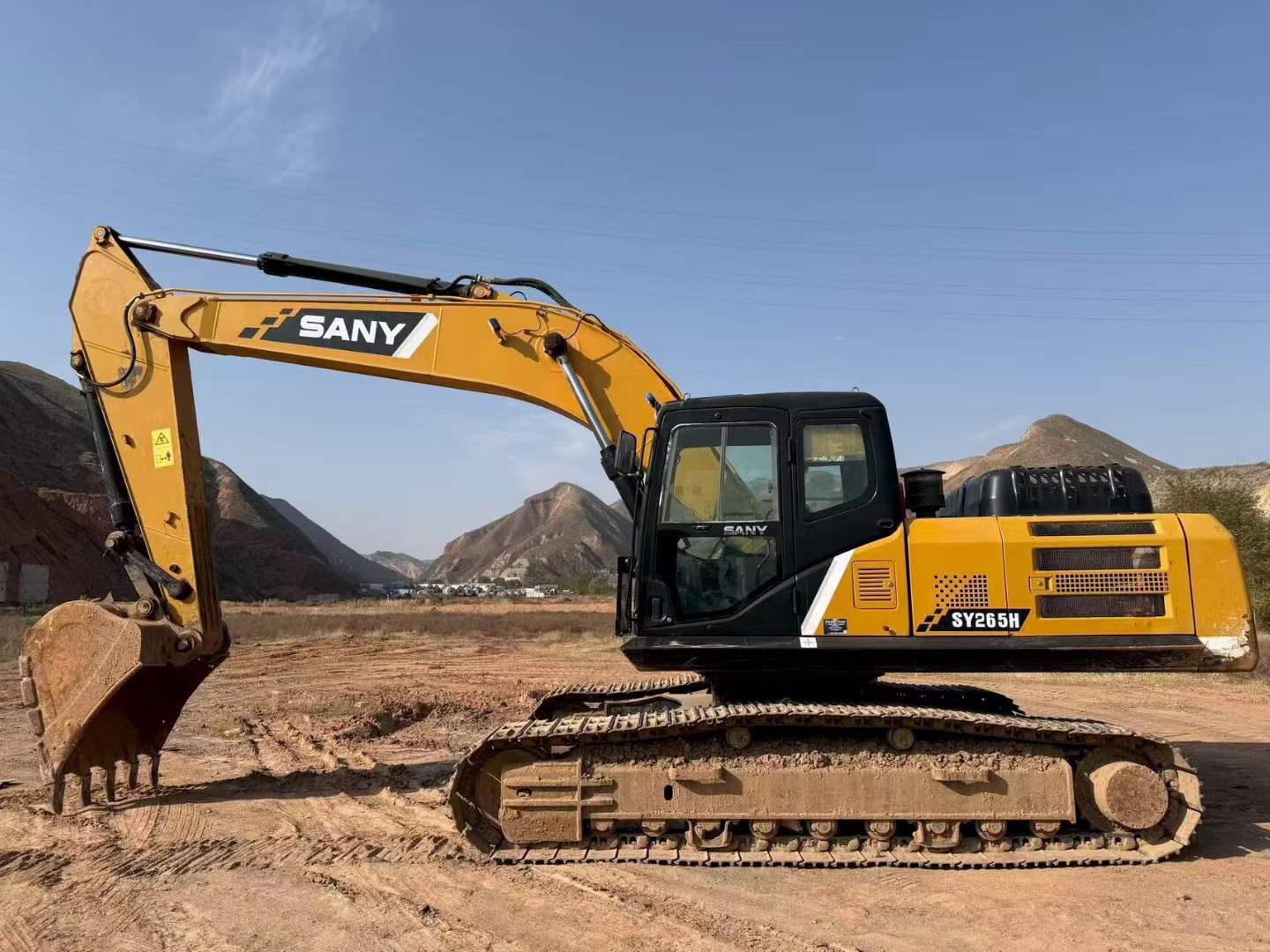

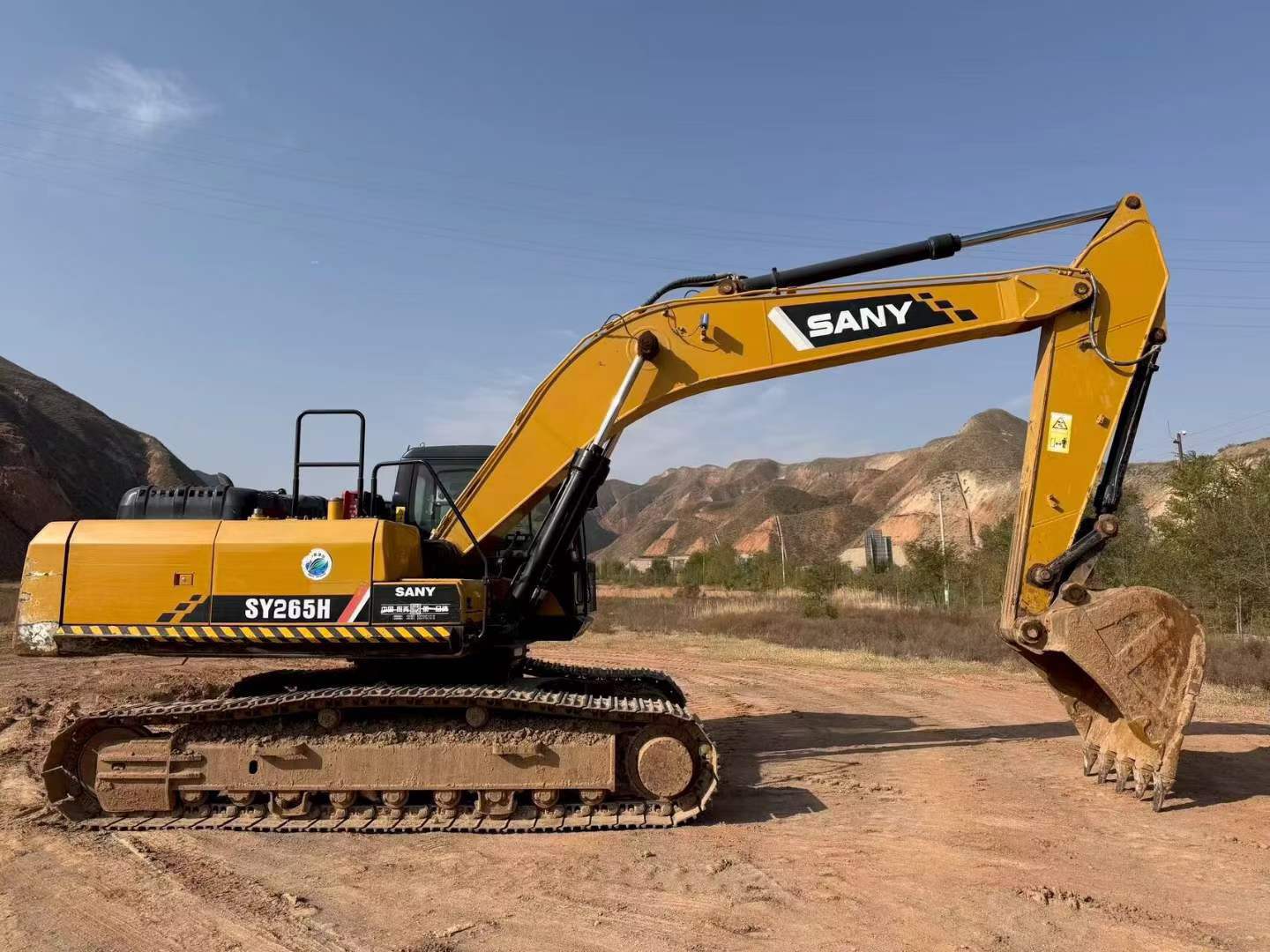

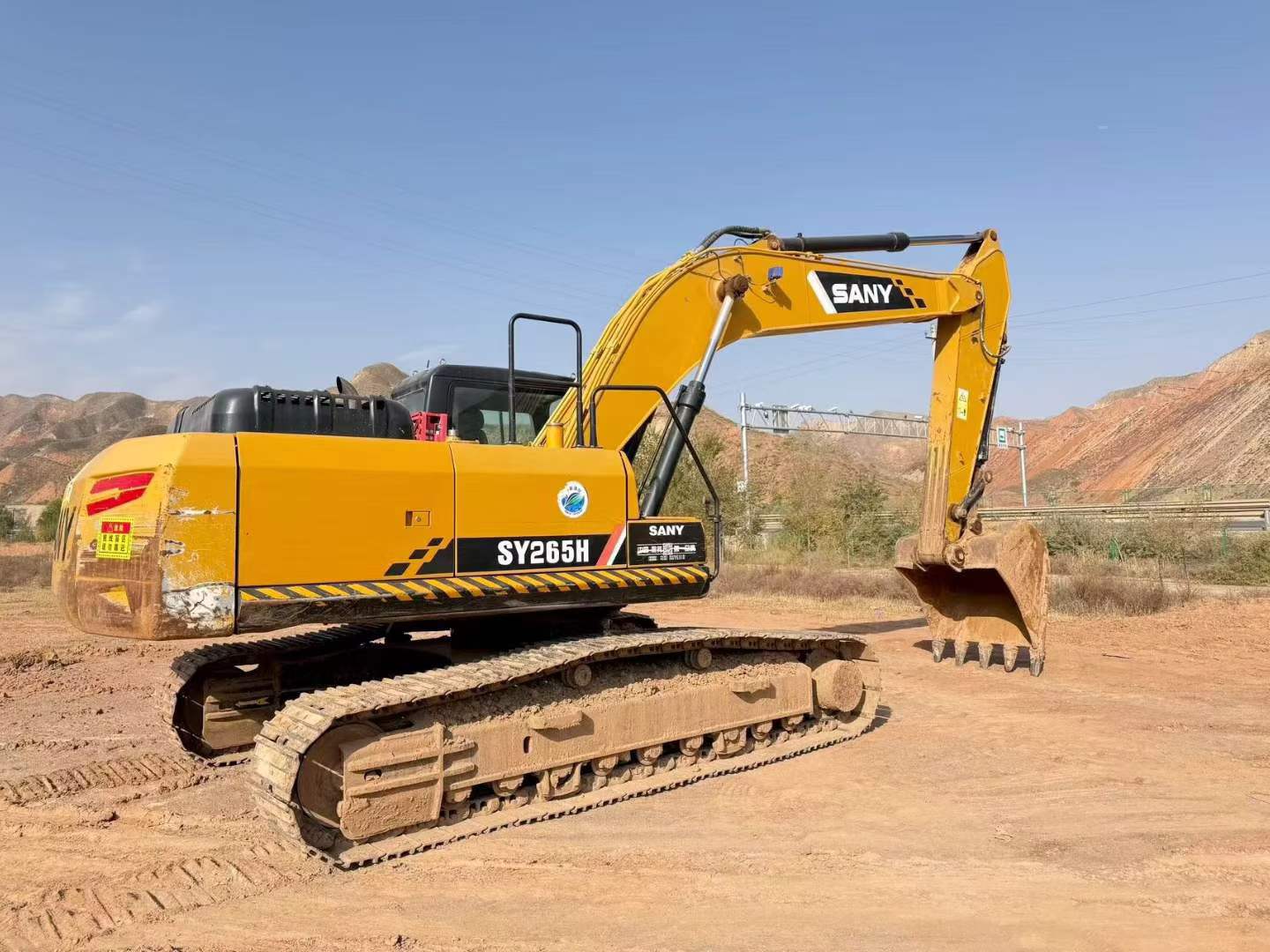

This 2018 Sany SY265C hydraulic excavator offers reliable performance for demanding excavation and earthmoving operations. Manufactured by Sany Heavy Industry, one of China's leading construction equipment producers, this mid-size crawler excavator features a robust design built for productivity in challenging job site conditions.
Key specifications and features:
- Operating weight approximately 26 tons

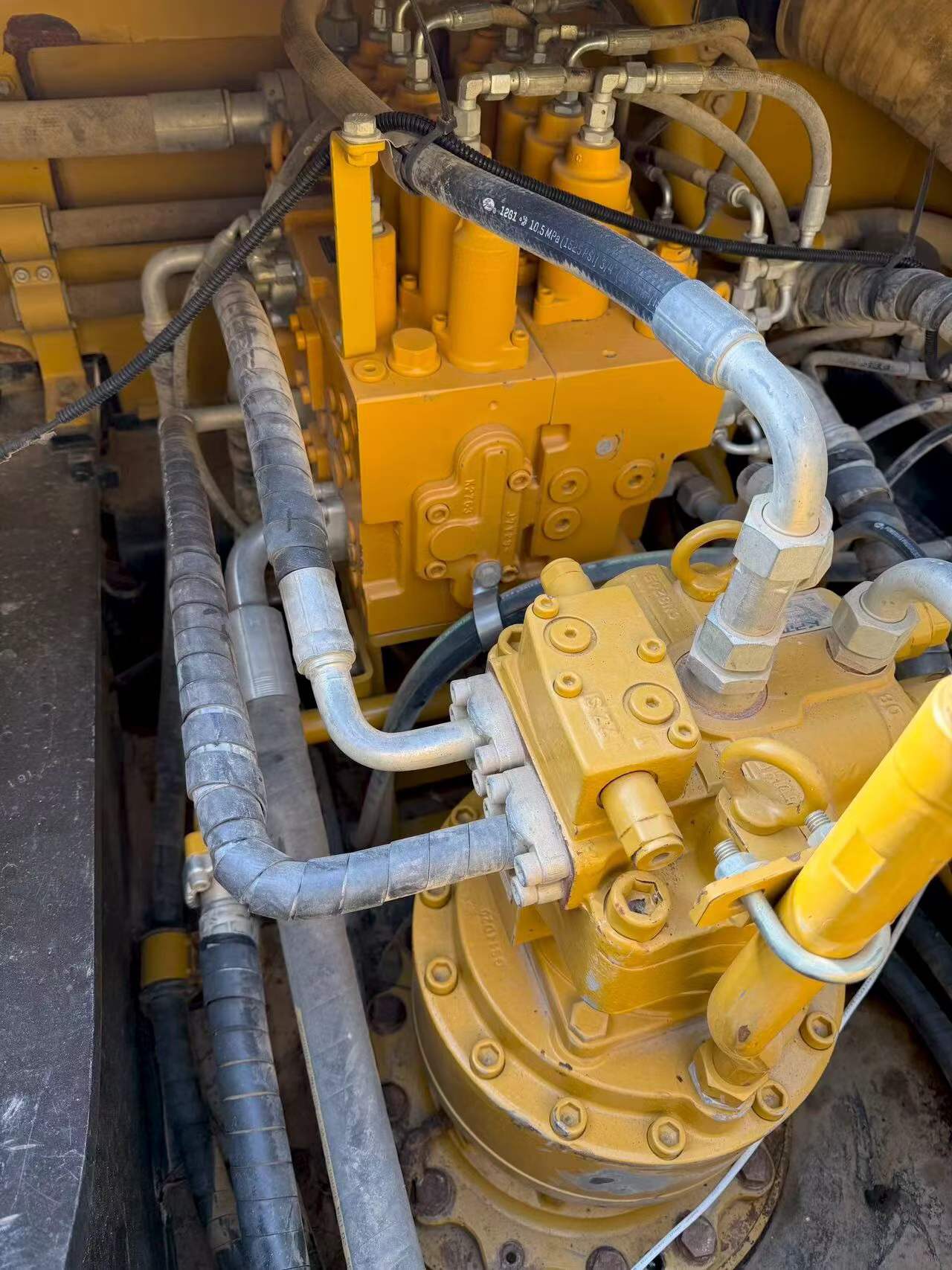

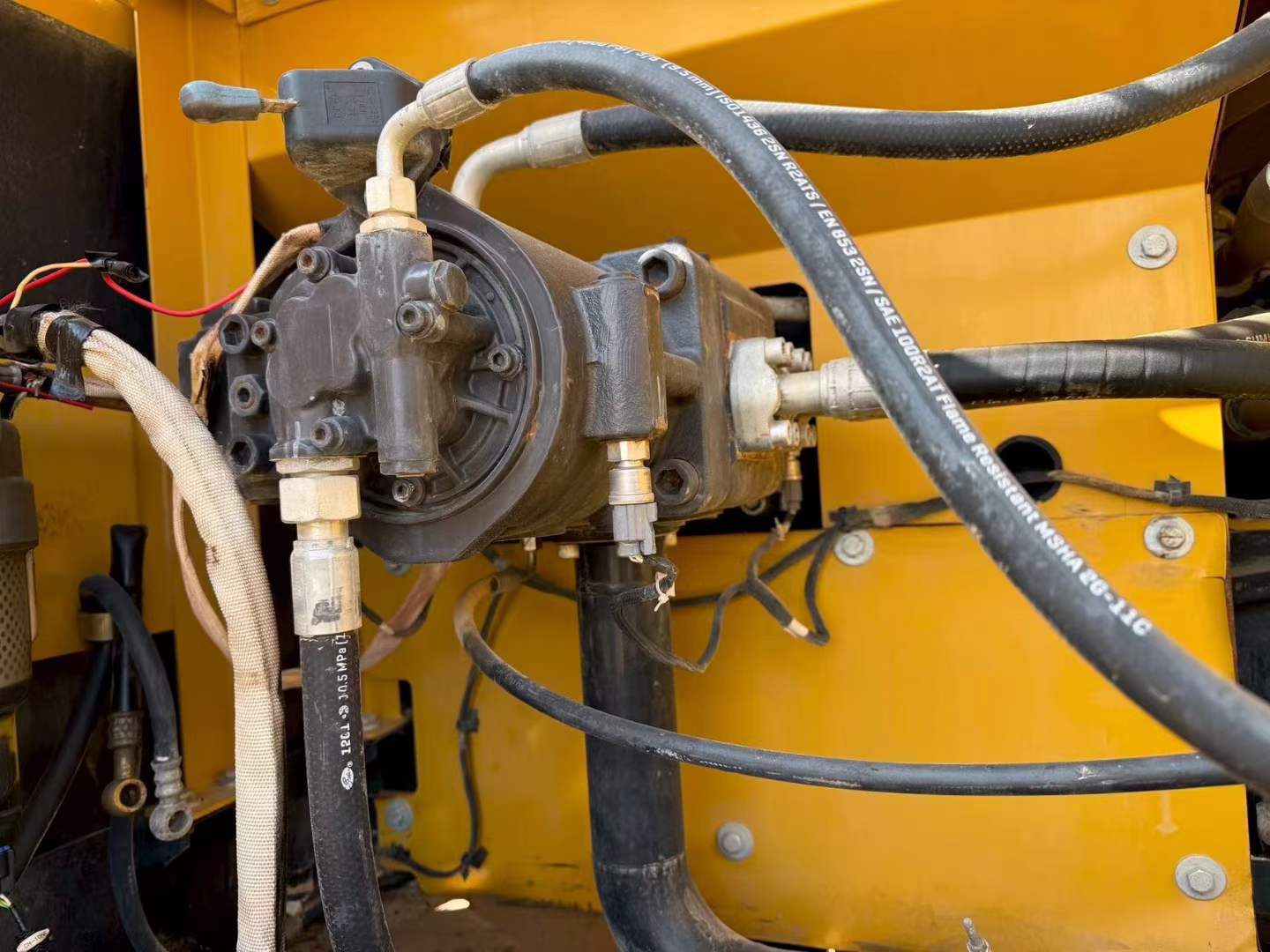

- Hydraulic system engineered for efficient fuel consumption
- Reinforced undercarriage for extended component life

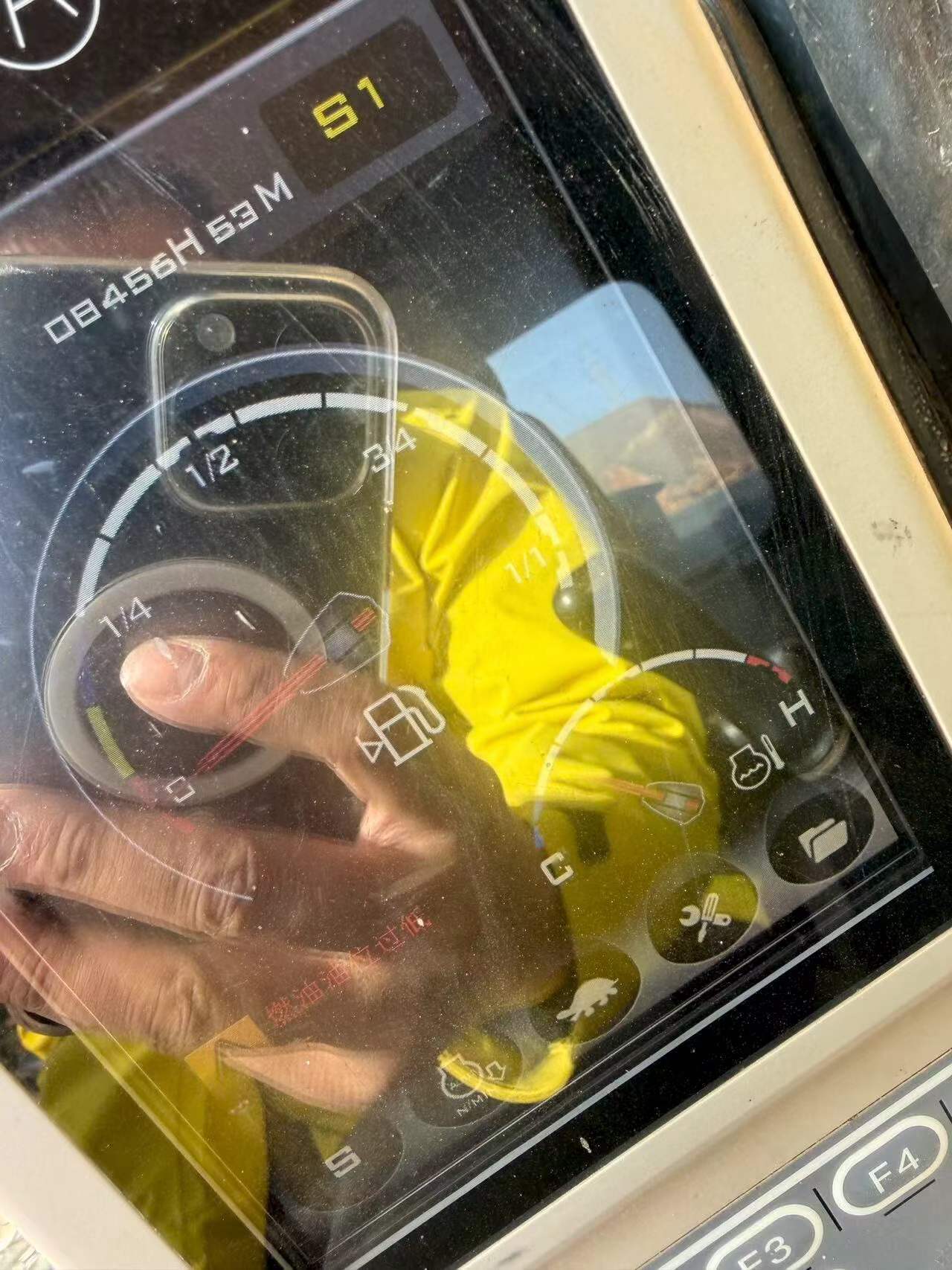

- Spacious operator cabin with ergonomic controls
- Suitable for general construction, mining support, and material handling applications
Currently located in Zhejiang, China. This machine represents a cost-effective solution for contractors seeking proven hydraulic excavator technology with established parts availability and service network support throughout Asia and international markets.
| Specifications | Value |
|---|---|
| No. | 1173283 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

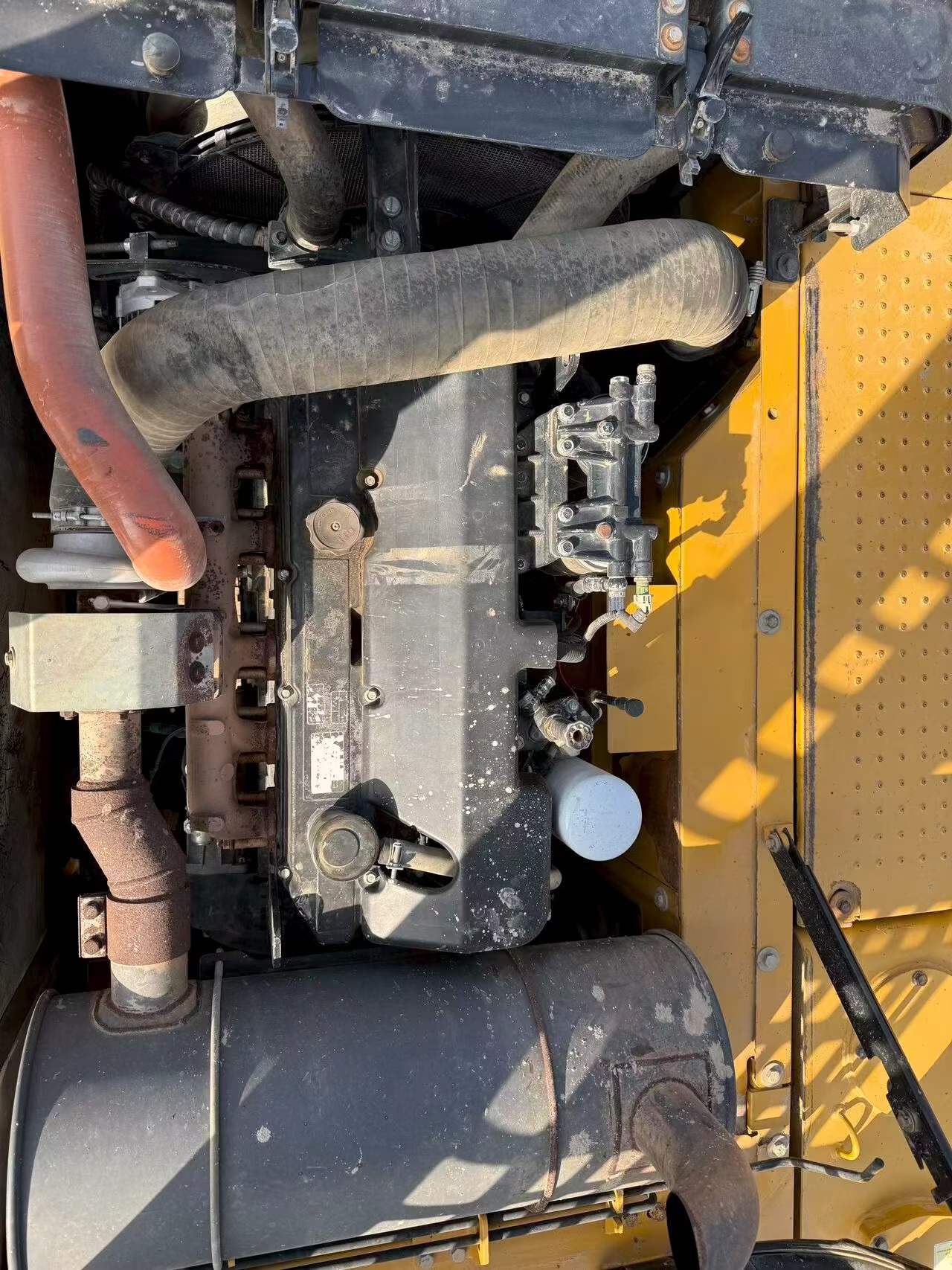

| Engine type | Mitsubishi D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.8/3.7 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 3105 |
| Total track length (mm) | 4635 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
