Product Description

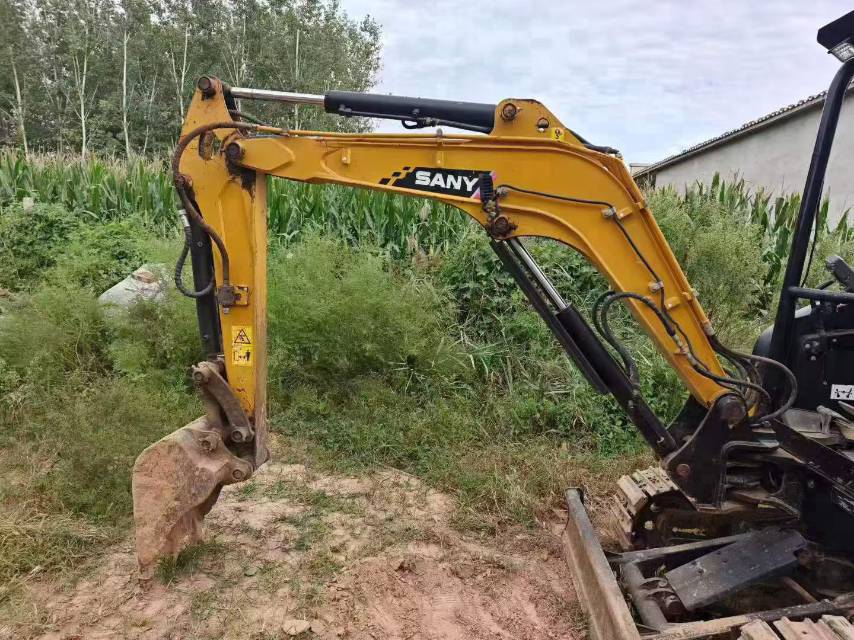

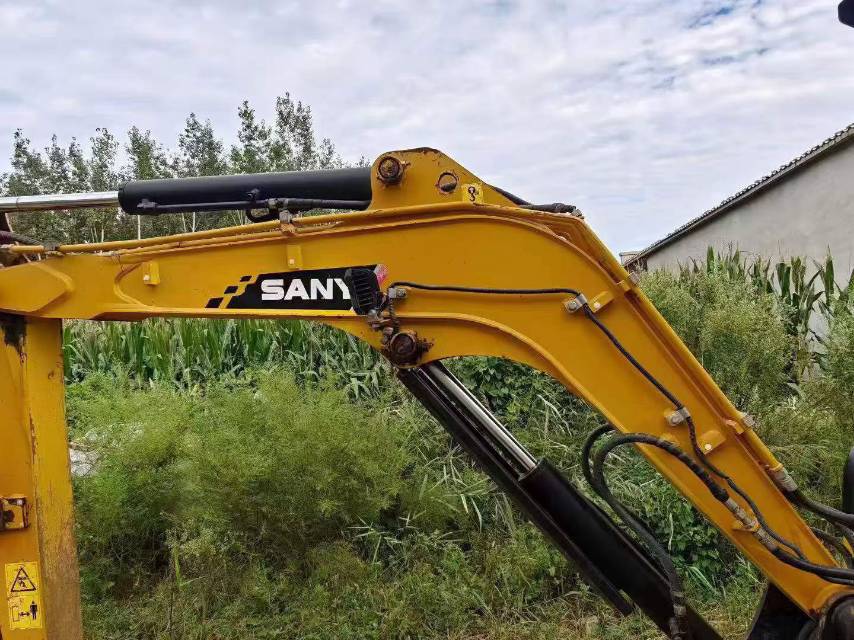

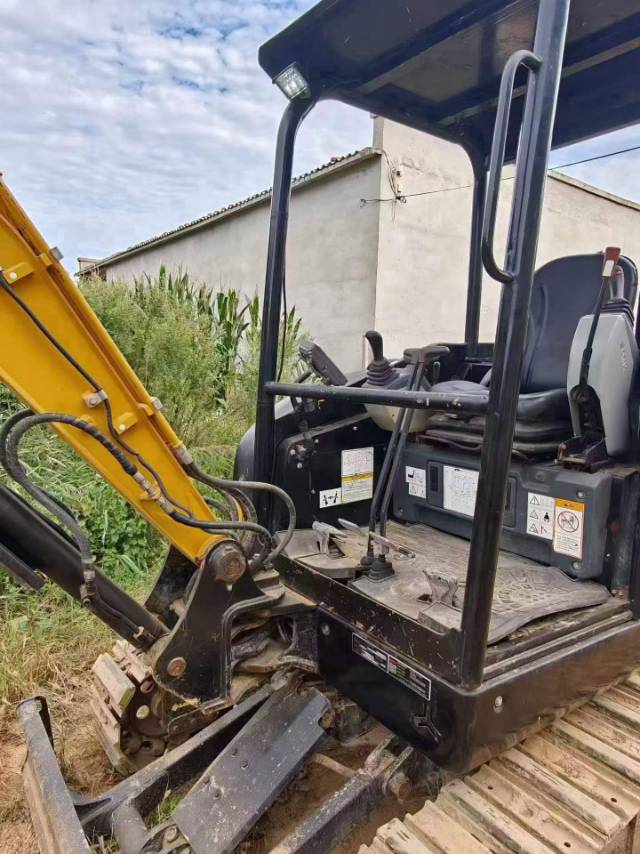

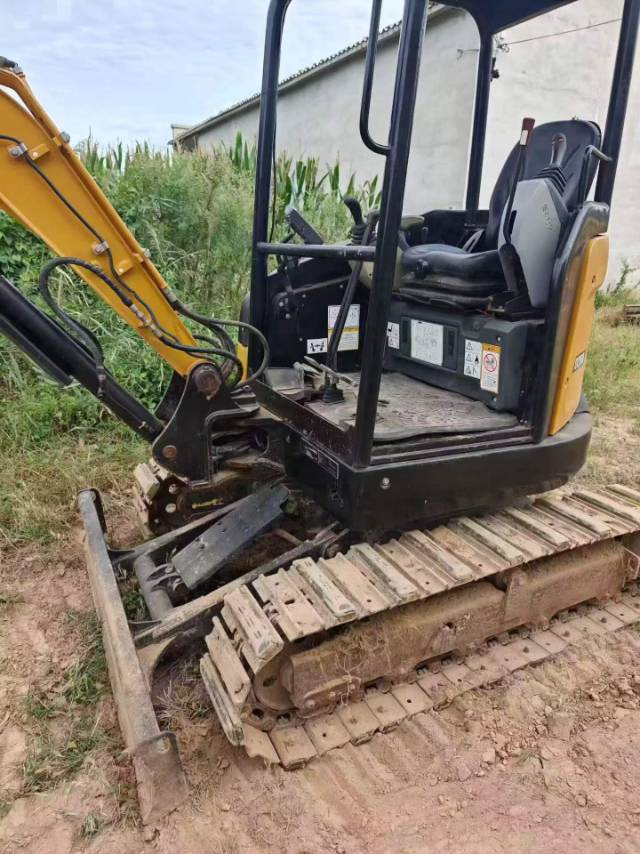

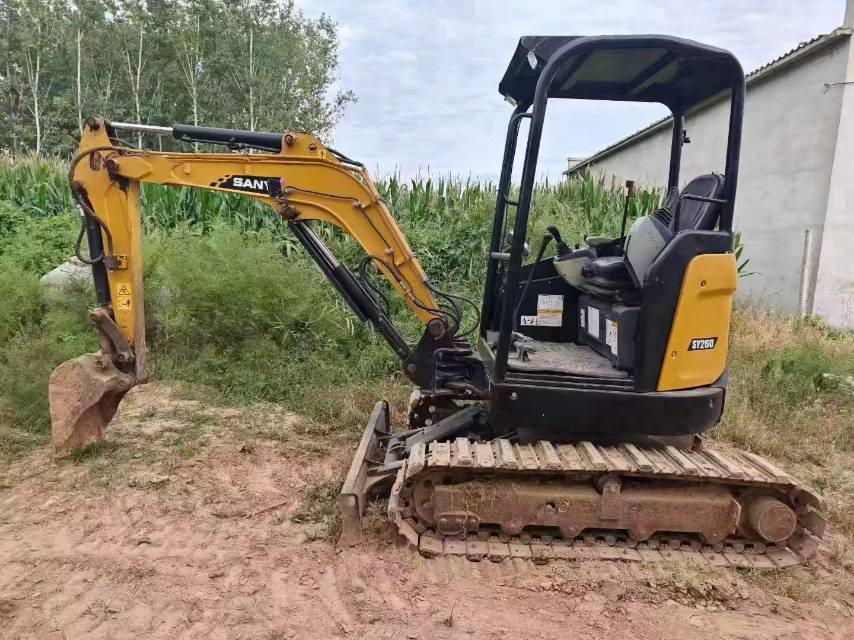

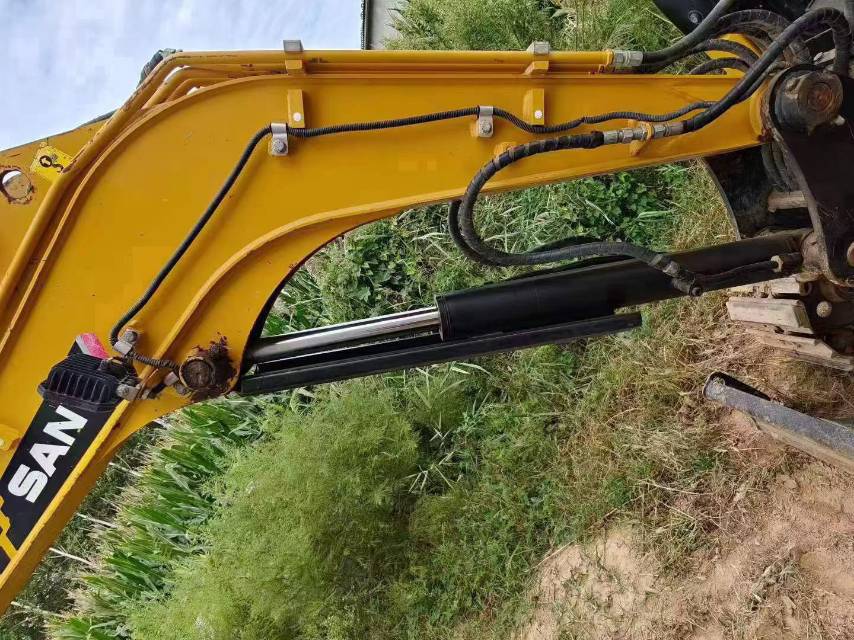

This 2021 Sany SY26U mini excavator represents excellent value in the compact equipment segment. Sourced from Hebei, China, this machine features verified original hours and maintains its factory configuration throughout. The SY26U is well-regarded for urban construction, landscaping, and utility work where maneuverability and precision are essential.
Key highlights include:
- Genuine low-hour meter reading with documented service history
- Unmodified original specifications and components
- Single private owner operation ensuring consistent maintenance
- Compact 2.6-ton operating weight ideal for confined jobsites
- Competitive pricing reflecting current market conditions
This unit offers reliable performance for contractors seeking dependable mini excavator capacity without premium pricing. Available for immediate inspection and delivery from Hebei province.
| Specifications | Value |
|---|---|
| No. | 1143877 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 2680 |
| Bucket capacity (m³) | 0.04-0.08(0.06) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV80F |
| Rated power (kw/rpm) | 15.2/2500 |
| Maximum torque (N.m) | 63.2-67.4/1800-100 |
| Displacement (L) | 1.266 |
| Ground specific pressure (Kpa) | 25.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 47 |
| Bucket digging force (kN) | 24.3 |
| Rod digging force (kN) | 14.2 |
| Travel speed (km/h) | 4.5/2.6 |
| Fuel Tank (L) | 34 |
| Hydraulic Tank (L) | 30 |
| Engine Oil changes (L) | 3.4/1.6 |
| Total transport length (mm) | 4285 |
| Total transport width (mm) | 1550 |
| Total transport height (mm) | 2430 |
| Minimum ground clearance (mm) | 290 |
| Minimum turning radius of front working device (mm) | 2110 |
| Back end turning radius (mm) | 775 |
| Total track length (mm) | 2005 |
| Track gauge (mm) | 1250 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1560 |
| Maximum height at minimum turning radius (mm) | 3200 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4850 |
| Maximum digging depth (mm) | 2820 |
| Maximum excavation height (mm) | 4410 |
| Maximum unloading height (mm) | 3100 |
| Maximum vertical digging depth (mm) | 2585 |
| Bulldozer lift or depth (mm) | 360/330 |
| Dodging plate width × height (mm) | 300 (height) |
