Product Description

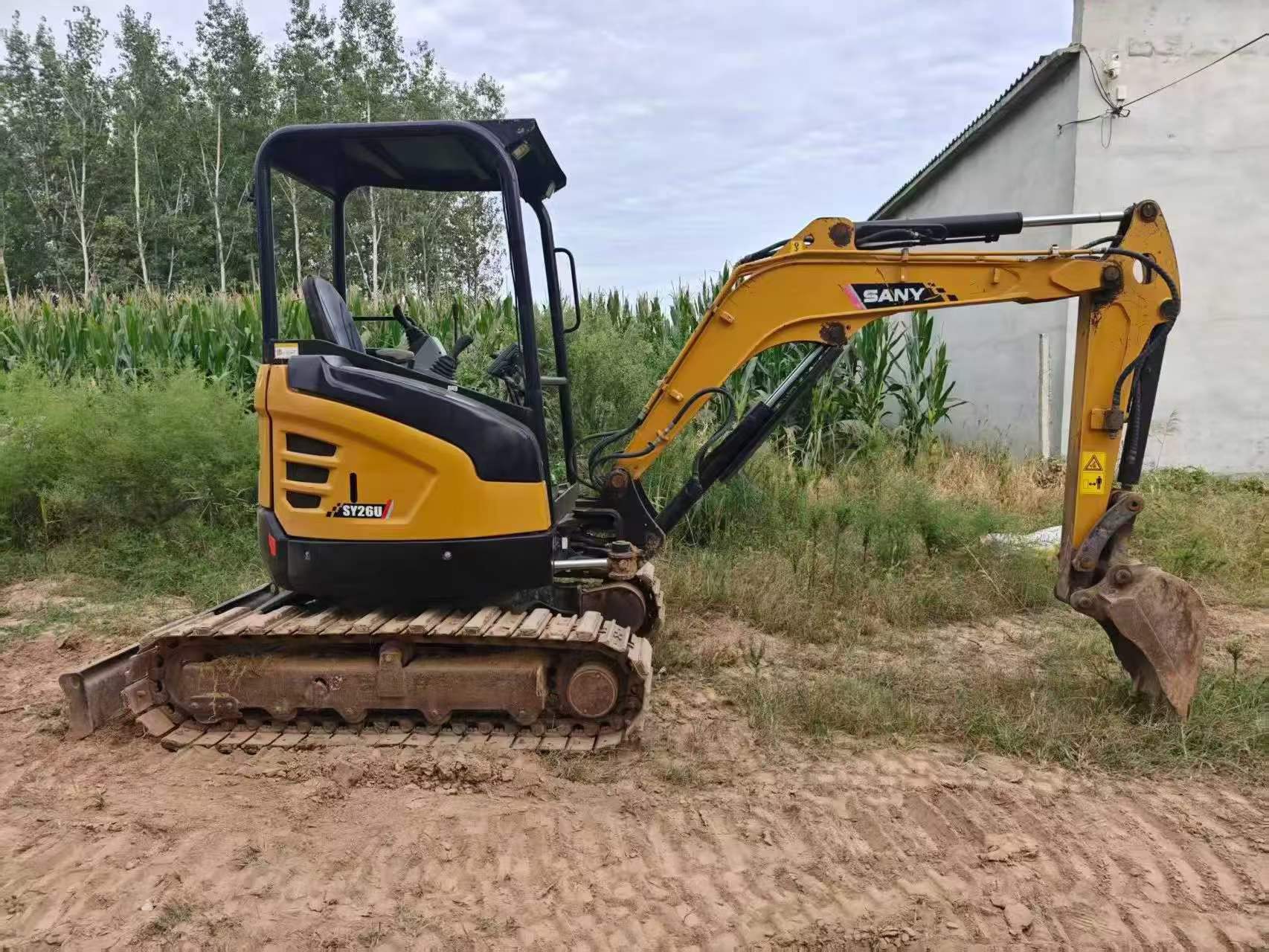

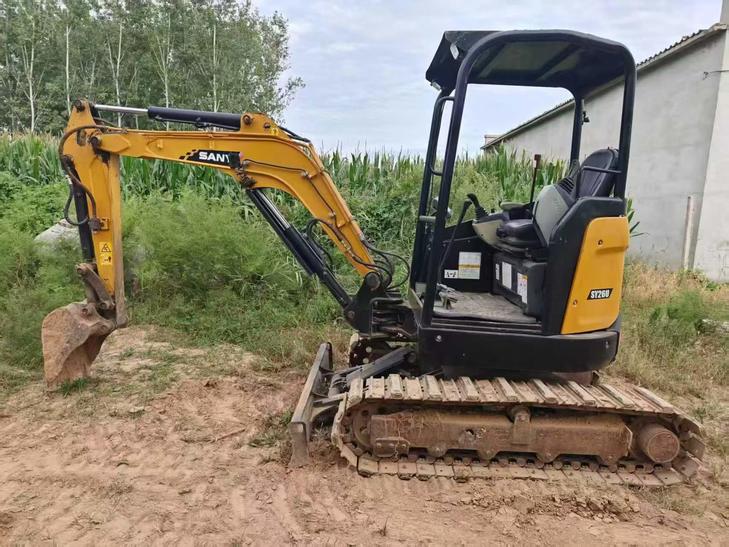

This 2021 Sany SY26U mini excavator represents a solid opportunity for contractors seeking reliable compact equipment. Currently located in Beijing, China, this machine has been well-maintained and shows good overall condition. The undercarriage remains straight and true, while major components demonstrate proper care with no signs of excessive wear or fluid contamination.
The SY26U is Sany's proven compact excavator platform, ideal for urban construction, landscaping, and utility work where maneuverability and efficiency are essential. At approximately 2.6 tonnes operating weight, it delivers capable digging performance while maintaining a small footprint for confined jobsites.
- Year of Manufacture: 2021
- Model: Sany SY26U
- Location: Beijing, China
- Condition: Well-maintained with straight chassis and clean major components
- Suitable for: Urban construction, landscaping, utility installation
Available for inspection. Serious inquiries welcome.
| Specifications | Value |
|---|---|
| No. | 1162189 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 2680 |
| Bucket capacity (m³) | 0.04-0.08(0.06) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV80F |
| Rated power (kw/rpm) | 15.2/2500 |
| Maximum torque (N.m) | 63.2-67.4/1800-100 |
| Displacement (L) | 1.266 |
| Ground specific pressure (Kpa) | 25.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 47 |
| Bucket digging force (kN) | 24.3 |
| Rod digging force (kN) | 14.2 |
| Travel speed (km/h) | 4.5/2.6 |
| Fuel Tank (L) | 34 |
| Hydraulic Tank (L) | 30 |
| Engine Oil changes (L) | 3.4/1.6 |
| Total transport length (mm) | 4285 |
| Total transport width (mm) | 1550 |
| Total transport height (mm) | 2430 |
| Minimum ground clearance (mm) | 290 |
| Minimum turning radius of front working device (mm) | 2110 |
| Back end turning radius (mm) | 775 |
| Total track length (mm) | 2005 |
| Track gauge (mm) | 1250 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1560 |
| Maximum height at minimum turning radius (mm) | 3200 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4850 |
| Maximum digging depth (mm) | 2820 |
| Maximum excavation height (mm) | 4410 |
| Maximum unloading height (mm) | 3100 |
| Maximum vertical digging depth (mm) | 2585 |
| Bulldozer lift or depth (mm) | 360/330 |
| Dodging plate width × height (mm) | 300 (height) |
