Product Description

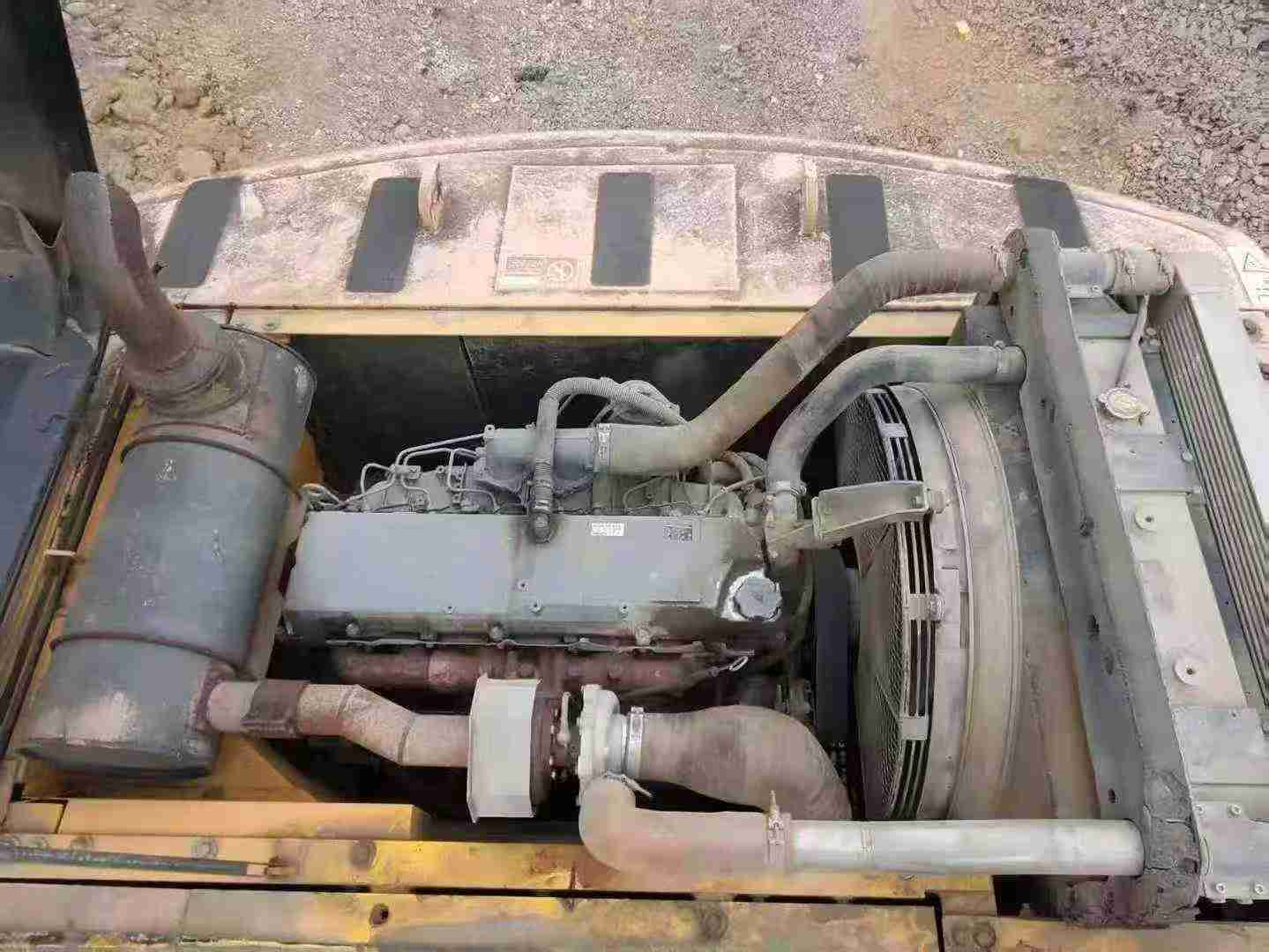

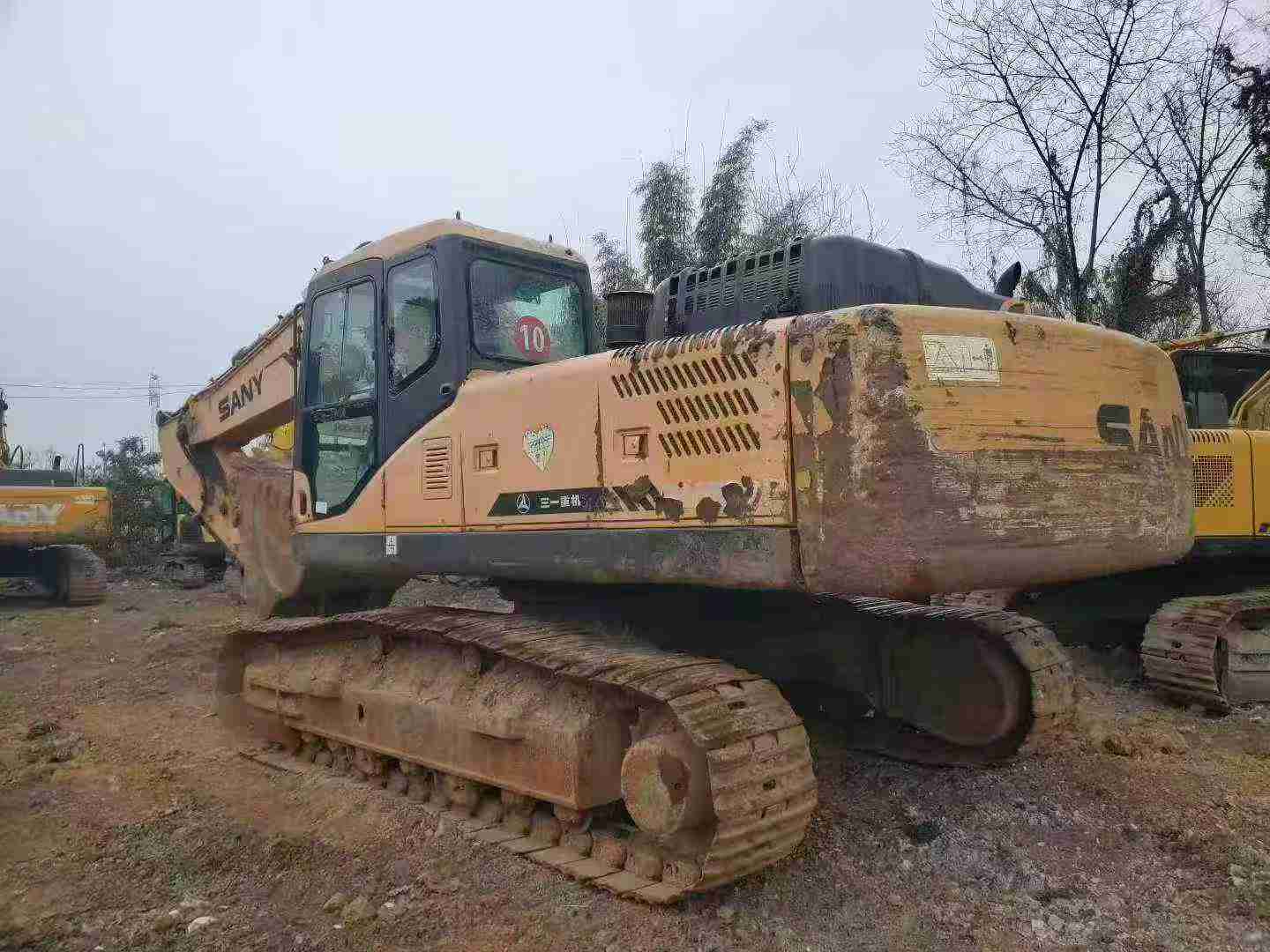

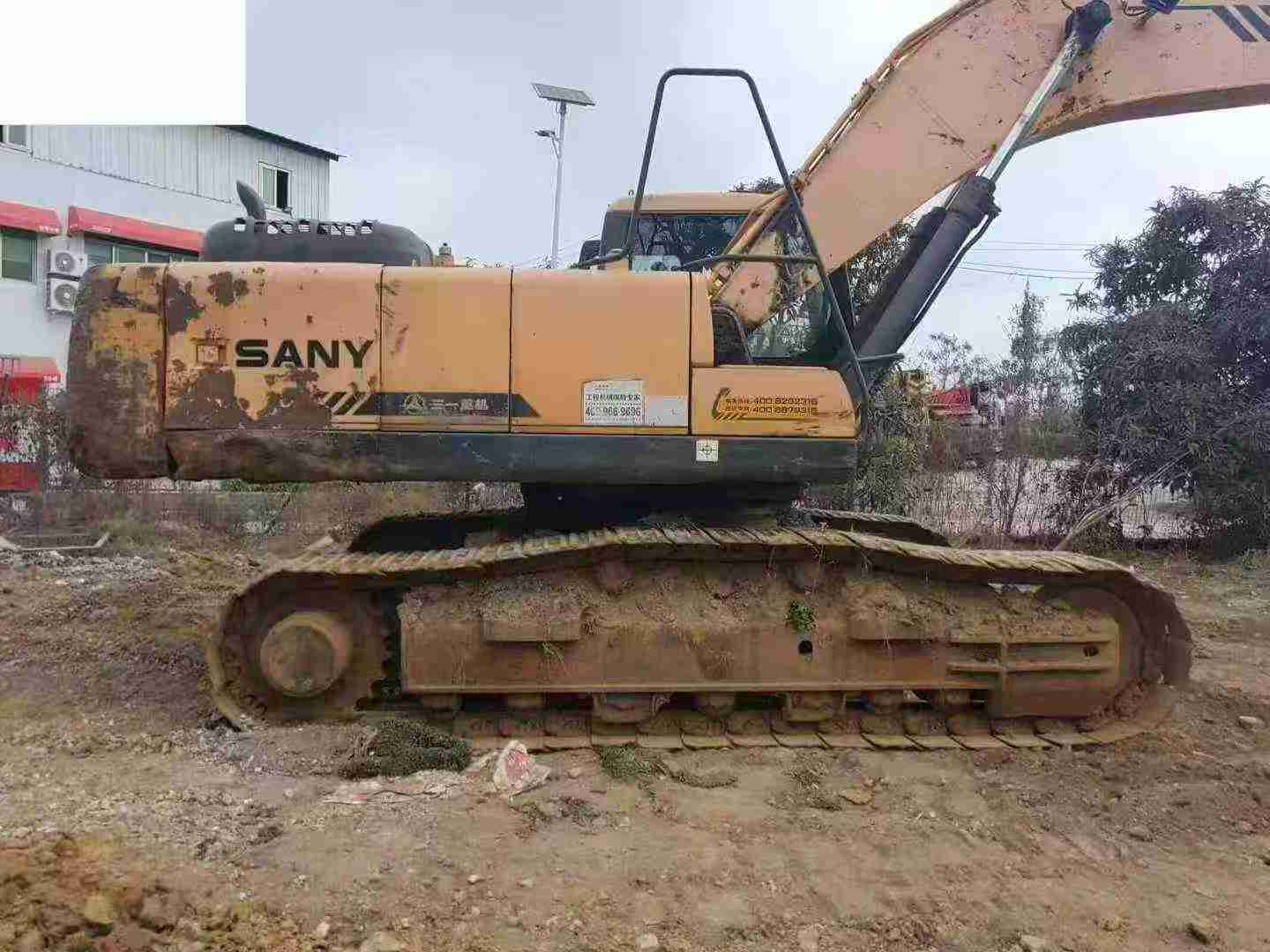

Engineered with a powerful GH-6HK1XKSC-01 engine delivering 212 kW at 2000 rpm and 1080 N.m maximum torque, this 2014 Sany SY285C excavator represents robust hydraulic performance for demanding operations. With a 28-ton working weight and 1.35 m³ bucket capacity, this machine combines substantial digging force—185 kN bucket force and 143 kN arm force—with precise hydraulic control systems designed for productivity in construction and mining applications.
- 7.79L displacement engine with proven reliability in heavy-duty cycles
- 540L fuel tank and 380L hydraulic tank for extended operational periods
- Superior ground contact: 600mm track width with dual sprockets per side
- 9.5 rpm rotation speed enables efficient load positioning
- 58 kPa ground pressure minimizes site impact while maintaining stability
- 70% (35°) climbing capability for challenging terrain navigation
- Currently located in Luzhou, Sichuan, China
Built to Chinese manufacturing standards, this SY285C model delivers consistent performance across infrastructure projects requiring dependable excavation power and hydraulic precision.
| Specifications | Value |
|---|---|
| No. | 1024428 |
| Tonnage (tons) | 28 |
| Working weight (kg) | 29120 |
| Bucket capacity (m³) | 1.35 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC-01 |
| Rated power (kw/rpm) | 212/2000 |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 58 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 143 |
| Travel speed (km/h) | 5.1/3.2 |
| Fuel Tank (L) | 540 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 35 |
| Total track length (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
