Product Description

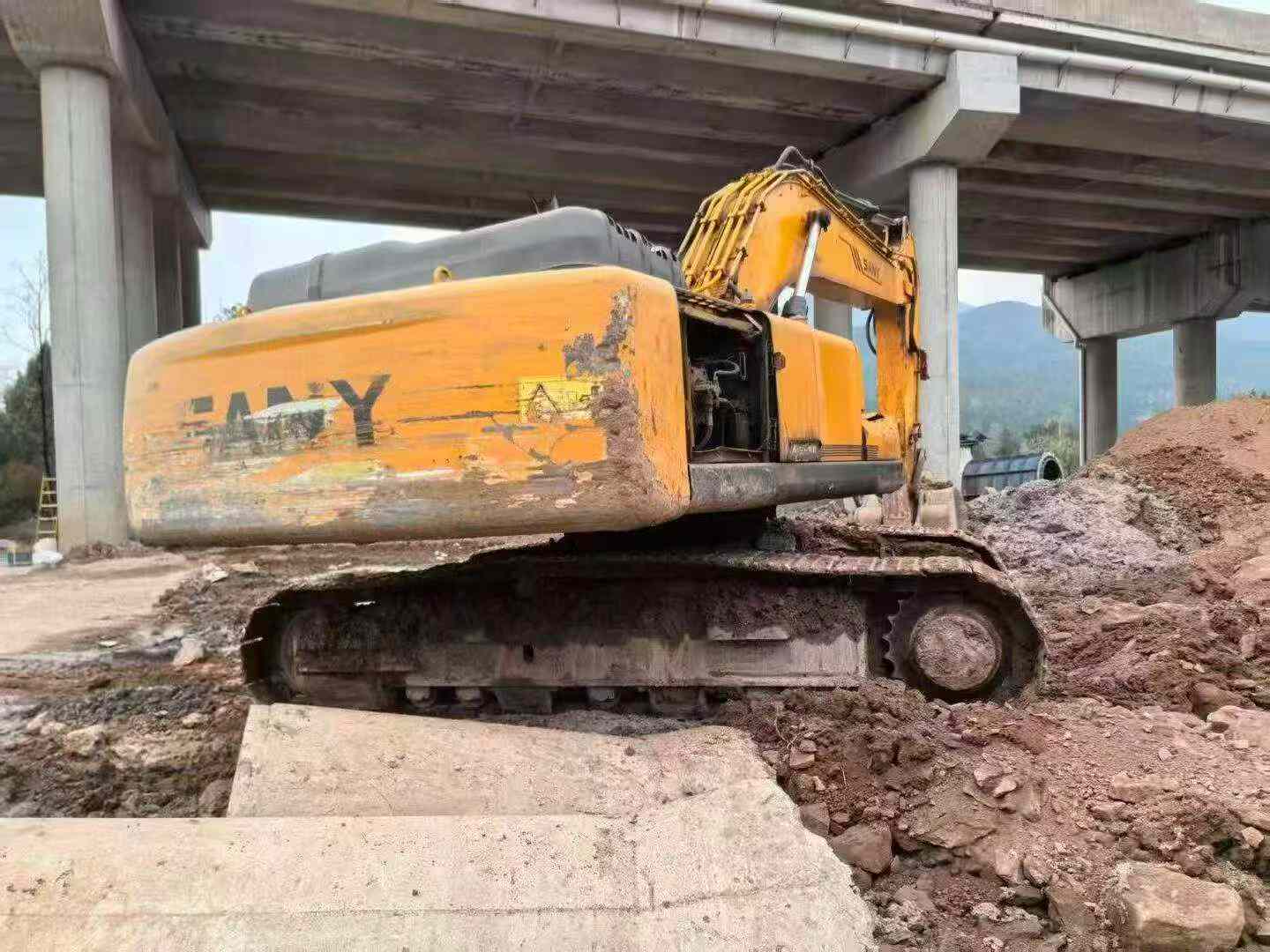

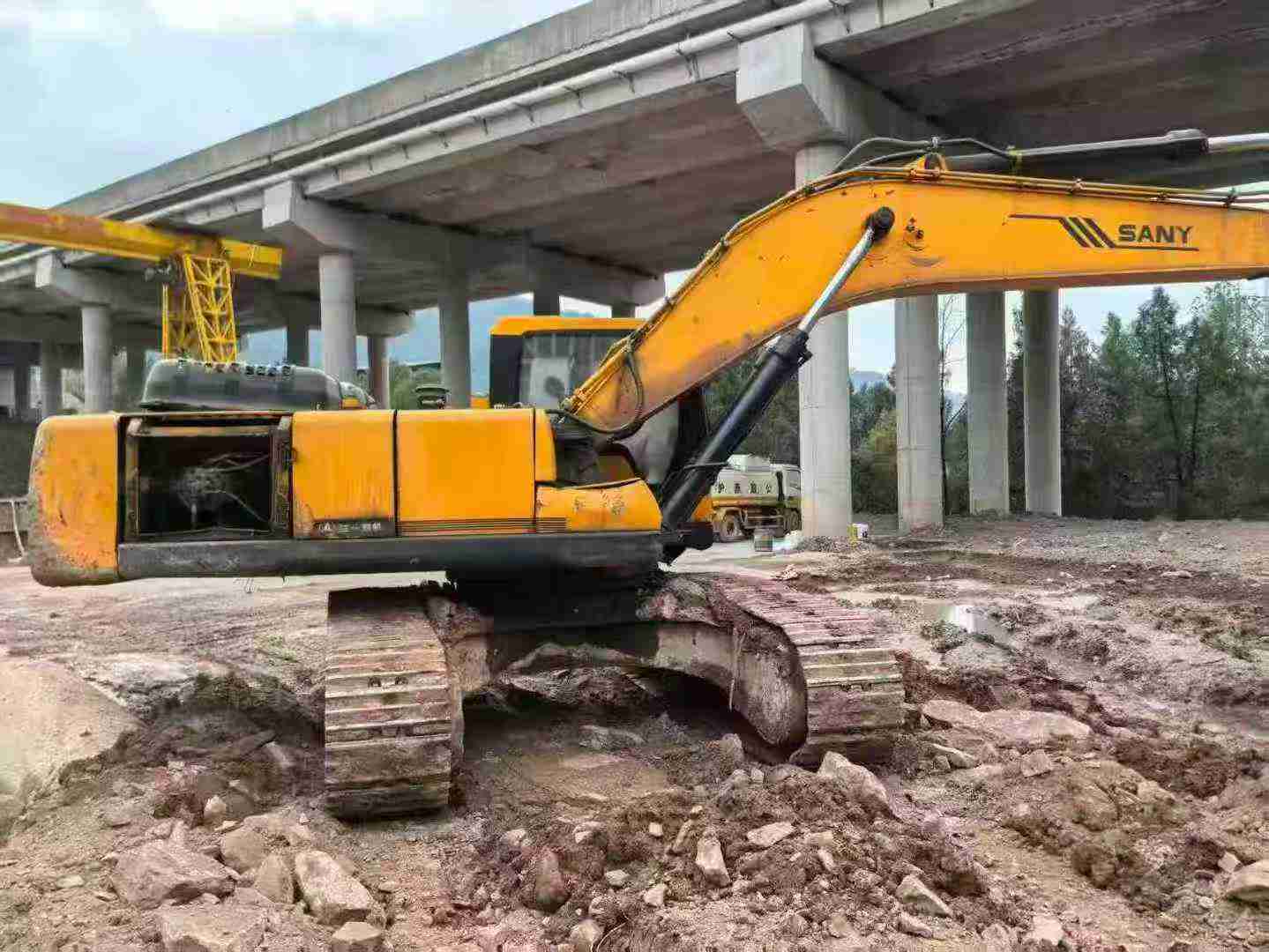

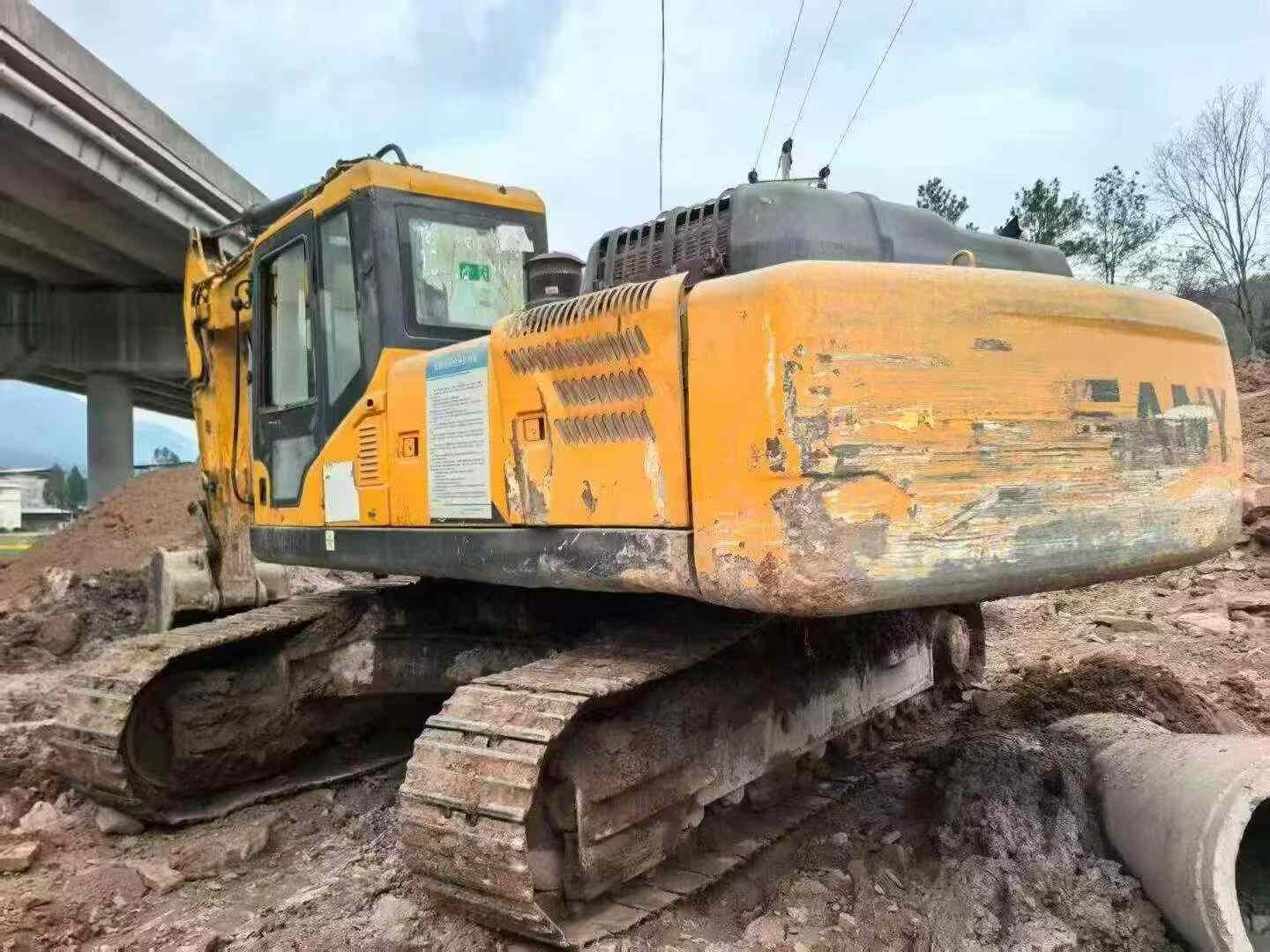

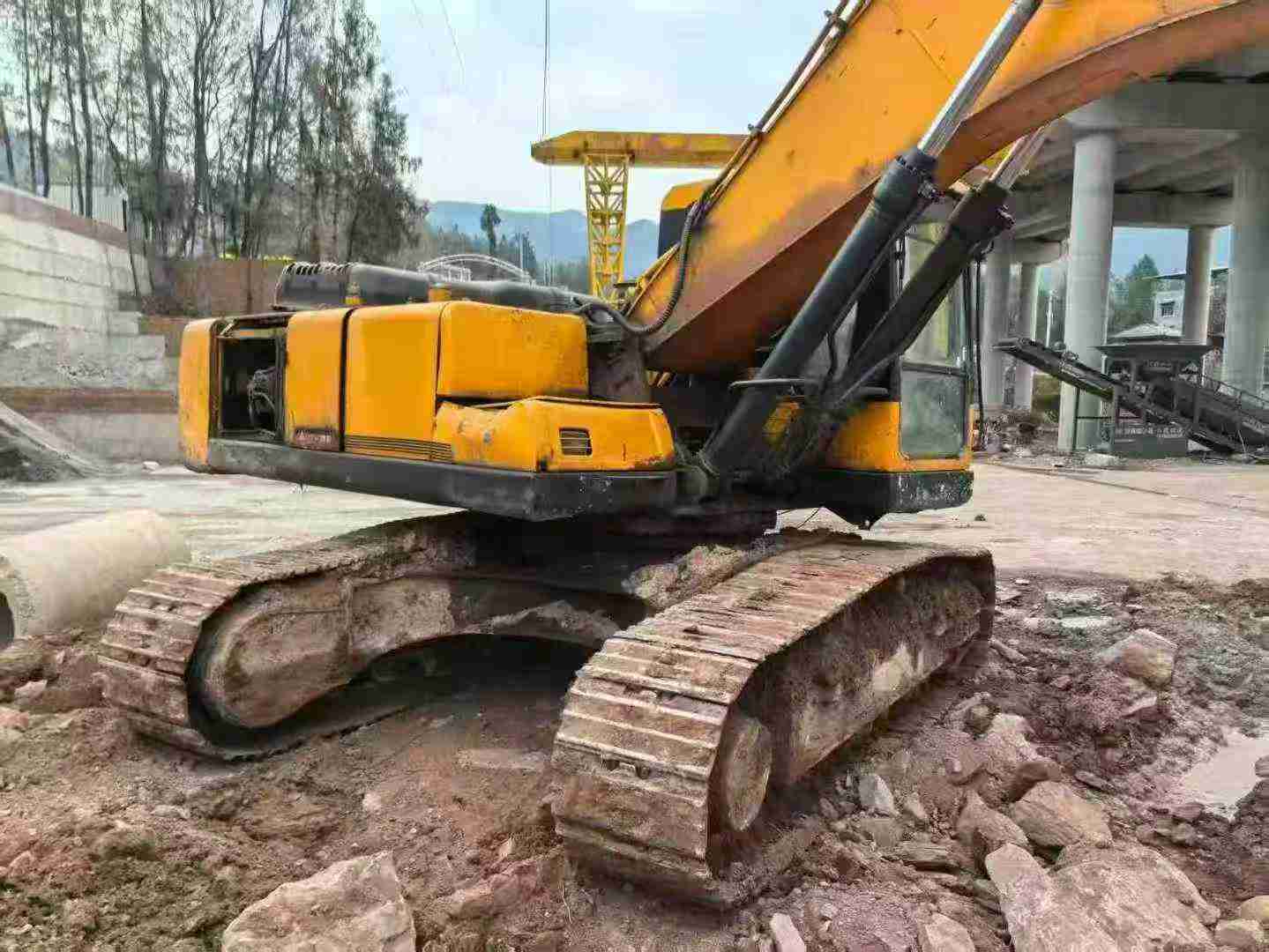

Built for immediate deployment on demanding job sites, this 2016 Sany SY285C excavator delivers 28 tons of proven excavation power. Equipped with a robust GH-6HK1XKSC-01 engine producing 212 kW at 2000 rpm, this machine tackles heavy-duty digging, grading, and demolition tasks with consistent performance. The 1.35 m³ backhoe bucket generates 185 kN of digging force, while the rod exerts 143 kN for deep trenching and foundation work.
Operating weight of 29,120 kg provides excellent stability during material handling and slope work. With a 70% climbing ability and 58 kPa ground pressure, this excavator maintains traction on challenging terrain without excessive surface damage. Dual travel speeds (5.1/3.2 km/h) optimize productivity during repositioning and precision operations.
- Rated Power: 212 kW at 2000 rpm with 1080 N.m maximum torque
- Hydraulic Capacity: 540 L fuel tank, 380 L hydraulic reservoir for extended shifts
- Undercarriage: 600 mm track width, 7 rollers per side for load distribution
- Location: Luzhou, Sichuan—ready for inspection and deployment
Site-ready condition with documented maintenance history. Contact Fair Trade Machinery for detailed specifications and
| Specifications | Value |
|---|---|
| No. | 1022771 |
| Tonnage (tons) | 28 |
| Working weight (kg) | 29120 |
| Bucket capacity (m³) | 1.35 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC-01 |
| Rated power (kw/rpm) | 212/2000 |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 58 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 143 |
| Travel speed (km/h) | 5.1/3.2 |
| Fuel Tank (L) | 540 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 35 |
| Total track length (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
