Product Description

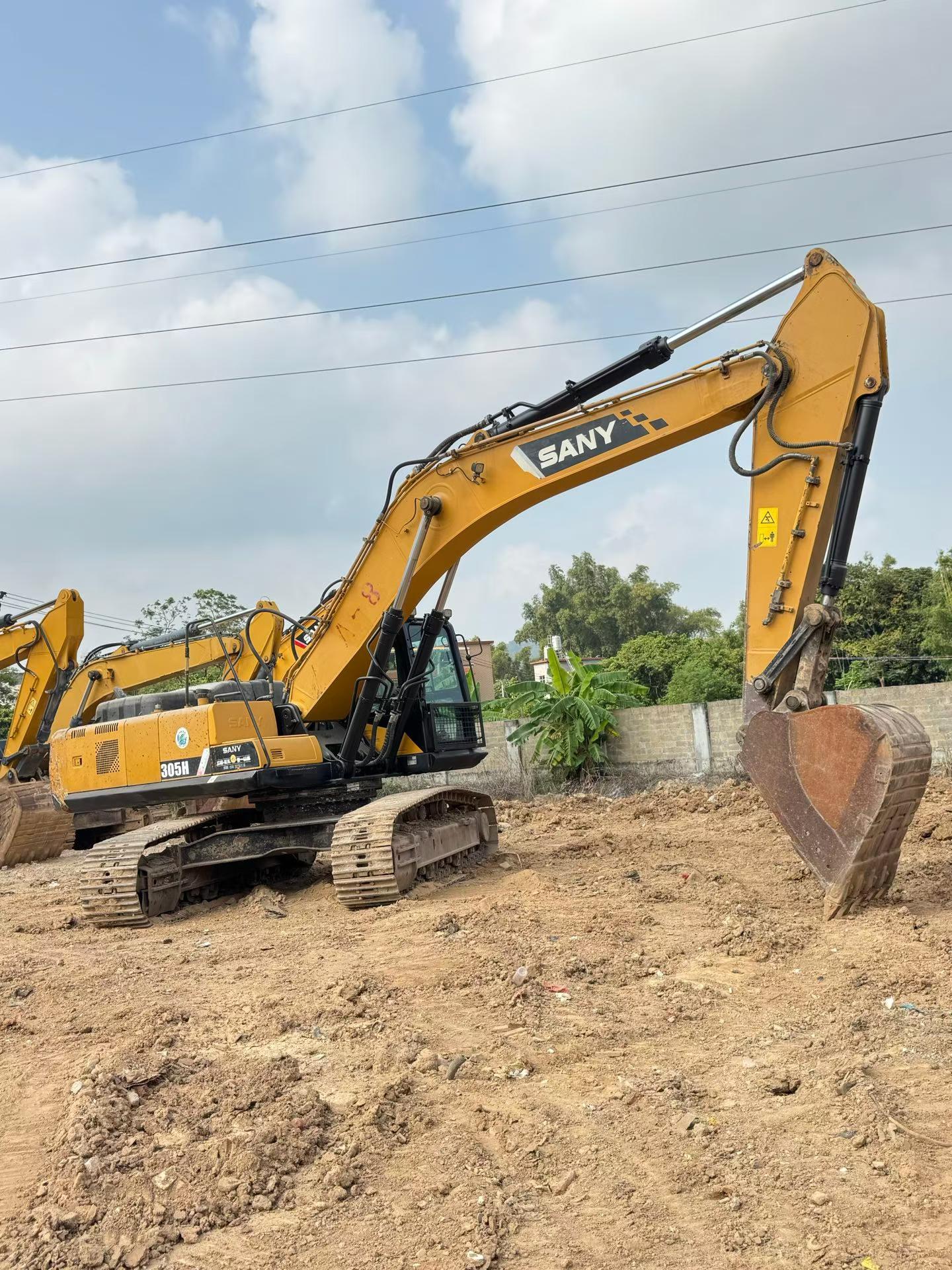

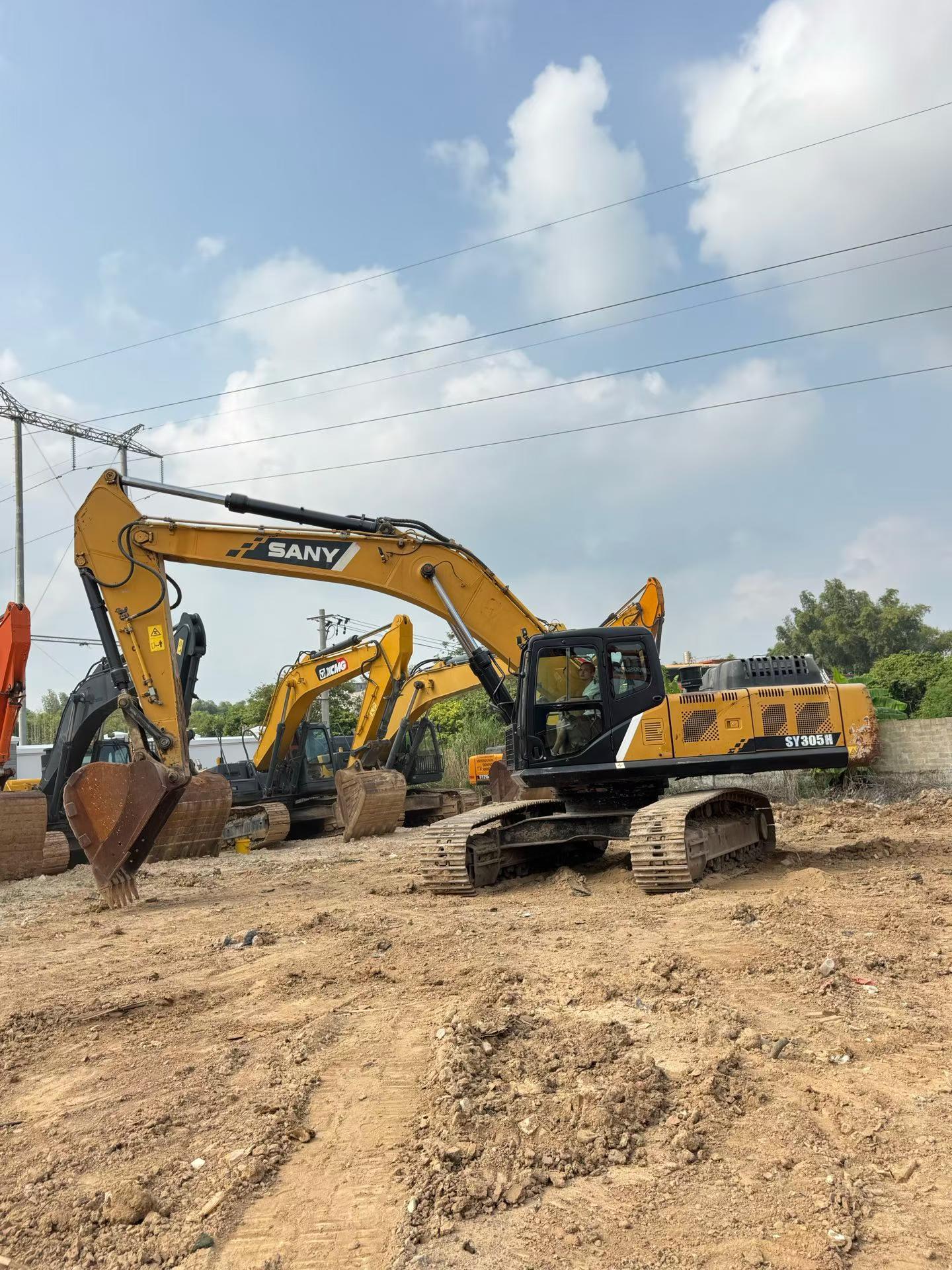

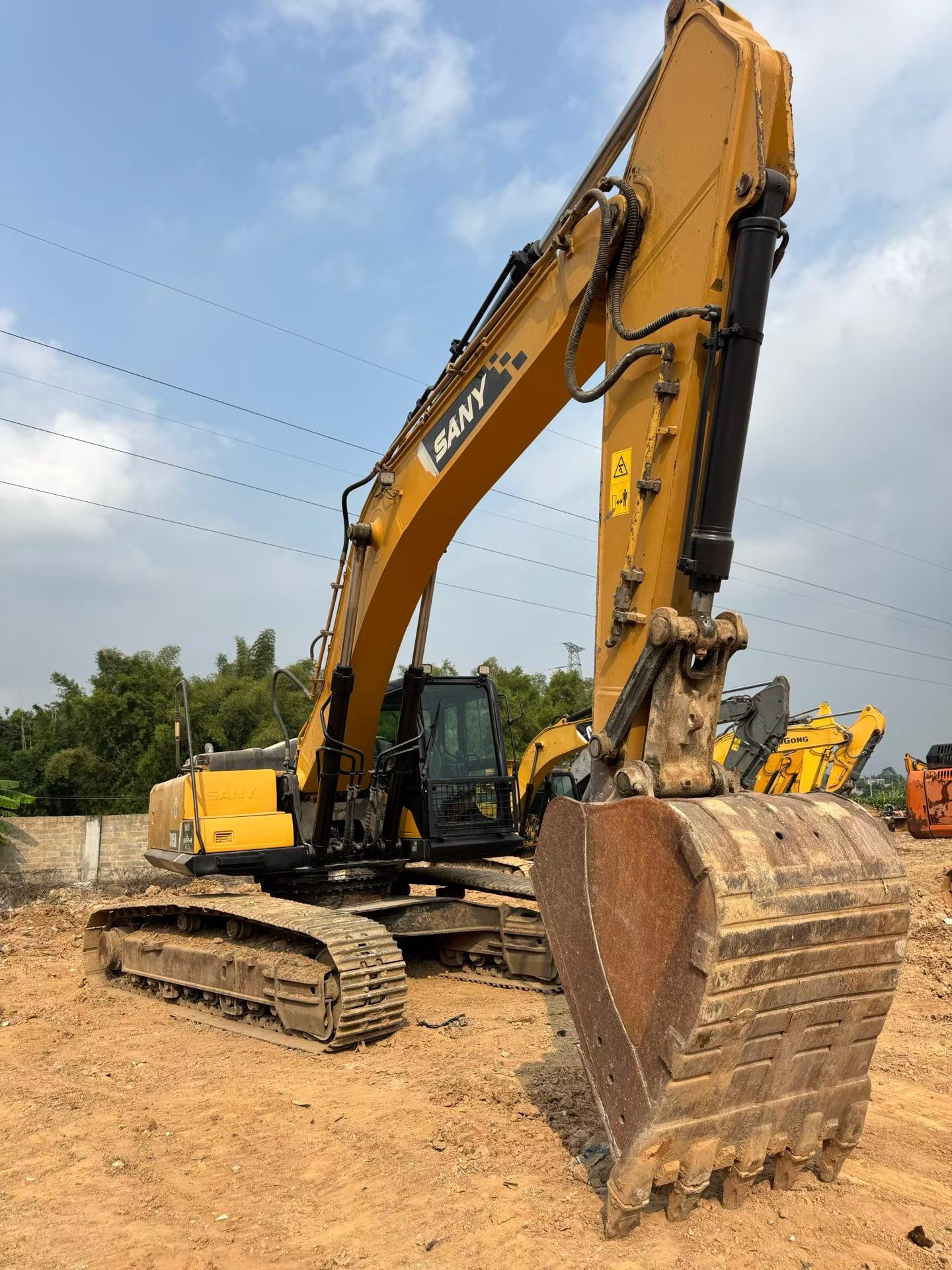

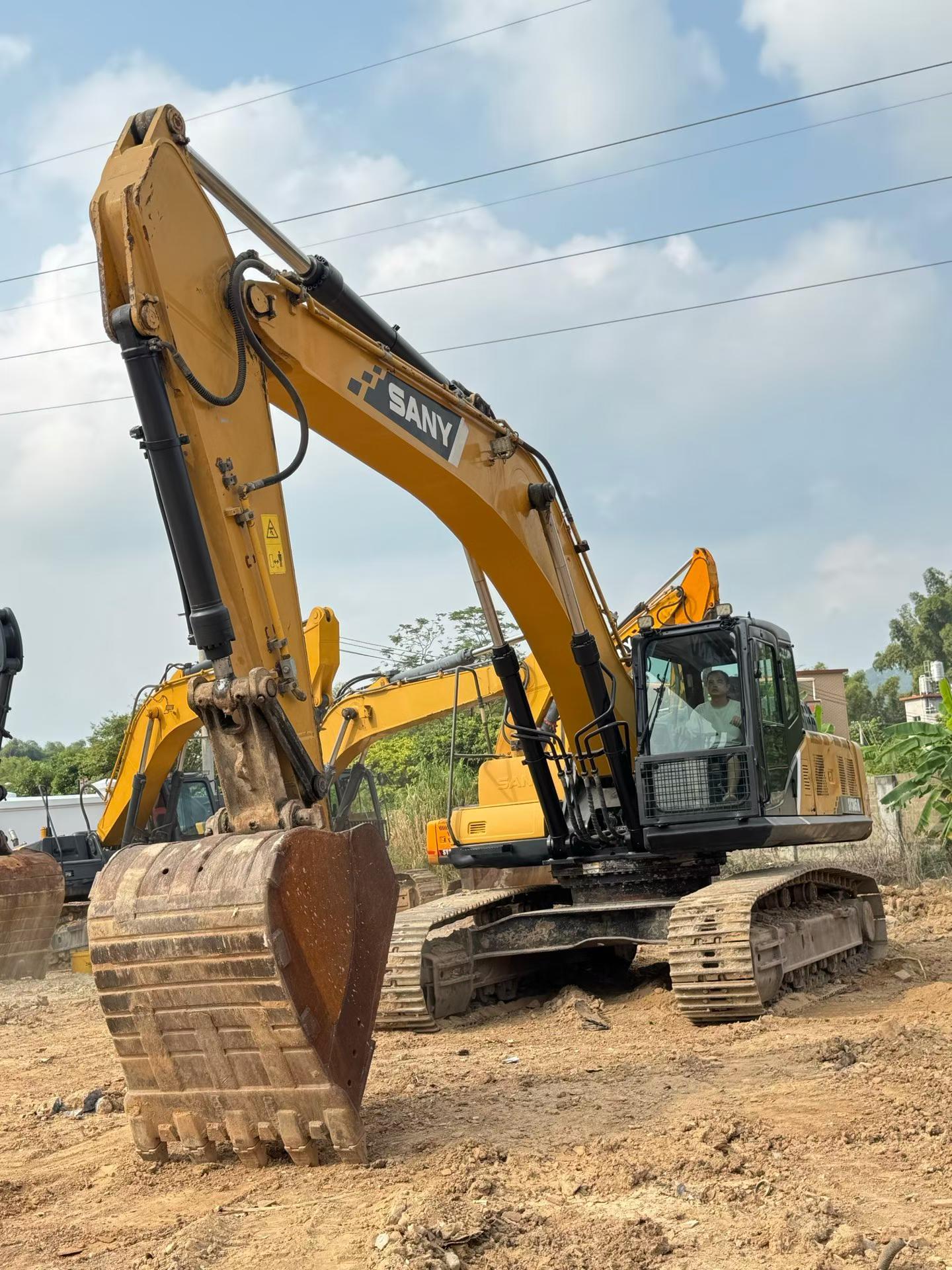

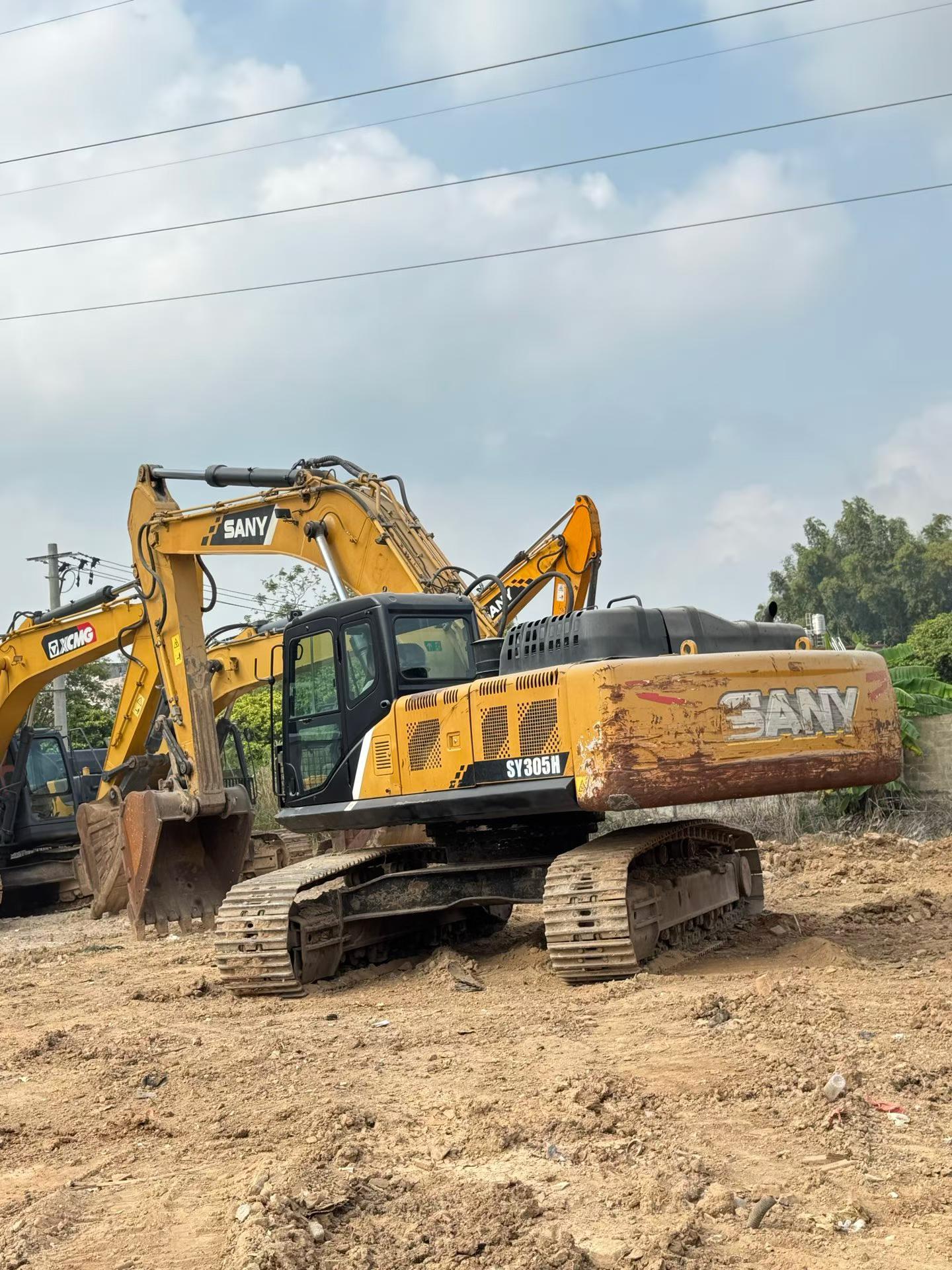

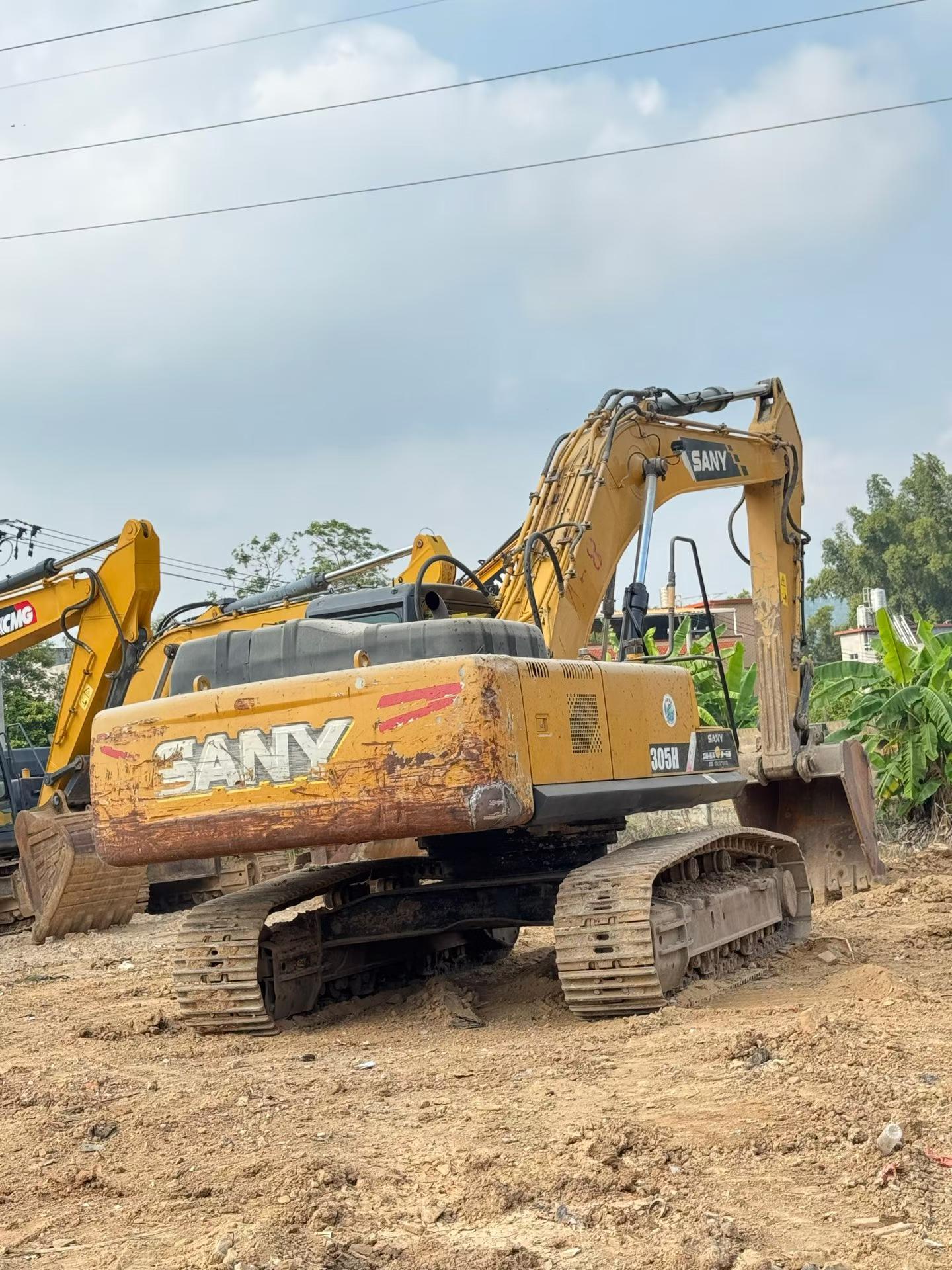

This 2018 Sany SY305H hydraulic excavator offers reliable performance for medium to heavy-duty earthmoving applications. With approximately six years of operational history, this 30-ton class machine demonstrates well-maintained condition and is currently located in Guangxi, China. The SY305H is known for its robust build quality and efficient hydraulic system, making it suitable for construction, mining, and infrastructure projects.
- Year of Manufacture: 2018
- Model: Sany SY305H
- Weight Class: Approximately 30 tons
- Current Location: Guangxi, China
- Condition: Well-maintained with good operational status
- Application: Excavation, grading, loading, and general earthmoving
This pre-owned excavator represents a cost-effective solution for contractors seeking proven Sany engineering at competitive pricing. Available for inspection by serious buyers. Contact us for additional operational details and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1163298 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 31500 |
| Bucket capacity (m³) | 1.65~2.0(1.65) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1 |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 62.3 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 204 |
| Rod digging force (kN) | 153 |
| Travel speed (km/h) | 5.4/3.2 |
| Fuel Tank (L) | 540 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 2*4.0 |
| Coolant (L) | 35 |
| Total transport length (mm) | 10667 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3470 |
| Full cab height (mm) | 3280 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4000 |
| Back end turning radius (mm) | 3315 |
| Onboard width (mm) | 3175 |
| Total track length (mm) | 4840 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3916 |
| Maximum height at minimum turning radius (mm) | 8405 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10870 |
| Maximum digging depth (mm) | 6815 |
| Maximum excavation height (mm) | 10497 |
| Maximum unloading height (mm) | 7359 |
| Maximum vertical digging depth (mm) | 6170 |
