Product Description

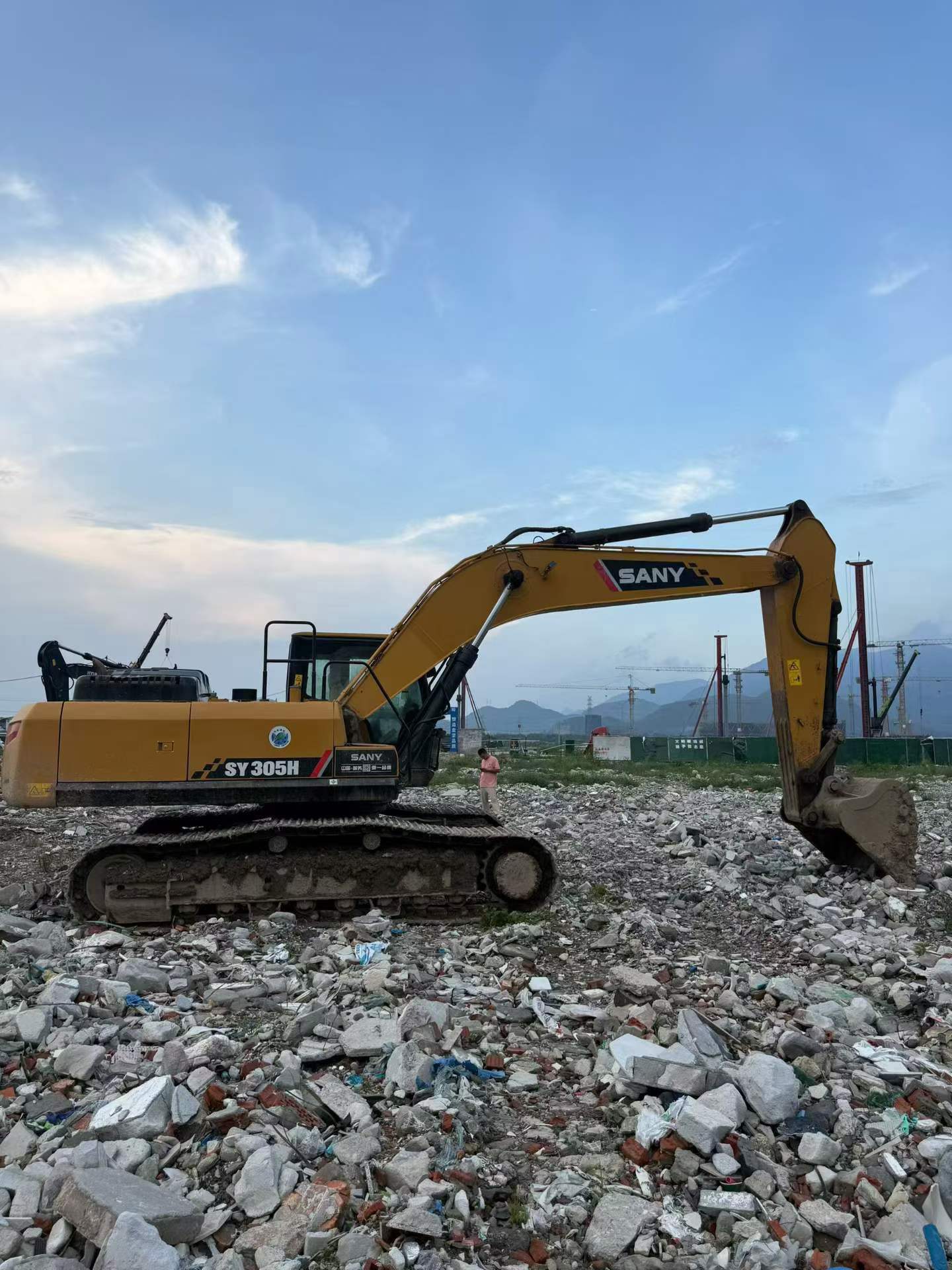

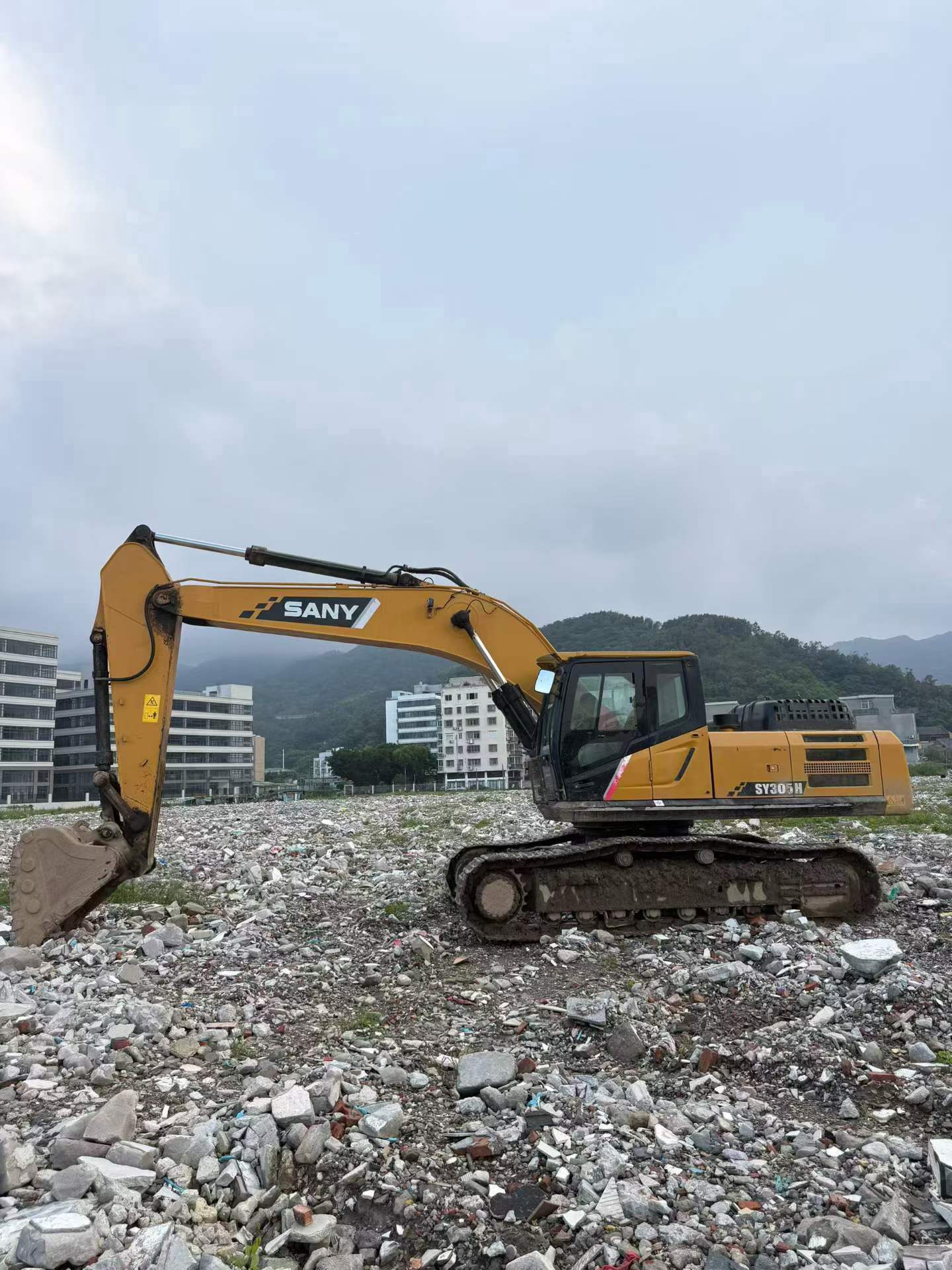

Discover the reliability and performance of a 2020 Sany SY305H, available for immediate acquisition in Zhejiang, China. This excavator boasts an impeccable maintenance record with all original documentation intact. The machine remains in its original paint, indicating no major repairs or alterations, ensuring you receive a truly authentic and well-preserved piece of equipment. Key components, including the engine, hydraulic system, and chassis, are untouched, underscoring its robustness and durability. Equipped with a powerful, factory-installed air conditioning system, it provides a comfortable operating environment even in the most demanding conditions. Ready to be tested on-site, this Sany SY305H is ideal for projects requiring a dependable and high-performance excavator.
- Year: 2020
- Brand: Sany
- Model: SY305H
- Location: Zhejiang, China
- Original paint and parts, no modifications
- Complete documentation
- Factory air conditioning
| Specifications | Value |
|---|---|
| No. | 1130604 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 31500 |
| Bucket capacity (m³) | 1.65~2.0(1.65) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

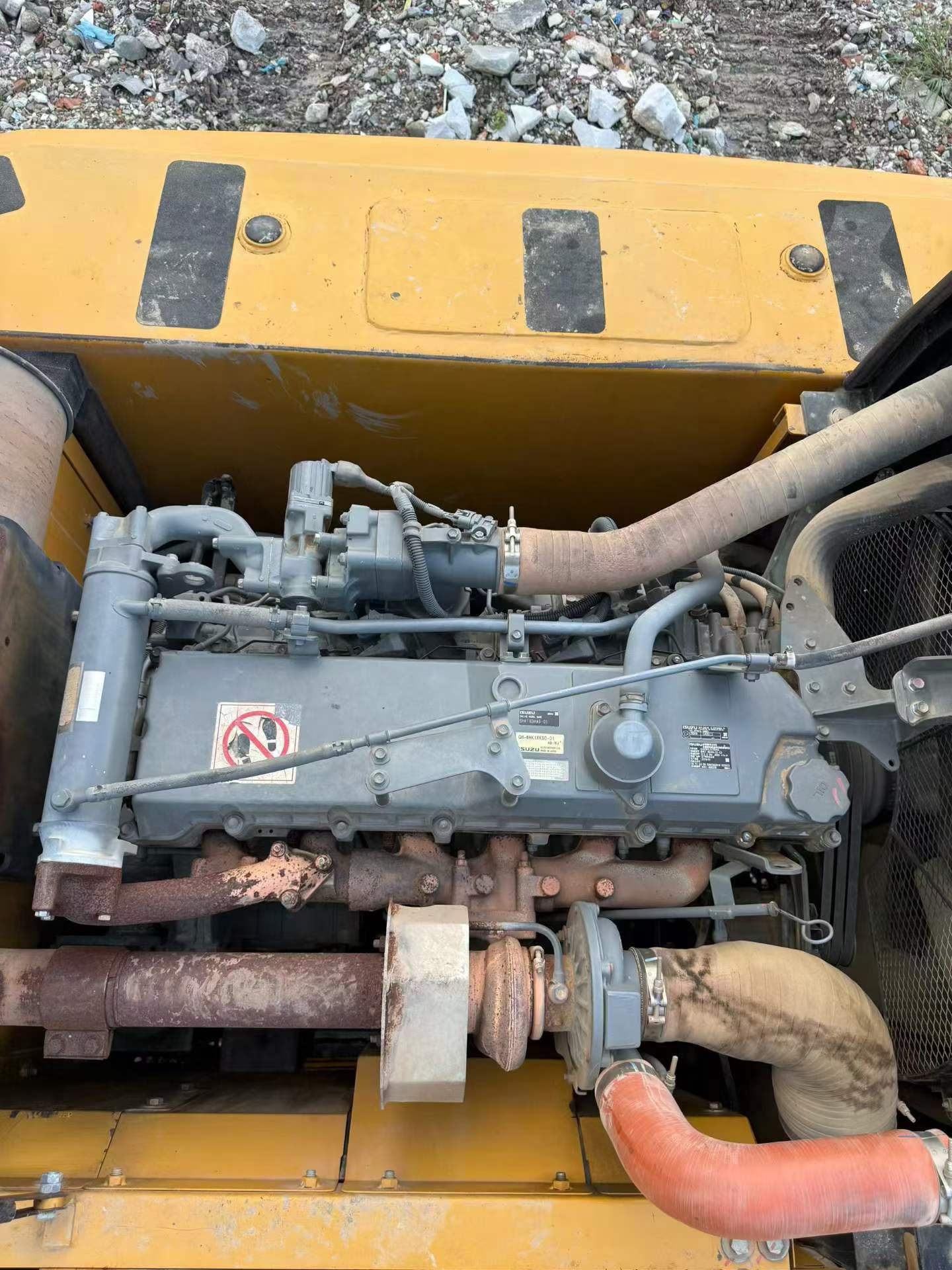

| Engine type | Isuzu GH-6HK1 |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 62.3 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 204 |
| Rod digging force (kN) | 153 |
| Travel speed (km/h) | 5.4/3.2 |
| Fuel Tank (L) | 540 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 2*4.0 |
| Coolant (L) | 35 |
| Total transport length (mm) | 10667 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3470 |
| Full cab height (mm) | 3280 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4000 |
| Back end turning radius (mm) | 3315 |
| Onboard width (mm) | 3175 |
| Total track length (mm) | 4840 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3916 |
| Maximum height at minimum turning radius (mm) | 8405 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10870 |
| Maximum digging depth (mm) | 6815 |
| Maximum excavation height (mm) | 10497 |
| Maximum unloading height (mm) | 7359 |
| Maximum vertical digging depth (mm) | 6170 |
