2020 Sany SY305H

1/9

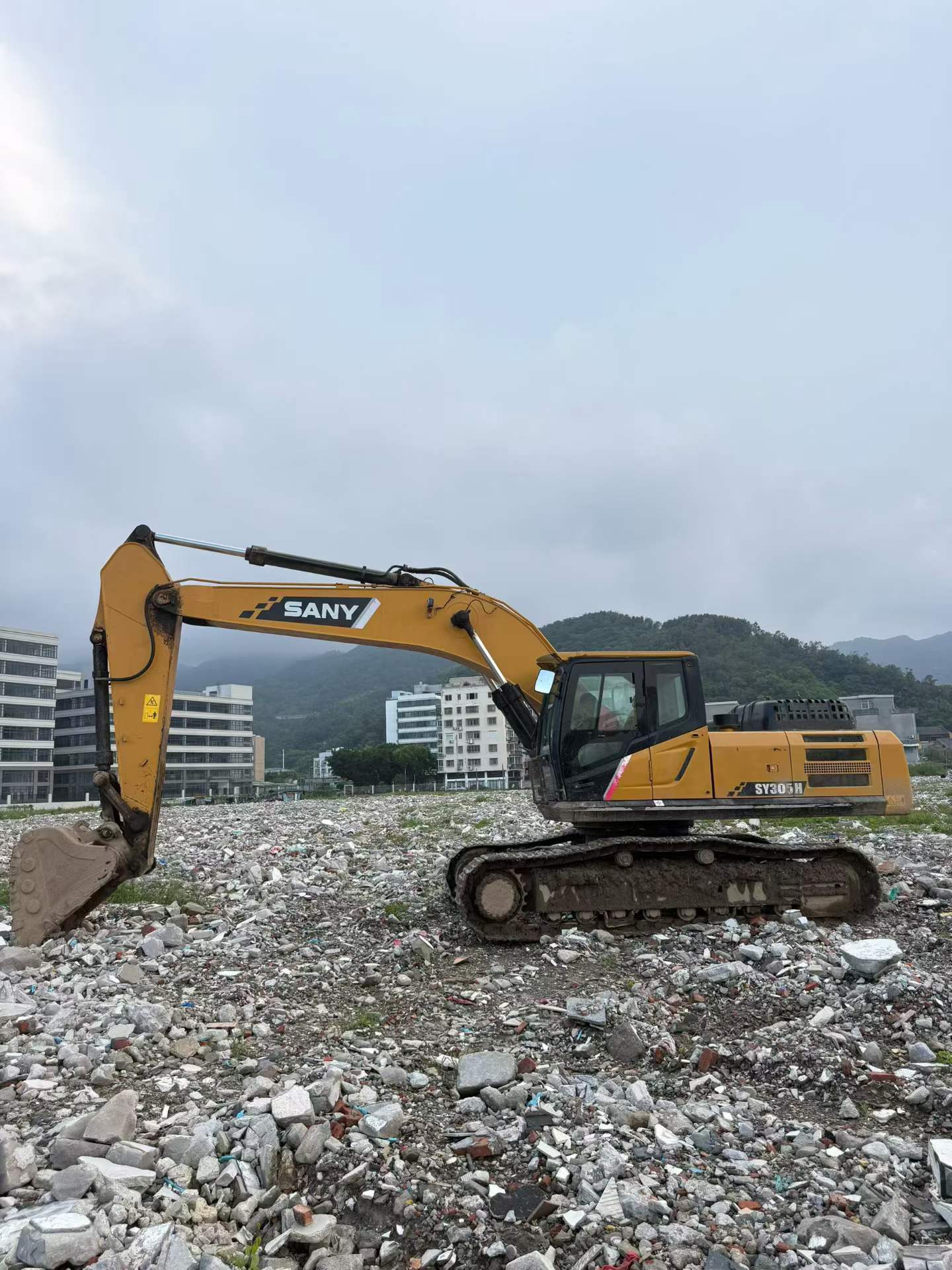

Buy Sany SY305H Used Excavator / 1
Buy Sany SY305H Used Excavator / 2
Buy Sany SY305H Used Excavator / 3
Buy Sany SY305H Used Excavator / 4
Buy Sany SY305H Used Excavator / 5
Buy Sany SY305H Used Excavator / 6
Buy Sany SY305H Used Excavator / 7
Buy Sany SY305H Used Excavator / 8
Buy Sany SY305H Used Excavator / 9

Product Description

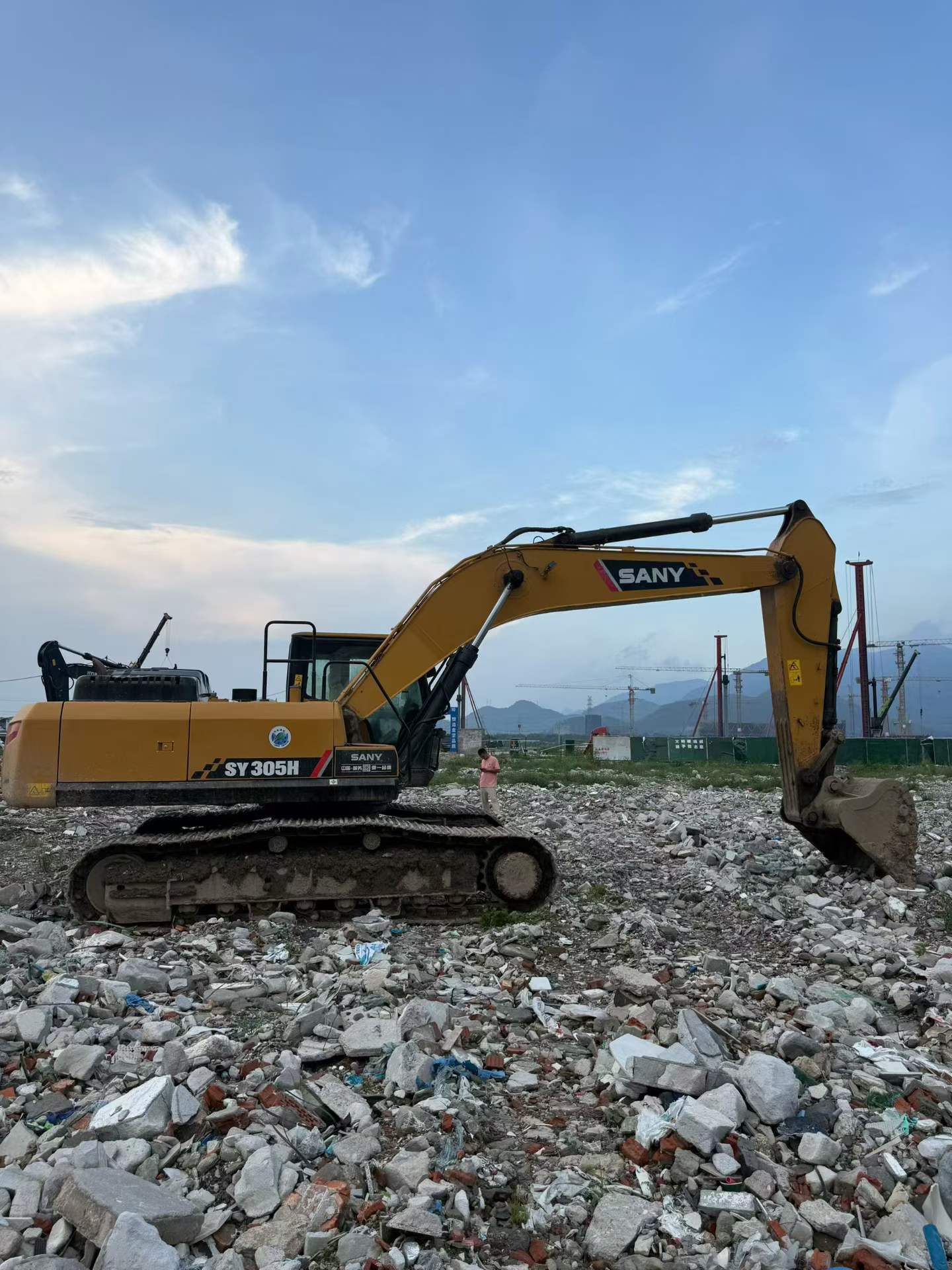

Discover the 2020 Sany SY305H, a robust and reliable excavator available in Zhejiang, China. This machine, purchased originally in 2020, comes with all documentation intact, ensuring a seamless transaction. The SY305H retains its original paint, a testament to its well-maintained condition. Critical components remain untouched, preserving the integrity and performance as intended by the manufacturer. Equipped with a powerful, factory-installed air conditioning system, it ensures operator comfort even in demanding environments. Fresh from a project, this excavator is ready for immediate use and can be tested on-site. Ideal for construction projects requiring a dependable and efficient heavy machine.

  • Year: 2020
  • Brand: Sany
  • Model: SY305H
  • Location: Zhejiang, China
  • All original documentation included
  • Original paint and parts
  • Factory air conditioning
  • Ready for immediate testing and use
SpecificationsValue
No.1131329
Tonnage (tons)30
Working weight (kg)31500
Bucket capacity (m³)1.65~2.0(1.65)
powerTraditional power
manufacturerMade in China
bucketbackhoe

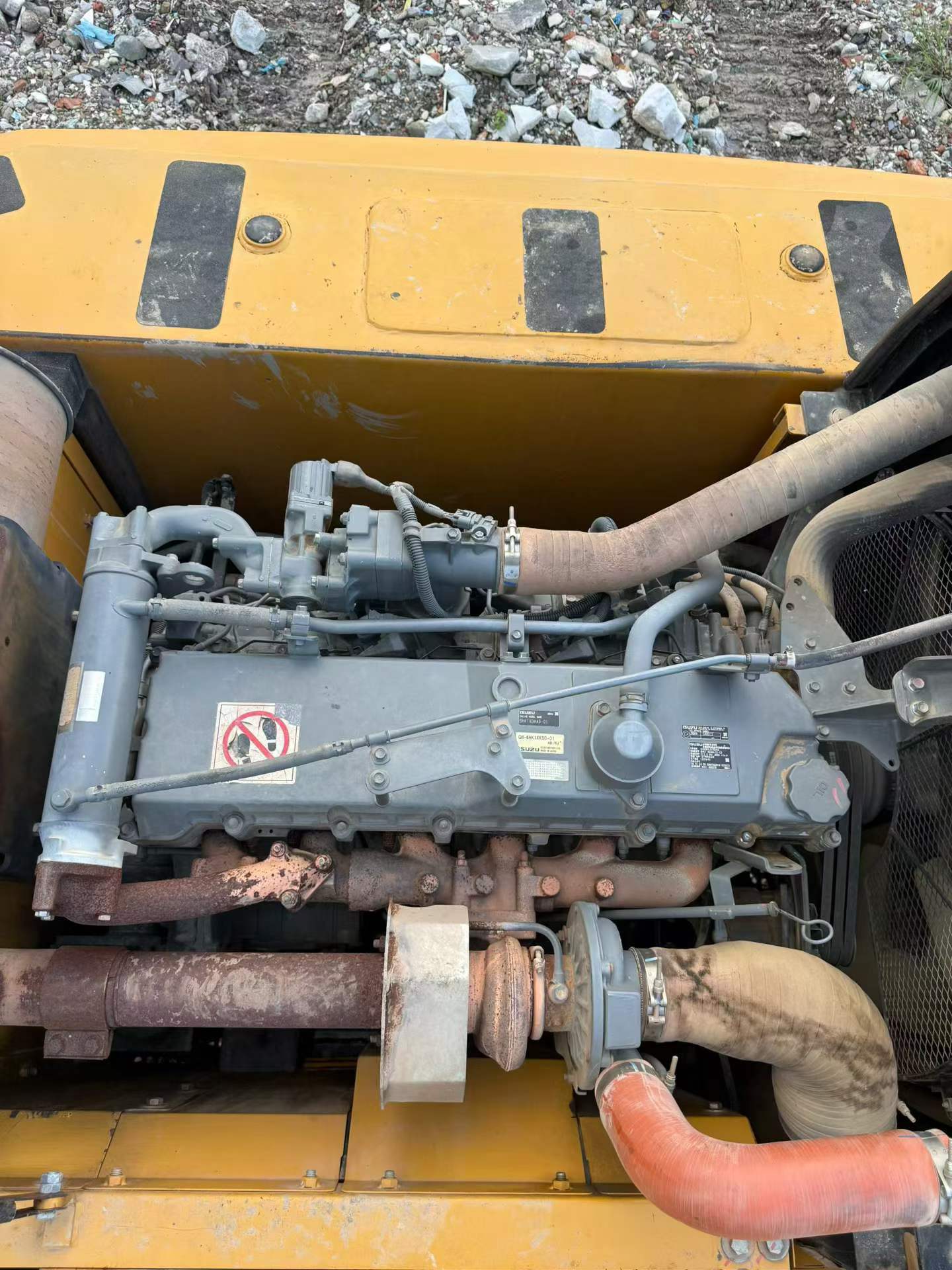

Engine typeIsuzu GH-6HK1
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Ground specific pressure (Kpa)62.3
Rotation speed (rpm)9.0
Climbing ability (%)70% (35°)
Bucket digging force (kN)204
Rod digging force (kN)153
Travel speed (km/h)5.4/3.2
Fuel Tank (L)540
Hydraulic Tank (L)380
Engine Oil changes (L)2*4.0
Coolant (L)35
Total transport length (mm)10667
Total transport width (mm)3190
Total transport height (mm)3470
Full cab height (mm)3280
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4000
Back end turning radius (mm)3315
Onboard width (mm)3175

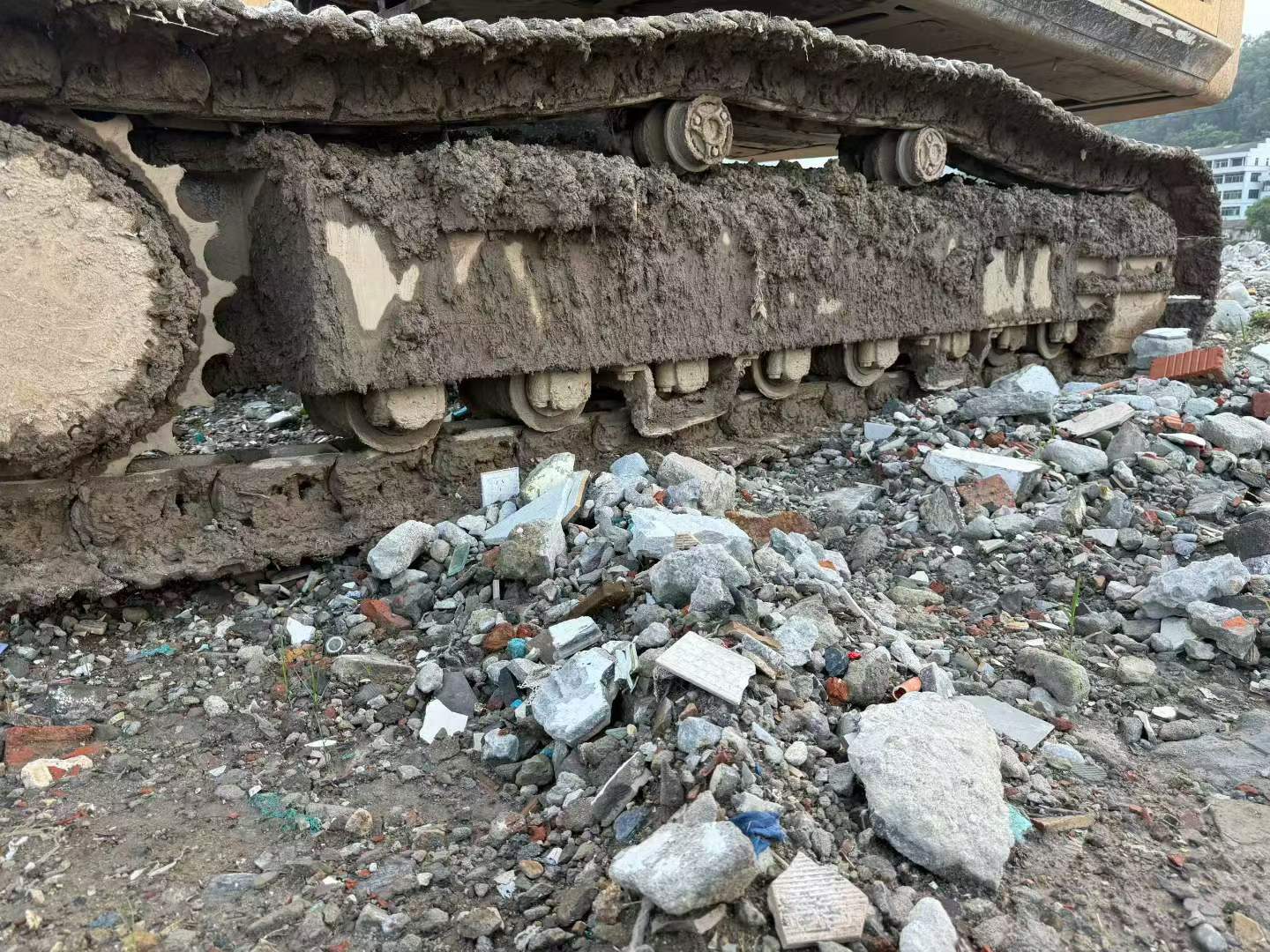

Total track length (mm)4840
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3916
Maximum height at minimum turning radius (mm)8405
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10870
Maximum digging depth (mm)6815
Maximum excavation height (mm)10497
Maximum unloading height (mm)7359
Maximum vertical digging depth (mm)6170
see more

Overview

No.1131329

Brand Name:

Sany

Model Number:

SY305H

Year:

2020

Location:

Zhejiang China

Pub Date
