Product Description

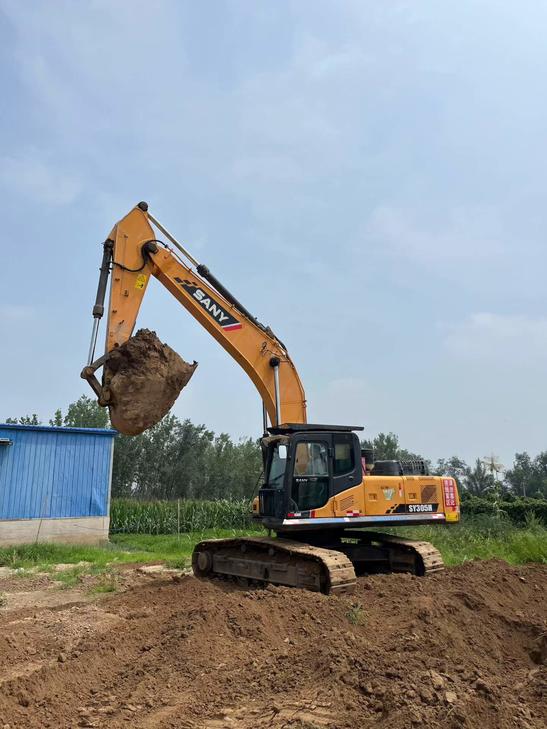

This 2020 Sany SY305H is a well-maintained, standard-configuration excavator suited for earthmoving and general civil construction work. Sourced directly from Beijing, China, this unit represents a classic mid-size crawler excavator from one of the industry's leading manufacturers.
Key details at a glance:
- Year: 2020
- Brand: Sany
- Model: SY305H
- Location: Beijing, China
- Bucket type: Standard earthmoving bucket
- Hydraulic system: Fully functional, operating within normal parameters
- Electrical system: No reported faults; machine runs reliably
This unit has been kept in its original factory configuration, with no major modifications reported. The SY305H is a proven workhorse in the 30-tonne class, offering solid digging performance and dependable uptime in demanding site conditions. Competitively priced for its age and condition — a straightforward acquisition for buyers seeking a reliable, ready-to-work machine.
Inspection and third-party survey welcomed. Contact us for full service records, hour meter readings, and export documentation.
| Specifications | Value |
|---|---|
| No. | 1141467 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 31500 |
| Bucket capacity (m³) | 1.65~2.0(1.65) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1 |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 62.3 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 204 |
| Rod digging force (kN) | 153 |
| Travel speed (km/h) | 5.4/3.2 |
| Fuel Tank (L) | 540 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 2*4.0 |
| Coolant (L) | 35 |
| Total transport length (mm) | 10667 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3470 |
| Full cab height (mm) | 3280 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4000 |
| Back end turning radius (mm) | 3315 |
| Onboard width (mm) | 3175 |
| Total track length (mm) | 4840 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3916 |
| Maximum height at minimum turning radius (mm) | 8405 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10870 |
| Maximum digging depth (mm) | 6815 |
| Maximum excavation height (mm) | 10497 |
| Maximum unloading height (mm) | 7359 |
| Maximum vertical digging depth (mm) | 6170 |
