2021 Sany SY305H

1/9
Buy Sany SY305H Used Excavator / 1
Buy Sany SY305H Used Excavator / 2
Buy Sany SY305H Used Excavator / 3
Buy Sany SY305H Used Excavator / 4
Buy Sany SY305H Used Excavator / 5

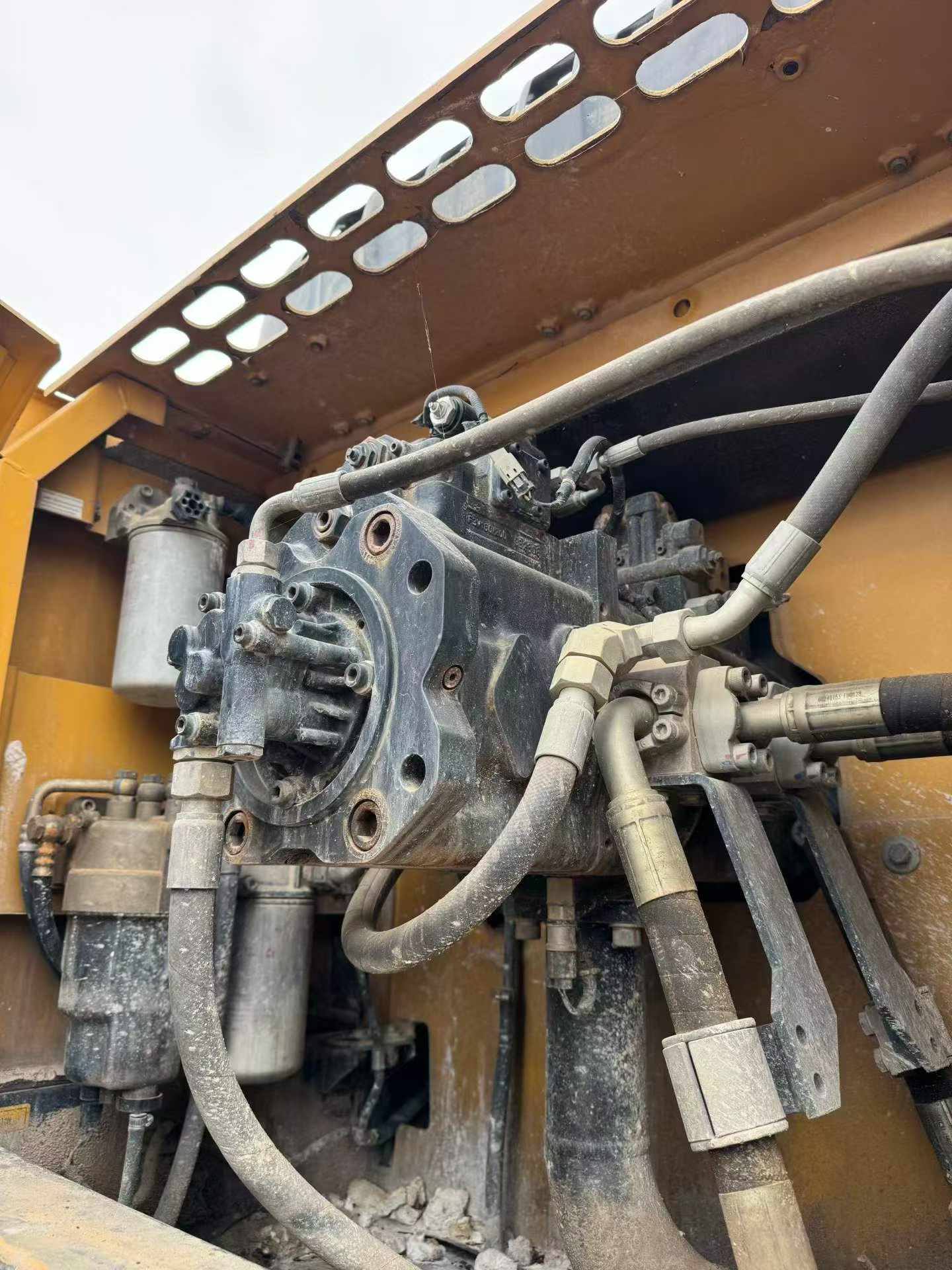

Buy Sany SY305H Used Excavator / 6
Buy Sany SY305H Used Excavator / 7
Buy Sany SY305H Used Excavator / 8
Buy Sany SY305H Used Excavator / 9

Product Description

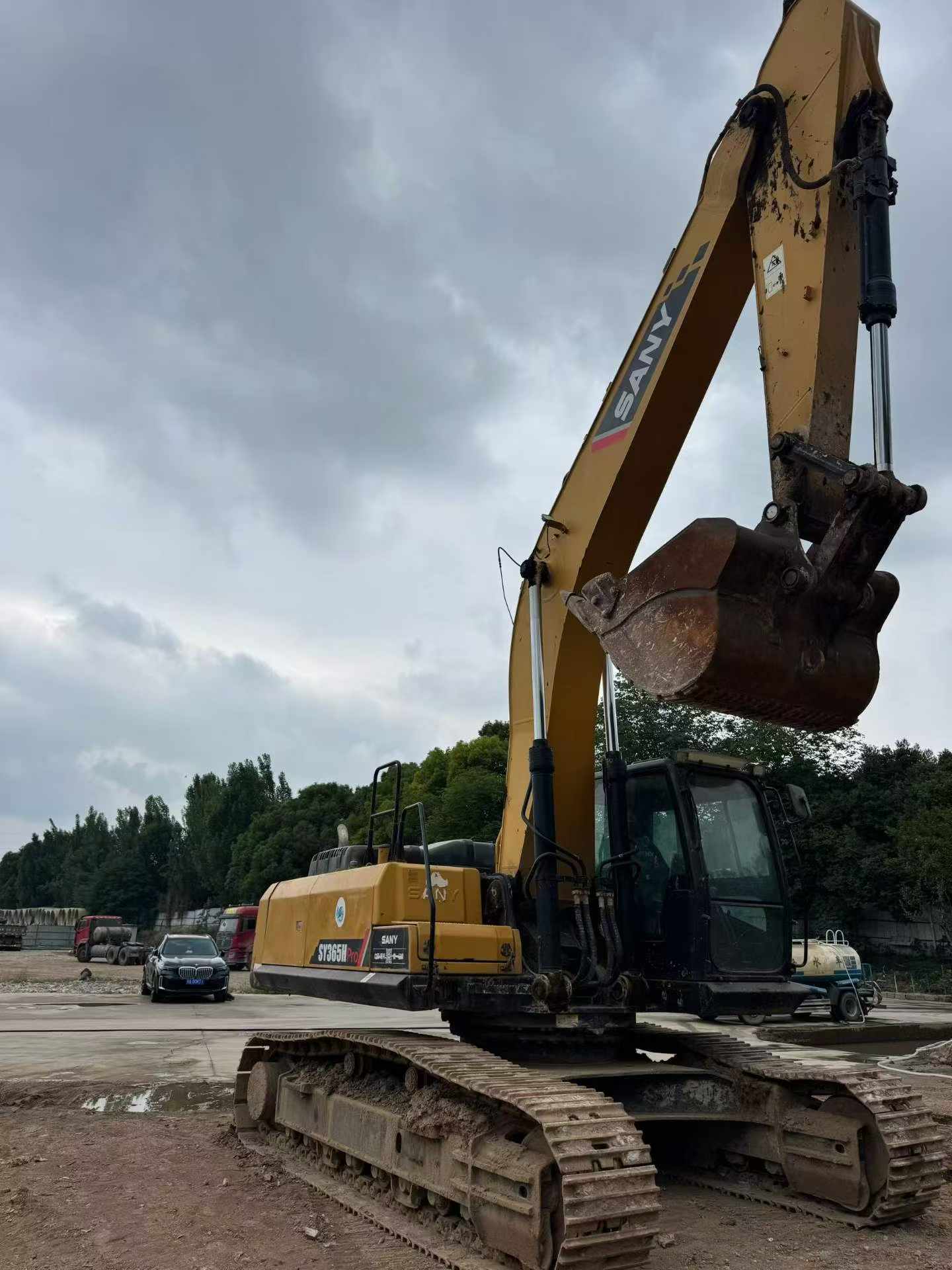

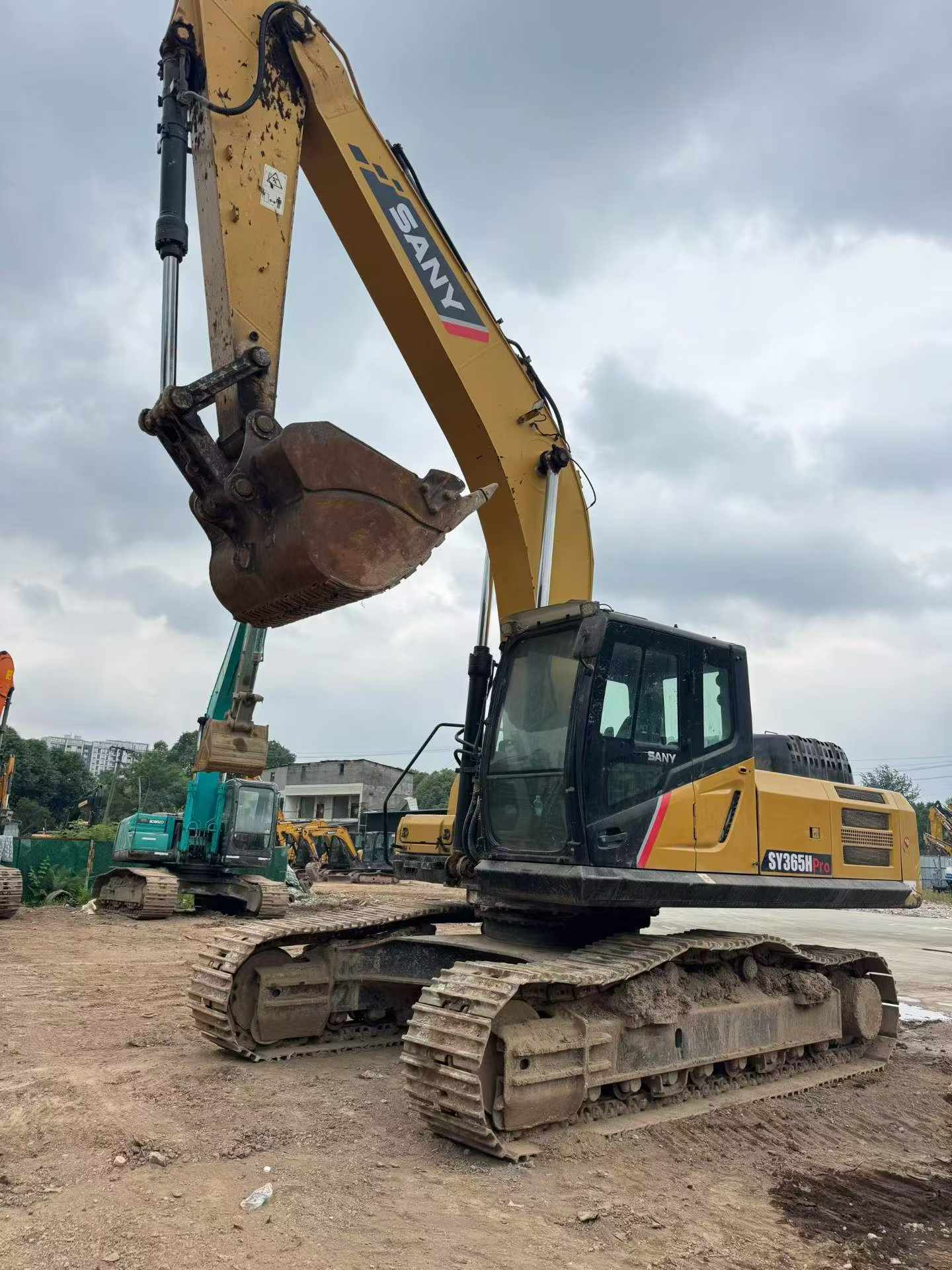

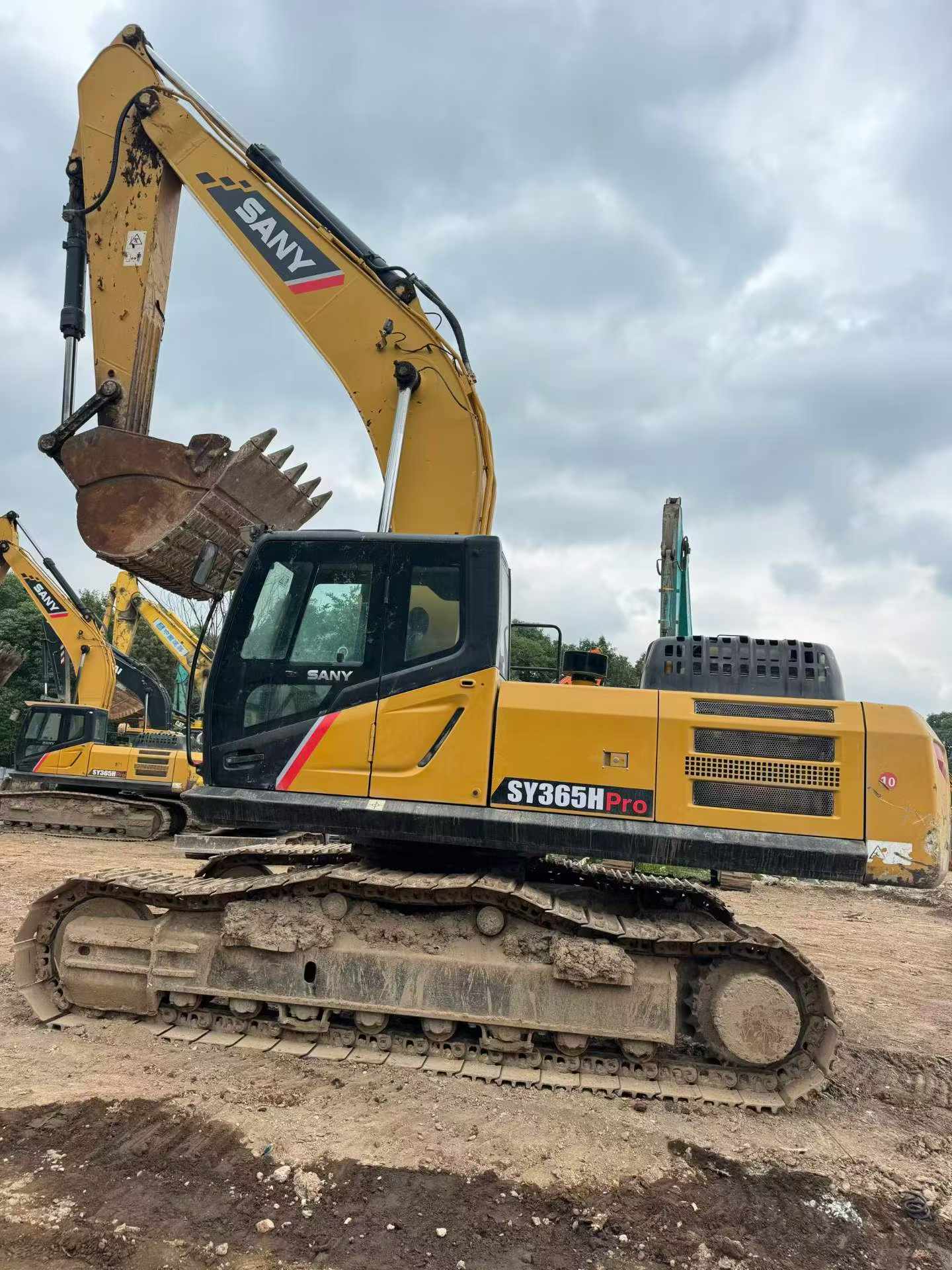

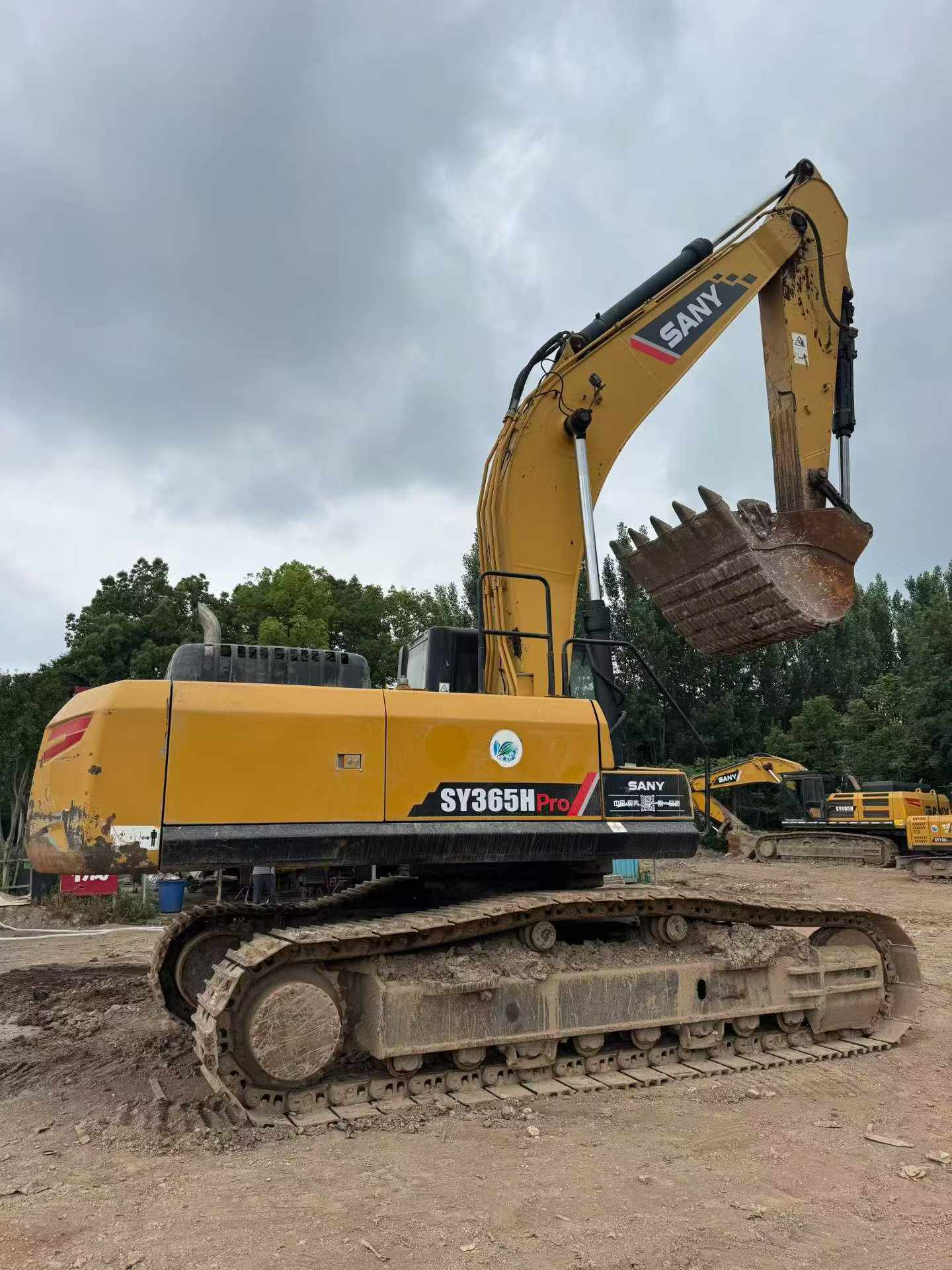

This 2021 Sany SY305H hydraulic excavator represents a reliable choice for contractors seeking proven performance in demanding applications. Purchased new in 2021, this 30-ton class machine delivers the robust construction and operational efficiency Sany is known for in the Chinese heavy equipment market.

Key features include:

  • Low operating hours with well-maintained condition

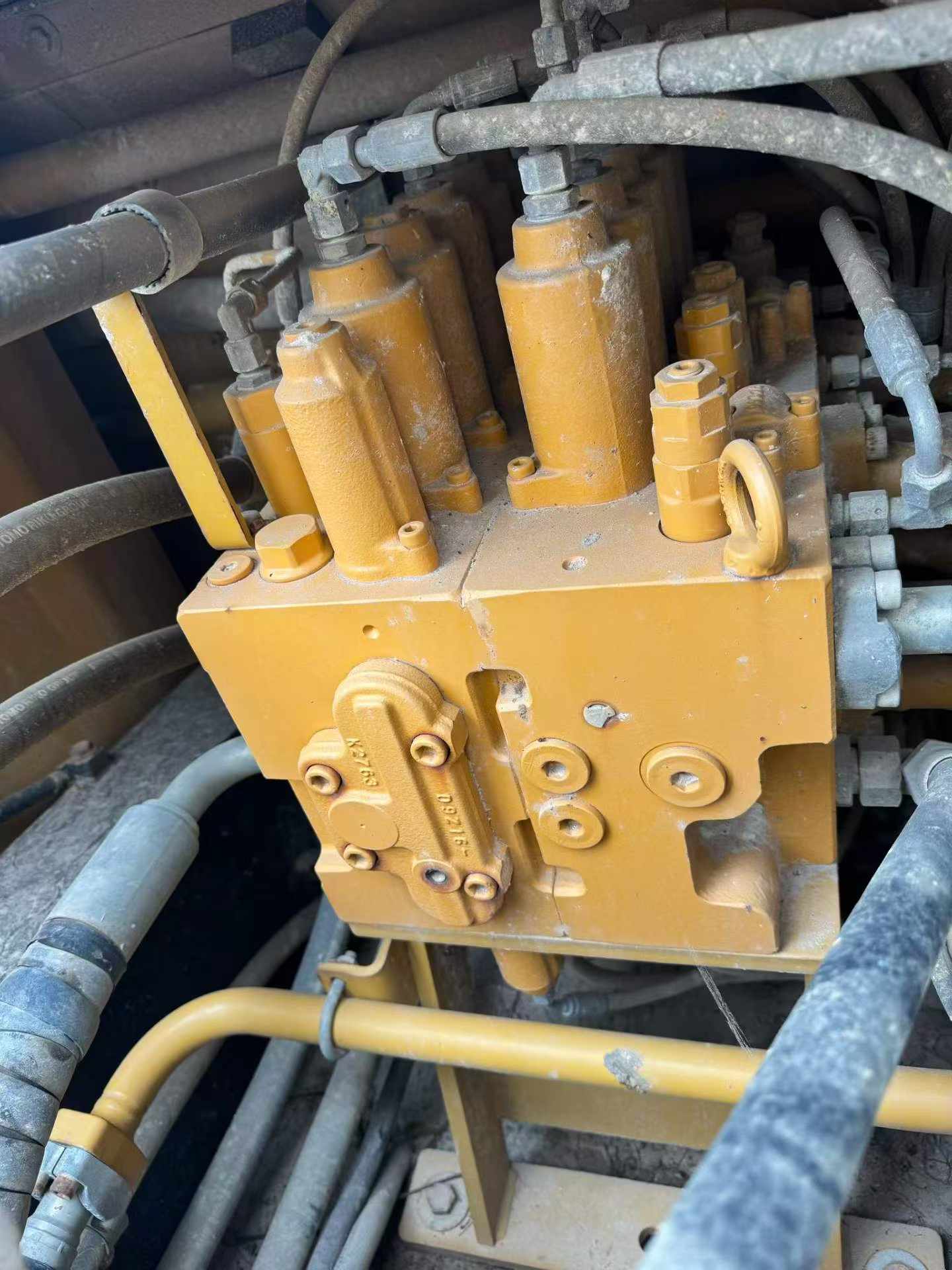

  • Powerful hydraulic system for productive digging and lifting

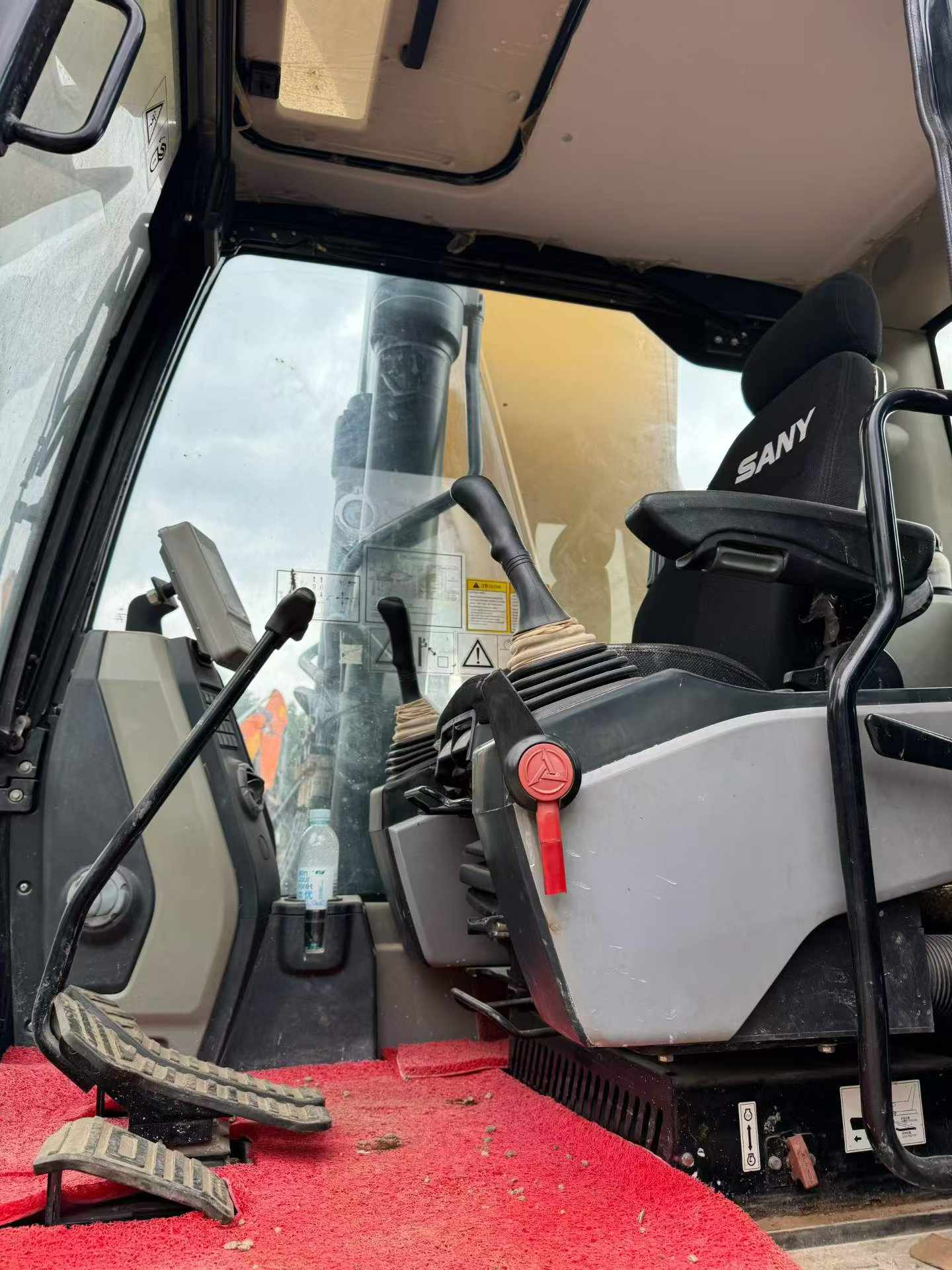

  • Spacious operator cabin with standard control layout
  • Suitable for earthmoving, foundation work, and general construction
  • Currently located in Sichuan, China

The machine has been properly serviced and is ready for immediate deployment. This SY305H offers competitive pricing for buyers seeking a late-model excavator with minimal wear. Ideal for regional contractors expanding their fleet or replacing aging equipment.

SpecificationsValue
No.1171219
Tonnage (tons)30
Working weight (kg)31500
Bucket capacity (m³)1.65~2.0(1.65)
powerTraditional power
manufacturerMade in China
bucketbackhoe

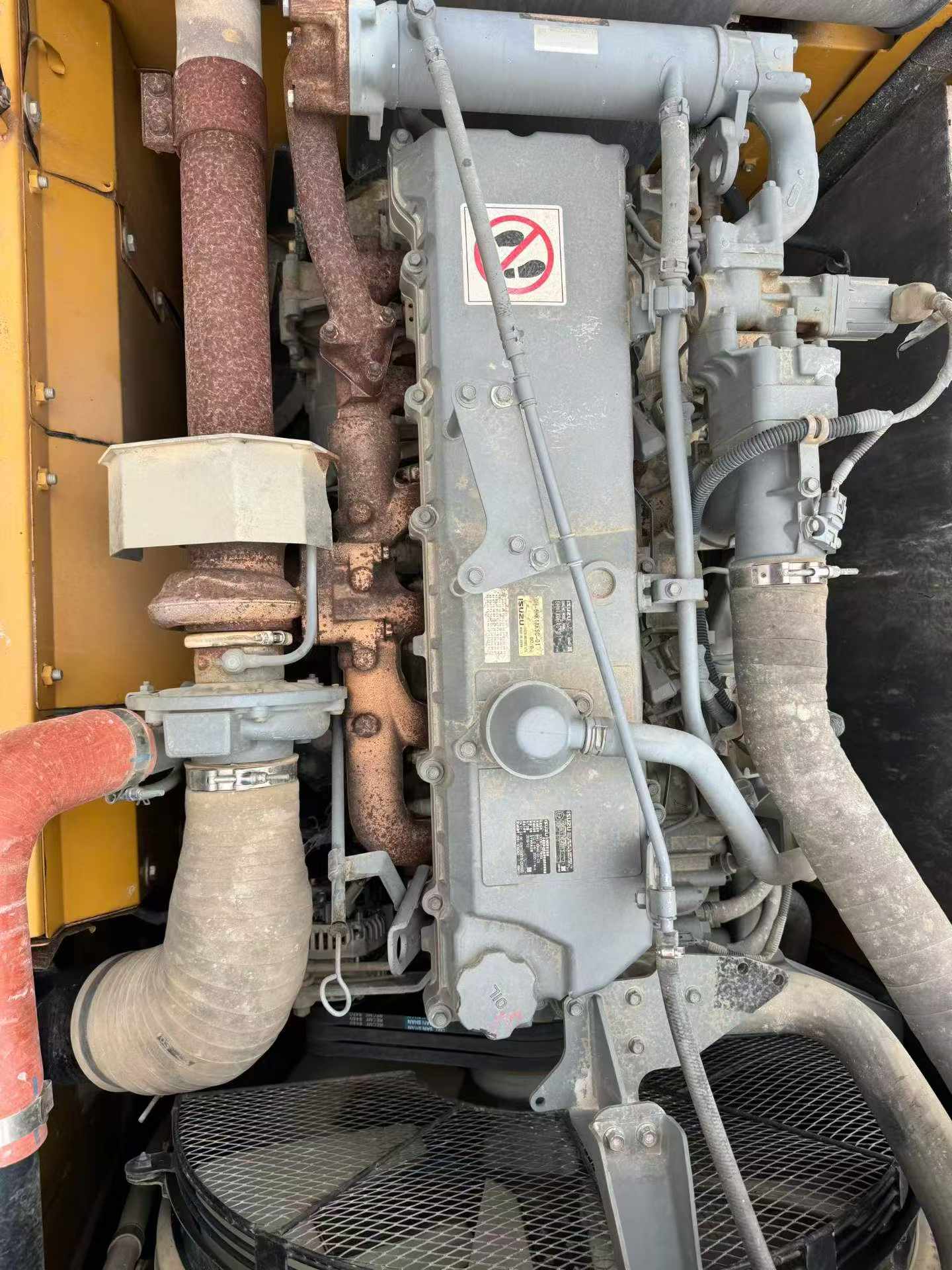

Engine typeIsuzu GH-6HK1
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Ground specific pressure (Kpa)62.3
Rotation speed (rpm)9.0
Climbing ability (%)70% (35°)
Bucket digging force (kN)204
Rod digging force (kN)153
Travel speed (km/h)5.4/3.2
Fuel Tank (L)540
Hydraulic Tank (L)380
Engine Oil changes (L)2*4.0
Coolant (L)35
Total transport length (mm)10667
Total transport width (mm)3190
Total transport height (mm)3470
Full cab height (mm)3280
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4000
Back end turning radius (mm)3315
Onboard width (mm)3175
Total track length (mm)4840
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3916
Maximum height at minimum turning radius (mm)8405
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10870
Maximum digging depth (mm)6815
Maximum excavation height (mm)10497
Maximum unloading height (mm)7359
Maximum vertical digging depth (mm)6170
see more

Overview

No.1171219

Brand Name:

Sany

Model Number:

SY305H

Year:

2021

Location:

Sichuan China
