2022 Sany SY305H

1/9
Buy Sany SY305H Used Excavator / 1

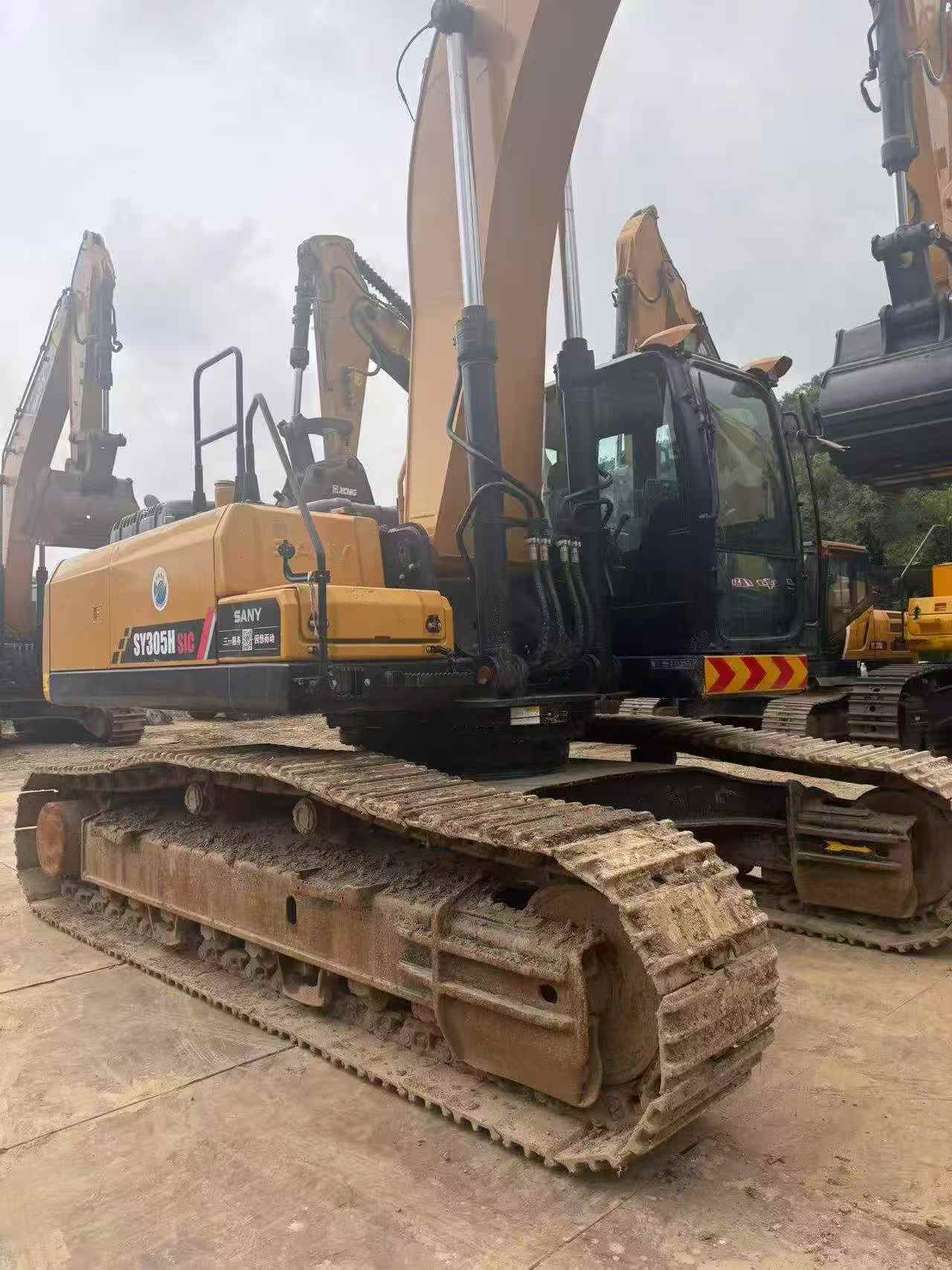

Buy Sany SY305H Used Excavator / 2

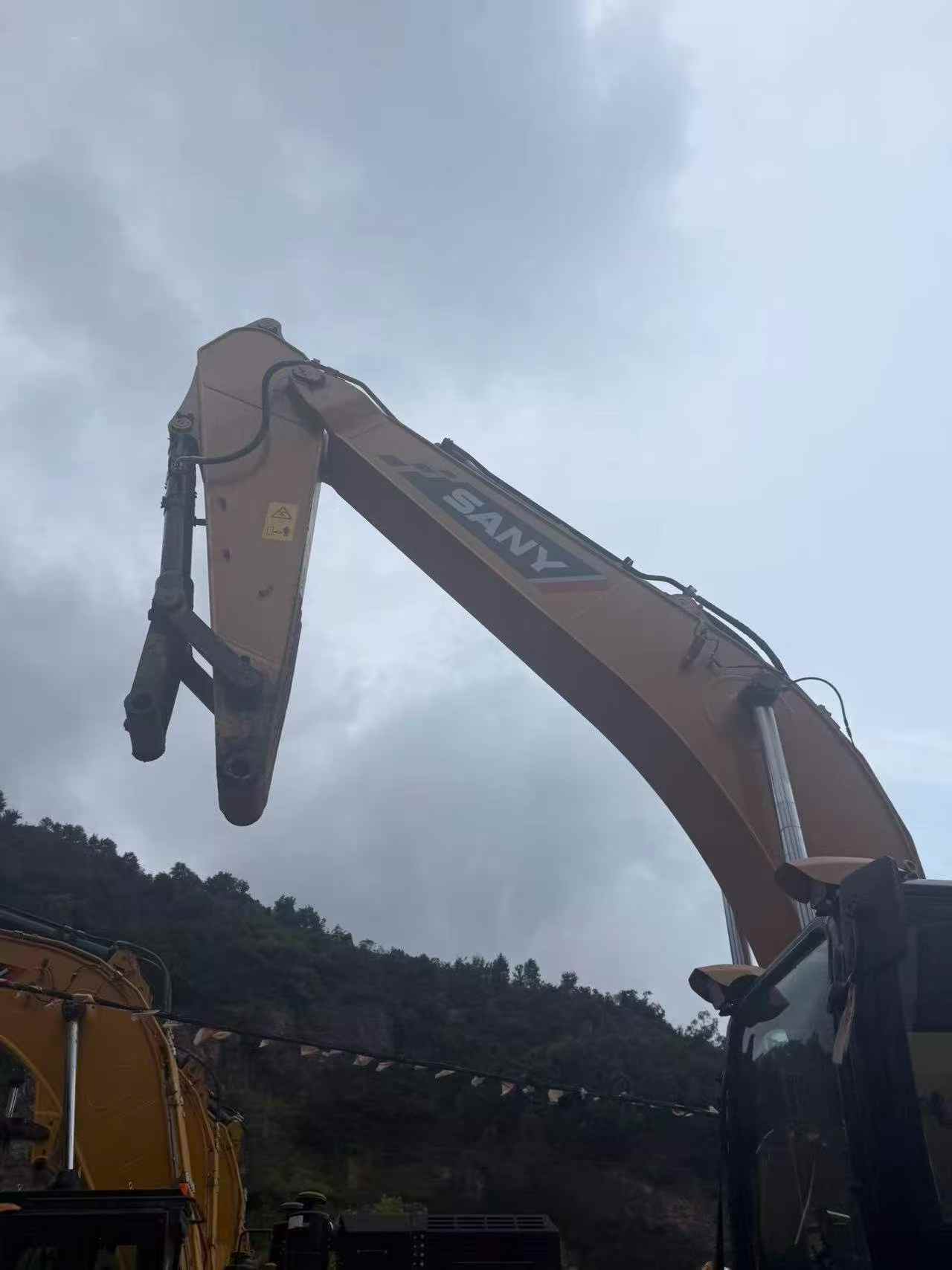

Buy Sany SY305H Used Excavator / 3

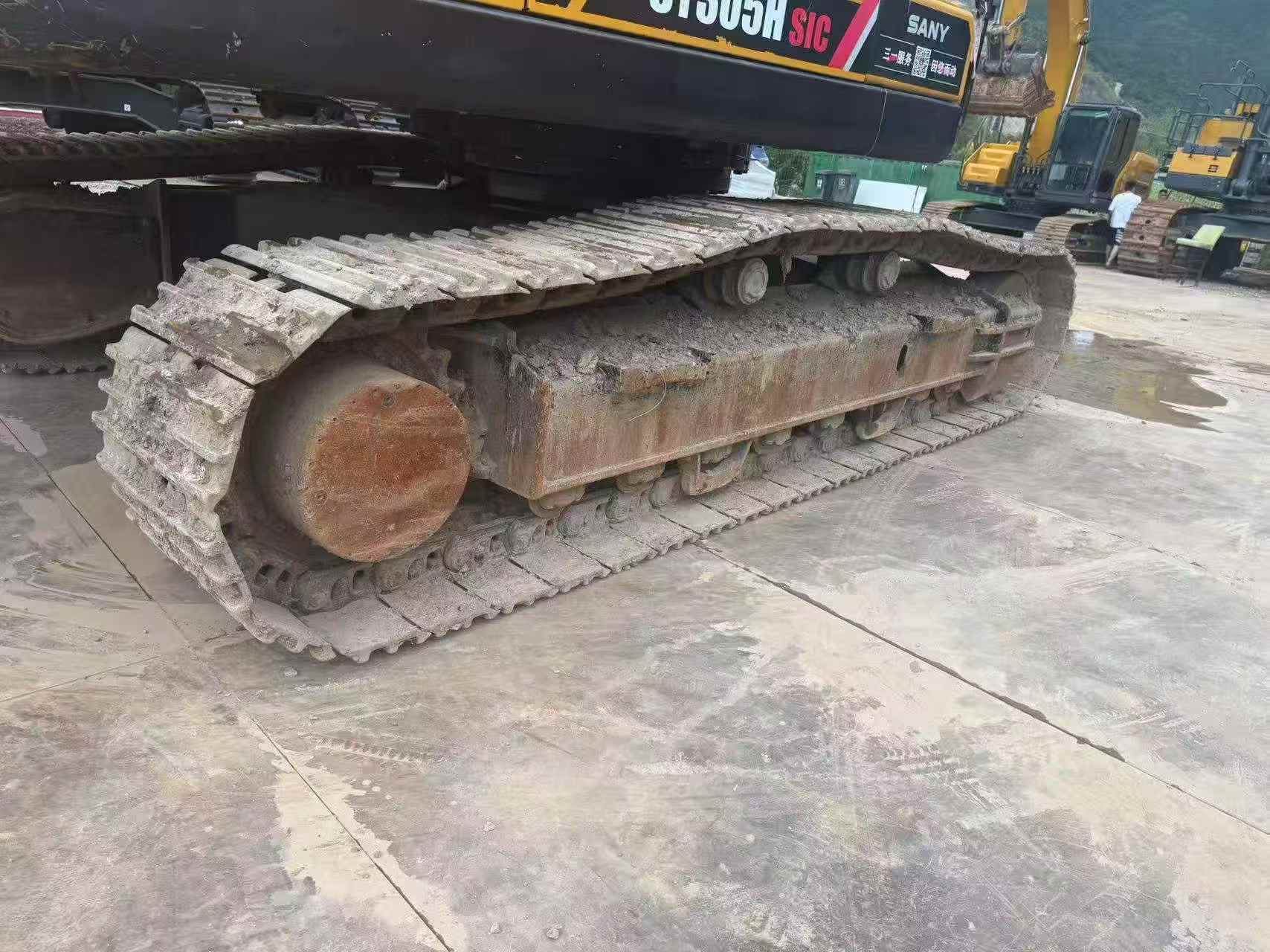

Buy Sany SY305H Used Excavator / 4

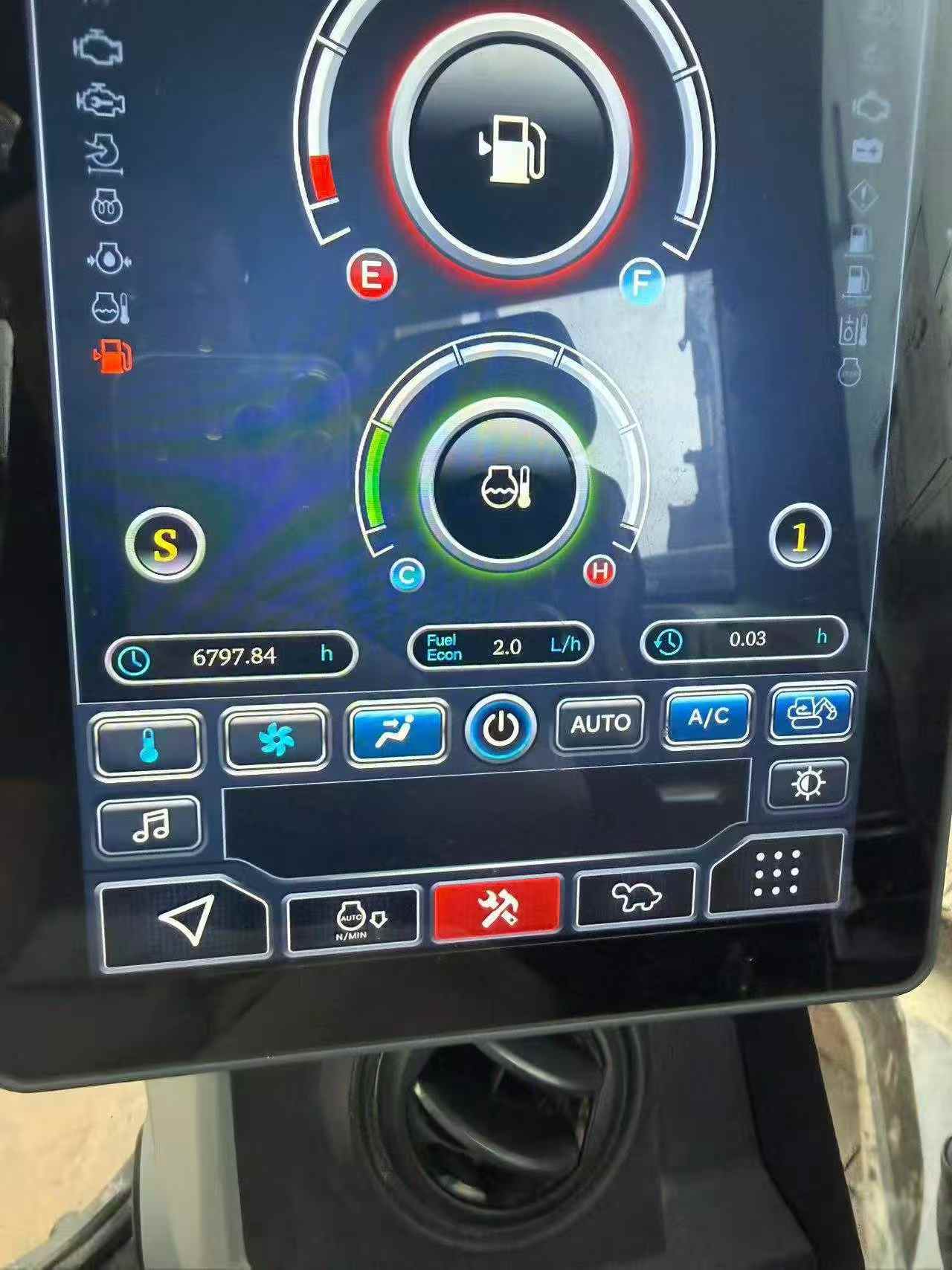

Buy Sany SY305H Used Excavator / 5

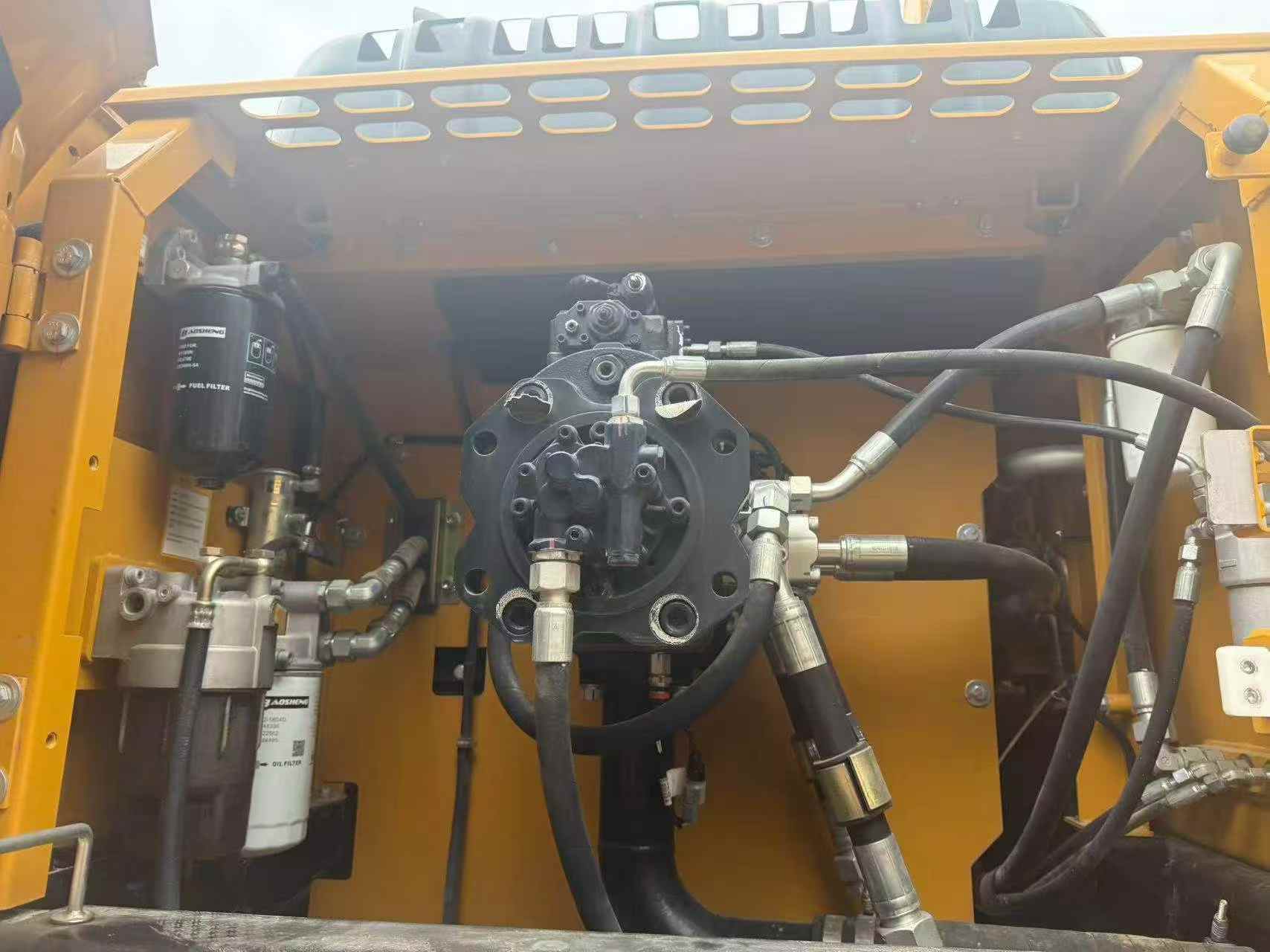

Buy Sany SY305H Used Excavator / 6

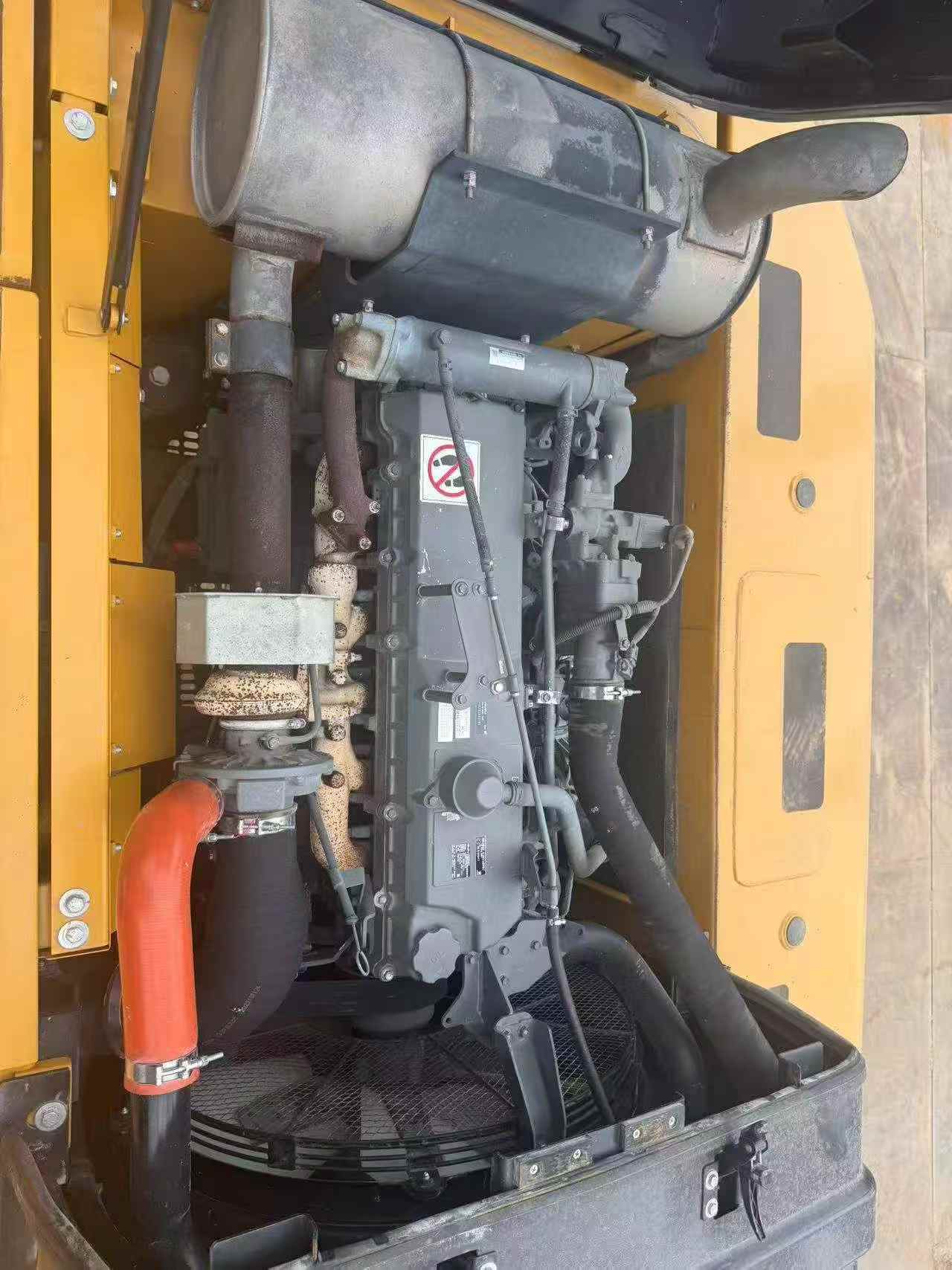

Buy Sany SY305H Used Excavator / 7

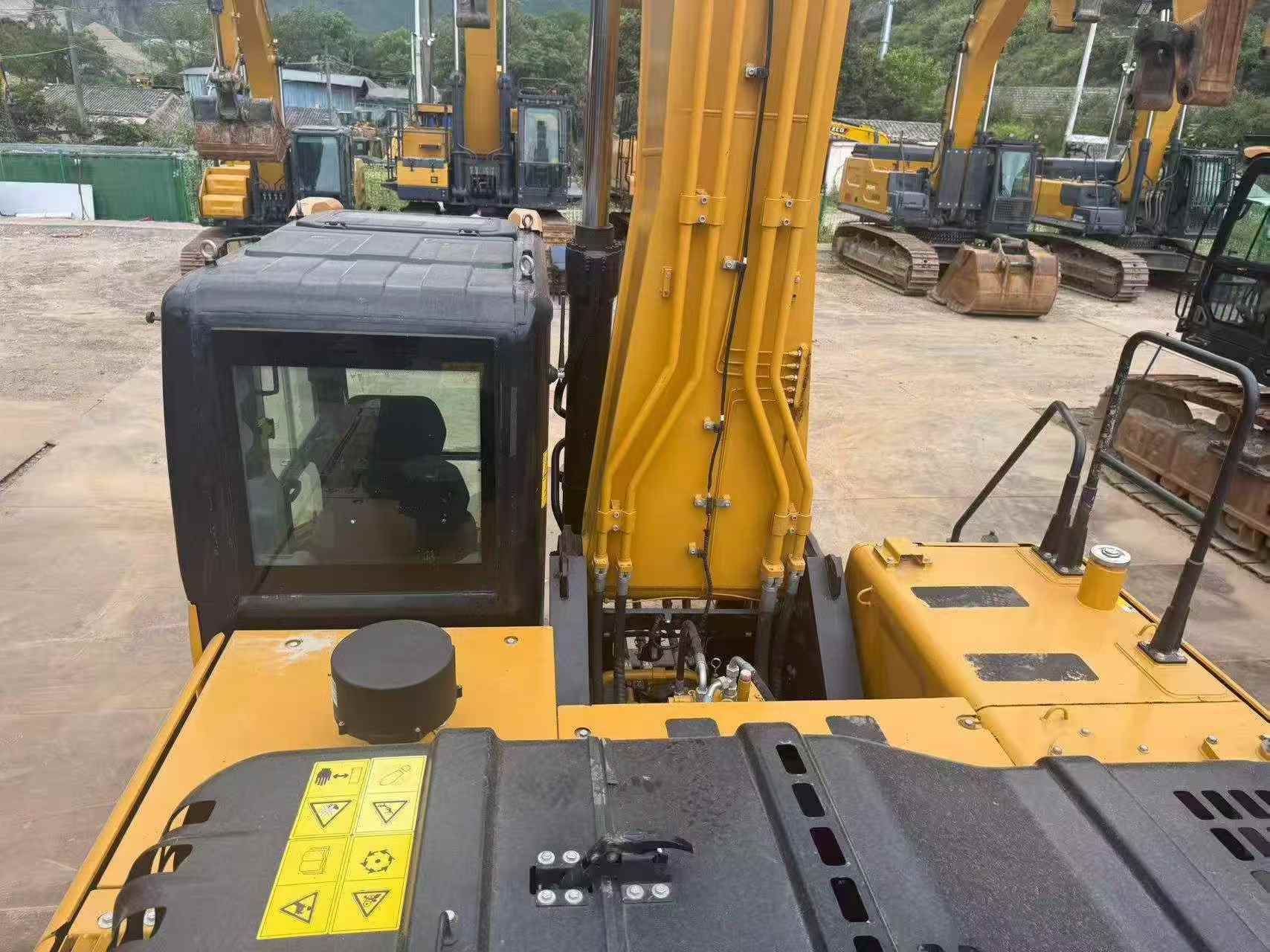

Buy Sany SY305H Used Excavator / 8

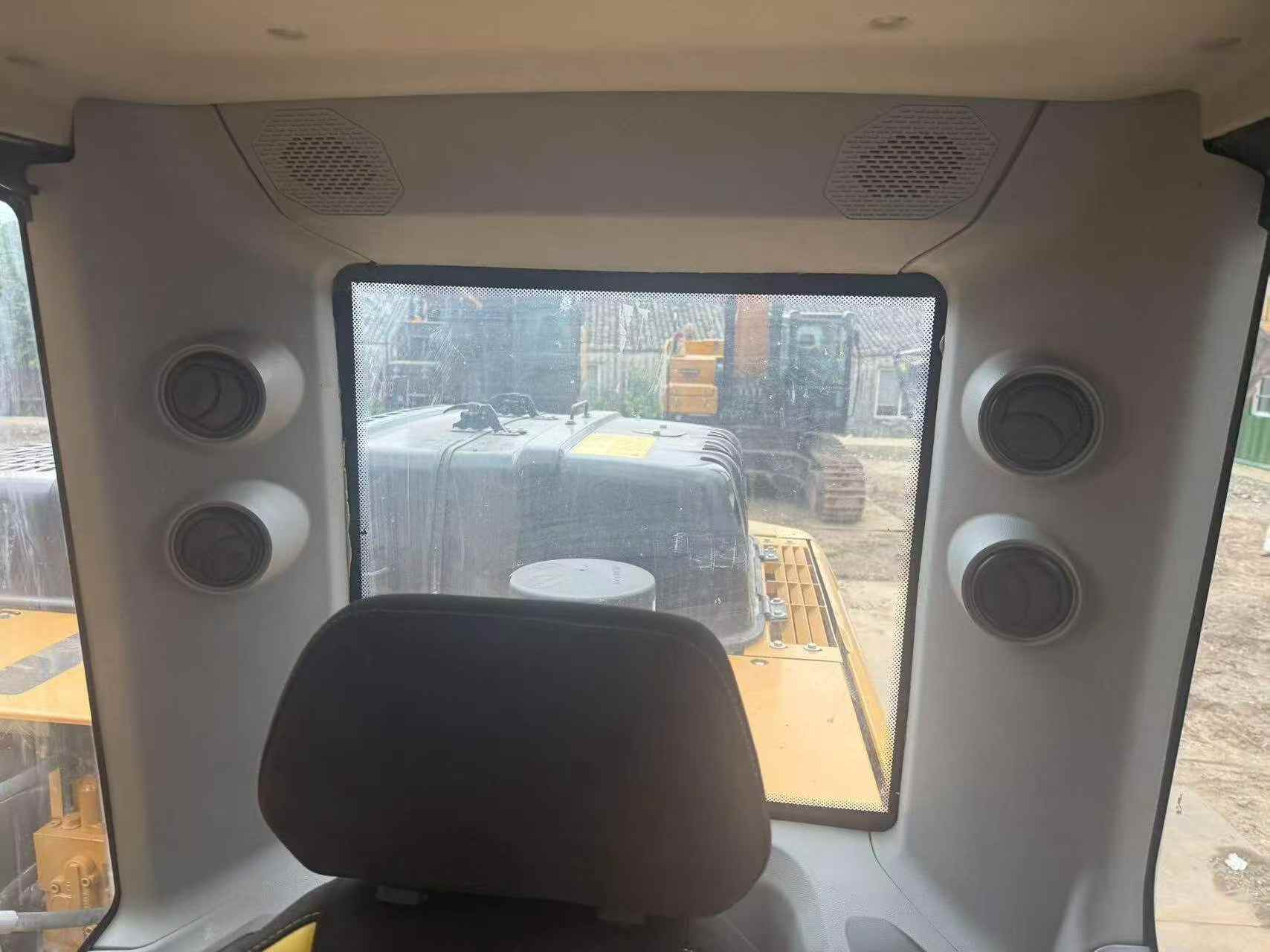

Buy Sany SY305H Used Excavator / 9

Product Description

This 2022 Sany SY305H hydraulic excavator represents an excellent opportunity for earthmoving operations. With authentic documentation and verified low hours, this machine has been dedicated exclusively to earthwork applications throughout its operational life. Currently located in Zhejiang, China, this excavator maintains its original factory configuration with no major component replacements or modifications.

Key highlights include:

  • Single-application earthmoving history
  • Verified genuine hours and service records
  • Original components throughout
  • Major components covered under warranty terms
  • Well-maintained operational condition

The SY305H is known for its robust performance in excavation and earthmoving projects. This unit is ready for immediate deployment and suitable for contractors seeking reliable equipment with transparent service history. Inspection welcome.

SpecificationsValue
No.1116023
Tonnage (tons)30
Working weight (kg)31500
Bucket capacity (m³)1.65~2.0(1.65)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu GH-6HK1
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Ground specific pressure (Kpa)62.3
Rotation speed (rpm)9.0
Climbing ability (%)70% (35°)
Bucket digging force (kN)204
Rod digging force (kN)153
Travel speed (km/h)5.4/3.2
Fuel Tank (L)540
Hydraulic Tank (L)380
Engine Oil changes (L)2*4.0
Coolant (L)35
Total transport length (mm)10667
Total transport width (mm)3190
Total transport height (mm)3470
Full cab height (mm)3280
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4000
Back end turning radius (mm)3315
Onboard width (mm)3175
Total track length (mm)4840
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3916
Maximum height at minimum turning radius (mm)8405
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10870
Maximum digging depth (mm)6815
Maximum excavation height (mm)10497
Maximum unloading height (mm)7359
Maximum vertical digging depth (mm)6170
see more

Overview

No.1116023

Brand Name:

Sany

Model Number:

SY305H

Year:

2022

Location:

Zhejiang China

Pub Date
