Product Description

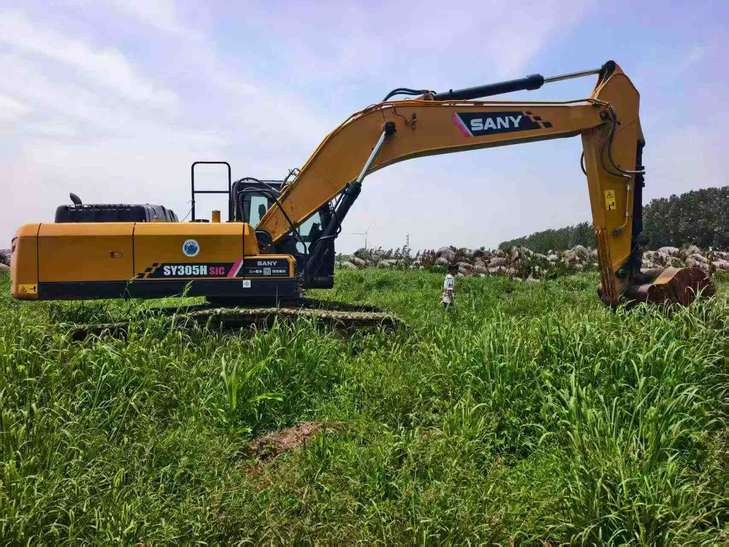

Discover the 2022 Sany SY305H, a high-spec excavator available in Anhui, China. This machine is equipped to handle a 1 cubic meter bucket, making it ideal for demanding construction and excavation tasks. The Sany SY305H comes with all necessary documentation including a certificate of conformity and invoices, ensuring compliance and ease of ownership. With a genuine odometer reading of just over 2000 hours, this excavator is in excellent condition. The authenticity of the unit is verifiable through the QR code on the machine's nameplate, and additional confidence is provided by the included video of the Sany company's legal unsealing process.
- Year: 2022
- Brand: Sany
- Model: SY305H
- Location: Anhui, China
- Bucket Capacity: 1 cubic meter
- Hours: Over 2000 (verified)
- Documentation: Certificate of conformity and invoices included
- Verification: QR code on the machine's nameplate and unsealing video
| Specifications | Value |
|---|---|
| No. | 1120817 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 31500 |
| Bucket capacity (m³) | 1.65~2.0(1.65) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1 |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 62.3 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 204 |
| Rod digging force (kN) | 153 |
| Travel speed (km/h) | 5.4/3.2 |
| Fuel Tank (L) | 540 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 2*4.0 |
| Coolant (L) | 35 |
| Total transport length (mm) | 10667 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3470 |
| Full cab height (mm) | 3280 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4000 |
| Back end turning radius (mm) | 3315 |
| Onboard width (mm) | 3175 |
| Total track length (mm) | 4840 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3916 |
| Maximum height at minimum turning radius (mm) | 8405 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10870 |
| Maximum digging depth (mm) | 6815 |
| Maximum excavation height (mm) | 10497 |
| Maximum unloading height (mm) | 7359 |
| Maximum vertical digging depth (mm) | 6170 |
