Product Description

Available for immediate inspection in Anhui, China: a late-2022 Sany SY305H excavator in exceptional condition, configured to a high specification from new and maintained as a working production machine.

  • Model: Sany SY305H, 2022 year-end build, high-spec configuration

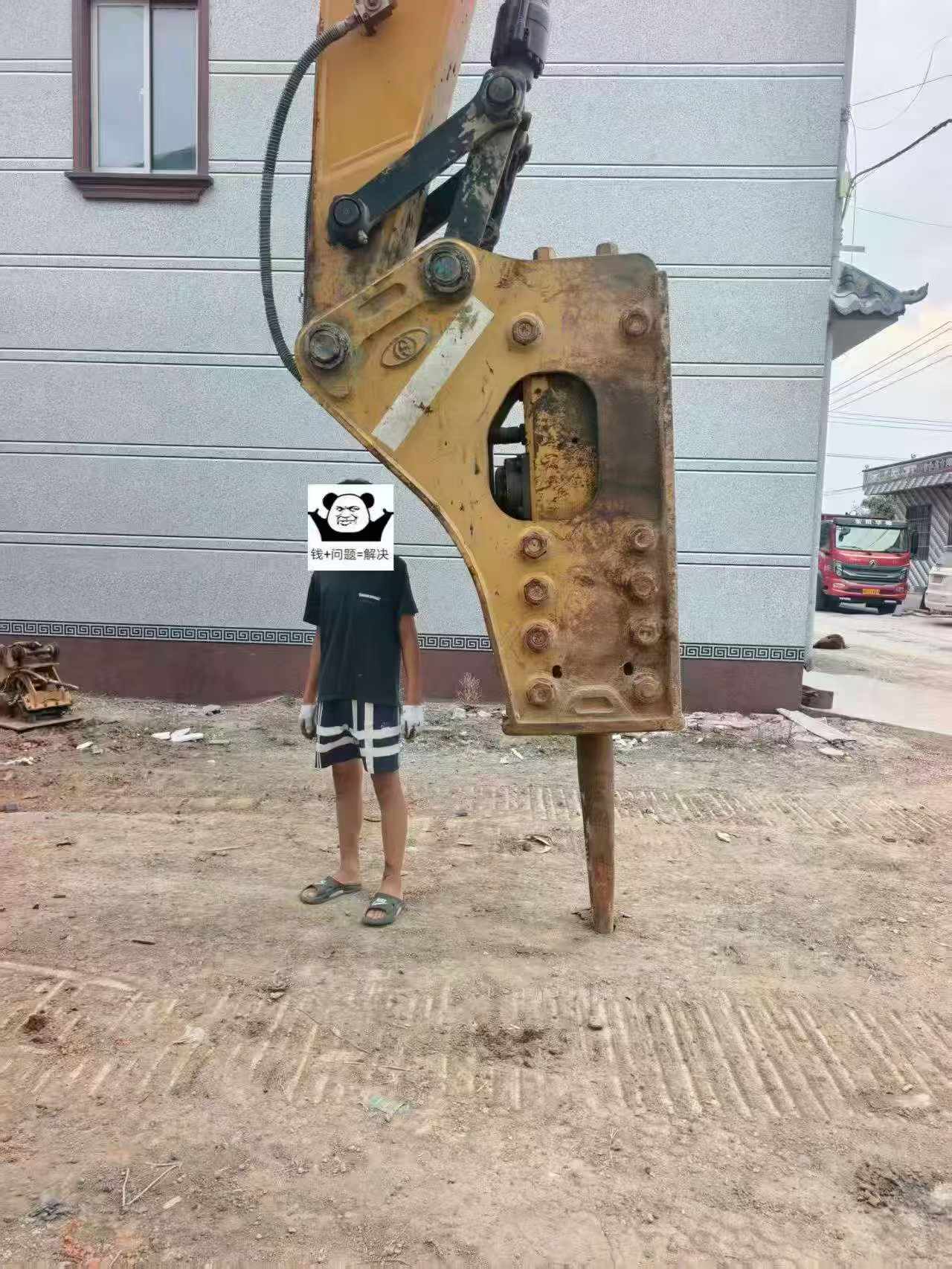

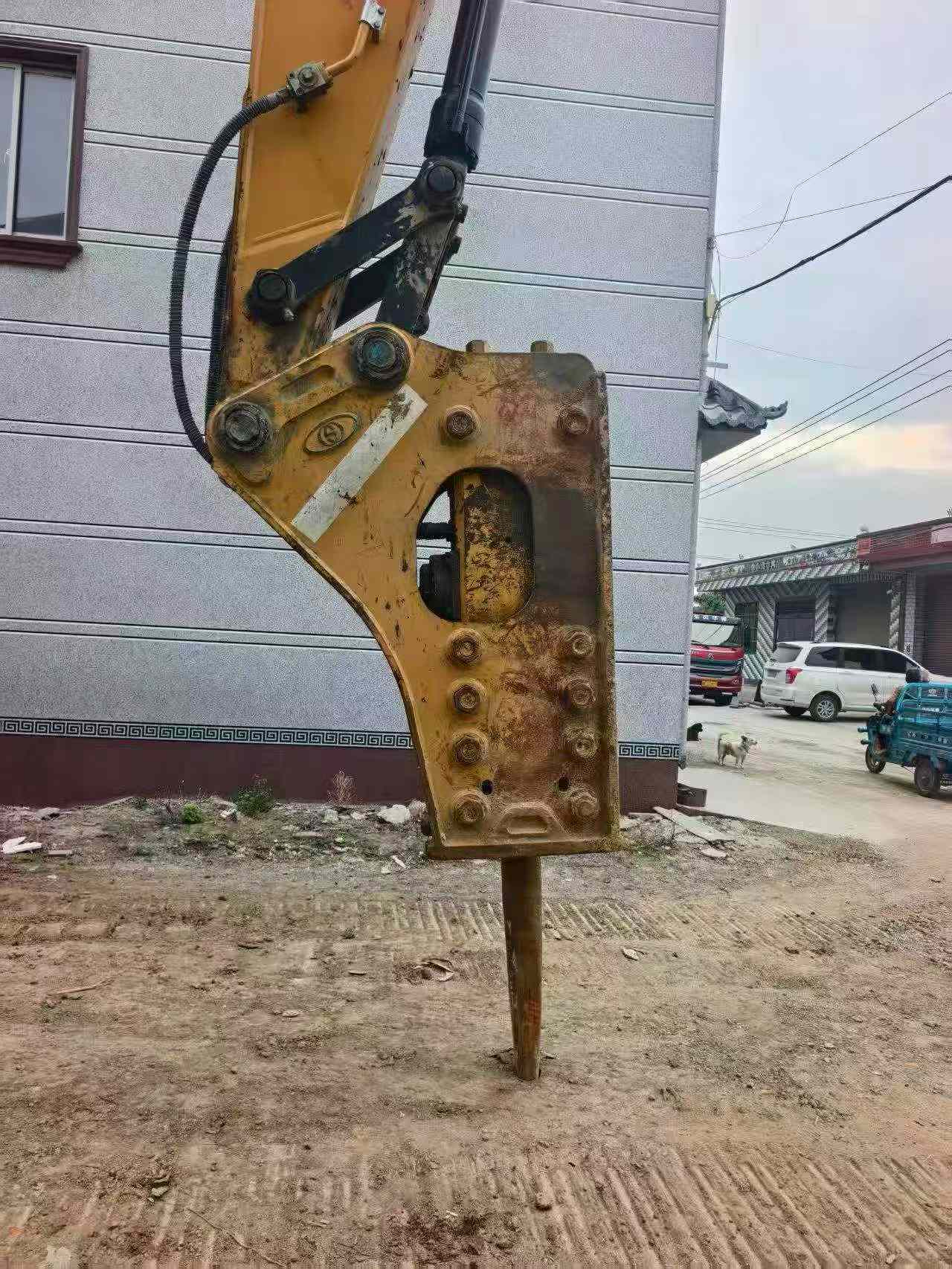

  • Breaker: premium Eddie hydraulic hammer fitted
  • Bucket: 1.9 m³ bucket available with the machine
  • Telematics: Yiweixun remote monitoring system installed
  • Hours: genuine meter reading just over 2,000
  • Documentation: certificate of conformity and invoice included
  • Verification: body nameplate QR code scannable for authentication

Located in Anhui Province, China. Well suited to contractors and dealers seeking a genuinely low-hour 30-tonne-class machine with complete paperwork. Undercarriage and serial details available on request.

SpecificationsValue
No.1144207
Tonnage (tons)30
Working weight (kg)31500
Bucket capacity (m³)1.65~2.0(1.65)
powerTraditional power
manufacturerMade in China
bucketbackhoe

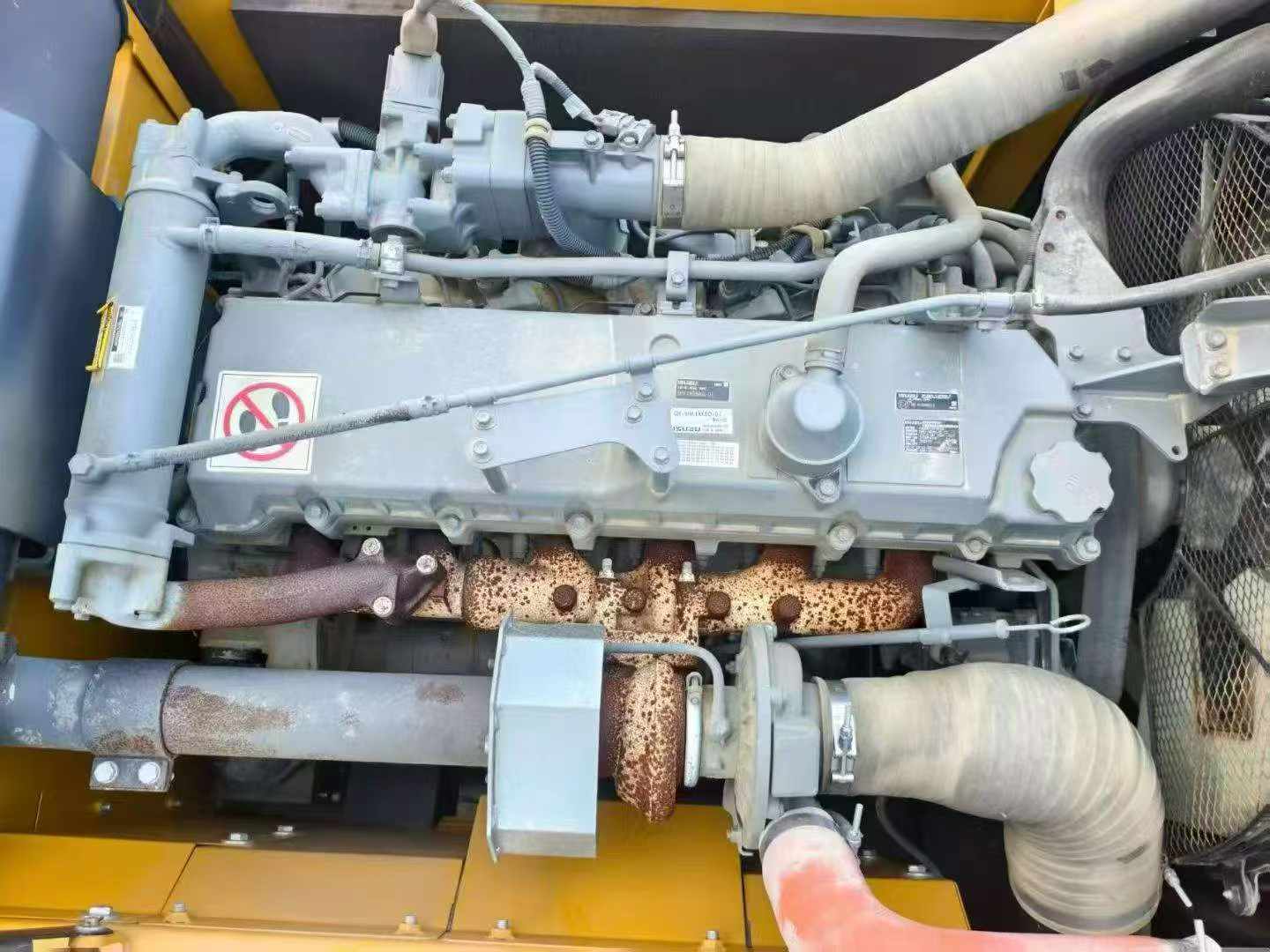

Engine typeIsuzu GH-6HK1
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Ground specific pressure (Kpa)62.3
Rotation speed (rpm)9.0
Climbing ability (%)70% (35°)
Bucket digging force (kN)204
Rod digging force (kN)153
Travel speed (km/h)5.4/3.2
Fuel Tank (L)540
Hydraulic Tank (L)380
Engine Oil changes (L)2*4.0
Coolant (L)35
Total transport length (mm)10667
Total transport width (mm)3190
Total transport height (mm)3470
Full cab height (mm)3280
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4000
Back end turning radius (mm)3315
Onboard width (mm)3175
Total track length (mm)4840
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3916
Maximum height at minimum turning radius (mm)8405
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10870
Maximum digging depth (mm)6815
Maximum excavation height (mm)10497
Maximum unloading height (mm)7359
Maximum vertical digging depth (mm)6170
