2024 Sany SY305H

1/9
Buy Sany SY305H Used Excavator / 1

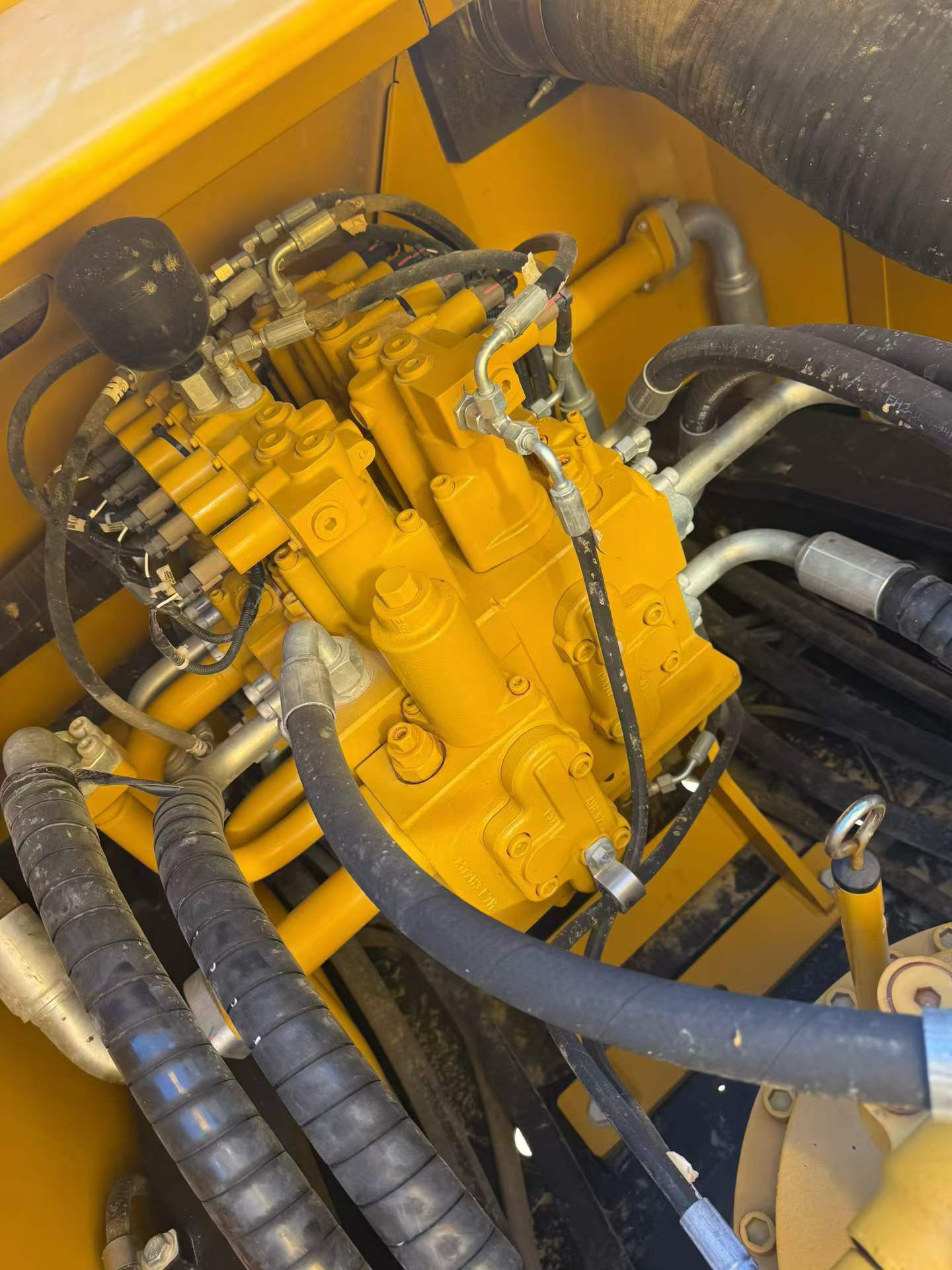

Buy Sany SY305H Used Excavator / 2

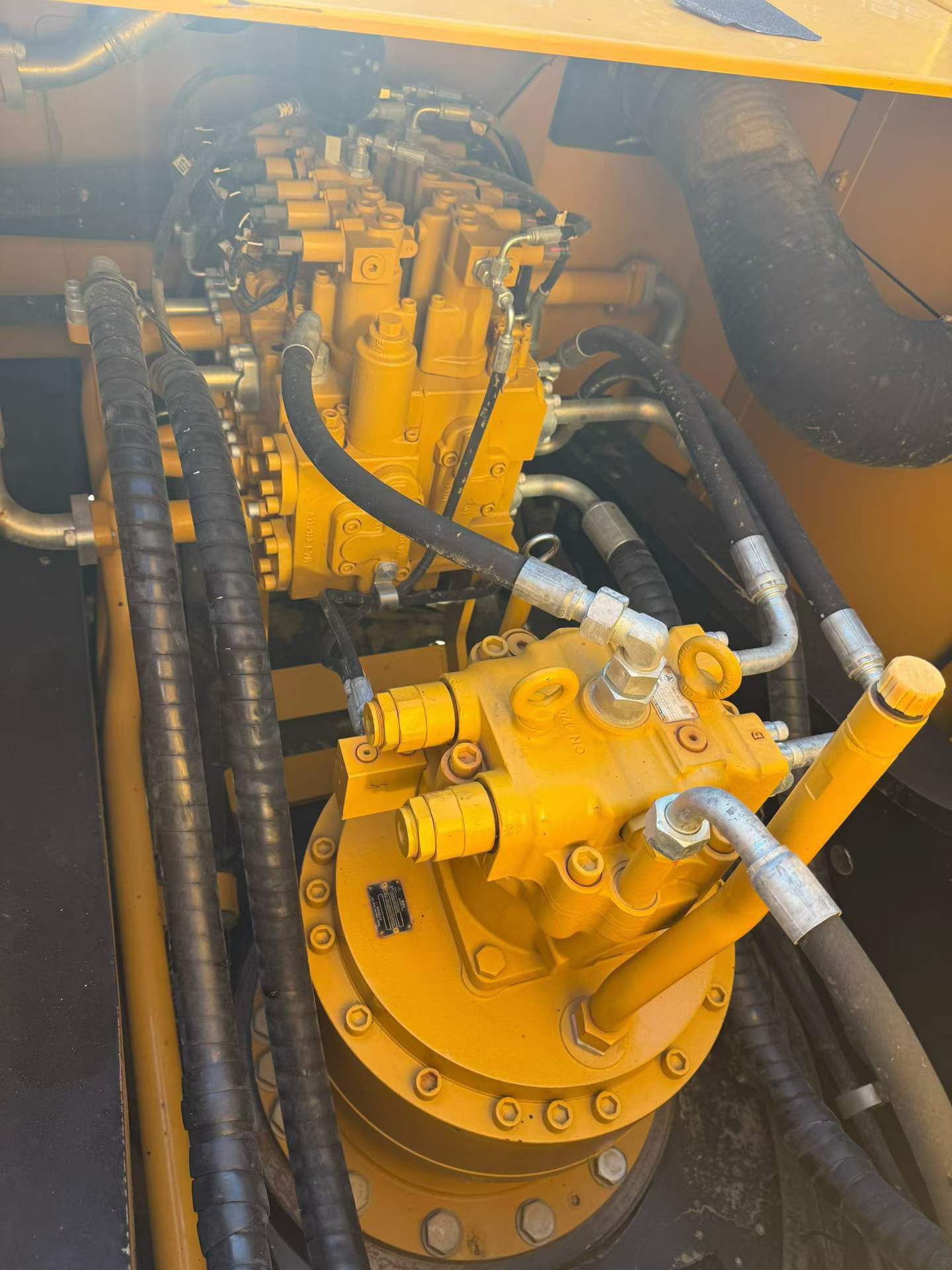

Buy Sany SY305H Used Excavator / 3

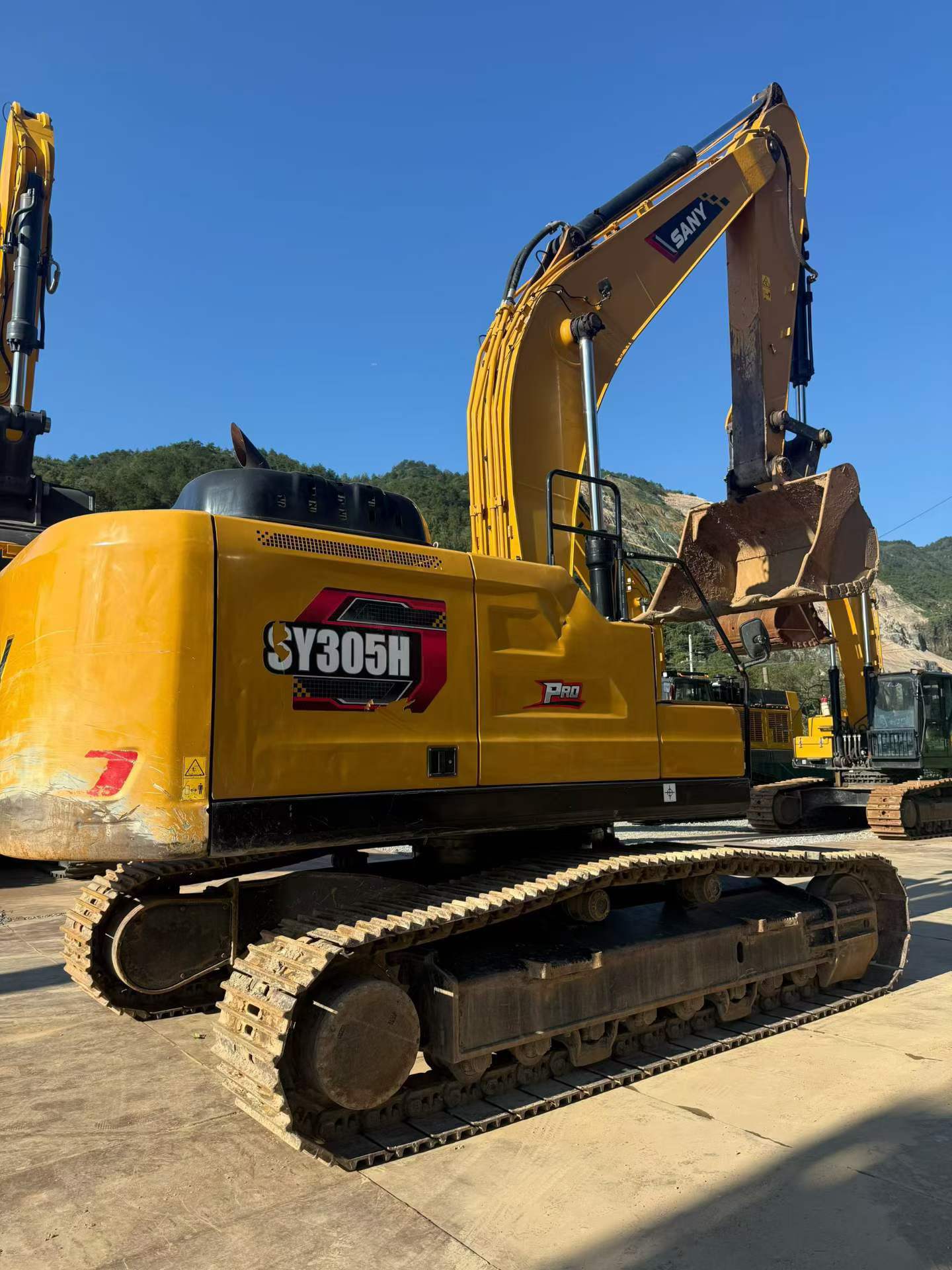

Buy Sany SY305H Used Excavator / 4

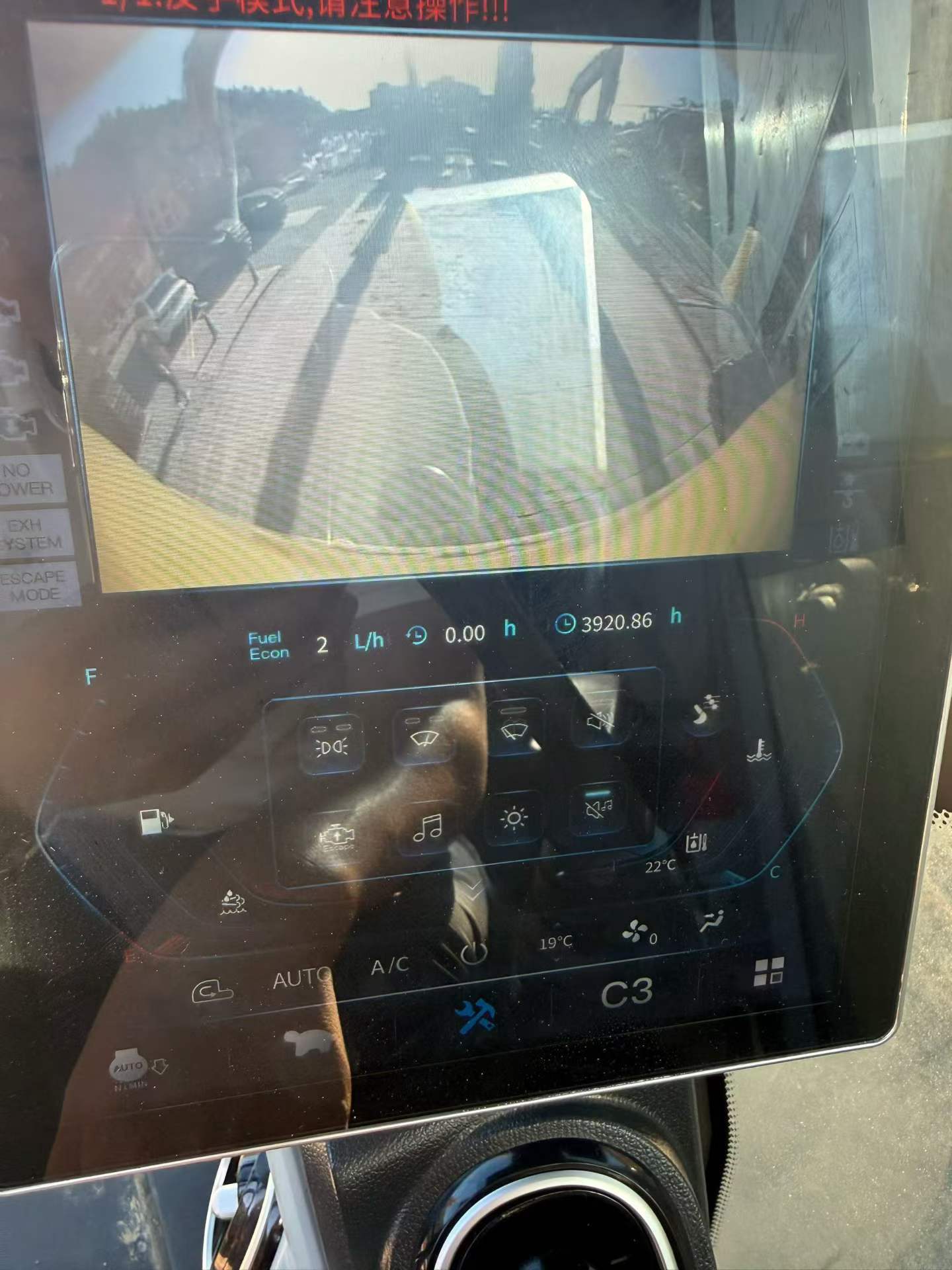

Buy Sany SY305H Used Excavator / 5

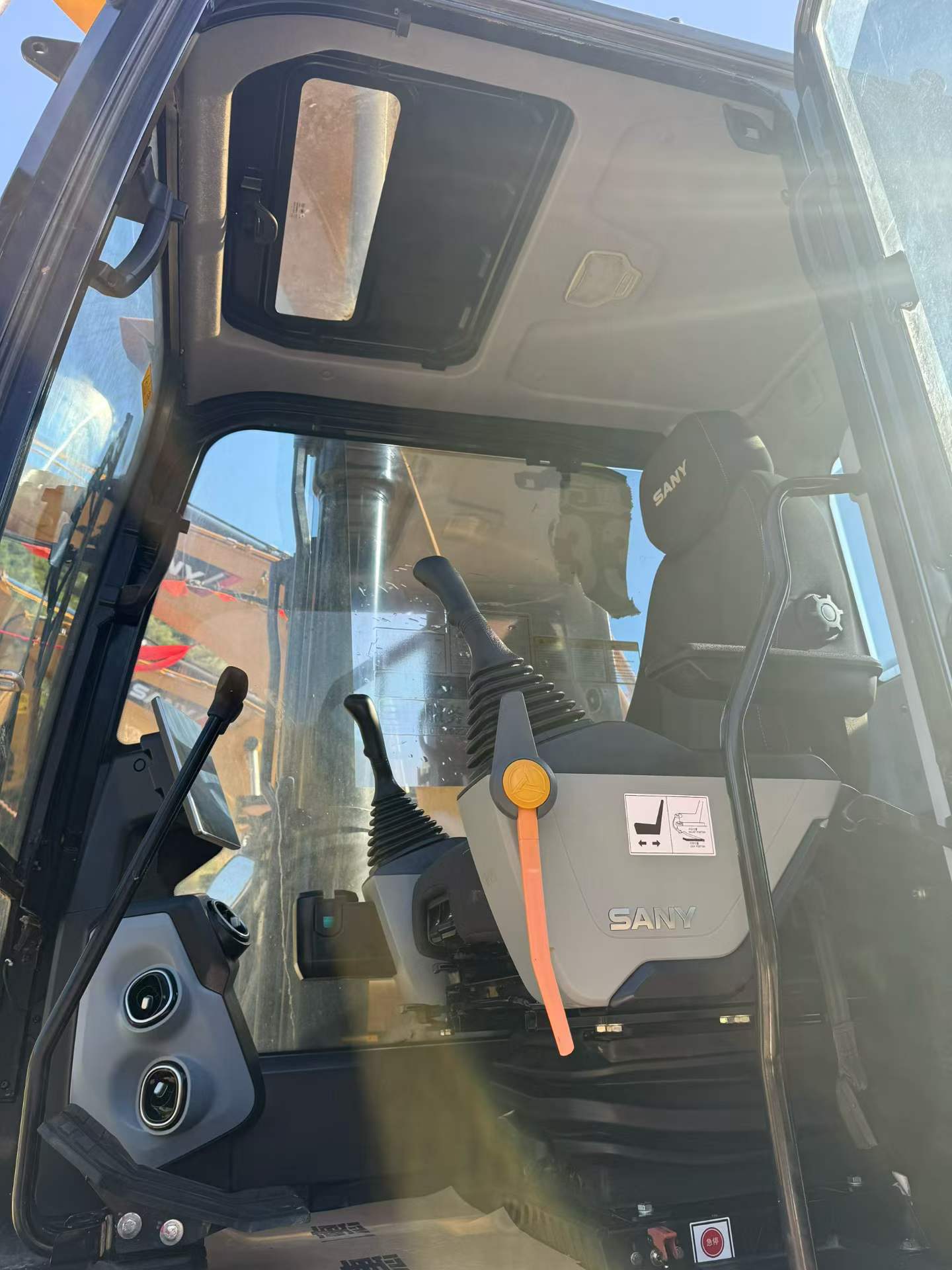

Buy Sany SY305H Used Excavator / 6

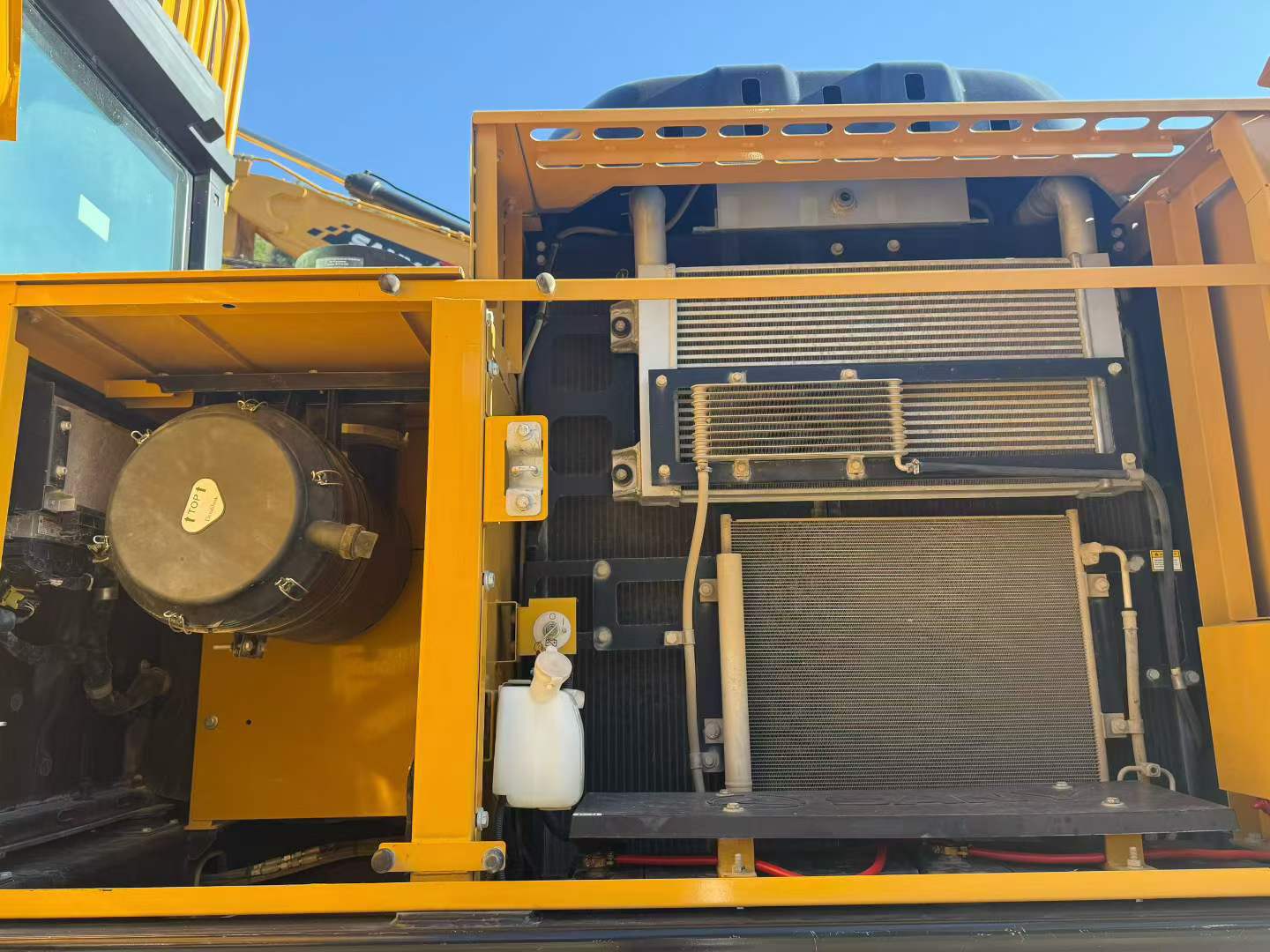

Buy Sany SY305H Used Excavator / 7

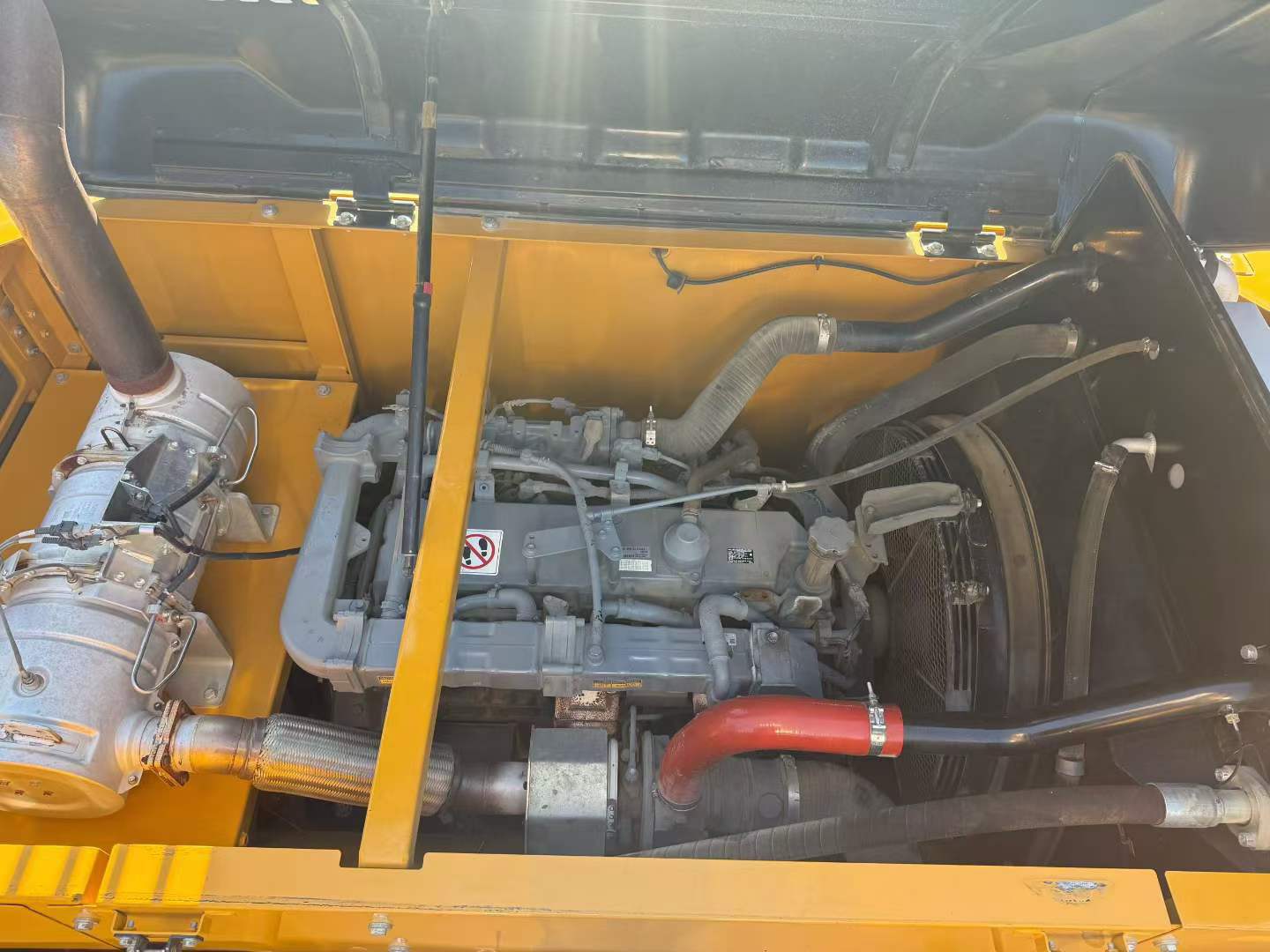

Buy Sany SY305H Used Excavator / 8

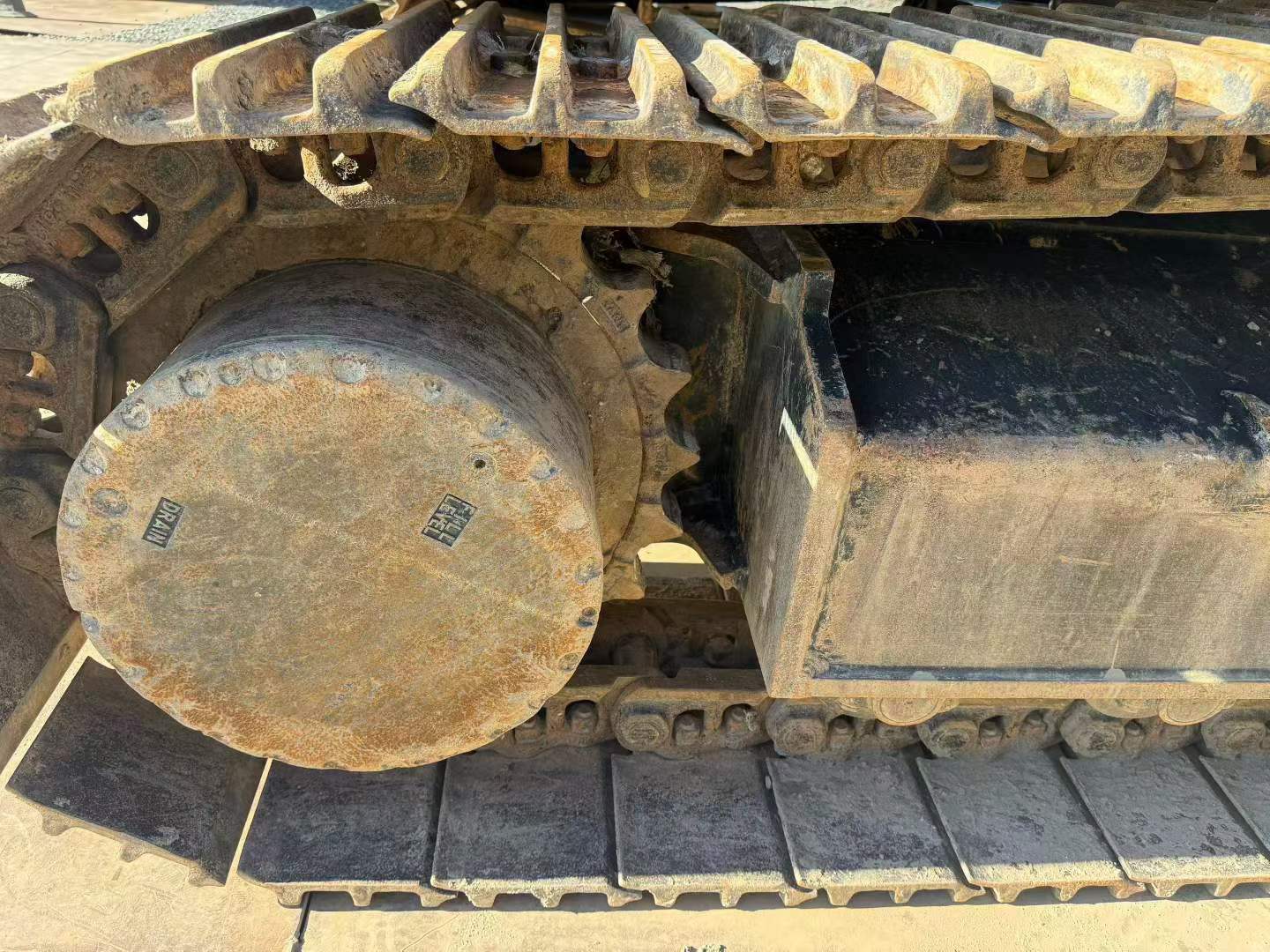

Buy Sany SY305H Used Excavator / 9

Product Description

This 2024 Sany SY305H excavator represents an exceptional opportunity for earthmoving contractors. With approximately 3,000 documented operating hours, this single-owner machine has been dedicated to general excavation work and demonstrates excellent overall condition. Located in Zhejiang, China, the unit requires no additional inspection and is ready for immediate deployment.

Key features include:

  • Factory-fresh 2024 model year
  • Low verified hours from original owner
  • Proven track record in earthmoving applications
  • Includes 3-month warranty on major components
  • Well-maintained condition throughout

The SY305H is engineered for productivity in demanding excavation environments. This unit offers reliability and performance for contractors seeking dependable heavy equipment. Available for inspection in Zhejiang Province.

SpecificationsValue
No.1172070
Tonnage (tons)30
Working weight (kg)31500
Bucket capacity (m³)1.65~2.0(1.65)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu GH-6HK1
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Ground specific pressure (Kpa)62.3
Rotation speed (rpm)9.0
Climbing ability (%)70% (35°)
Bucket digging force (kN)204
Rod digging force (kN)153
Travel speed (km/h)5.4/3.2
Fuel Tank (L)540
Hydraulic Tank (L)380
Engine Oil changes (L)2*4.0
Coolant (L)35
Total transport length (mm)10667
Total transport width (mm)3190
Total transport height (mm)3470
Full cab height (mm)3280
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4000
Back end turning radius (mm)3315
Onboard width (mm)3175
Total track length (mm)4840
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3916
Maximum height at minimum turning radius (mm)8405
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10870
Maximum digging depth (mm)6815
Maximum excavation height (mm)10497
Maximum unloading height (mm)7359
Maximum vertical digging depth (mm)6170
see more

Overview

No.1172070

Brand Name:

Sany

Model Number:

SY305H

Year:

2024

Location:

Zhejiang China

Pub Date:
