2020 Sany SY335H

1/9

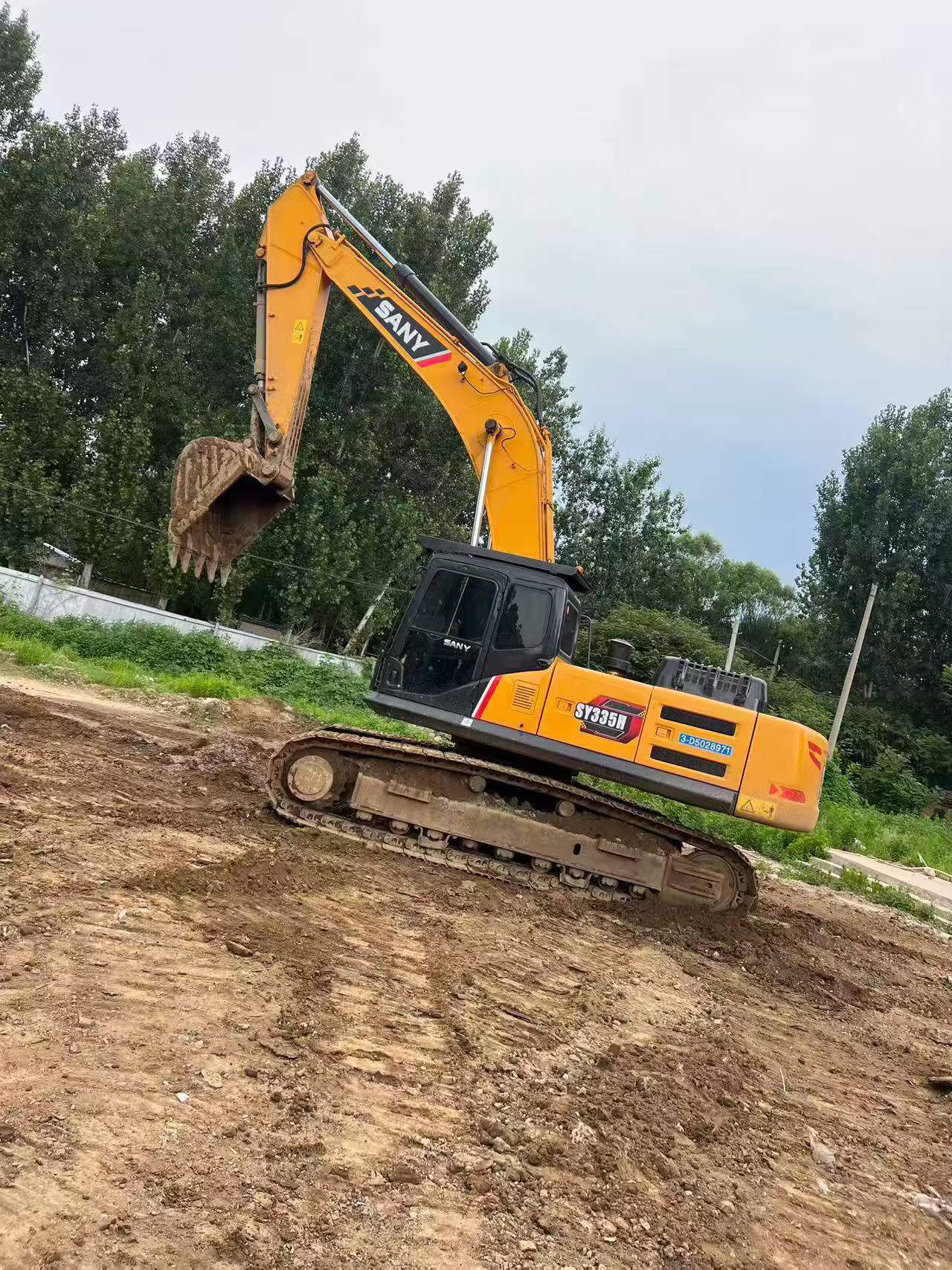

Buy Sany SY335H Used Excavator / 1

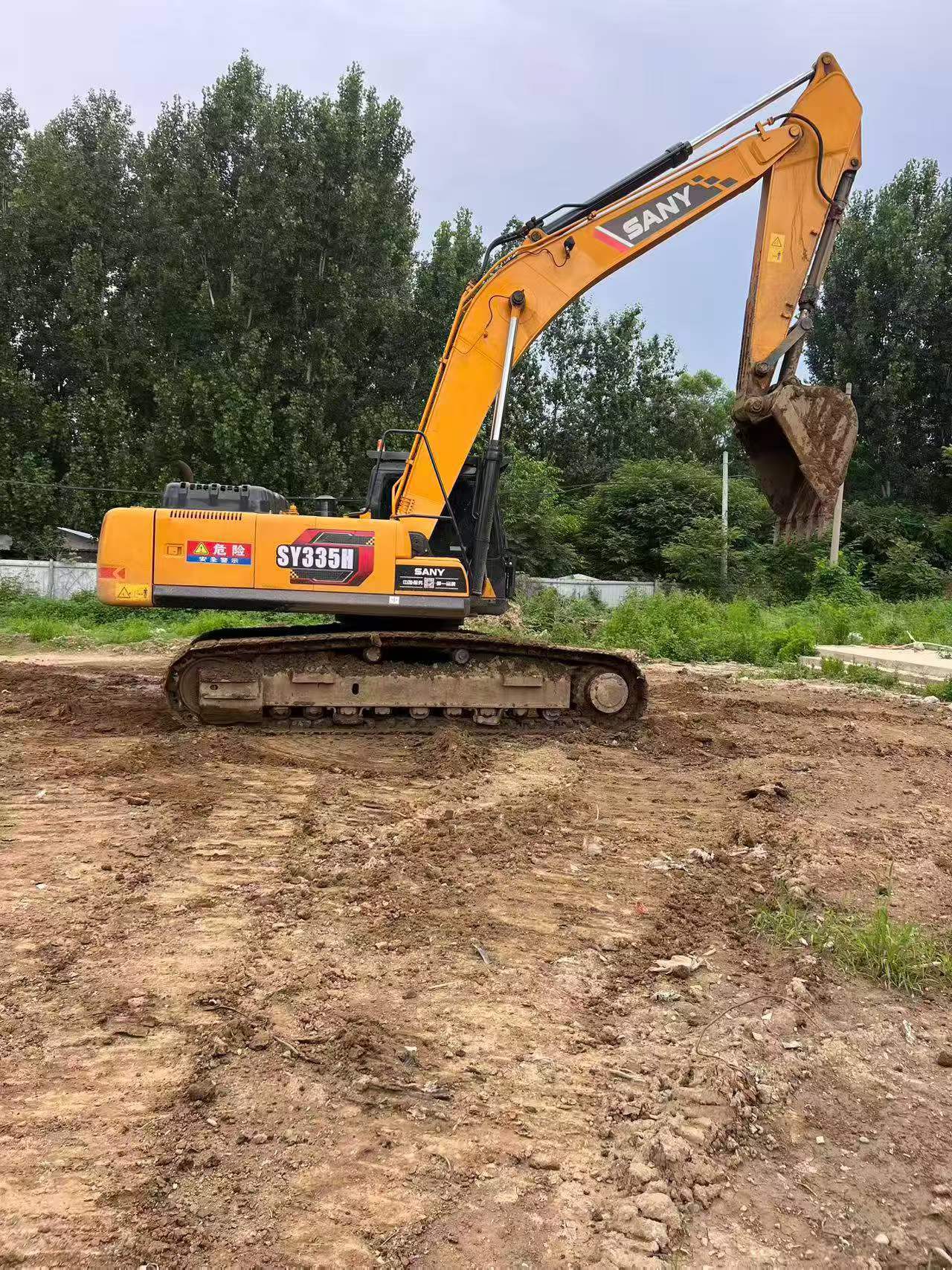

Buy Sany SY335H Used Excavator / 2

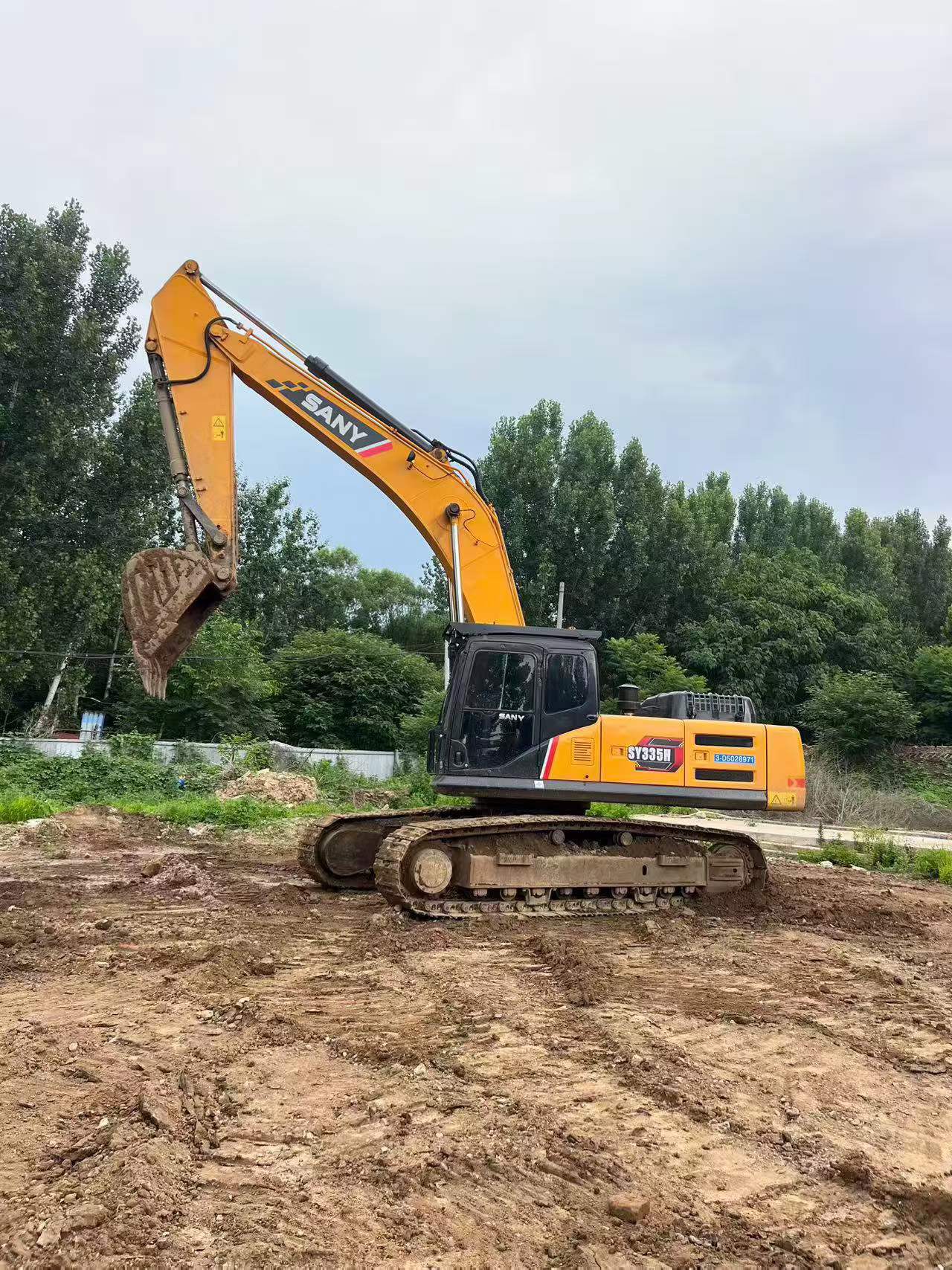

Buy Sany SY335H Used Excavator / 3

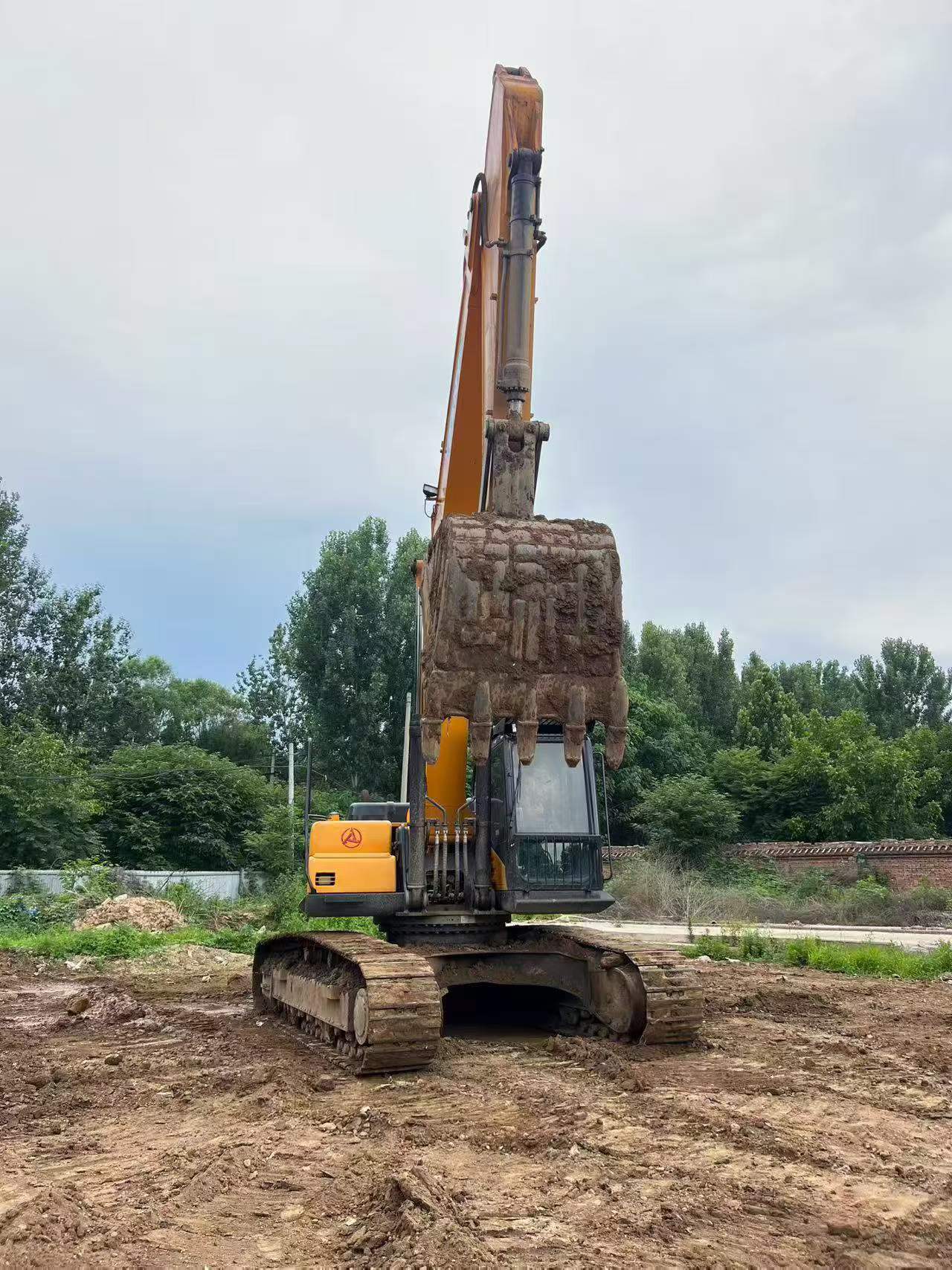

Buy Sany SY335H Used Excavator / 4

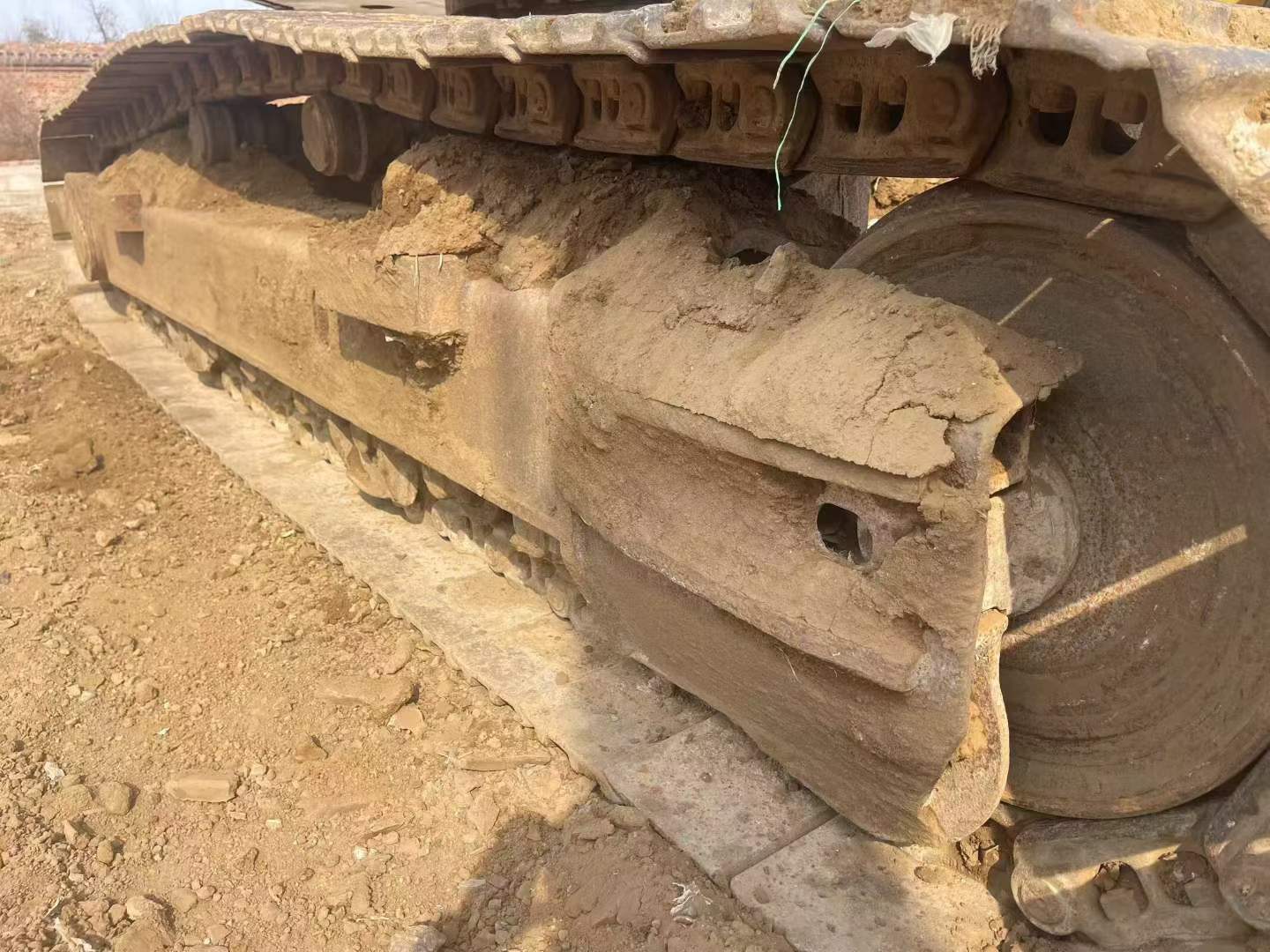

Buy Sany SY335H Used Excavator / 5

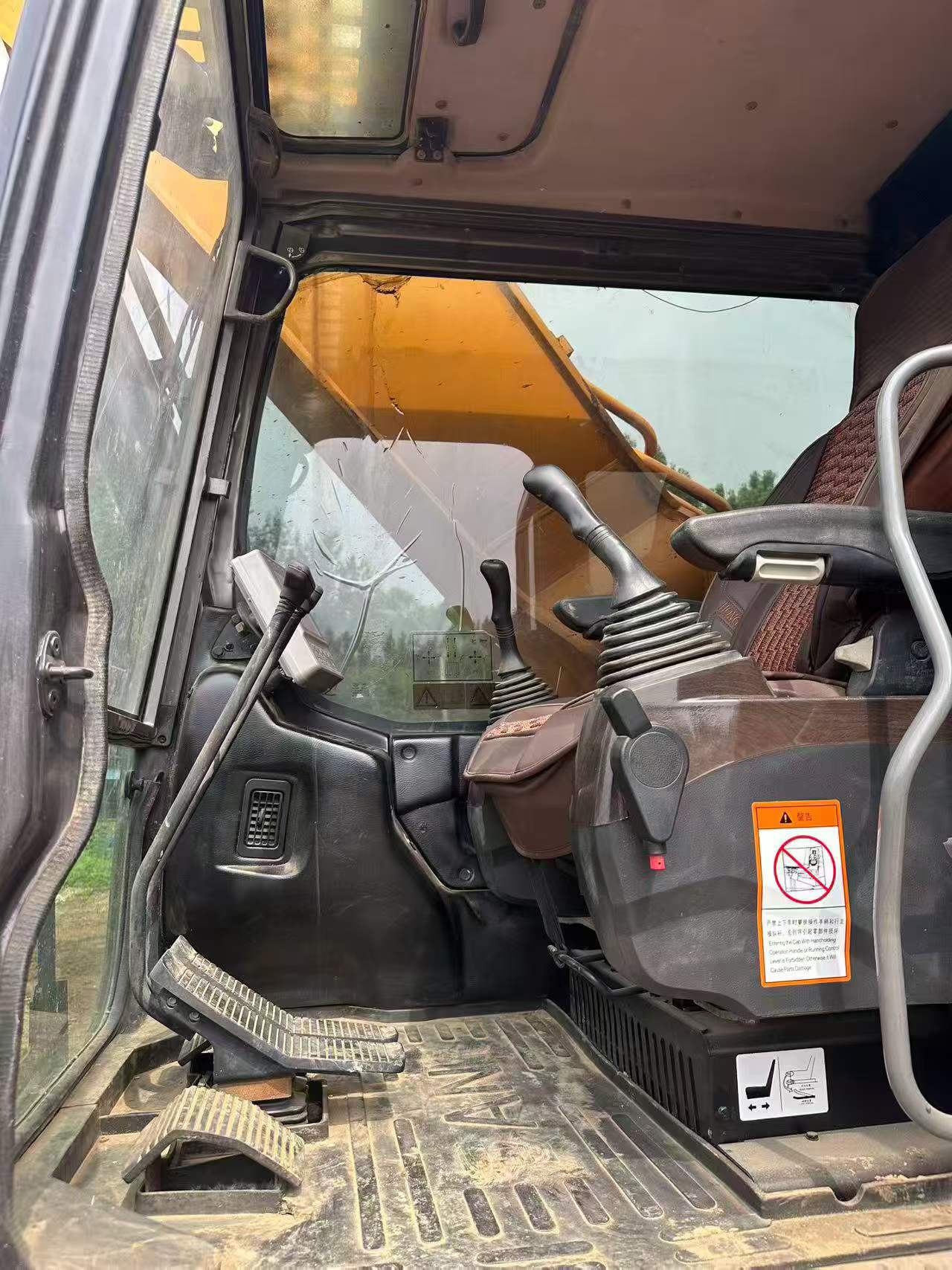

Buy Sany SY335H Used Excavator / 6

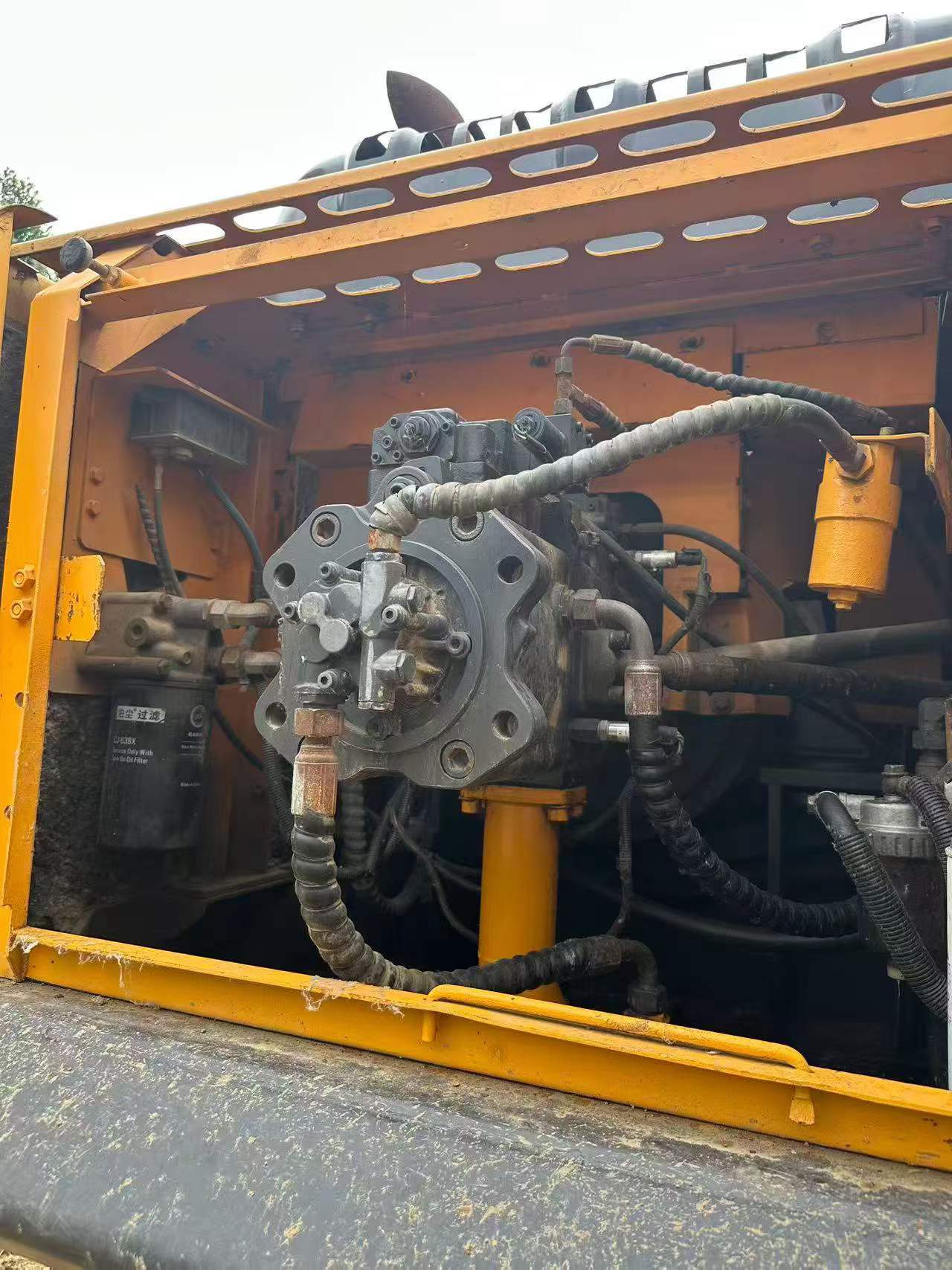

Buy Sany SY335H Used Excavator / 7

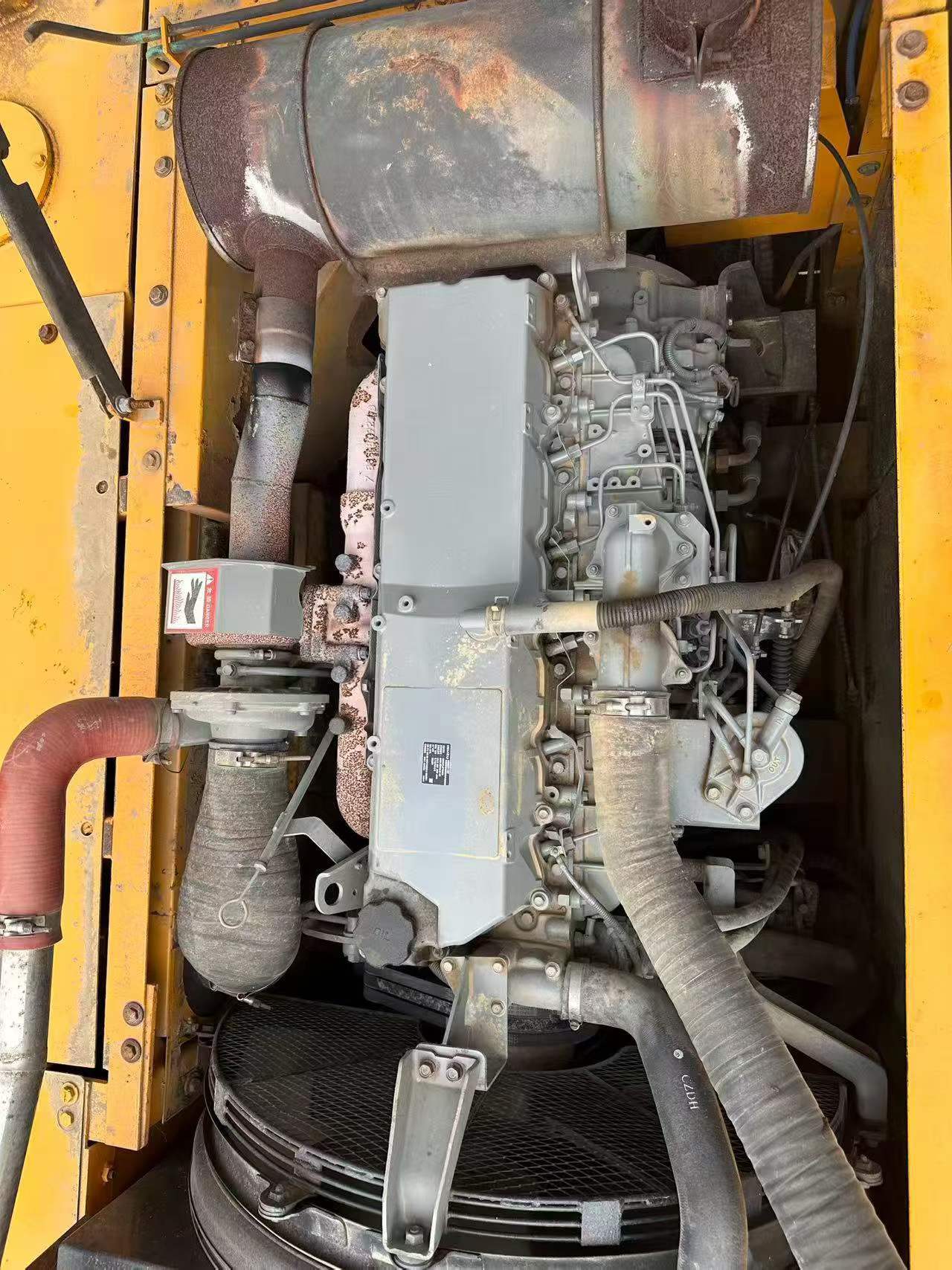

Buy Sany SY335H Used Excavator / 8

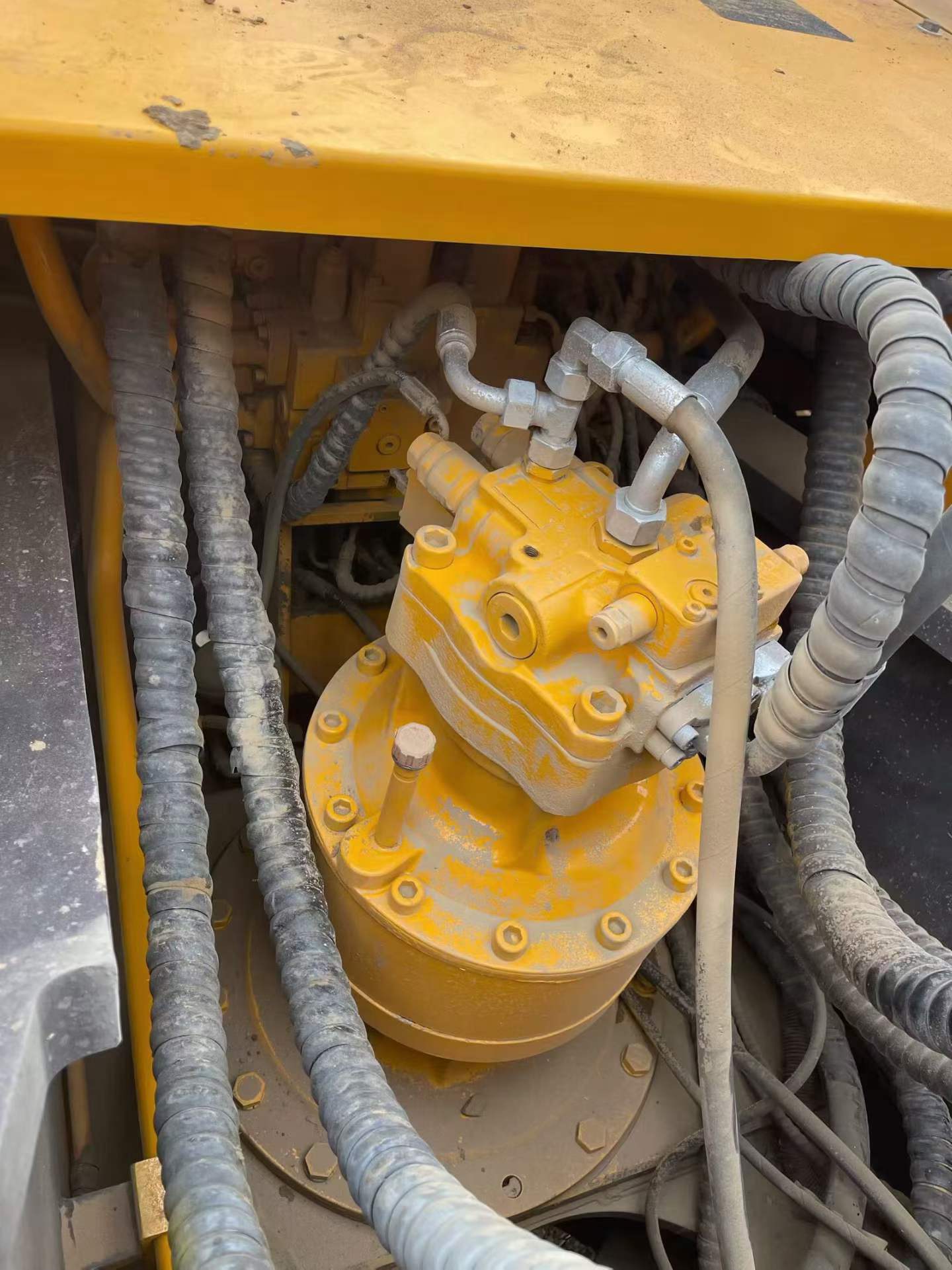

Buy Sany SY335H Used Excavator / 9

Product Description

Discover the 2020 Sany SY335H, a premium excavator currently available in Hebei, China. This machine is in excellent condition, with an overall appearance and functionality that reflects approximately 90% of its original state. The undercarriage is in pristine condition, having been meticulously maintained to ensure optimal performance. Regular servicing has kept all major components in top shape, ensuring no leaks and reliable operation. Ideal for a wide range of construction and excavation tasks, this Sany SY335H is ready to take on your next project with efficiency and durability.

  • Year: 2020
  • Brand: Sany
  • Model: SY335H
  • Location: Hebei, China
  • Condition: 90% new, well-maintained
  • Undercarriage: Excellent condition
  • Suitable for: Construction and excavation
SpecificationsValue
No.1093708
Tonnage (tons)33
Working weight (kg)32500
Bucket capacity (m³)1.85
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu GH-6HK1
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Ground specific pressure (Kpa)60.3
Rotation speed (rpm)9.0
Climbing ability (%)70% (35°)
Bucket digging force (kN)204
Rod digging force (kN)153
Travel speed (km/h)5.4/3.2
Fuel Tank (L)540
Hydraulic Tank (L)380
Engine Oil changes (L)2 x 4.0
Coolant (L)35
Total transport length (mm)10667
Total transport width (mm)3190
Total transport height (mm)3470
Full cab height (mm)3280
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4000
Back end turning radius (mm)3315
Onboard width (mm)3175
Total track length (mm)5040
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4134
Maximum height at minimum turning radius (mm)8405
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10870
Maximum digging depth (mm)6815
Maximum excavation height (mm)10497
Maximum unloading height (mm)7359
Maximum vertical digging depth (mm)6170
