2020 Sany SY335H

1/6

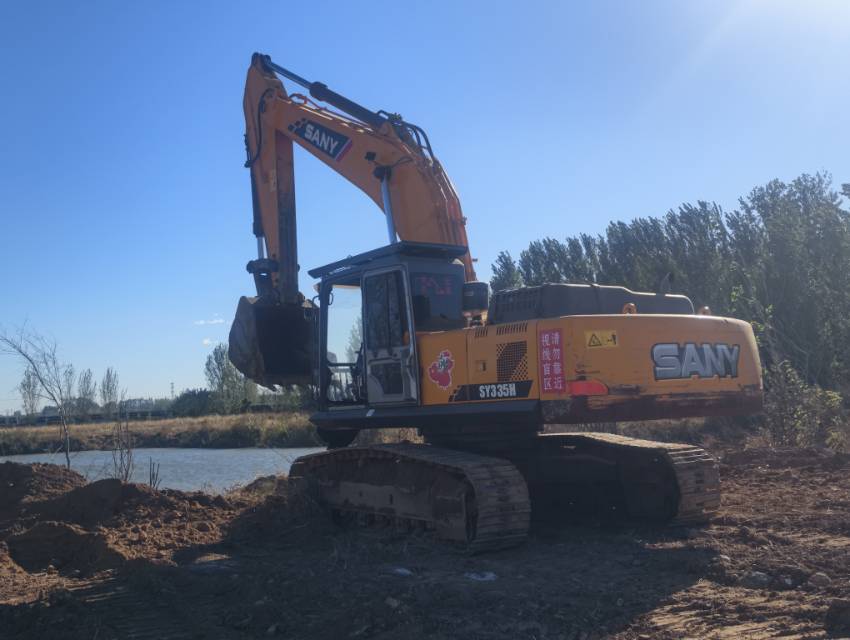

Buy Sany SY335H Used Excavator / 1

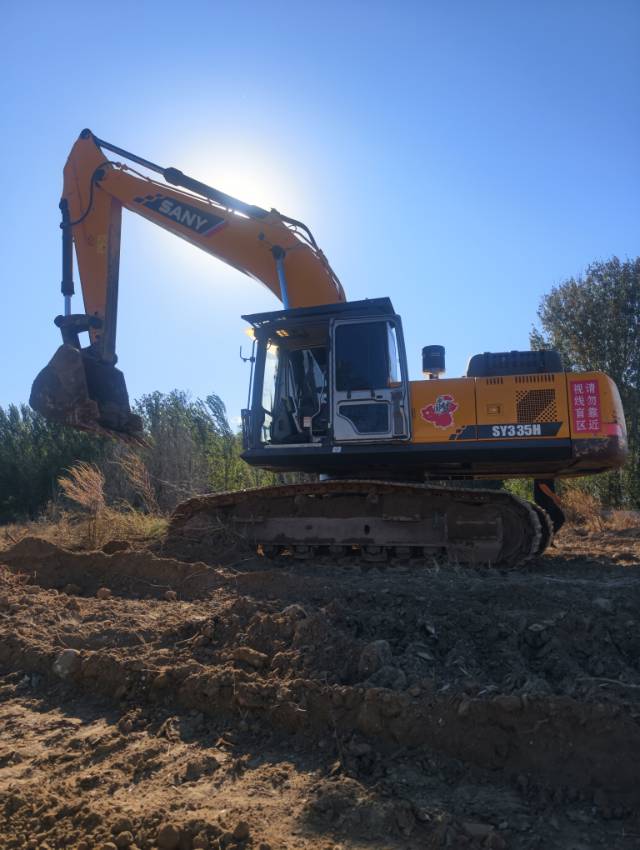

Buy Sany SY335H Used Excavator / 2

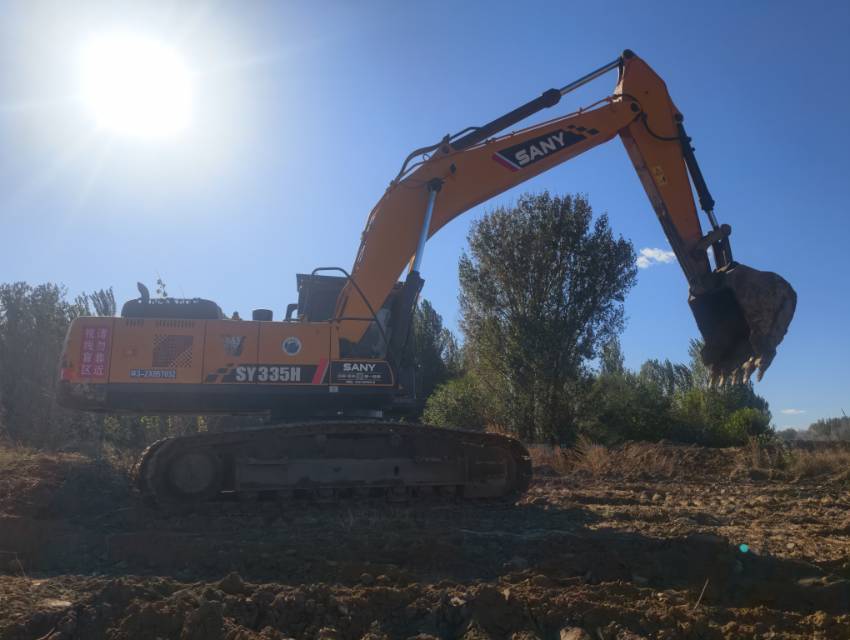

Buy Sany SY335H Used Excavator / 3

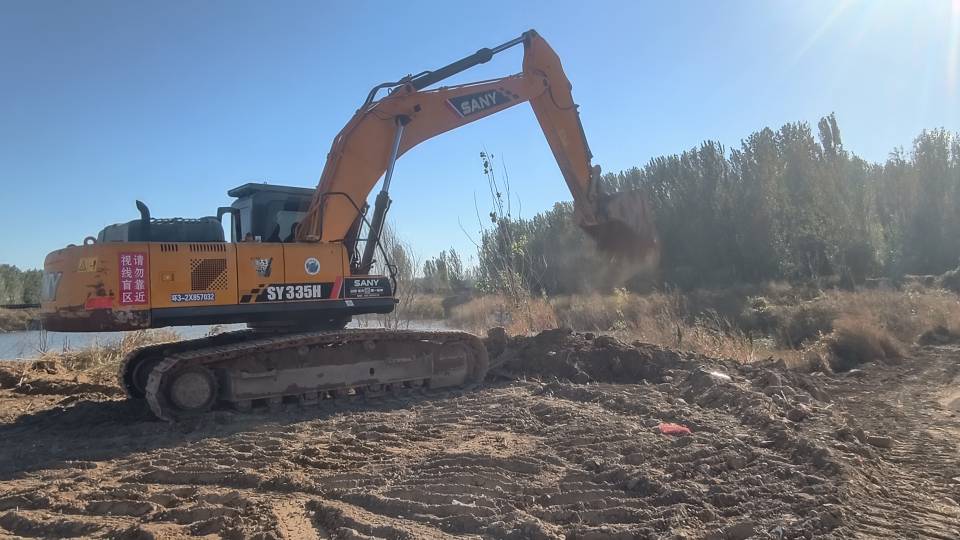

Buy Sany SY335H Used Excavator / 4

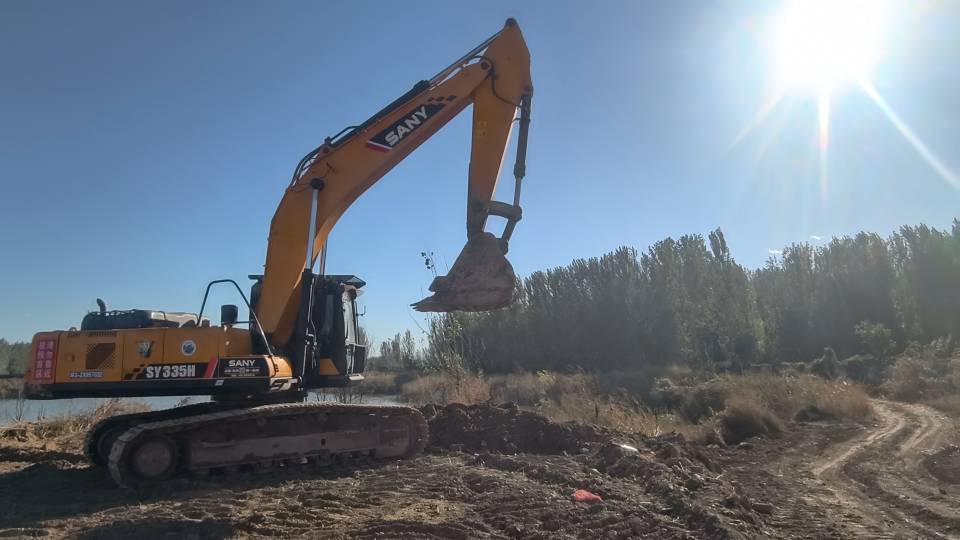

Buy Sany SY335H Used Excavator / 5

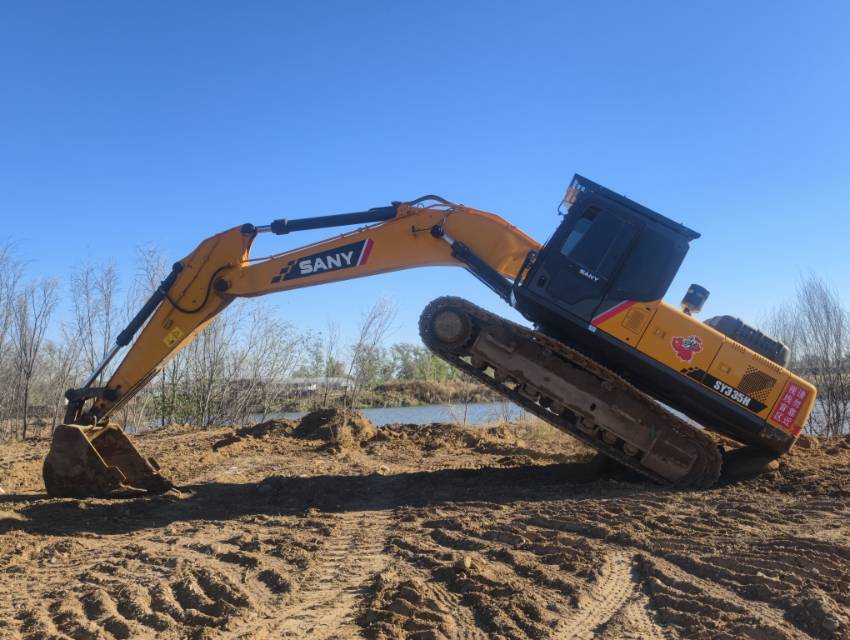

Buy Sany SY335H Used Excavator / 6

Product Description

This 2020 Sany SY335H hydraulic excavator is available from our facility in Beijing, China. With approximately 1,500 operating hours pending on-site verification, this mid-size crawler excavator delivers reliable performance for earthmoving and construction applications. The machine has never been equipped with hydraulic breaker attachments, reducing wear on the hydraulic system and mainframe structure.

Key attributes include:

  • Original factory configuration maintained throughout service life
  • No hydraulic oil leaks reported from pump, cylinders, or hoses
  • Standard bucket and arm setup suitable for general excavation
  • Operational diesel engine and hydraulic systems
  • Available for pre-purchase inspection at Beijing location

This unit represents a cost-effective solution for contractors seeking proven Sany engineering with documented maintenance history. Contact our sales team to schedule a demonstration and discuss shipping logistics to your project site.

SpecificationsValue
No.1161926
Tonnage (tons)33
Working weight (kg)32500
Bucket capacity (m³)1.85
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu GH-6HK1
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Ground specific pressure (Kpa)60.3
Rotation speed (rpm)9.0
Climbing ability (%)70% (35°)
Bucket digging force (kN)204
Rod digging force (kN)153
Travel speed (km/h)5.4/3.2
Fuel Tank (L)540
Hydraulic Tank (L)380
Engine Oil changes (L)2 x 4.0
Coolant (L)35
Total transport length (mm)10667
Total transport width (mm)3190
Total transport height (mm)3470
Full cab height (mm)3280
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4000
Back end turning radius (mm)3315
Onboard width (mm)3175
Total track length (mm)5040
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4134
Maximum height at minimum turning radius (mm)8405
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10870
Maximum digging depth (mm)6815
Maximum excavation height (mm)10497
Maximum unloading height (mm)7359
Maximum vertical digging depth (mm)6170
see more

Overview

No.1161926

Brand Name:

Sany

Model Number:

SY335H

Year:

2020

Hour:

6200h

Location:

Peking China

Pub Date:
