2020 Sany SY35U-10

1/5

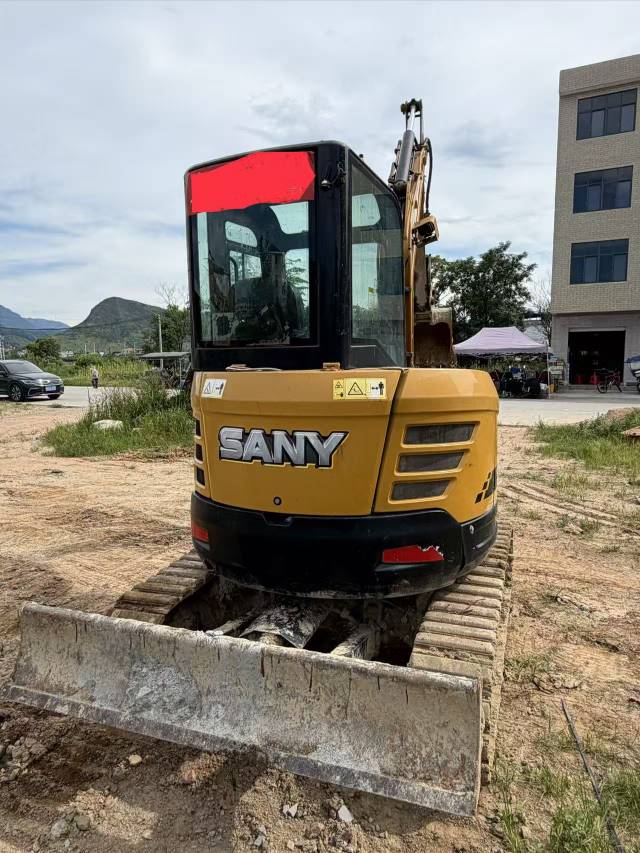

Buy Sany SY35U-10 Used Excavator / 1

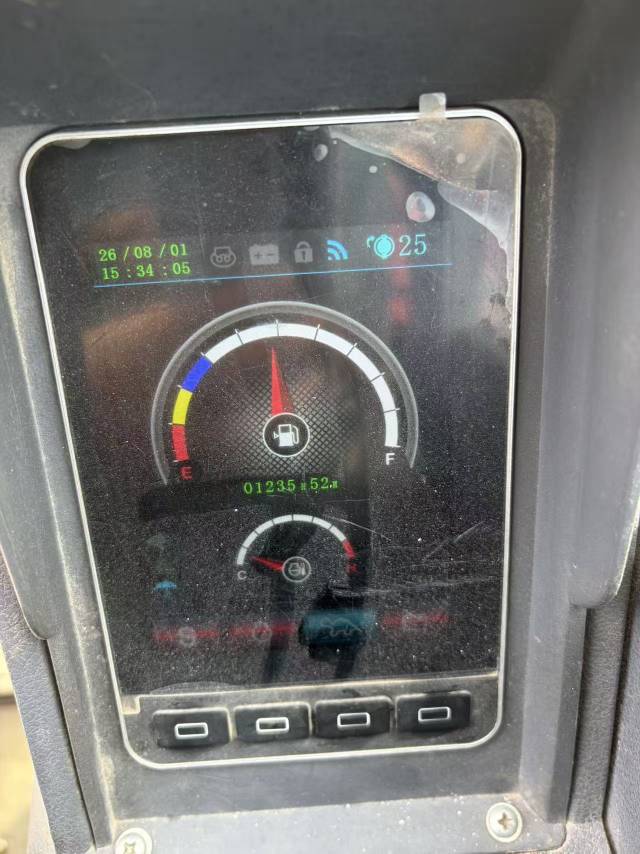

Buy Sany SY35U-10 Used Excavator / 2

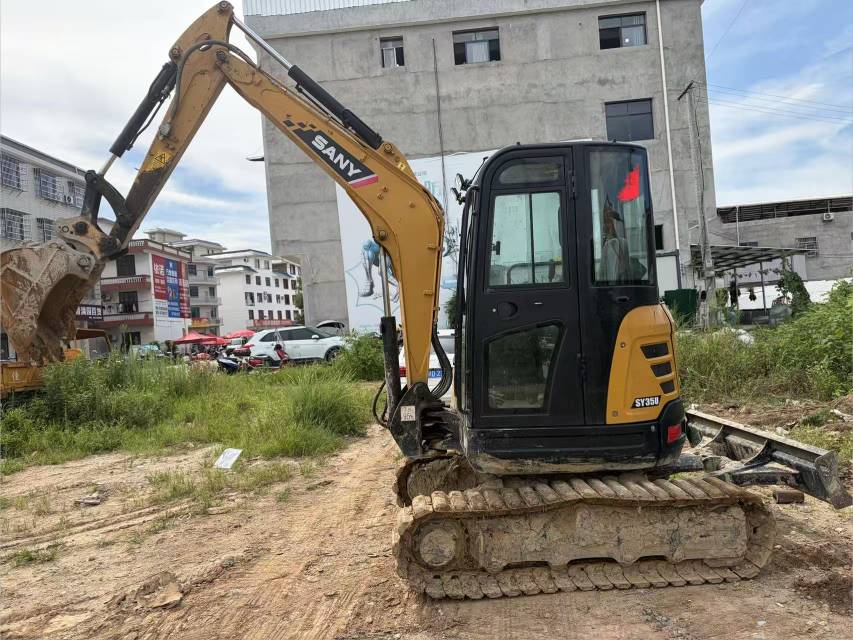

Buy Sany SY35U-10 Used Excavator / 3

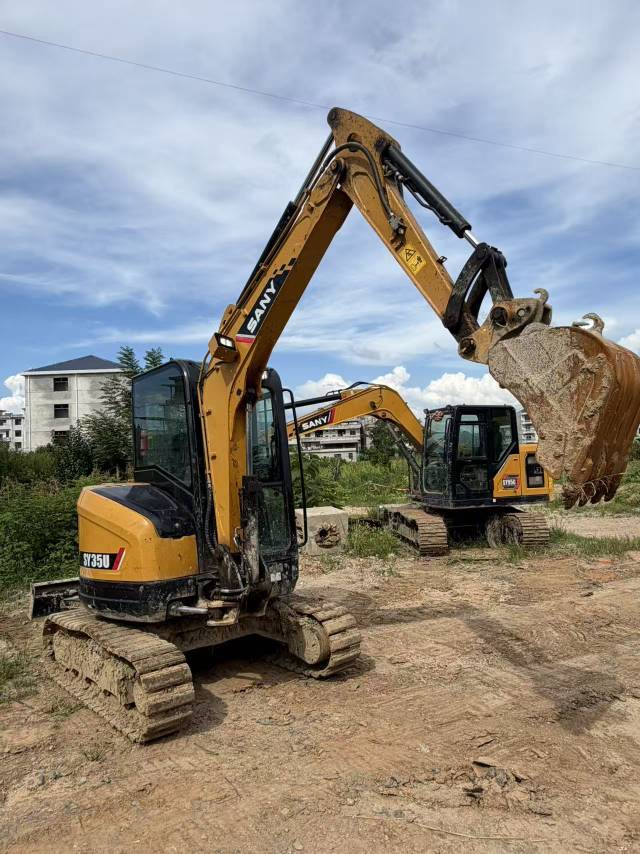

Buy Sany SY35U-10 Used Excavator / 4

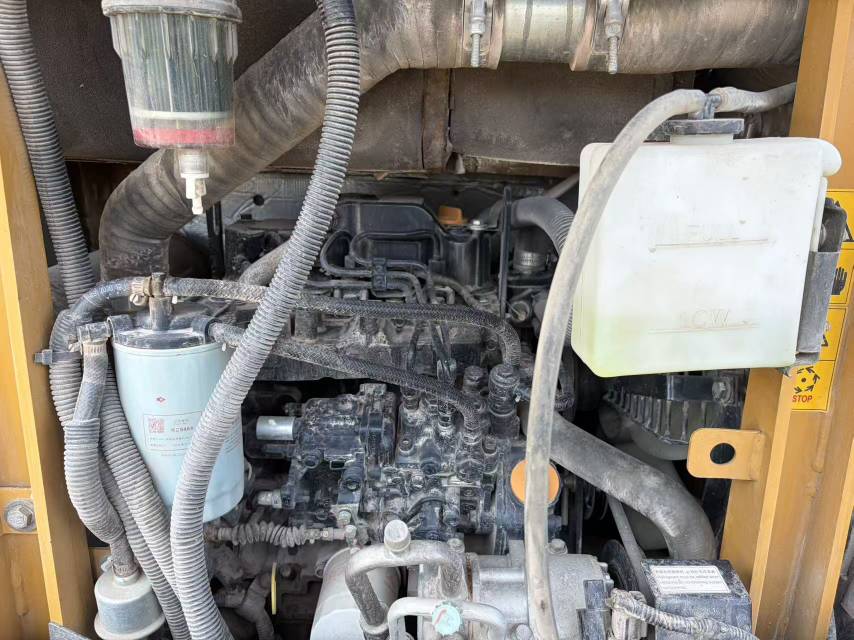

Buy Sany SY35U-10 Used Excavator / 5

Product Description

Discover the reliability and efficiency of the 2020 Sany SY35U-10, a used mini excavator available in Jiangxi, China. With just over 1,000 working hours, this machine is in excellent condition, ensuring minimal wear and a long operational life ahead. Ideal for construction, landscaping, and utility projects, the SY35U-10 offers robust performance with Sany’s hallmark durability.

  • Year: 2020
  • Brand: Sany
  • Model: SY35U-10
  • Location: Jiangxi, China
  • Working Hours: Over 1,000 hours
  • Condition: Excellent, inspection not required
SpecificationsValue
No.1136042
Tonnage (tons)3
Working weight (kg)3500
Bucket capacity (m³)0.12
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type3TNV88 Stages3A EPA int4
Rated power (kw/rpm)20.4/2200
Cooling modewater-cooling
Maximum torque (N.m)107/1300
Displacement (L)1.642
Ground specific pressure (Kpa)32
Rotation speed (rpm)9
Climbing ability (%)58
Bucket digging force (kN)30.4
Rod digging force (kN)18.2
Travel speed (km/h)4.4 /2.4
Fuel Tank (L)40
Hydraulic Tank (L)40
Engine Oil changes (L)6
Total transport length (mm)4915
Total transport width (mm)1720
Total transport height (mm)2515
Minimum ground clearance (mm)295
Minimum turning radius of front working device (mm)2475
Back end turning radius (mm)860
Total track length (mm)2155
Track gauge (mm)1420
Track plate width (mm)300
Track ground length (mm)1670
Maximum height at minimum turning radius (mm)3685
Number of wheels (single side) (each)4
Maximum digging radius (mm)5465
Maximum digging depth (mm)3105
Maximum excavation height (mm)4855
Maximum unloading height (mm)3460
Maximum vertical digging depth (mm)2700
Bulldozer lift or depth (mm)375/370
Dodging plate width × height (mm)Height: 350
see more

Overview

No.1136042

Brand Name:

Sany

Model Number:

SY35U-10

Year:

2020

Location:

Jiangxi China

Pub Date
