Product Description

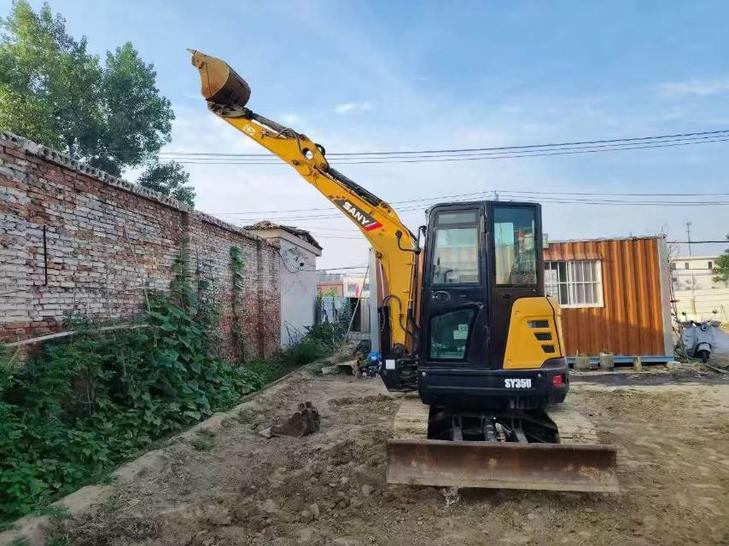

This 2022 Sany SY35U mini excavator is available for sale from Hebei, China. As a well-maintained operator-owned machine, this compact excavator has been utilized for professional construction work and demonstrates reliable performance in the field.
The SY35U is recognized in the industry for its versatility in confined job sites, offering efficient digging capabilities and maneuverability for urban construction, landscaping, and utility installation projects. With its 3.5-ton operating weight class, this model provides an optimal balance of power and accessibility.
Key features include:
- 2022 model year with documented work history
- Compact design suitable for tight working environments
- Proven Sany engineering and build quality
- Currently located in Hebei Province, China
- Ready for inspection and export arrangements
Contact us for detailed specifications, current machine hours, and shipping options to your location.
| Specifications | Value |
|---|---|
| No. | 1144543 |
| Tonnage (tons) | 3 |
| Working weight (kg) | 3780 |
| Bucket capacity (m³) | 0.06-0.15(0.12) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV88 Stages3A EPA int4 |
| Rated power (kw/rpm) | 20.4/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 107/1300 |
| Displacement (L) | 1.642 |
| Ground specific pressure (Kpa) | 32 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 30.4 |
| Rod digging force (kN) | 18.2 |
| Travel speed (km/h) | 4.4/2.4 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 40 |
| Engine Oil changes (L) | 6 |
| Total transport length (mm) | 4915 |
| Total transport width (mm) | 1720 |
| Total transport height (mm) | 2515 |
| Minimum ground clearance (mm) | 295 |
| Back end turning radius (mm) | 860 |
| Total track length (mm) | 2155 |
| Track gauge (mm) | 1420 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1670 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 4 |
| Maximum digging radius (mm) | 5465 |
| Maximum digging depth (mm) | 3105 |
| Maximum excavation height (mm) | 4855 |
| Maximum unloading height (mm) | 3460 |
| Maximum vertical digging depth (mm) | 2700 |
| Bulldozer lift or depth (mm) | 375/370 |
