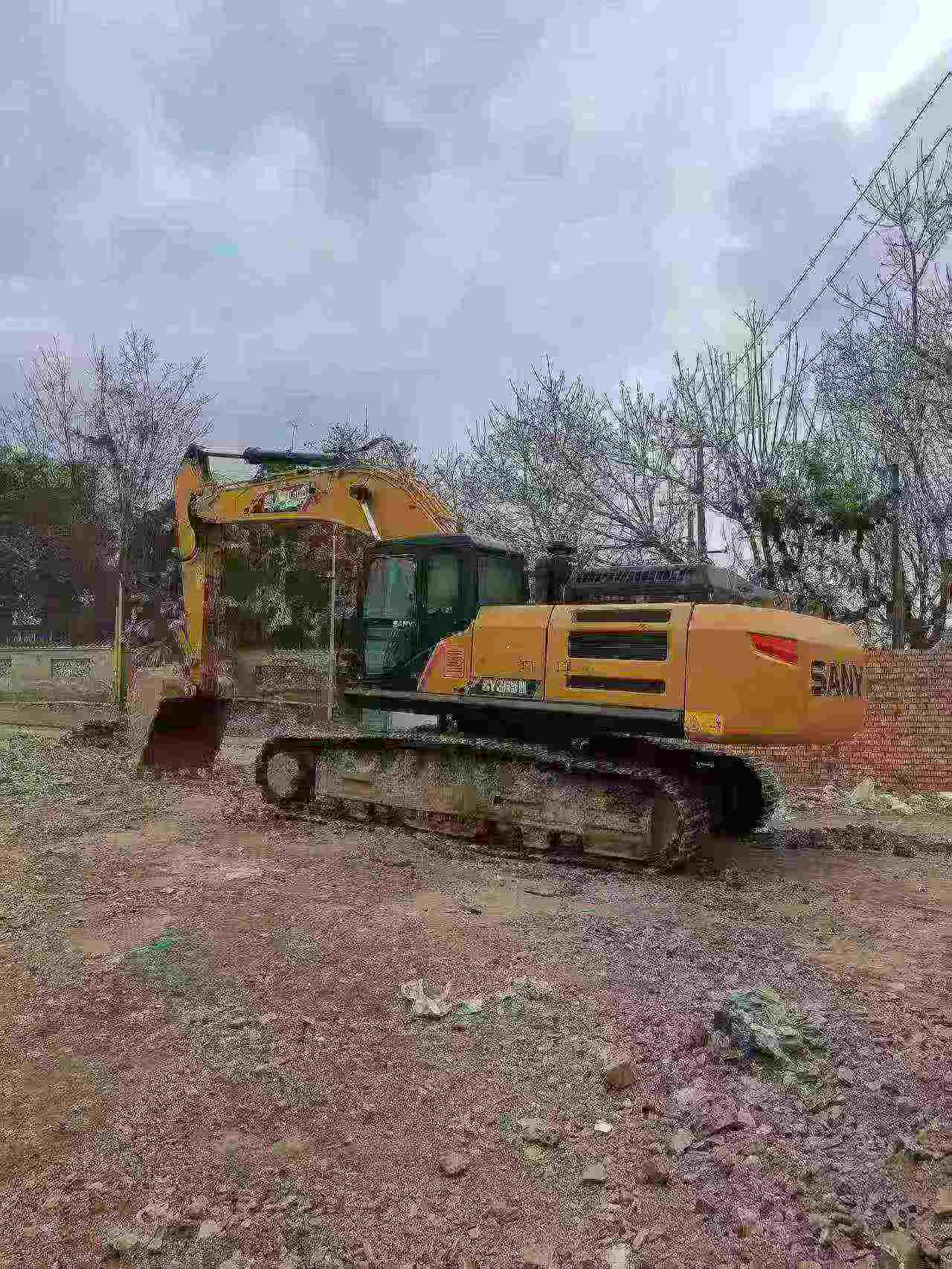

Product Description
Built for serious earthmoving, the 2017 Sany SY365H is a 36-ton hydraulic excavator that holds its value in the used market — backed by Sany's global parts network and a reputation for reliable, cost-effective ownership. Sourced directly from Sichuan, China, this machine comes from one of the world's largest heavy equipment manufacturers, meaning replacement components are widely available and service intervals are straightforward to maintain.
Powered by an Isuzu GH-6HK1XKSC water-cooled diesel engine producing 212 kW at 2000 rpm with 1080 N·m of peak torque, the SY365H delivers consistent digging performance across demanding job sites. A 690-liter fuel tank supports extended operation without frequent refueling stops.
- Bucket digging force: 235 kN — rod digging force: 180 kN
- Bucket capacity: 1.6–2.32 m³ (backhoe configuration)
- Maximum digging depth: 7,050 mm — maximum digging radius: 10,780 mm
- Maximum excavation height: 9,890 mm — unloading height: 6,920 mm
- Travel speed: 5.5 / 3.5 km/h — climbing ability: 70% (35°)
- Ground pressure: 65 kPa — track plate width: 600 mm
- Transport dimensions: 11,530 × 3,190 × 3,545 mm
Sany's strong dealer presence across Asia, the Middle East, Africa, and beyond makes the SY365H a practical choice for buyers who prioritize parts availability and resale liquidity. For contractors seeking a proven large-class excavator with global support infrastructure, this unit is a dependable, low-risk acquisition.
| Specifications | Value |
|---|---|
| No. | 1060120 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36000 |
| Bucket capacity (m³) | 1.6~2.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 690 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11530 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3545 |
| Full cab height (mm) | 3320 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4495 |
| Back end turning radius (mm) | 3560 |
| Onboard width (mm) | 3150 |
| Total track length (mm) | 5065 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10780 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 9890 |
| Maximum unloading height (mm) | 6920 |
| Maximum vertical digging depth (mm) | 3970 |
