Product Description

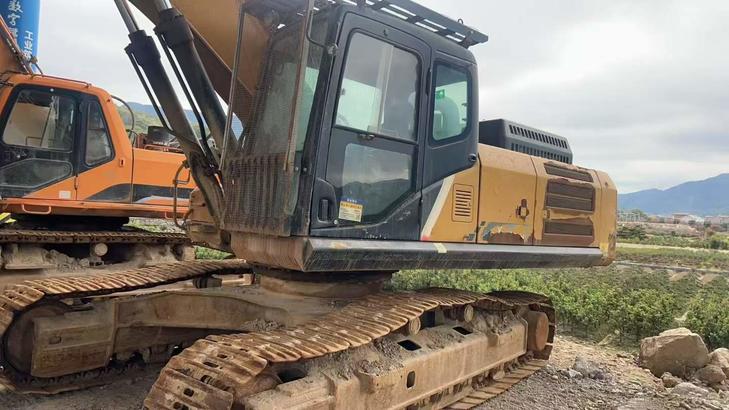

Available now in Zhejiang Ningbo, this 2020 Sany SY365H excavator delivers 36-ton performance without factory wait times. Powered by a robust GH-6HK1XKSC engine producing 212 kW at 2000 rpm, this machine offers immediate deployment to your worksite. Skip months of lead times and put 235 kN of bucket digging force to work on your project today.
Key specifications include:
- Operating weight: 36,000 kg with 1.6~2.32 m³ bucket capacity
- Maximum digging reach: 10,780 mm; digging depth: 7,050 mm
- Water-cooled engine: 7.79L displacement, 1,080 N·m maximum torque
- Fuel capacity: 690L for extended operation cycles
- Transport dimensions: 11,530 × 3,190 × 3,545 mm
Positioned in one of China's major logistics hubs, this ready-to-ship excavator ensures fast container loading and streamlined export documentation. Secure this high-capacity crawler excavator now and maintain your project timeline with immediate equipment availability.
| Specifications | Value |
|---|---|
| No. | 1022361 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36000 |
| Bucket capacity (m³) | 1.6~2.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 690 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11530 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3545 |
| Full cab height (mm) | 3320 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4495 |
| Back end turning radius (mm) | 3560 |
| Onboard width (mm) | 3150 |
| Total track length (mm) | 5065 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10780 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 9890 |
| Maximum unloading height (mm) | 6920 |
| Maximum vertical digging depth (mm) | 3970 |
