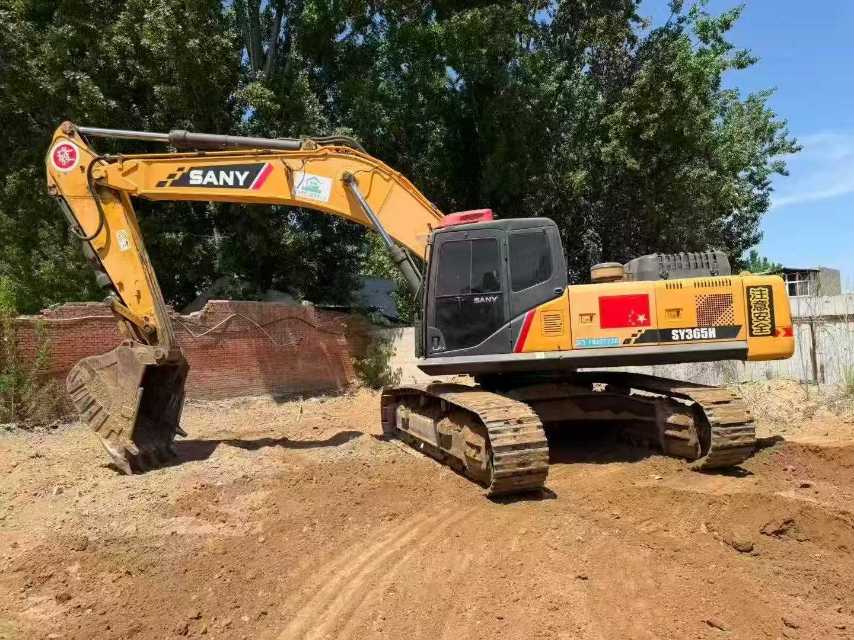

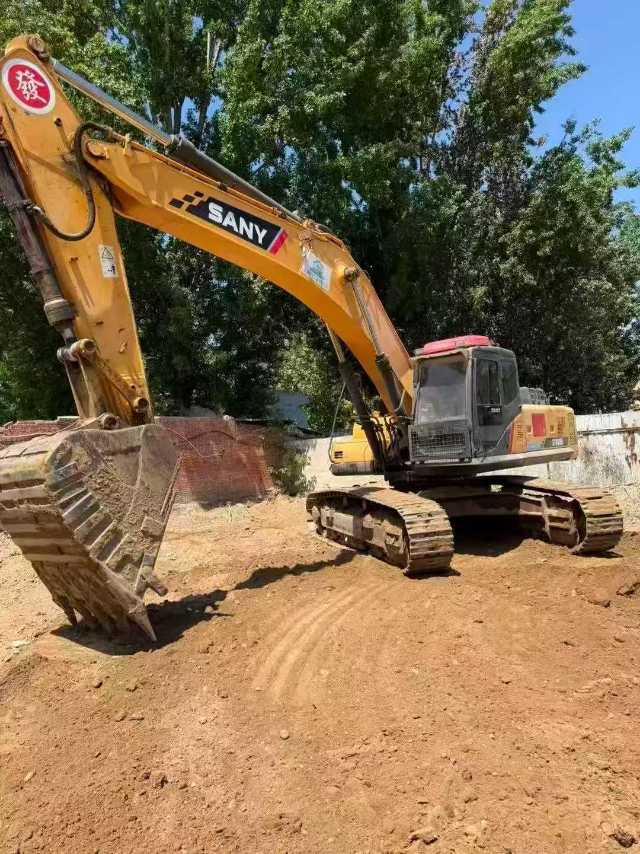

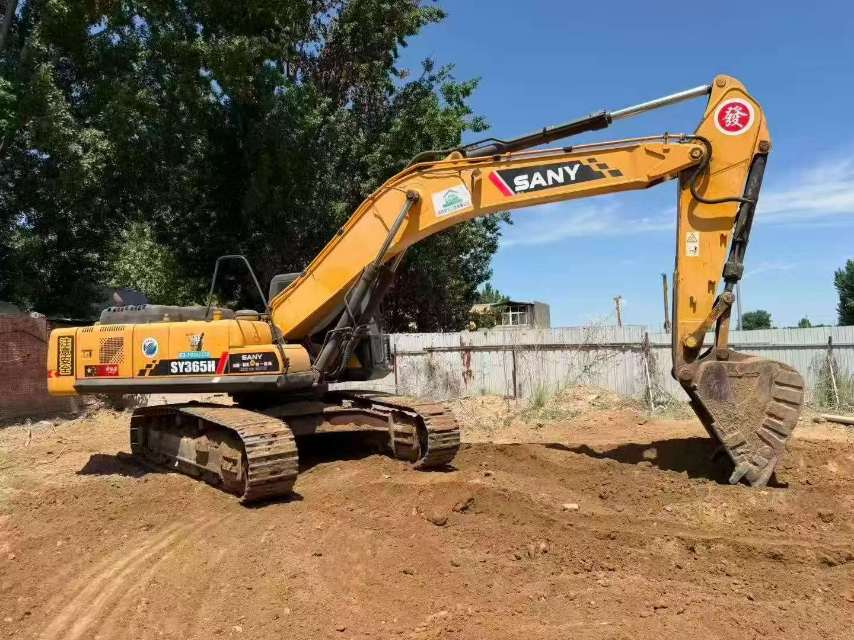

2020 Sany SY365H-9

1/9
Buy Sany SY365H-9 Used Excavator / 1

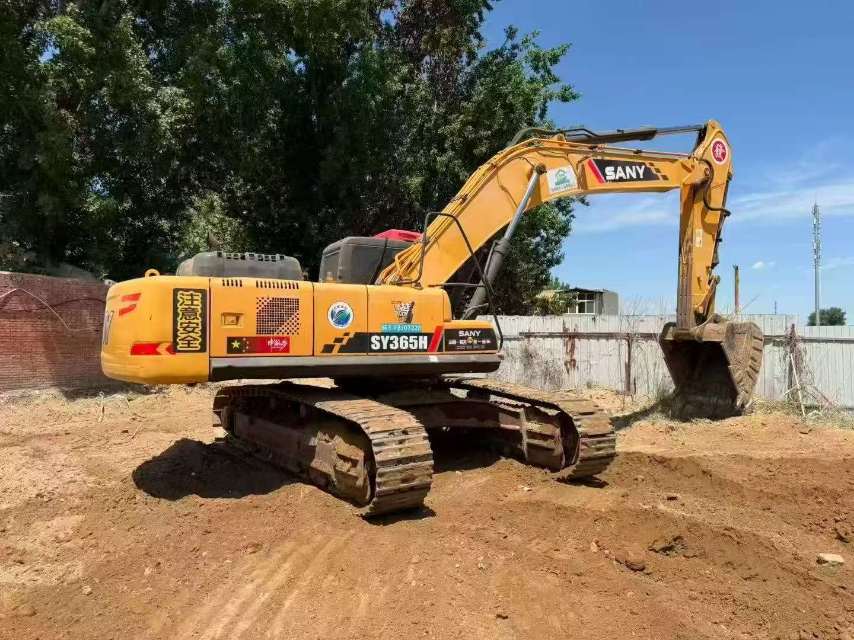

Buy Sany SY365H-9 Used Excavator / 2
Buy Sany SY365H-9 Used Excavator / 3
Buy Sany SY365H-9 Used Excavator / 4
Buy Sany SY365H-9 Used Excavator / 5
Buy Sany SY365H-9 Used Excavator / 6
Buy Sany SY365H-9 Used Excavator / 7
Buy Sany SY365H-9 Used Excavator / 8
Buy Sany SY365H-9 Used Excavator / 9

Product Description

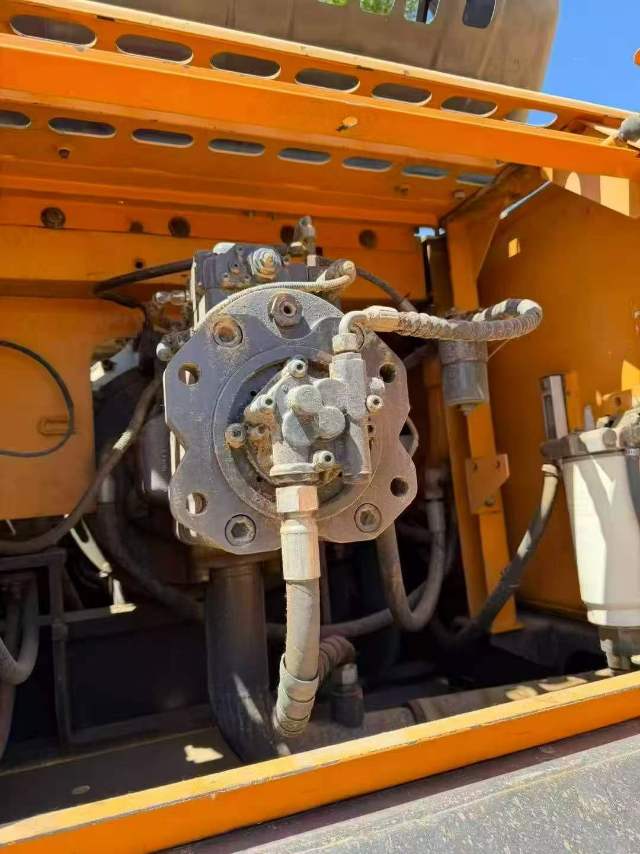

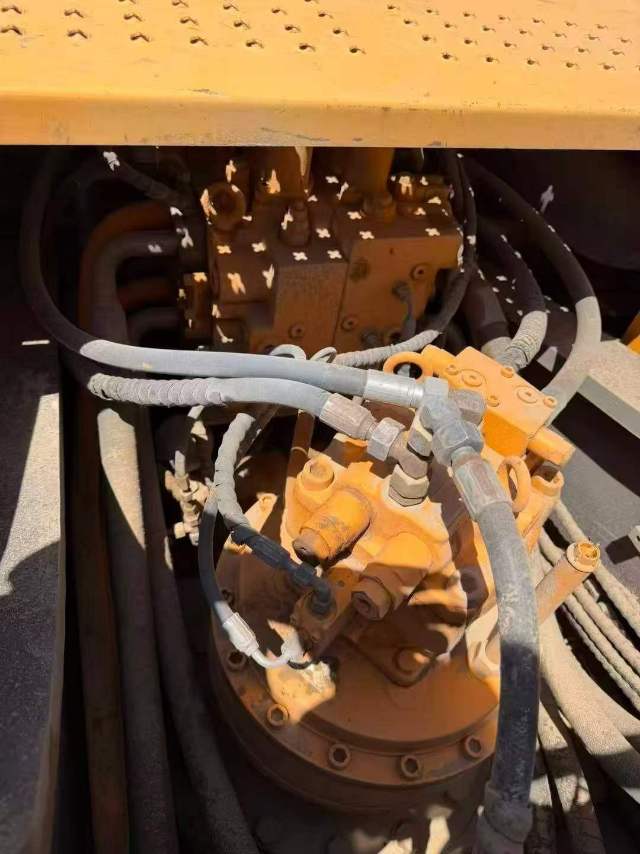

This 2020 Sany SY365H-9 excavator represents exceptional value in the used heavy equipment market. Sourced from Beijing, China, this machine showcases excellent overall condition with core components remaining untouched since manufacture. The hydraulic system, engine, and drivetrain deliver reliable performance that meets operational standards without requiring immediate service intervention.

Key highlights include:

  • Original major components with no overhaul history
  • Structural integrity maintained with minimal wear on body panels

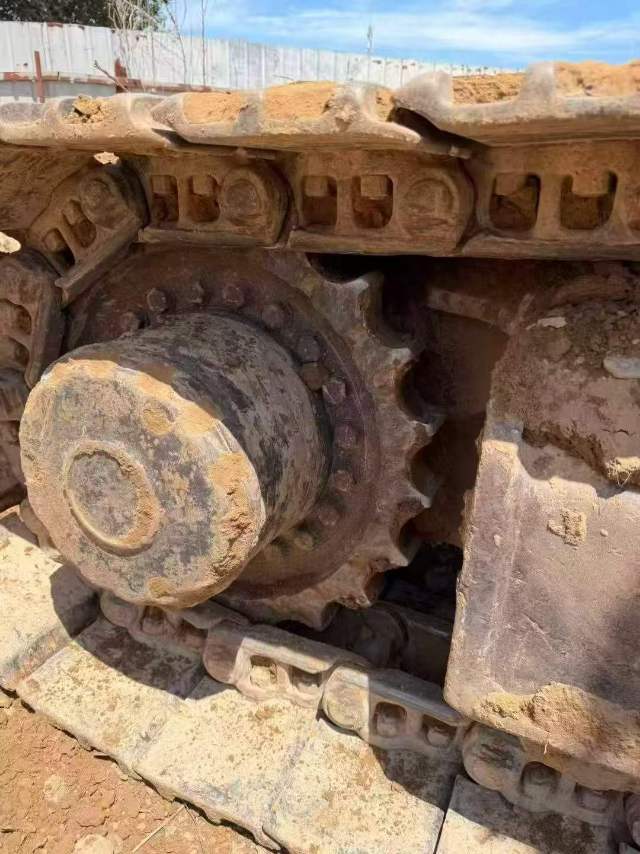

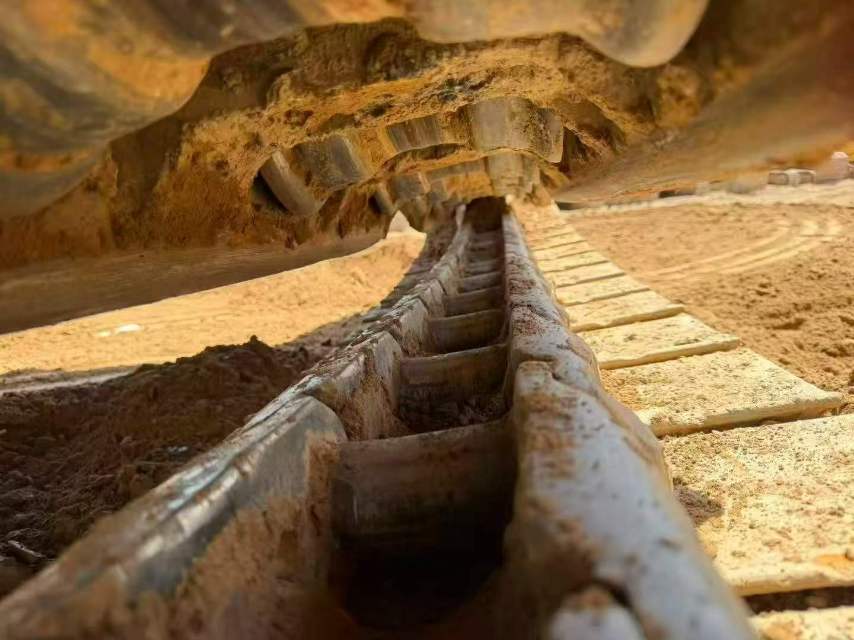

  • Track assembly showing approximately 80-90% remaining life
  • Ready for immediate deployment in excavation and earthmoving operations
  • Well-maintained appearance reflecting careful operation history

This SY365H-9 is positioned for contractors seeking a mid-sized excavator with proven reliability and minimal downtime risk. The machine's condition allows for direct integration into active jobsites without preliminary refurbishment requirements.

SpecificationsValue
No.1170852
Tonnage (tons)36
Working weight (kg)35000
Bucket capacity (m³)1.6(Rock)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe

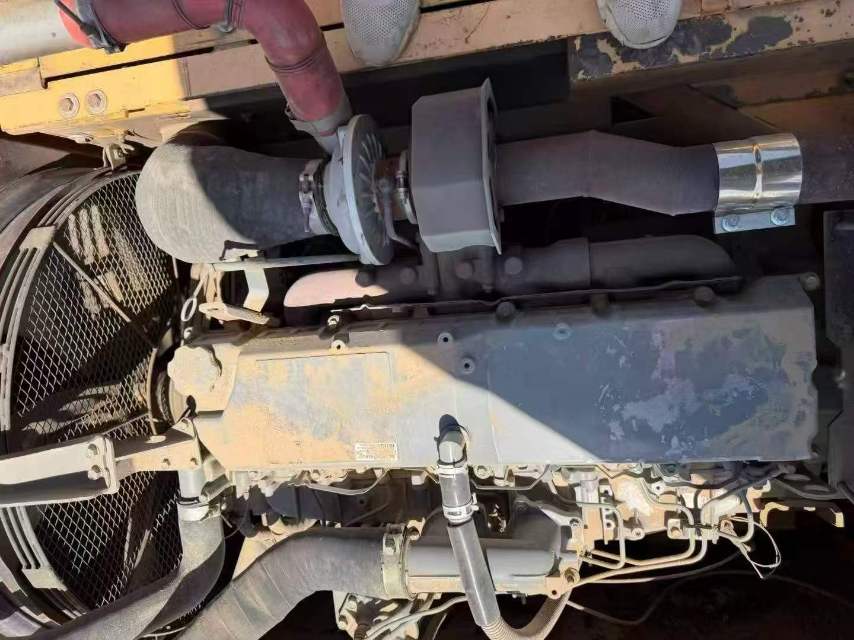

Engine typeIsuzu
Rated power (kw/rpm)190.5/2000
Cooling modewater-cooling
Number of cylinders (PCS)6-cylinder
Working formFour stroke six cylinder turbocharged intercooled direct injection engine
Ground specific pressure (Kpa)63
Rotation speed (rpm)9.5
Climbing ability (%)70/35 °
Bucket digging force (kN)235
Rod digging force (kN)180
Travel speed (km/h)5.5/3.5
Total transport length (mm)11360
Total transport width (mm)3190
Total transport height (mm)3550
Full cab height (mm)3320
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4330
Back end turning radius (mm)3380
Onboard width (mm)3150
Total track length (mm)5065
Track gauge (mm)2590
Track plate width (mm)600 (800/700 optional)
Total track width (mm)3190
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8600
Maximum digging radius (mm)10610
Maximum digging depth (mm)7040
Maximum excavation height (mm)9900
Maximum unloading height (mm)6930
Maximum vertical digging depth (mm)5180
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
see more

Overview

No.1170852

Brand Name:

Sany

Model Number:

SY365H-9

Year:

2020

Location:

Peking China

Pub Date:
