Product Description
From the operator's seat, the SY375H delivers what production digging demands: precise control, planted stability, and a cab that keeps fatigue low through long shifts. Sany's 37-ton class machine pairs a turbocharged 212 kW engine with a matched hydraulic system, so swing response tracks the joystick without lag.

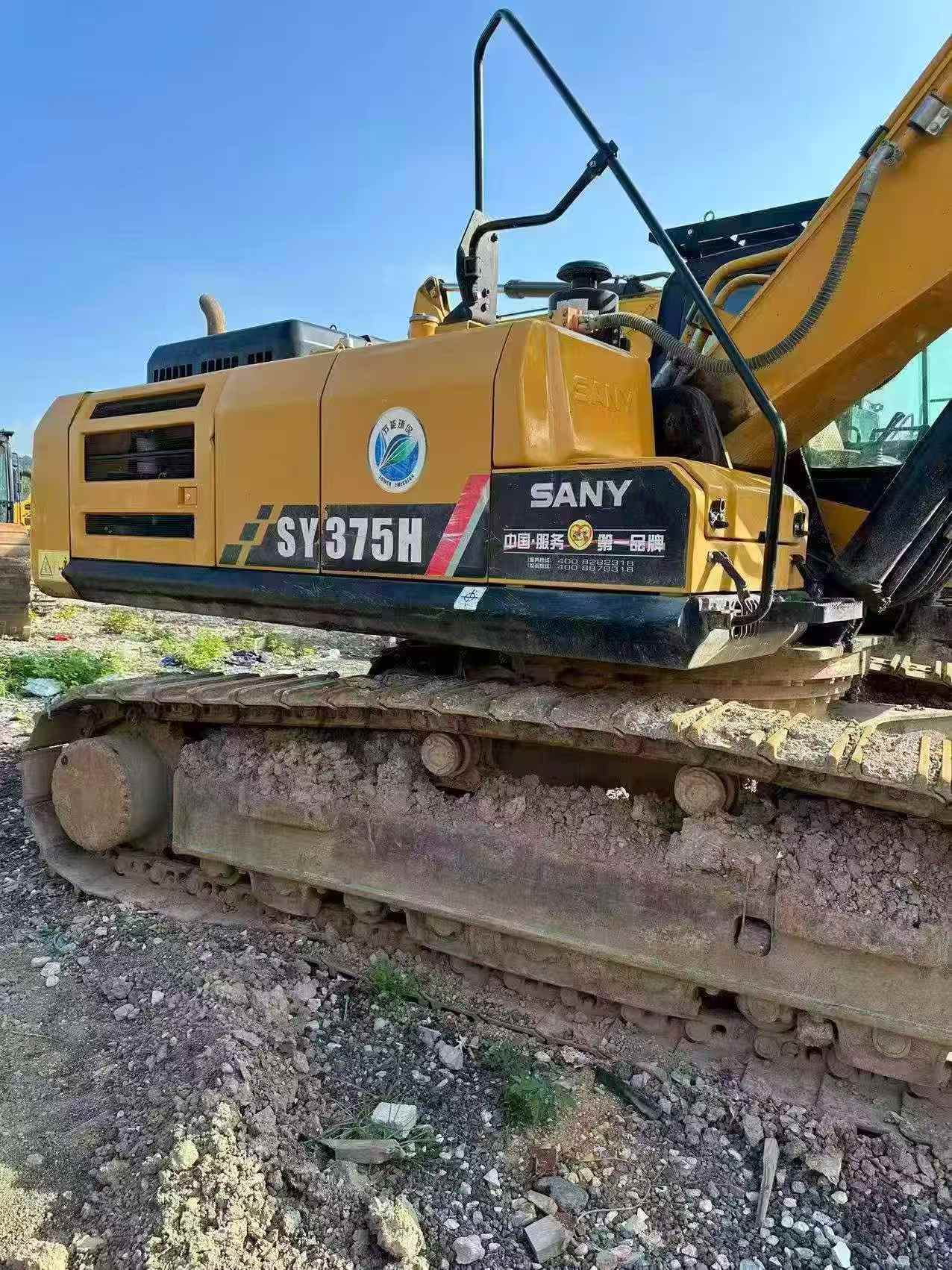

- Stable footprint: 600 mm track plates and a 4140 mm ground contact length spread 37.5 tons of working weight evenly — ground specific pressure holds at 68.8 kPa, keeping the machine settled on soft footing.
- Confident control: a 70% climbing ability and dual-speed travel (5.5/3.5 km/h) let the operator reposition quickly, while 235 kN bucket digging force breaks through tough material without stalling.

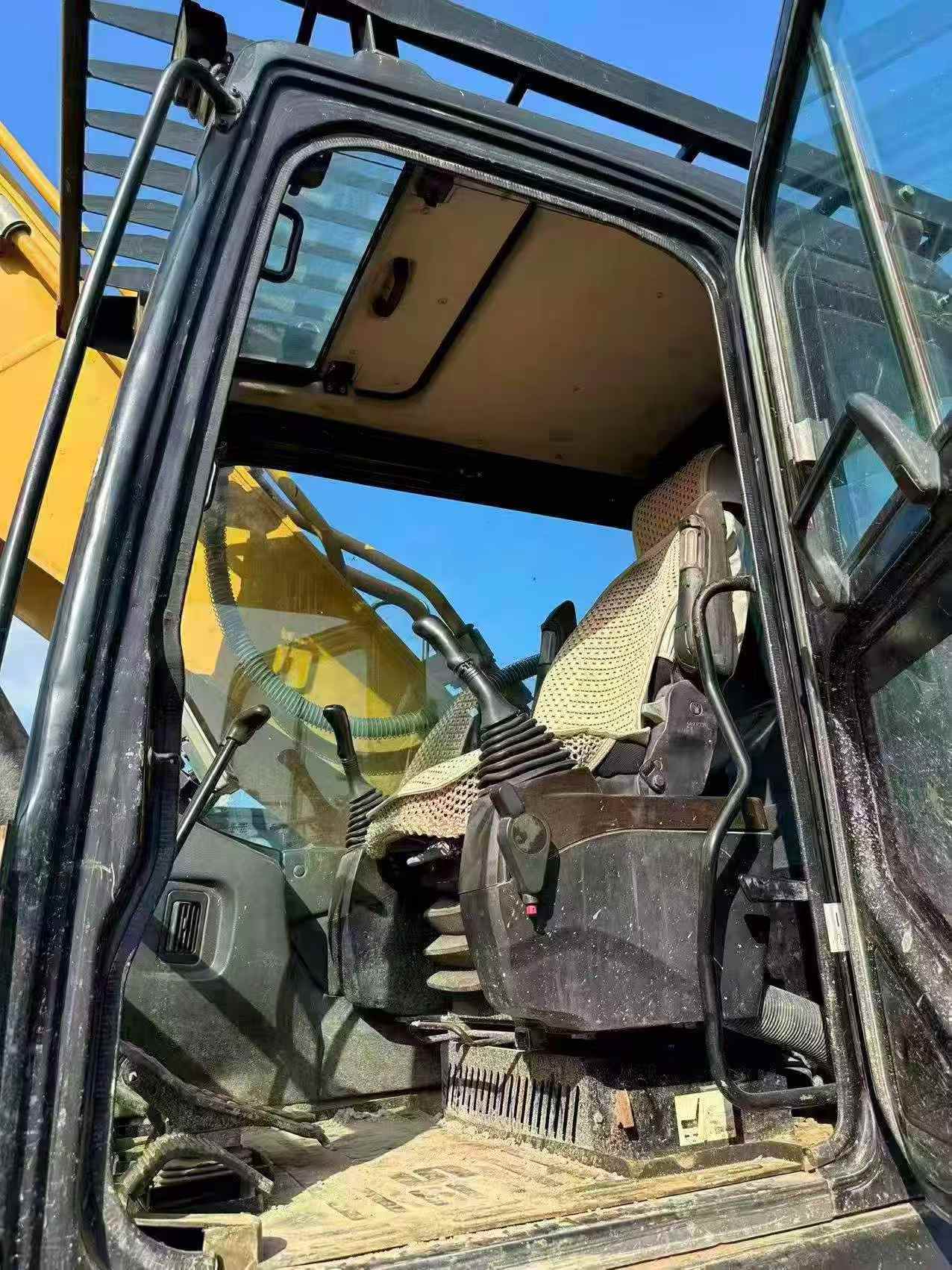

- Visibility from the cab: full-height glazing and a low-profile engine hood keep a clear line of sight to the bucket and trench edge; a 4390 mm front turning radius makes tight placements predictable.

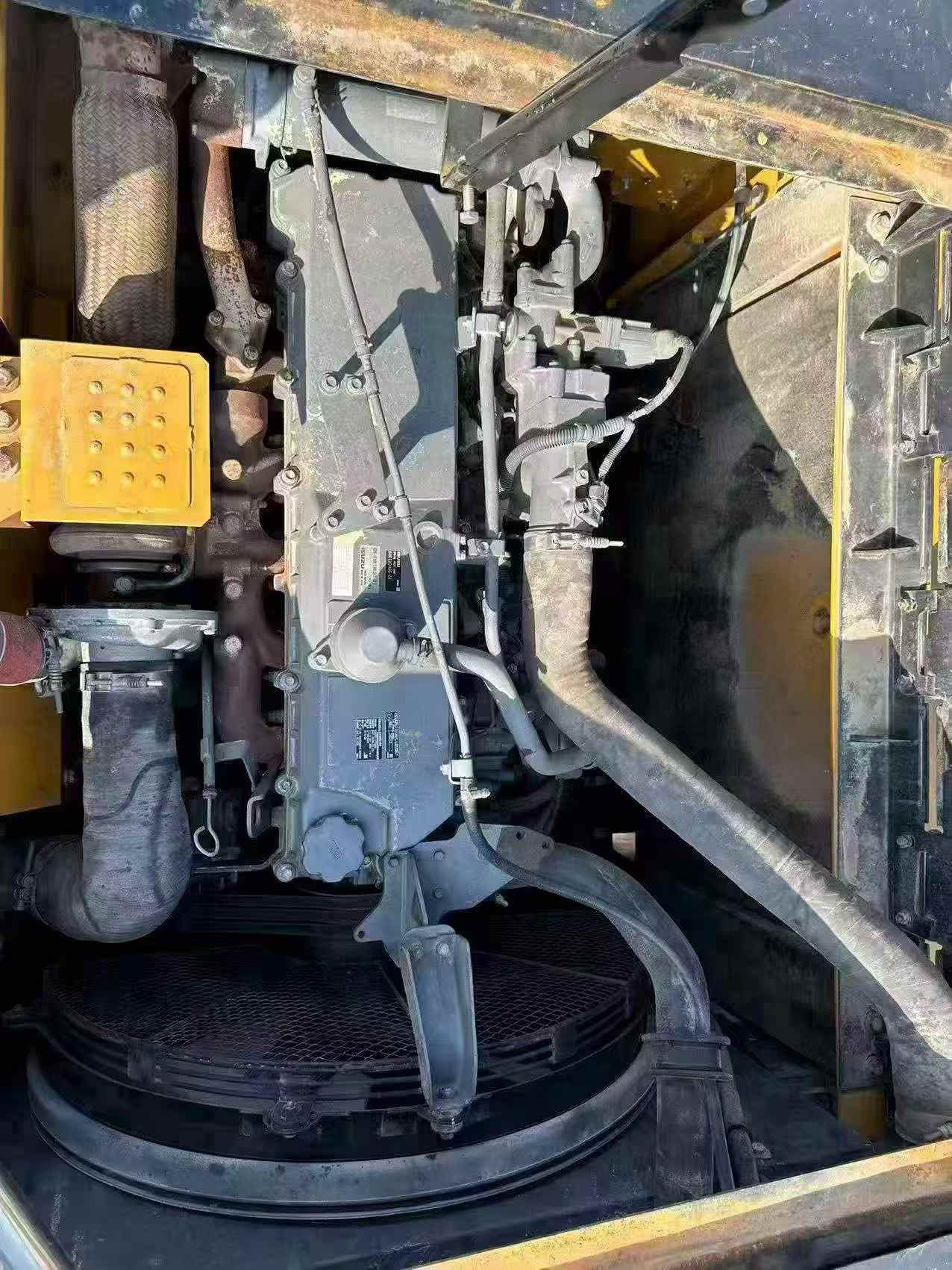

- Built for long days: the 540 L fuel tank sustains extended cycles, and the water-cooled, direct-injection six-cylinder runs with the vibration isolation typical of this Sany generation.

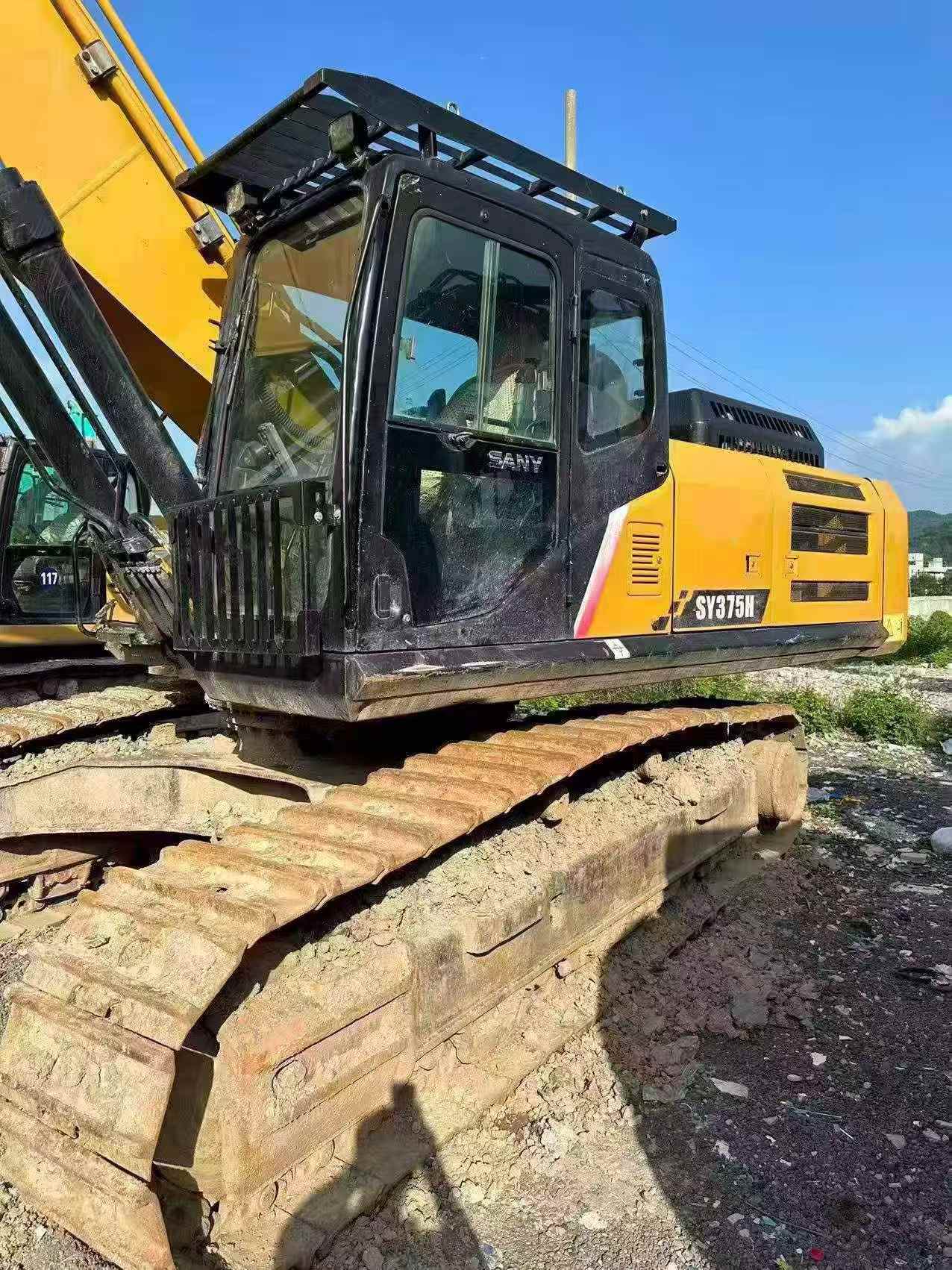

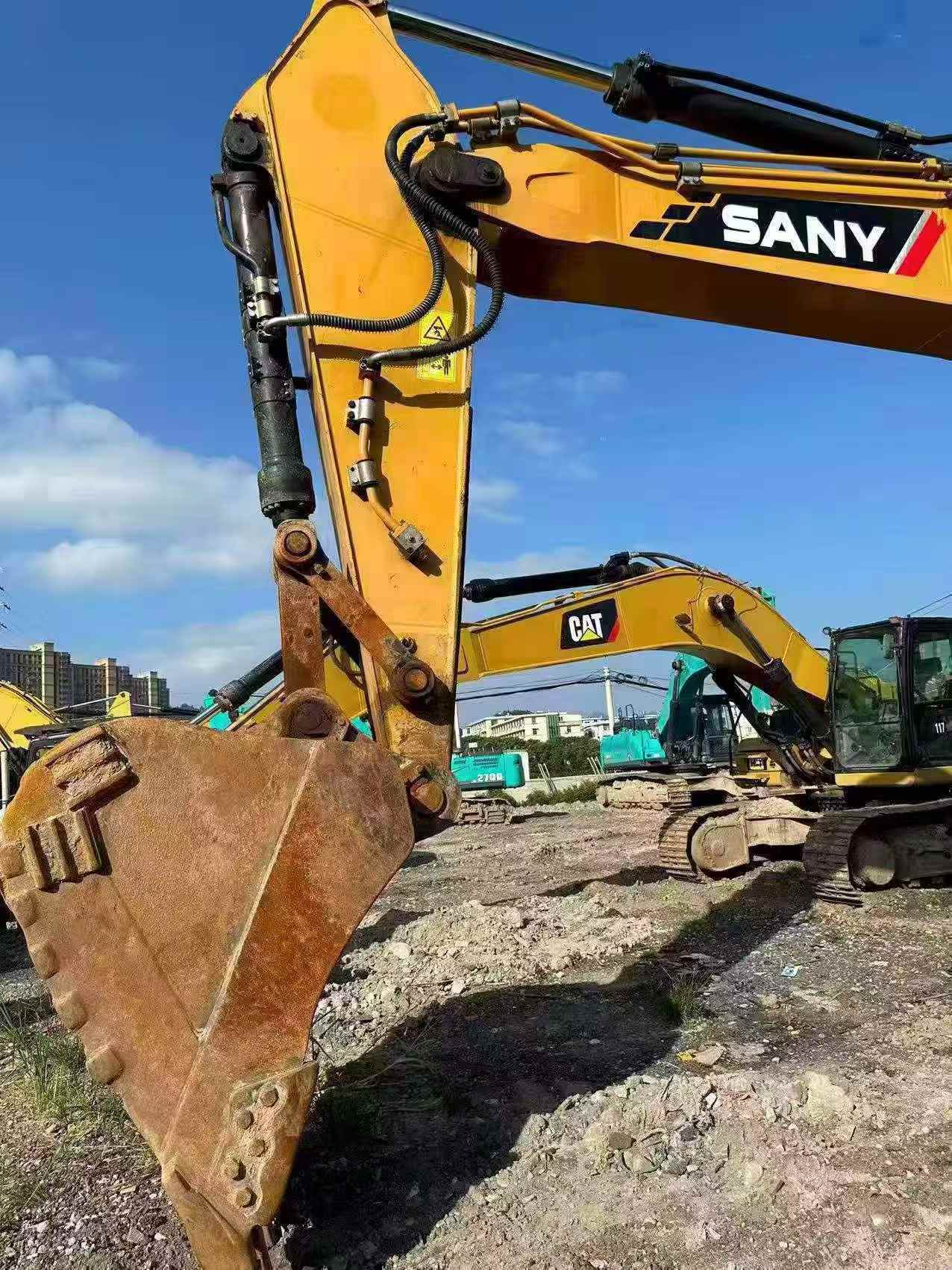

Located in Zhejiang, China, this 2019 SY375H is ready for inspection and global shipment.
| Specifications | Value |
|---|---|
| No. | 1121950 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
